直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9GA0624P1J031FAN AXIAL 60X38MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 62.0 CFM (1.74m³/min) | 3.330 in H2O (829.5 Pa) | Ball | 0.287 lb (130.18 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 38.00mm | 63.0dB(A) | 18 W | CSA, TUV, UL | 17500 RPM | -4 ~ 140°F (-20 ~ 60°C) | 4 Wire Leads | - |
|

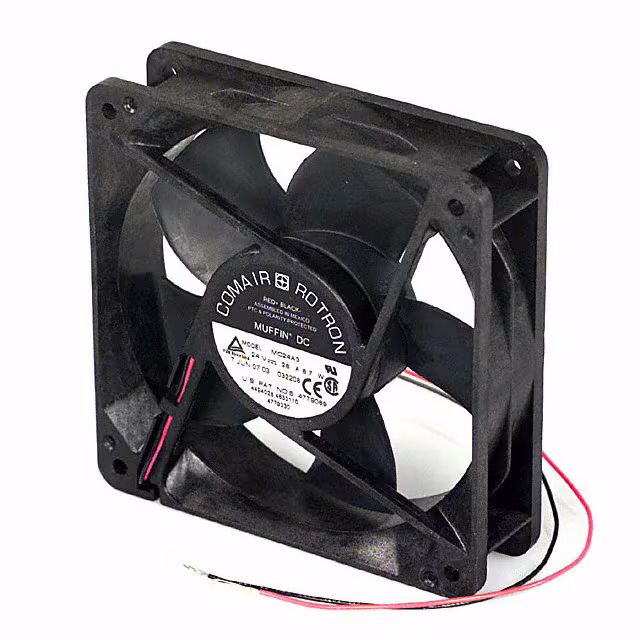

19032208AFAN AXIAL 120X32MM 24VDC MC24A3 |
0 | - |
|
数据表 |
Muffin | - | Obsolete | 24VDC | Square - 120mm L x 120mm H | 102.0 CFM (2.86m³/min) | 0.350 in H2O (87.2 Pa) | Sleeve | 0.529 lb (239.95 g) | Tubeaxial | - | 32.00mm | 47.8dB(A) | 6.7 W | - | 3700 RPM | - | 2 Wire Leads | - |
|
19032207AFAN AXIAL 120X32MM 12VDC MC12A3 |
0 | - |
|
数据表 |
Muffin | - | Obsolete | 12VDC | Square - 120mm L x 120mm H | 102.0 CFM (2.86m³/min) | 0.350 in H2O (87.2 Pa) | Sleeve | 0.529 lb (239.95 g) | Tubeaxial | - | 32.00mm | 47.8dB(A) | 7.9 W | - | 3700 RPM | - | 2 Wire Leads | - |
|
|
19032140AFAN AXIAL 120X32MM 12VDC MC12E3 |
0 | - |
|
数据表 |
Muffin | - | Obsolete | 12VDC | Square - 120mm L x 120mm H | 60.0 CFM (1.68m³/min) | 0.132 in H2O (32.9 Pa) | Sleeve | 0.529 lb (239.95 g) | Tubeaxial | - | 32.00mm | 39.7dB(A) | 2.2 W | - | 2170 RPM | - | 2 Wire Leads | - |
|
MR1238L48B-FSRFAN AXIAL 120X38MM 48VDC WIRE |
0 | - |
|
数据表 |
MR1238 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 184.4 CFM (5.16m³/min) | 0.660 in H2O (164.4 Pa) | Ball | 0.838 lb (380.11 g) | Tubeaxial | Auto Restart | 38.00mm | 58.5dB(A) | - | CE, cUL, TUV, UL | 3500 RPM | - | 2 Wire Leads | - |
|
9RA1248A4001FAN AXIAL 120X25MM 48VDC WIRE |
30 | - |
|
数据表 |
San Ace 120 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 101.2 CFM (2.83m³/min) | 0.293 in H2O (73.0 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 42.0dB(A) | 4.32 W | cURus, TUV | 3500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|

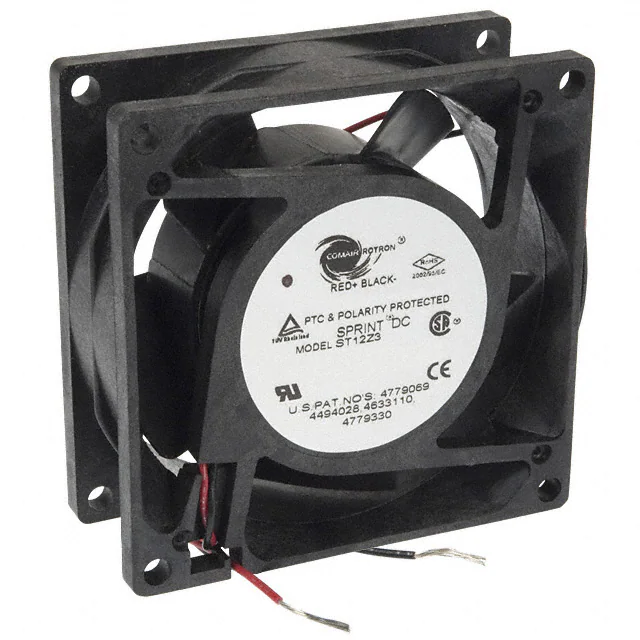

19039067AFAN AXIAL 80X32MM 12VDC ST12Z3 |
84 | - |
|
数据表 |
Sprint | Box | Active | 12VDC | Square - 80mm L x 80mm H | 45.0 CFM (1.26m³/min) | 0.372 in H2O (92.7 Pa) | Ball | 0.397 lb (180.08 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 32.00mm | 51.5dB(A) | 6.2 W | CE, UL | 4700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
9RA1248P4G0011FAN AXIAL 120X25MM 48VDC WIRE |
30 | - |
|
数据表 |
San Ace 120 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 130.0 CFM (3.64m³/min) | 0.480 in H2O (119.6 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.00mm | 47.0dB(A) | 7.2 W | cURus, TUV | 4500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
|
12038VA-12P-EA-00FAN AXIAL 120X38MM 12VDC WIRE |
38 | - |
|
数据表 |
12038VA | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 189.9 CFM (5.32m³/min) | 0.920 in H2O (229.2 Pa) | Ball | - | Tubeaxial | Auto Restart | 38.00mm | 59.5dB | 18 W | - | 5000 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|
19030769AFAN AXIAL 79.8X41.8MM 48V SD48B5 |
97 | - |
|
数据表 |
Sprite | Box | Active | 48VDC | Square - 79.8mm L x 79.8mm H | 35.0 CFM (0.980m³/min) | 0.152 in H2O (37.9 Pa) | Ball | 1.1 lbs (500.0 g) | Tubeaxial | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 41.80mm | 47.6dB(A) | 3.1 W | CE, UL | 3500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
_Series.jpg)
|
3412N/39HFAN AXIAL 92X25.4MM 12VDC WIRE |
16 | - |
|
数据表 |
3400N | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 55.3 CFM (1.55m³/min) | 0.189 in H2O (47.1 Pa) | Ball | - | Tubeaxial | - | 25.40mm | 35.0dB(A) | 2.5 W | CCC, CE, CSA, EAC, UL, VDE | 3000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
8312HL-156FAN AXIAL 80X32MM 12VDC |
39 | - |
|
数据表 |
8300 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 39.5 CFM (1.11m³/min) | 0.401 in H2O (100.0 Pa) | Ball | 0.375 lb (170.1 g) | Tubeaxial | - | 32.00mm | 43.0dB(A) | 4 W | CE, CSA, UL, VDE | 4200 RPM | -4 ~ 167°F (-20 ~ 75°C) | 2 Position Rectangular Connector | - |
|
4318/2FAN AXIAL 119X32MM 48VDC WIRE |
80 | - |
|
数据表 |
4300 | Box | Active | 48VDC | Square - 119mm L x 119mm H | 100.1 CFM (2.80m³/min) | - | Ball | 0.49 lb (222.26 g) | Tubeaxial | Speed Sensor (Tach) | 32.00mm | 45.0dB(A) | 5 W | CE, CSA, UL, VDE | - | - | 3 Wire Leads | - |
|
|
9RA1248G40011FAN AXIAL 120X25MM 48VDC WIRE |
30 | - |
|
数据表 |
San Ace 120 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 130.0 CFM (3.64m³/min) | 0.480 in H2O (119.6 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 47.0dB(A) | 7.2 W | cURus, TUV | 4500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9RA1248E4001FAN AXIAL 120X25MM 48VDC WIRE |
30 | - |
|
数据表 |
San Ace 120 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 116.5 CFM (3.26m³/min) | 0.386 in H2O (96.1 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 45.0dB(A) | 5.28 W | cURus, TUV | 4000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9RA1248A40011FAN AXIAL 120X25MM 48VDC WIRE |
30 | - |
|
数据表 |
San Ace 120 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 101.2 CFM (2.83m³/min) | 0.293 in H2O (73.0 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 42.0dB(A) | 4.32 W | cURus, TUV | 3500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9RA1248E40011FAN AXIAL 120X25MM 48VDC WIRE |
30 | - |
|
数据表 |
San Ace 120 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 116.5 CFM (3.26m³/min) | 0.386 in H2O (96.1 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 45.0dB(A) | 5.28 W | cURus, TUV | 4000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
8314MFAN AXIAL 80X32MM 24VDC WIRE |
12 | - |
|
数据表 |
8300 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 28.3 CFM (0.792m³/min) | - | Ball | 0.375 lb (170.1 g) | Tubeaxial | - | 32.00mm | 34.0dB(A) | 2.1 W | CE, CSA, UL, VDE | 3000 RPM | -4 ~ 167°F (-20 ~ 75°C) | 2 Wire Leads | - |
|
|
06056EA-12S-E6D-L60X60X56MM, 12VDC, 17,750/15,450 |
33 | - |
|
数据表 |
106056 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 72.0 CFM (2.02m³/min) | 6.600 in H2O (1643.9 Pa) | Ball | - | Tubeaxial (Dual) | Auto Restart, Dual Speed, PWM Control, Speed Sensor (Tach) | 56.00mm | 74.0dB | 50.4 W | CE, cULus, VDE | 17750 RPM Front, 15450 RPM Rear | 14 ~ 140°F (-10 ~ 60°C) | 4 Wire Leads | - |
|
4318NH3FAN AXIAL 119X32MM 48VDC WIRE |
39 | - |
|
数据表 |
4300N | Bulk | Active | 48VDC | Square - 119mm L x 119mm H | 167.0 CFM (4.68m³/min) | - | Ball | 0.553 lb (250.84 g) | Tubeaxial | - | 32.00mm | 55.0dB(A) | 11.5 W | - | 4050 RPM | -4 ~ 167°F (-20 ~ 75°C) | 2 Wire Leads | - |
