直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9RA0848G10011FAN AXIAL 80X38MM 48VDC WIRE |
55 | - |
|
数据表 |
San Ace 80 | Box | Active | 48VDC | Square - 80mm L x 80mm H | 85.5 CFM (2.39m³/min) | 0.830 in H2O (206.7 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 48.0dB(A) | 10.56 W | cURus, TUV | 6750 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
9WP1248M101FAN AXIAL 120X38MM 48VDC WIRE |
14 | - |
|
数据表 |
San Ace 120W | Box | Active | 48VDC | Square - 120mm L x 120mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | - | 3.36 W | - | - | - | 3 Wire Leads | IP68 - Dust Tight, Waterproof |
|
9WPA0624P4G003FAN AXL 60X25MM 24VDC RECT CONN |
54 | - |
|
数据表 |
San Ace 60W | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 15.3 CFM (0.428m³/min) | 0.120 in H2O (29.9 Pa) | Ball | 0.243 lb (110.22 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.00mm | 22.0dB(A) | - | - | 3500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Position Rectangular Connector | IP68 - Dust Tight, Waterproof |
|
712F/2FAN AXIAL 70X15MM 12VDC WIRE |
30 | - |
|
数据表 |
700F | Bulk | Active | 12VDC | Square - 70mm L x 70mm H | 25.9 CFM (0.725m³/min) | - | Sintec | - | Tubeaxial | Speed Sensor (Tach) | 15.00mm | 38.0dB(A) | 1.7 W | - | 5300 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
8312LFAN AXIAL 80X32MM 12VDC WIRE |
43 | - |
|
数据表 |
8300 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 19.0 CFM (0.532m³/min) | - | Ball | 0.375 lb (170.1 g) | Tubeaxial | - | 32.00mm | 24.0dB(A) | 1 W | CE, CSA, UL, VDE | 2000 RPM | -4 ~ 167°F (-20 ~ 75°C) | 2 Wire Leads | - |
|
4314GFAN AXIAL 119X32MM 24VDC WIRE |
20 | - |
|
数据表 |
4300 | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 100.1 CFM (2.80m³/min) | - | Sintec | 0.485 lb (219.99 g) | Tubeaxial | - | 32.00mm | 45.0dB(A) | 5 W | CE, CSA, UL, VDE | 2800 RPM | -4 ~ 167°F (-20 ~ 75°C) | 2 Wire Leads | - |
|
|
4312GFAN AXIAL 119X32MM 12VDC WIRE |
6 | - |
|
数据表 |
4300 | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 100.1 CFM (2.80m³/min) | - | Sintec | 0.485 lb (219.99 g) | Tubeaxial | - | 32.00mm | 45.0dB(A) | 5 W | CE, CSA, UL, VDE | 2800 RPM | -4 ~ 167°F (-20 ~ 75°C) | 2 Wire Leads | - |
|
109L0612H402FAN AXIAL 60X25MM 12VDC WIRE |
92 | - |
|
数据表 |
San Ace 60L | Box | Active | 12VDC | Square - 60mm L x 60mm H | 18.7 CFM (0.524m³/min) | 0.161 in H2O (40.2 Pa) | Ball | 0.222 lb (100.7 g) | Tubeaxial | - | 25.00mm | 28.0dB(A) | 1.32 W | CSA, TUV, UR | 3800 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|

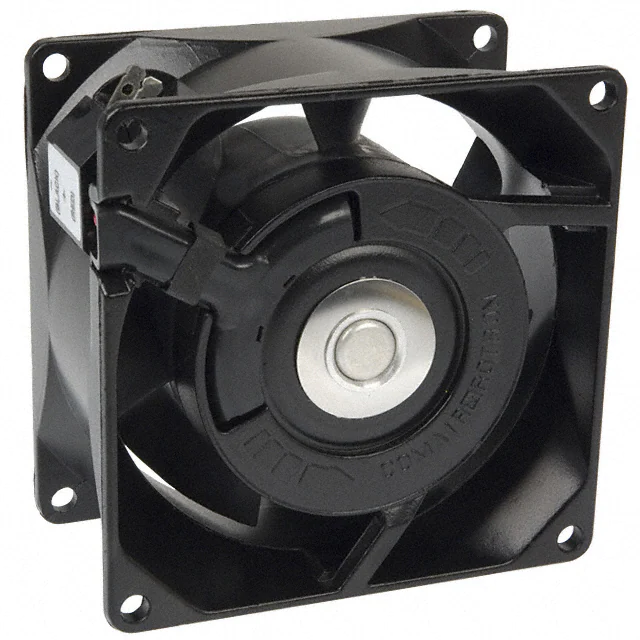

19032003AFAN AXIAL 79.8X41.8MM 48V SD48B2 |
91 | - |
|
数据表 |
Sprite | Bulk | Active | 48VDC | Square - 79.8mm L x 79.8mm H | 35.0 CFM (0.980m³/min) | 0.152 in H2O (37.9 Pa) | Ball | 1.1 lbs (500.0 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 41.80mm | 47.6dB(A) | 3.1 W | CE, UL | 3500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
4484FFAN AXIAL 119X25.4MM 24VDC TERM |
39 | - |
|
数据表 |
4400F | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 100.0 CFM (2.80m³/min) | - | Ball | 0.38 lb (172.37 g) | Tubeaxial | - | 25.40mm | 43.0dB(A) | 5 W | CE, CSA, UL, VDE | - | - | 2 Terminals | - |
|
9G1212G4D01FAN AXIAL 119X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 130.0 CFM (3.64m³/min) | 0.482 in H2O (120.0 Pa) | Ball | 0.529 lb (239.95 g) | Tubeaxial | Locked Rotor Sensor | 25.00mm | 51.0dB(A) | 10.8 W | CSA, TUV, UL | 4100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9G1212G4D011FAN AXIAL 119X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 130.0 CFM (3.64m³/min) | 0.482 in H2O (120.0 Pa) | Ball | 0.529 lb (239.95 g) | Tubeaxial | Locked Rotor Sensor | 25.00mm | 51.0dB(A) | 10.8 W | CSA, TUV, UL | 4100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9G1224E4D011FAN AXIAL 119X25MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 120 | Box | Active | 24VDC | Square - 119mm L x 119mm H | 115.0 CFM (3.22m³/min) | 0.394 in H2O (98.1 Pa) | Ball | 0.529 lb (239.95 g) | Tubeaxial | Locked Rotor Sensor | 25.00mm | 48.0dB(A) | 8.88 W | CSA, TUV, UL | 3650 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9G1248A4011FAN AXIAL 119X25MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 120 | Box | Active | 48VDC | Square - 119mm L x 119mm H | 100.1 CFM (2.80m³/min) | 0.309 in H2O (77.0 Pa) | Ball | 0.529 lb (239.95 g) | Tubeaxial | Speed Sensor (Tach) | 25.00mm | 44.0dB(A) | 6.24 W | CSA, TUV, UL | 3150 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9G1248A4D01FAN AXIAL 119X25MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 120 | Box | Active | 48VDC | Square - 119mm L x 119mm H | 100.1 CFM (2.80m³/min) | 0.309 in H2O (77.0 Pa) | Ball | 0.529 lb (239.95 g) | Tubeaxial | Locked Rotor Sensor | 25.00mm | 44.0dB(A) | 6.24 W | CSA, TUV, UL | 3150 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9G1248A4D011FAN AXIAL 119X25MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 120 | Box | Active | 48VDC | Square - 119mm L x 119mm H | 100.1 CFM (2.80m³/min) | 0.309 in H2O (77.0 Pa) | Ball | 0.529 lb (239.95 g) | Tubeaxial | Locked Rotor Sensor | 25.00mm | 44.0dB(A) | 6.24 W | CSA, TUV, UL | 3150 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9G1248E4011FAN AXIAL 119X25MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 120 | Box | Active | 48VDC | Square - 119mm L x 119mm H | 115.0 CFM (3.22m³/min) | 0.394 in H2O (98.1 Pa) | Ball | 0.529 lb (239.95 g) | Tubeaxial | Speed Sensor (Tach) | 25.00mm | 48.0dB(A) | 7.68 W | CSA, TUV, UL | 3650 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9G1248E4D011FAN AXIAL 119X25MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 120 | Box | Active | 48VDC | Square - 119mm L x 119mm H | 115.0 CFM (3.22m³/min) | 0.394 in H2O (98.1 Pa) | Ball | 0.529 lb (239.95 g) | Tubeaxial | Locked Rotor Sensor | 25.00mm | 48.0dB(A) | 7.68 W | CSA, TUV, UL | 3650 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9G1248F4D01FAN AXIAL 119X25MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 120 | Box | Active | 48VDC | Square - 119mm L x 119mm H | 70.0 CFM (1.96m³/min) | 0.169 in H2O (42.1 Pa) | Ball | 0.529 lb (239.95 g) | Tubeaxial | Locked Rotor Sensor | 25.00mm | 35.0dB(A) | 2.88 W | CSA, TUV, UL | 2250 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9G1248F4D011FAN AXIAL 119X25MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 120 | Box | Active | 48VDC | Square - 119mm L x 119mm H | 70.0 CFM (1.96m³/min) | 0.169 in H2O (42.1 Pa) | Ball | 0.529 lb (239.95 g) | Tubeaxial | Locked Rotor Sensor | 25.00mm | 35.0dB(A) | 2.88 W | CSA, TUV, UL | 2250 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
