直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC0803848L2B-BT4FAN 80X38MM 48VDC PWM/TACH MOLEX |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 80mm L x 80mm H | 58.2 CFM (1.63m³/min) | 0.410 in H2O (102.1 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 45.0dB(A) | 19.2 W | CE, cURus | 4200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
|
DC0923812V2B-2T2FAN 92X38MM 12VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 166.4 CFM (4.66m³/min) | 1.910 in H2O (475.7 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 38.00mm | 72.0dB(A) | 35.4 W | CE, cURus, TUV | 8000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
DC0603812M2B-2T2FAN 60X38MM 12VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 67.0 CFM (1.88m³/min) | 2.070 in H2O (515.6 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 38.00mm | 62.0dB(A) | 16.56 W | CE, cURus, TUV | 12000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
FFB0812GHE-F00FAN AXIAL 80X38MM 12VDC WIRE |
0 | - |
|
数据表 |
FFB | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 89.9 CFM (2.52m³/min) | 0.922 in H2O (229.7 Pa) | Ball | 0.375 lb (170.1 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 59.8dB(A) | 13.8 W | CE, CSA, UL, VDE | 6600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
BFB1012L-AF00FAN BLOWER 97.8X33MM 12VDC WIRE |
0 | - |
|
数据表 |
BFB | Box | Active | 12VDC | Rectangular/Rounded - 97.8mm L x 95.5mm H | 23.2 CFM (0.650m³/min) | 0.585 in H2O (145.7 Pa) | Ball | 0.397 lb (180.08 g) | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 33.00mm | 49.5dB(A) | 4.4 W | CE, CSA, UL, VDE | 2700 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | - |
|
|
9GA0824J40021FAN AXIAL 80X25.2MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 73.0 CFM (2.04m³/min) | 0.700 in H2O (174.4 Pa) | Ball | 0.243 lb (110.22 g) | Tubeaxial | Locked Rotor Protection | 25.20mm | 48.0dB(A) | 6.72 W | CSA, TUV, UL | 7400 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
MS8038L48B-FHR-2EMFAN AXIAL 80X38MM 48VDC WIRE |
0 | - |
|
数据表 |
MS8038-H | Bulk | Active | 48VDC | Square - 80mm L x 80mm H | 80.7 CFM (2.26m³/min) | 0.740 in H2O (184.3 Pa) | Ball | 0.391 lb (177.35 g) | Tubeaxial | Auto Restart | 38.00mm | 50.0dB(A) | - | - | 6000 RPM | - | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
MS8038M48B-FHR-2EMFAN AXIAL 80X38MM 48VDC WIRE |
0 | - |
|
数据表 |
MS8038-H | Bulk | Active | 48VDC | Square - 80mm L x 80mm H | 109.2 CFM (3.06m³/min) | 1.220 in H2O (303.9 Pa) | Ball | 0.391 lb (177.35 g) | Tubeaxial | Auto Restart | 38.00mm | 62.0dB(A) | - | - | 8000 RPM | - | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
DC0603848J2B-BT4FAN 60X38MM 48VDC PWM/TACH MOLEX |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 60mm L x 60mm H | 50.6 CFM (1.42m³/min) | 1.190 in H2O (296.4 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 54.0dB(A) | 32.64 W | CE, cURus | 9000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
|
DC0603848I2B-BT4FAN 60X38MM 48VDC PWM/TACH MOLEX |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 60mm L x 60mm H | 43.1 CFM (1.21m³/min) | 0.900 in H2O (224.2 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 51.0dB(A) | 24.96 W | CE, cURus | 8000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
|
DC0603848L2B-BT4FAN 60X38MM 48VDC PWM/TACH MOLEX |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 60mm L x 60mm H | 55.2 CFM (1.55m³/min) | 1.410 in H2O (351.2 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 57.0dB(A) | 48 W | CE, cURus | 10000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
|
MS6038L48B1+6-FSR-2EMFAN AXIAL 60X38MM 48VDC WIRE |
0 | - |
|
数据表 |
MS6038-S | Bulk | Active | 48VDC | Square - 60mm L x 60mm H | 26.1 CFM (0.731m³/min) | 0.470 in H2O (117.1 Pa) | Ball | 0.231 lb (104.78 g) | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 38.00mm | 39.0dB(A) | - | - | 6000 RPM | - | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|

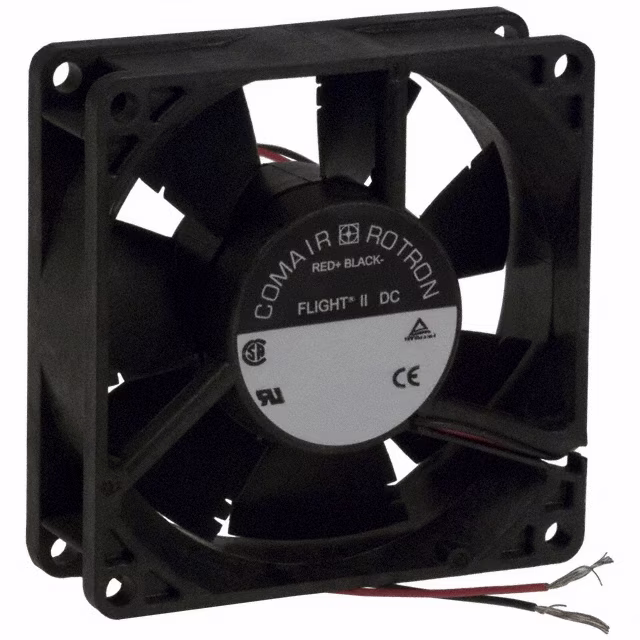

19031165AFAN AXIAL 80X25.4MM 24VDC FE24H3 |
0 | - |
|
数据表 |
Flight II 80 | - | Obsolete | 24VDC | Square - 80mm L x 80mm H | 27.0 CFM (0.756m³/min) | 0.123 in H2O (30.6 Pa) | Ball | 0.287 lb (130.18 g) | Tubeaxial | - | 25.40mm | 28.9dB(A) | 1.2 W | - | 2660 RPM | - | 2 Wire Leads | - |
|
|
DC1203824W2B-3T0FAN 120X38MM 24VDC TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 178.4 CFM (5.00m³/min) | 0.940 in H2O (234.1 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 54.0dB(A) | 37.2 W | CE, cURus | 4200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
DC1203848W2B-2T0FAN 120X38MM 48VDC |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 178.4 CFM (5.00m³/min) | 0.940 in H2O (234.1 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 38.00mm | 54.0dB(A) | 74.4 W | CE, cURus | 4200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
DC0923824L2B-3T3FAN 92X38MM 24VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 97.1 CFM (2.72m³/min) | 0.700 in H2O (174.4 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 52.0dB(A) | 12 W | CE, cURus | 4300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
|
109BM24MC2-1FAN BLOWER 97.2X33MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace B97 | Box | Active | 24VDC | Rectangular/Rounded - 97.2mm L x 94.4mm H | 20.5 CFM (0.574m³/min) | 0.478 in H2O (119.1 Pa) | Ball | 0.386 lb (175.09 g) | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 33.00mm | 43.5dB(A) | 3.6 W | CSA, TUV, UL | 2700 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
109BM12GD2-1FAN BLOWER 97.2X33MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace B97 | Box | Active | 12VDC | Rectangular/Rounded - 97.2mm L x 94.5mm H | 28.9 CFM (0.809m³/min) | 1.129 in H2O (281.0 Pa) | Ball | 0.386 lb (175.09 g) | Blower | Locked Rotor Sensor | 33.00mm | 51.5dB(A) | 7.2 W | CSA, TUV, UL | 3800 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
109BM12HD2-1FAN BLOWER 97.2X33MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace B97 | Box | Active | 12VDC | Rectangular/Rounded - 97.2mm L x 94.5mm H | 25.1 CFM (0.703m³/min) | 0.819 in H2O (204.0 Pa) | Ball | 0.386 lb (175.09 g) | Blower | Locked Rotor Sensor | 33.00mm | 48.5dB(A) | 4.8 W | CSA, TUV, UL | 3300 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
109BM12MD2-1FAN BLOWER 97.2X33MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace B97 | Box | Active | 12VDC | Rectangular/Rounded - 97.2mm L x 94.5mm H | 20.5 CFM (0.574m³/min) | 0.478 in H2O (119.1 Pa) | Ball | 0.386 lb (175.09 g) | Blower | Locked Rotor Sensor | 33.00mm | 43.5dB(A) | 3.12 W | CSA, TUV, UL | 2700 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
