直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
_Series.jpg)
|
3414NGMFAN AXIAL 92X25.4MM 24VDC WIRE |
48 | - |
|
数据表 |
3400N | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 42.4 CFM (1.19m³/min) | - | Sintec | 0.22 lb (99.79 g) | Tubeaxial | - | 25.40mm | 28.0dB(A) | 1.8 W | CSA, UL, VDE | 2300 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
4312GLFAN AXIAL 119X32MM 12VDC WIRE |
40 | - |
|
数据表 |
4300 | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 56.0 CFM (1.57m³/min) | - | Sintec | 0.485 lb (219.99 g) | Tubeaxial | - | 32.00mm | 30.0dB(A) | 1.2 W | CE, CSA, UL, VDE | 1550 RPM | -4 ~ 167°F (-20 ~ 75°C) | 2 Wire Leads | - |
|
8314LFAN AXIAL 80X32MM 24VDC WIRE |
39 | - |
|
数据表 |
8300 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 19.0 CFM (0.532m³/min) | - | Ball | 0.375 lb (170.1 g) | Tubeaxial | - | 32.00mm | 24.0dB(A) | 1 W | CE, CSA, UL, VDE | 2000 RPM | -4 ~ 167°F (-20 ~ 75°C) | 2 Wire Leads | - |
|

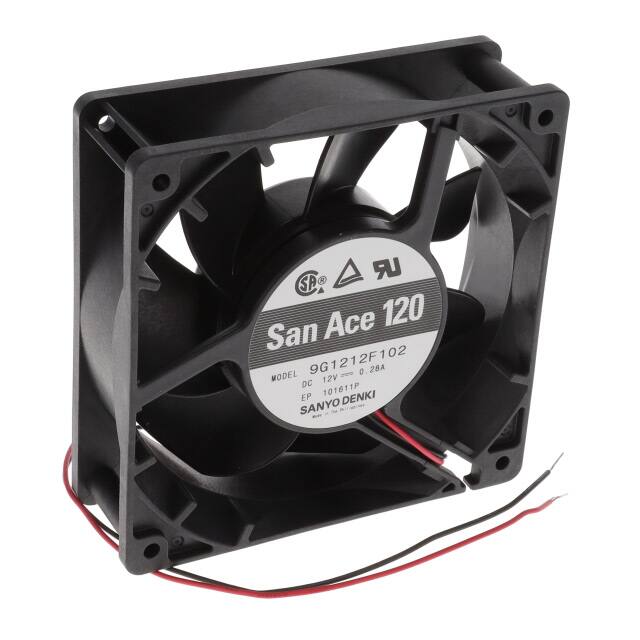

9G1212F102FAN AXIAL 119X38MM 12VDC WIRE |
31 | - |
|
数据表 |
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 87.0 CFM (2.44m³/min) | 0.218 in H2O (54.3 Pa) | Ball | 0.728 lb (330.22 g) | Tubeaxial | - | 38.00mm | 36.0dB(A) | 3.36 W | CSA, TUV, UL | 2280 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
9RA0812H1001FAN AXIAL 80X38MM 12VDC WIRE |
50 | - |
|
数据表 |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 77.3 CFM (2.19m³/min) | 0.670 in H2O (166.9 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 46.0dB(A) | 7.92 W | cURus, TUV | 6100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
9RA1224M40011FAN AXIAL 120X25MM 24VDC WIRE |
57 | - |
|
数据表 |
San Ace 120 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 63.5 CFM (1.78m³/min) | 0.116 in H2O (29.0 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 28.0dB(A) | 1.68 W | cURus, TUV | 2200 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9RA1224H40011FAN AXIAL 120X25MM 24VDC WIRE |
52 | - |
|
数据表 |
San Ace 120 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 92.0 CFM (2.58m³/min) | 0.245 in H2O (61.0 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 39.0dB(A) | 3.12 W | cURus, TUV | 3200 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
9G1224M101FAN AXIAL 119X38MM 24VDC WIRE |
58 | - |
|
数据表 |
San Ace 120 | Box | Active | 24VDC | Square - 119mm L x 119mm H | 74.0 CFM (2.07m³/min) | 0.159 in H2O (39.6 Pa) | Ball | 0.728 lb (330.22 g) | Tubeaxial | Speed Sensor (Tach) | 38.00mm | 32.0dB(A) | 2.64 W | CSA, TUV, UL | 1950 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9G1224M1011FAN AXIAL 119X38MM 24VDC WIRE |
14 | - |
|
数据表 |
San Ace 120 | Box | Active | 24VDC | Square - 119mm L x 119mm H | 74.0 CFM (2.07m³/min) | 0.159 in H2O (39.6 Pa) | Ball | 0.728 lb (330.22 g) | Tubeaxial | Speed Sensor (Tach) | 38.00mm | 32.0dB(A) | 2.64 W | CSA, TUV, UL | 1950 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9RA1224H4001FAN AXIAL 120X25MM 24VDC WIRE |
55 | - |
|
数据表 |
San Ace 120 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 92.0 CFM (2.58m³/min) | 0.245 in H2O (61.0 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 39.0dB(A) | 3.12 W | cURus, TUV | 3200 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
G1338H24B2-FSRFAN AXIAL 127X38MM 24VDC WIRE |
0 | - |
|
数据表 |
G1338 | Bulk | Active | 24VDC | Square - 127mm L x 127mm H | 141.0 CFM (3.95m³/min) | 0.590 in H2O (147.0 Pa) | Ball | 0.784 lb (355.62 g) | Tubeaxial | Locked Rotor Sensor, Thermal Overload Protector (TOP) | 38.00mm | 49.0dB(A) | - | CE, cUL, TUV, UL | 3200 RPM | - | 3 Wire Leads | - |
|
|
G1338H24B2-FSR-WSFAN AXIAL 127X38MM 24VDC WIRE |
0 | - |
|
数据表 |
G1338 | Bulk | Active | 24VDC | Square - 127mm L x 127mm H | 141.0 CFM (3.95m³/min) | 0.590 in H2O (147.0 Pa) | Ball | 0.784 lb (355.62 g) | Tubeaxial | Alarm Sensor, Locked Rotor Sensor, Thermal Overload Protector (TOP) | 38.00mm | 49.0dB(A) | - | CE, cUL, TUV, UL | 3200 RPM | - | 4 Wire Leads | - |
|
|
G1338M12B1-FSRFAN AXIAL 127X38MM 12VDC WIRE |
0 | - |
|
数据表 |
G1338 | Bulk | Active | 12VDC | Square - 127mm L x 127mm H | 122.1 CFM (3.42m³/min) | 0.460 in H2O (114.6 Pa) | Ball | 0.784 lb (355.62 g) | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 38.00mm | 46.0dB(A) | - | CE, cUL, TUV, UL | 2800 RPM | - | 3 Wire Leads | - |
|
|
G1338S12B1-FSR-TTLFAN AXIAL 127X38MM 12VDC WIRE |
0 | - |
|
数据表 |
G1338 | Bulk | Active | 12VDC | Square - 127mm L x 127mm H | 87.0 CFM (2.44m³/min) | 0.240 in H2O (59.8 Pa) | Ball | 0.784 lb (355.62 g) | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 38.00mm | 37.0dB(A) | - | CE, cUL, TUV, UL | 2000 RPM | - | 3 Wire Leads | - |
|
|
G1338S48B1-FSR-TTLFAN AXIAL 127X38MM 48VDC WIRE |
0 | - |
|
数据表 |
G1338 | Bulk | Active | 48VDC | Square - 127mm L x 127mm H | 87.0 CFM (2.44m³/min) | 0.240 in H2O (59.8 Pa) | Ball | 0.784 lb (355.62 g) | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 38.00mm | 37.0dB(A) | - | CE, cUL, TUV, UL | 2000 RPM | - | 3 Wire Leads | - |
|
|
CFM-9238BF-2110-663DC AXIAL FAN, 92 MM SQUARE, 38 M |
0 | - |
|
数据表 |
CFM-92BF | Box | Active | 24VDC | Square - 92mm L x 92mm H | 151.0 CFM (4.23m³/min) | 2.900 in H2O (722.4 Pa) | Ball | - | Tubeaxial | Auto Restart | 38.00mm | 66.3dB(A) | 33.36 W | CE, cURus, TUV | 11000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
612NMFAN AXIAL 60X25.4MM 12VDC WIRE |
0 | - |
|
数据表 |
600N | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 20.6 CFM (0.577m³/min) | - | Ball | 0.19 lb (86.18 g) | Tubeaxial | - | 25.40mm | 28.0dB(A) | 1.1 W | CE, CSA, UL, VDE | - | - | 2 Wire Leads | - |
|
|
MD1238E12B-FSRFAN AXIAL 120X38MM 12VDC WIRE |
0 | - |
|
数据表 |
MD1238 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 192.0 CFM (5.38m³/min) | 0.820 in H2O (204.3 Pa) | Ball | 0.906 lb (410.95 g) | Tubeaxial | Thermal Overload Protector (TOP) | 38.00mm | 59.0dB(A) | - | cUL, UL | 4200 RPM | - | 2 Wire Leads | - |
|
|
DC0803848L2B-3T3FAN 80X38MM 48VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 80mm L x 80mm H | 58.2 CFM (1.63m³/min) | 0.410 in H2O (102.1 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 45.0dB(A) | 19.2 W | CE, cURus | 4200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
|
DC0923848L2B-2T2FAN 92X38MM 48VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 97.1 CFM (2.72m³/min) | 0.700 in H2O (174.4 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 38.00mm | 52.0dB(A) | 24 W | CE, cURus | 4300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
