直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

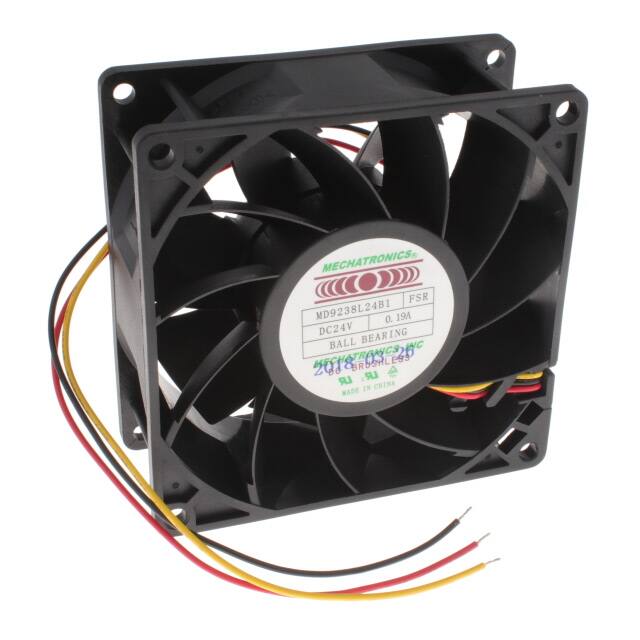

MD9238L24B1-FSRFAN AXIAL 92X38MM 24VDC WIRE |
23 | - |
|
数据表 |
MD9238 | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 71.0 CFM (1.99m³/min) | 0.310 in H2O (77.2 Pa) | Ball | 0.397 lb (180.08 g) | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 38.00mm | 44.5dB(A) | - | CE, TUV, UL | 3200 RPM | - | 3 Wire Leads | - |
|
9RA1224E40011FAN AXIAL 120X25MM 24VDC WIRE |
39 | - |
|
数据表 |
San Ace 120 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 116.5 CFM (3.26m³/min) | 0.386 in H2O (96.1 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 45.0dB(A) | 5.28 W | cURus, TUV | 4000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
F1238L12B2-FSR-WS-L28FAN AXIAL 119X38MM 12VDC WIRE |
49 | - |
|
数据表 |
F1238-S | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 94.0 CFM (2.63m³/min) | 0.170 in H2O (42.3 Pa) | Ball | 0.536 lb (243.13 g) | Tubeaxial | Auto Restart, Locked Rotor Sensor | 38.00mm | 36.0dB(A) | - | CE, cUL, TUV, UL | 2050 RPM | - | 3 Wire Leads | - |
|
9S1212H402FAN AXIAL 119X25MM 12VDC WIRE |
51 | - |
|
数据表 |
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 86.5 CFM (2.42m³/min) | 0.180 in H2O (44.8 Pa) | Ball | 0.309 lb (140.16 g) | Tubeaxial | - | 25.00mm | 36.0dB(A) | 4.68 W | CSA, TUV, UL | 2700 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|
E1225E12B3-FSRFAN AXIAL 120X25MM 12VDC WIRE |
50 | - |
|
数据表 |
E1225 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 93.0 CFM (2.60m³/min) | 0.280 in H2O (69.7 Pa) | Ball | 0.434 lb (196.86 g) | Tubeaxial | Thermal Overload Protector (TOP), Thermistor | 25.00mm | 44.0dB(A) | - | CE, cUL, TUV, UL | 3000 RPM | - | 2 Wire Leads | - |
|
9RA0924H40011FAN AXIAL 92X25MM 24VDC WIRE |
52 | - |
|
数据表 |
San Ace 92 | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 51.5 CFM (1.44m³/min) | 0.190 in H2O (47.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 31.0dB(A) | 1.92 W | cURus, TUV | 3400 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9RA0924M4001FAN AXIAL 92X25MM 24VDC WIRE |
50 | - |
|
数据表 |
San Ace 92 | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 37.1 CFM (1.04m³/min) | 0.100 in H2O (24.9 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 23.0dB(A) | 960 mW | cURus, TUV | 2450 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
MH4028X12B1+6-RSR-PCFAN AXIAL 40X28MM 12VDC WIRE |
12 | - |
|
数据表 |
MH4028 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 25.2 CFM (0.706m³/min) | 1.325 in H2O (330.0 Pa) | Ball | 0.089 lb (40.37 g) | Tubeaxial | Auto Restart, Parylene Coating, PWM Control, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 28.00mm | 63.0dB(A) | - | - | 16500 RPM | - | 4 Wire Leads | - |
|
9G0912H201FAN AXIAL 92X32MM 12VDC WIRE |
64 | - |
|
数据表 |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 56.2 CFM (1.57m³/min) | 0.205 in H2O (51.2 Pa) | Ball | 0.375 lb (170.1 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 32.00mm | 32.0dB(A) | 2.76 W | CSA, TUV, UL | 2850 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9G0912H2011FAN AXIAL 92X32MM 12VDC WIRE |
64 | - |
|
数据表 |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 56.2 CFM (1.57m³/min) | 0.205 in H2O (51.2 Pa) | Ball | 0.375 lb (170.1 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 32.00mm | 32.0dB(A) | 2.76 W | CSA, TUV, UL | 2850 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
G1238E48B2-FSRFAN AXIAL 120X38MM 48VDC WIRE |
40 | - |
|
数据表 |
G1238 | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 158.0 CFM (4.42m³/min) | 0.490 in H2O (122.1 Pa) | Ball | 0.74 lb (335.66 g) | Tubeaxial | Locked Rotor Sensor, Thermal Overload Protector (TOP) | 38.00mm | 49.0dB(A) | - | CE, cUL, TUV, UL | 3600 RPM | - | 3 Wire Leads | - |
|
9GA0824L2002FAN AXIAL 80X32MM 24VDC WIRE |
62 | - |
|
数据表 |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection | 32.00mm | - | 1.2 W | - | - | - | 2 Wire Leads | - |
|
11925SE-12R-FTD-WFAN AXIAL 119X25MM 12VDC WIRE |
54 | - |
|
数据表 |
11925SE | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 128.2 CFM (3.59m³/min) | 0.357 in H2O (88.9 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.00mm | 47.0dB(A) | 7.44 W | CE, cULus, VDE | 3500 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | IP55 - Dust Protected, Water Resistant |
|
9GA0824L2D0011FAN AXIAL 80X32MM 24VDC WIRE |
61 | - |
|
数据表 |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Sensor | 32.00mm | - | 1.2 W | - | - | - | 3 Wire Leads | - |
|
9GA0824B2D001FAN AXIAL 80X32MM 24VDC WIRE |
39 | - |
|
数据表 |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Sensor | 32.00mm | - | 1.92 W | - | - | - | 3 Wire Leads | - |
|
CFM-A238B-232-480FAN AXIAL 120X37.5MM 24VDC WIRE |
58 | - |
|
数据表 |
CFM-120B | Box | Active | 24VDC | Square - 120mm L x 120mm H | 123.6 CFM (3.46m³/min) | 0.340 in H2O (84.7 Pa) | Ball | - | Tubeaxial | Auto Restart | 37.50mm | 48.0dB(A) | 12.72 W | CE, cURus, TUV | 3200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
11938KA-48L-EL-00FAN AXIAL 119X38.4MM 48VDC WIRE |
28 | - |
|
数据表 |
11938KA | Bulk | Active | 48VDC | Square - 119mm L x 119mm H | 108.4 CFM (3.03m³/min) | 0.270 in H2O (67.3 Pa) | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Sensor | 38.40mm | 42.5dB | 7.7 W | - | 2950 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
9RA0812M4001FAN AXIAL 80X25MM 12VDC WIRE |
69 | - |
|
数据表 |
San Ace 80 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 26.1 CFM (0.731m³/min) | 0.090 in H2O (22.4 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 22.0dB(A) | 720 mW | cURus, TUV | 2650 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
DC1203848J2B-BT4FAN 120X38MM 48VDC PWM/TACH MOLE |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 190.5 CFM (5.33m³/min) | 0.690 in H2O (171.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 56.0dB(A) | 72 W | CE, cURus | 4100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
|
DC1203848W2B-BT4FAN 120X38MM 48VDC PWM/TACH MOLE |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 178.4 CFM (5.00m³/min) | 0.940 in H2O (234.1 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 54.0dB(A) | 74.4 W | CE, cURus | 4200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
