直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC0603824I2B-BT4FAN 60X38MM 24VDC PWM/TACH MOLEX |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 43.1 CFM (1.21m³/min) | 0.900 in H2O (224.2 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 51.0dB(A) | 12.48 W | CE, cURus | 8000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
|
DC0603824J2B-BT4FAN 60X38MM 24VDC PWM/TACH MOLEX |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 50.6 CFM (1.42m³/min) | 1.190 in H2O (296.4 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 54.0dB(A) | 16.32 W | CE, cURus | 9000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
|
DC0603824L2B-BT4FAN 60X38MM 24VDC PWM/TACH MOLEX |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 55.2 CFM (1.55m³/min) | 1.410 in H2O (351.2 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 57.0dB(A) | 24 W | CE, cURus | 10000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
|
9GA0624J101FAN AXIAL 60X38MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 62.0 CFM (1.74m³/min) | 3.300 in H2O (822.0 Pa) | Ball | 0.287 lb (130.18 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 63.0dB(A) | 18 W | CSA, TUV, UL | 17500 RPM | -4 ~ 140°F (-20 ~ 60°C) | 3 Wire Leads | - |
|
|
9GA0624J1011FAN AXIAL 60X38MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 62.0 CFM (1.74m³/min) | 3.300 in H2O (822.0 Pa) | Ball | 0.287 lb (130.18 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 63.0dB(A) | 18 W | CSA, TUV, UL | 17500 RPM | -4 ~ 140°F (-20 ~ 60°C) | 3 Wire Leads | - |
|
E1225E12B-FSR-CCFAN AXIAL 120X25MM 12VDC WIRE |
18 | - |
|
数据表 |
E1225 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 93.0 CFM (2.60m³/min) | 0.280 in H2O (69.7 Pa) | Ball | 0.436 lb (197.77 g) | Tubeaxial | Conformal Coating, Thermal Overload Protector (TOP) | 25.00mm | 44.0dB(A) | - | CE, cUL, TUV, UL | 3000 RPM | - | 2 Wire Leads | - |
|
109R0648H4D01FAN AXIAL 60X25MM 48VDC WIRE |
64 | - |
|
数据表 |
San Ace 60 | Box | Active | 48VDC | Square - 60mm L x 60mm H | 18.7 CFM (0.524m³/min) | 0.161 in H2O (40.2 Pa) | Ball | 0.199 lb (90.26 g) | Tubeaxial | Locked Rotor Sensor | 25.00mm | 28.0dB(A) | 1.92 W | CSA, TUV, UL | 3800 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
9GA0924F402FAN AXIAL 92X25MM 24VDC WIRE |
23 | - |
|
数据表 |
San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection | 25.00mm | - | 1.92 W | - | - | - | 2 Wire Leads | - |
|

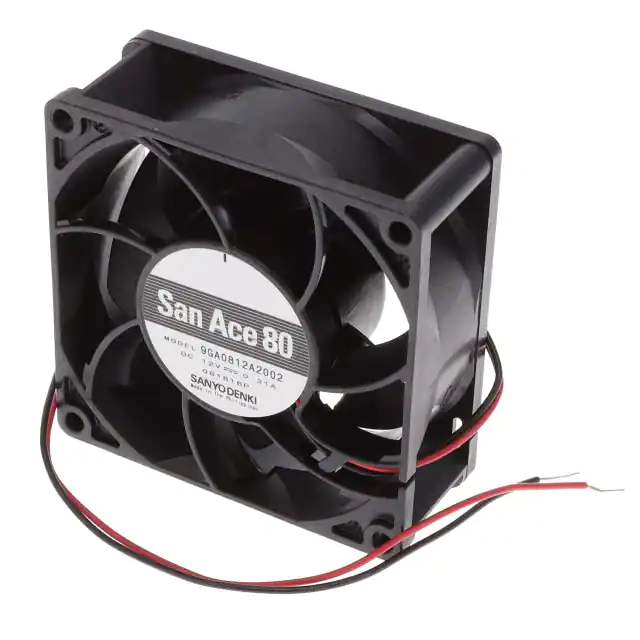

9GA0812A2002FAN AXIAL 80X32MM 12VDC WIRE |
32 | - |
|
数据表 |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection | 32.00mm | - | 3.72 W | - | - | - | 2 Wire Leads | - |
|
|
9GA0624P1K031FAN AXIAL 60X38MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 53.0 CFM (1.48m³/min) | 2.400 in H2O (597.8 Pa) | Ball | 0.287 lb (130.18 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 38.00mm | 59.0dB(A) | 12 W | CSA, TUV, UL | 14800 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
1-NPO/603-1082FAN AXL 120X38MM 12VDC RECT CONN |
0 | - |
|
数据表 |
AFB | Box | Active | 12VDC | Square - 120mm L x 120mm H | 151.9 CFM (4.25m³/min) | 0.571 in H2O (142.2 Pa) | Ball | 0.564 lb (255.83 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | 53.0dB(A) | 12.6 W | CE, CSA, UL, VDE | 3700 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Position Rectangular Connector | - |
|

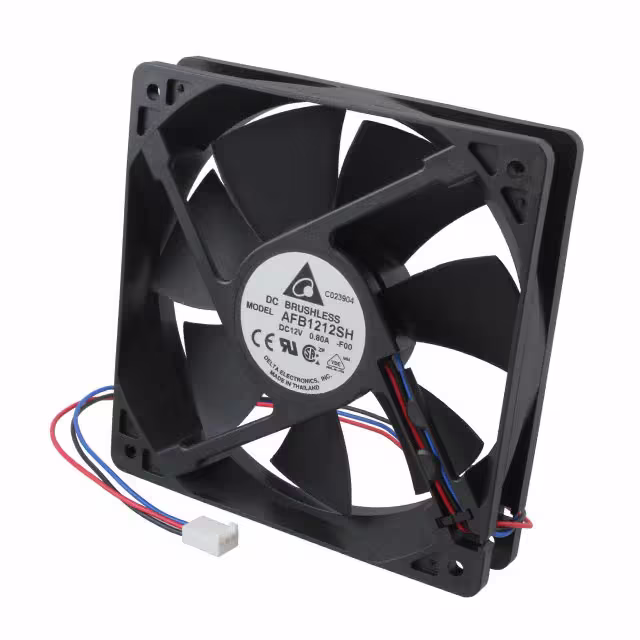

1-NPT/603-1336FAN AXIAL 120X25.4MM 12VDC RECT |
0 | - |
|
数据表 |
AFB | Box | Active | 12VDC | Square - 120mm L x 120mm H | 113.1 CFM (3.17m³/min) | 0.430 in H2O (107.1 Pa) | Ball | 0.437 lb (198.00 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.40mm | 46.5dB(A) | 6.36 W | CE, CSA, UL, VDE | 3400 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Position Rectangular Connector | - |
|
1-NPL/603-1548FAN AXIAL 120X25.4MM 12VDC RECT |
0 | - |
|
数据表 |
AFB | Box | Active | 12VDC | Square - 120mm L x 120mm H | 82.7 CFM (2.32m³/min) | 0.246 in H2O (61.3 Pa) | Ball | 0.437 lb (198.00 g) | Tubeaxial | Locked Rotor Sensor | 25.40mm | 38.5dB(A) | 2.76 W | CE, CSA, UL, VDE | 2500 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Position Rectangular Connector | - |
|
1-NPO/603-1339FAN AXL 120X38MM 12VDC RECT CONN |
0 | - |
|
数据表 |
AFB | Box | Active | 12VDC | Square - 120mm L x 120mm H | 130.0 CFM (3.64m³/min) | 0.420 in H2O (104.6 Pa) | Ball | 0.565 lb (256.28 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | 48.0dB(A) | 7.2 W | CE, CSA, UL, VDE | 3200 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Position Rectangular Connector | - |
|
1-NPT/603-1342FAN AXIAL 120X25.4MM 12VDC RECT |
0 | - |
|
数据表 |
AFB | Box | Active | 12VDC | Square - 120mm L x 120mm H | 103.8 CFM (2.91m³/min) | 0.371 in H2O (92.5 Pa) | Ball | 0.437 lb (198.00 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.40mm | 44.5dB(A) | 4.8 W | CE, CSA, UL, VDE | 3100 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Position Rectangular Connector | - |
|

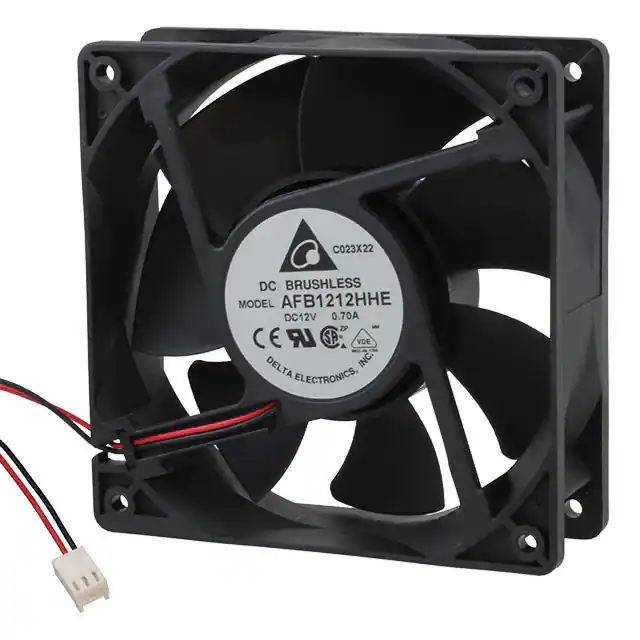

1-NPO/603-1329FAN AXL 120X38MM 12VDC RECT CONN |
0 | - |
|
数据表 |
AFB | Box | Active | 12VDC | Square - 120mm L x 120mm H | 120.1 CFM (3.36m³/min) | 0.354 in H2O (88.2 Pa) | Ball | 0.565 lb (256.28 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | 44.0dB(A) | 5.52 W | CE, CSA, UL, VDE | 2900 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Position Rectangular Connector | - |
|

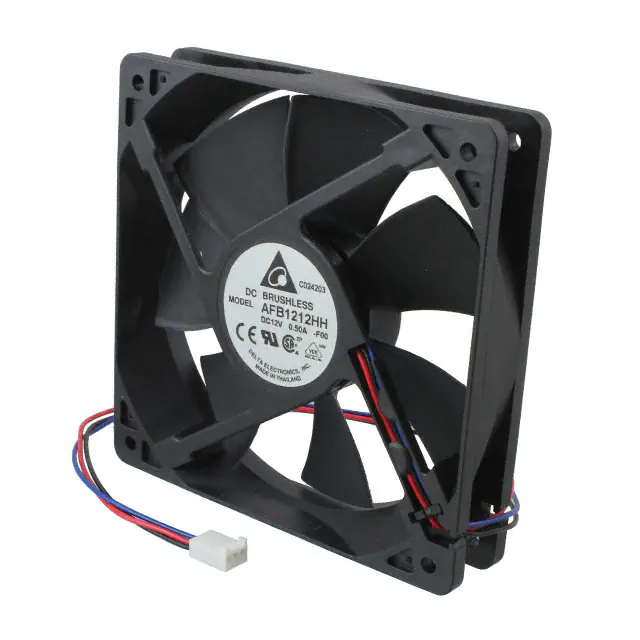

1-NPL/603-1337FAN AXIAL 120X25.4MM 12VDC RECT |
0 | - |
|
数据表 |
AFB | Box | Discontinued at Digi-Key | 12VDC | Square - 120mm L x 120mm H | 113.1 CFM (3.17m³/min) | 0.430 in H2O (107.1 Pa) | Ball | 0.437 lb (198.00 g) | Tubeaxial | Locked Rotor Sensor | 25.40mm | 46.5dB(A) | 6.36 W | CE, CSA, UL, VDE | 3400 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Position Rectangular Connector | - |
|
1-NPT/603-1331FAN AXIAL 120X25.4MM 12VDC RECT |
0 | - |
|
数据表 |
AFB | Box | Active | 12VDC | Square - 120mm L x 120mm H | 95.1 CFM (2.66m³/min) | 0.304 in H2O (75.7 Pa) | Ball | 0.437 lb (198.00 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.40mm | 41.5dB(A) | 3.96 W | CE, CSA, UL, VDE | 2800 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Position Rectangular Connector | - |
|

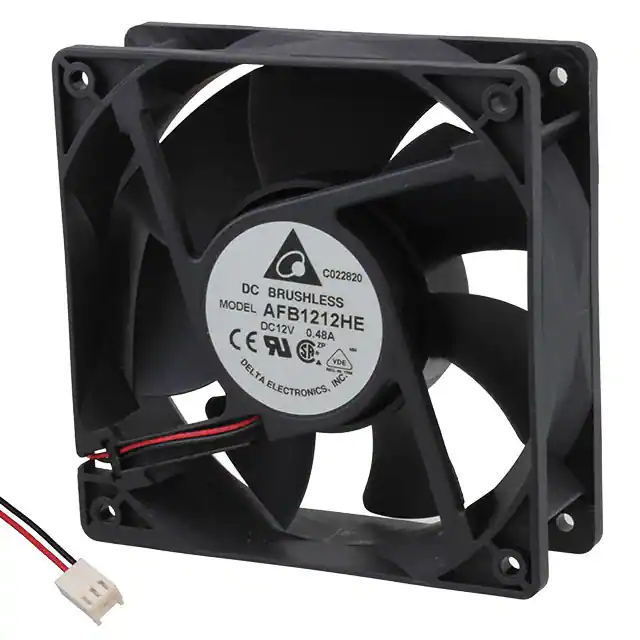

1-NPO/603-1326FAN AXL 120X38MM 12VDC RECT CONN |
0 | - |
|
数据表 |
AFB | Box | Active | 12VDC | Square - 120mm L x 120mm H | 105.9 CFM (2.97m³/min) | 0.300 in H2O (74.7 Pa) | Ball | 0.565 lb (256.28 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | 41.0dB(A) | 3.84 W | CE, CSA, UL, VDE | 2600 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Position Rectangular Connector | - |
|
|
9G0912P2B03FAN AXIAL 92X32MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | - | - | Ball | 0.375 lb (170.1 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 32.00mm | 43.0dB(A) | - | - | 4000 RPM | 14 ~ 140°F (-10 ~ 60°C) | 4 Wire Leads | - |
