直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
109R0624F401FAN AXIAL 60X25MM 24VDC WIRE |
36 | - |
|
数据表 |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 15.5 CFM (0.434m³/min) | 0.118 in H2O (29.4 Pa) | Ball | 0.199 lb (90.26 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 24.0dB(A) | 1.2 W | CSA, TUV, UL | 3200 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
09225VA-12Q-EA-00FAN AXIAL 92X25MM 12VDC WIRE |
86 | - |
|
数据表 |
09225VA | Box | Active | 12VDC | Square - 92mm L x 92mm H | 96.4 CFM (2.70m³/min) | 0.600 in H2O (149.5 Pa) | Ball | - | Tubeaxial | Auto Restart | 25.00mm | 51.0dB(A) | 8.64 W | - | 5600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
109R0812G4021FAN AXIAL 80X25MM 12VDC WIRE |
47 | - |
|
数据表 |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 53.0 CFM (1.48m³/min) | 0.323 in H2O (80.4 Pa) | Ball | 0.243 lb (110.22 g) | Tubeaxial | Locked Rotor Protection | 25.00mm | 40.0dB(A) | 4.44 W | CSA, TUV, UL | 4500 RPM | -4 ~ 140°F (-20 ~ 60°C) | 2 Wire Leads | - |
|
9RA0924F40011FAN AXIAL 92X25MM 24VDC WIRE |
81 | - |
|
数据表 |
San Ace 92 | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 43.1 CFM (1.21m³/min) | 0.140 in H2O (34.9 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 27.0dB(A) | 1.44 W | cURus, TUV | 2850 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9RA0848S40011FAN AXIAL 80X25MM 48VDC WIRE |
34 | - |
|
数据表 |
San Ace 80 | Bulk | Active | 48VDC | Square - 80mm L x 80mm H | 38.4 CFM (1.08m³/min) | 0.210 in H2O (52.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 31.0dB(A) | 2.4 W | cURus, TUV | 3900 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|

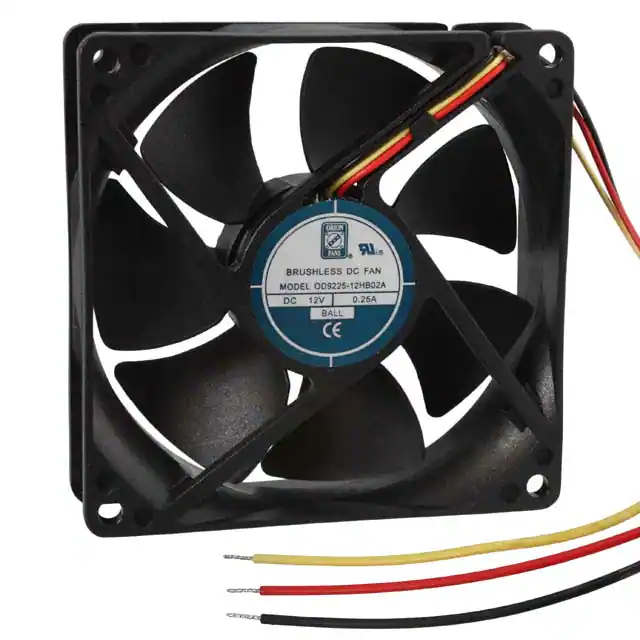

OD9225-12HB02AFAN AXIAL 92.5X25MM 12VDC WIRE |
38 | - |
|
数据表 |
OD9225 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 60.2 CFM (1.69m³/min) | 0.025 in H2O (6.2 Pa) | Ball | - | Tubeaxial | Locked Rotor Sensor | 25.00mm | 38.0dB | - | cURus, TUV | 3325 RPM | -4 ~ 149°F (-20 ~ 65°C) | 3 Wire Leads | - |
|
9S1212L4D011FAN AXIAL 119X25MM 12VDC WIRE |
38 | - |
|
数据表 |
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 48.1 CFM (1.35m³/min) | 0.060 in H2O (14.9 Pa) | Ball | 0.309 lb (140.16 g) | Tubeaxial | Locked Rotor Sensor | 25.00mm | 17.0dB(A) | 960 mW | CSA, TUV, UL | 1500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
F6025X12B1-RHR-EMFAN AXIAL 60X25MM 12VDC WIRE |
63 | - |
|
数据表 |
F6025-H | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 28.0 CFM (0.784m³/min) | 0.370 in H2O (92.2 Pa) | Ball | 0.139 lb (63.05 g) | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 25.00mm | 42.0dB(A) | - | CE, cUL, TUV, UL | 5800 RPM | - | 3 Wire Leads | IP57 - Dust Protected, Waterproof |
|
CBM-A232B-120-457FAN BLOWER 119.3X32MM 12VDC WIRE |
68 | - |
|
数据表 |
CBM-120B-2 | Box | Active | 12VDC | Square/Rounded - 119.3mm L x 119mm H | 18.5 CFM (0.518m³/min) | 0.600 in H2O (149.5 Pa) | Ball | - | Blower | Auto Restart | 32.00mm | 45.8dB(A) | 4.56 W | CE, cURus, TUV | 2000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
9GA0824L20011FAN AXIAL 80X32MM 24VDC WIRE |
86 | - |
|
数据表 |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 32.00mm | - | 1.2 W | - | - | - | 3 Wire Leads | - |
|
|
9GA0812P4J00380X25MM 12V,LOW POWER DC TACH,PW |
0 | - |
|
数据表 |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.00mm | 48.0dB(A) | - | cURus, TUV | 7400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
11925SA-12P-EAD-0FAN AXIAL 119X25MM 12VDC WIRE |
69 | - |
|
数据表 |
11925SA | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 102.0 CFM (2.86m³/min) | 0.243 in H2O (60.5 Pa) | Ball | - | Tubeaxial | Auto Restart | 25.00mm | 40.5dB | 3.96 W | - | 2800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
DC0923812V2B-3T0FAN AXIAL 92X38MM 12VDC WIRE |
0 | - |
|
数据表 |
- | Box | Active | 12VDC | Square - 92mm L x 92mm H | 166.4 CFM (4.66m³/min) | 1.910 in H2O (475.7 Pa) | Ball | 0.441 lb (200.00 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 72.0dB(A) | 35.4 W | CE, cURus, TUV | 8000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
09225VA-12Q-AT-00FAN AXIAL 92X25MM 12VDC WIRE |
79 | - |
|
数据表 |
09225VA | Box | Active | 12VDC | Square - 92mm L x 92mm H | 96.4 CFM (2.70m³/min) | 0.600 in H2O (149.5 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.00mm | 51.0dB(A) | 8.64 W | - | 5600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
DC0923824V2B-2T0FAN 92X38MM 24VDC |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 166.4 CFM (4.66m³/min) | 1.910 in H2O (475.7 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 38.00mm | 72.0dB(A) | 70.8 W | CE, cURus | 8000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
G4028M24B1-RSRFAN AXIAL 40X28MM 24VDC WIRE |
10 | - |
|
数据表 |
G4028 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 13.0 CFM (0.364m³/min) | 0.370 in H2O (92.2 Pa) | Ball | 0.111 lb (50.35 g) | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 28.00mm | 37.0dB(A) | - | CE, cUL, TUV, UL | 8000 RPM | - | 3 Wire Leads | - |
|
CFM-8025BG-280-546-20FAN AXIAL 80X25.4MM 24VDC WIRE |
60 | - |
|
数据表 |
CFM-80BG | Box | Active | 24VDC | Square - 80mm L x 80mm H | 82.7 CFM (2.32m³/min) | 1.090 in H2O (271.5 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.40mm | 54.7dB(A) | 13.2 W | CE, cURus, TUV | 8000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
ME6038L12B1-FSRFAN AXIAL 60X38MM 12VDC WIRE |
89 | - |
|
数据表 |
ME6038 | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 35.5 CFM (0.994m³/min) | 0.520 in H2O (129.5 Pa) | Ball | 0.23 lb (104.33 g) | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 38.00mm | 48.5dB(A) | - | cUL, UL | 6000 RPM | - | 3 Wire Leads | - |
|
DC0603812M2B-3T0FAN AXIAL 60X38MM 12VDC WIRE |
0 | - |
|
数据表 |
- | Box | Active | 12VDC | Square - 60mm L x 60mm H | 67.1 CFM (1.88m³/min) | 2.070 in H2O (515.6 Pa) | Ball | 0.32 lb (145.15 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 62.0dB(A) | 16.56 W | CE, cURus, TUV | 12000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
CFM-9238BF-295-628-22DC AXIAL FAN, 92 MM SQUARE, 38 M |
0 | - |
|
数据表 |
CFM-92BF | Box | Active | 24VDC | Square - 92mm L x 92mm H | 129.6 CFM (3.63m³/min) | 2.310 in H2O (575.0 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 38.00mm | 62.8dB(A) | 20.64 W | CE, cURus, TUV | 9500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
