直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9G0912P2S01FAN AXIAL 92X32MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 70.7 CFM (1.98m³/min) | 0.309 in H2O (77.0 Pa) | Ball | 0.375 lb (170.1 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 32.00mm | 38.0dB(A) | 4.56 W | CSA, TUV, UL | 3500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
|
9G0912P2A01192X32MM 12V,HIGH PERF.,RBLS DC T |
0 | - |
|
数据表 |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 32.00mm | 44.0dB(A) | - | - | 4300 RPM | 14 ~ 140°F (-10 ~ 60°C) | 4 Wire Leads | - |
|
|
9G0848G1021FAN AXIAL 80X38MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 80 | Box | Active | 48VDC | Square - 80mm L x 80mm H | 90.0 CFM (2.52m³/min) | 0.847 in H2O (211.0 Pa) | Ball | 0.375 lb (170.1 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | 51.0dB(A) | 13 W | CSA, TUV, UL | 6300 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
9G0848H102FAN AXIAL 80X38MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 80 | Box | Active | 48VDC | Square - 80mm L x 80mm H | 80.0 CFM (2.24m³/min) | 0.687 in H2O (171.1 Pa) | Ball | 0.375 lb (170.1 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | 49.0dB(A) | 9.6 W | CSA, TUV, UL | 5700 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
9G0848H1021FAN AXIAL 80X38MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 80 | Box | Active | 48VDC | Square - 80mm L x 80mm H | 80.0 CFM (2.24m³/min) | 0.687 in H2O (171.1 Pa) | Ball | 0.375 lb (170.1 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | 49.0dB(A) | 9.6 W | CSA, TUV, UL | 5700 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
MD1238H12B-FSR-26AWGFAN AXIAL 120X38MM 12VDC WIRE |
0 | - |
|
数据表 |
MD1238 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 174.0 CFM (4.87m³/min) | 0.670 in H2O (166.9 Pa) | Ball | 0.906 lb (410.95 g) | Tubeaxial | Thermal Overload Protector (TOP) | 38.00mm | 57.8dB(A) | - | cUL, UL | 3800 RPM | - | 2 Wire Leads | - |
|
|
GF92252B5-000U-AD9Thermal Products |
0 | - |
|
数据表 |
GF | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 51.5 CFM (1.44m³/min) | 0.150 in H2O (37.3 Pa) | Ball | - | Tubeaxial | Auto Restart | 25.00mm | 34.0dB(A) | 2.09 W | CE, CUR, TUV, UL | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
GF92252B5-000U-AE9Thermal Products |
0 | - |
|
数据表 |
GF | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 51.5 CFM (1.44m³/min) | 0.150 in H2O (37.3 Pa) | Ball | - | Tubeaxial | Auto Restart | 25.00mm | 34.0dB(A) | 2.09 W | CE, CUR, TUV, UL | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
GF92252B6-000U-AD9Thermal Products |
0 | - |
|
数据表 |
GF | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 45.0 CFM (1.26m³/min) | 0.130 in H2O (32.4 Pa) | Ball | - | Tubeaxial | Auto Restart | 25.00mm | 32.0dB(A) | 1.56 W | CE, CUR, TUV, UL | 2700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
GF92252B6-000U-AE9Thermal Products |
0 | - |
|
数据表 |
GF | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 45.0 CFM (1.26m³/min) | 0.130 in H2O (32.4 Pa) | Ball | - | Tubeaxial | Auto Restart | 25.00mm | 32.0dB(A) | 1.56 W | CE, CUR, TUV, UL | 2700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
GF92252B7-000U-AD9Thermal Products |
0 | - |
|
数据表 |
GF | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 39.5 CFM (1.11m³/min) | 0.100 in H2O (24.9 Pa) | Ball | - | Tubeaxial | Auto Restart | 25.00mm | 28.0dB(A) | 1.13 W | CE, CUR, TUV, UL | 2400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
GF92252B7-000U-AE9Thermal Products |
0 | - |
|
数据表 |
GF | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 39.5 CFM (1.11m³/min) | 0.100 in H2O (24.9 Pa) | Ball | - | Tubeaxial | Auto Restart | 25.00mm | 28.0dB(A) | 1.13 W | CE, CUR, TUV, UL | 2400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|
GFC0412DS-CMA5FAN AXIAL DUAL 40X56MM 12VDC |
0 | - |
|
数据表 |
GFC | Box | Obsolete | 12VDC | Square - 40mm L x 40mm H | 25.3 CFM (0.708m³/min) | 2.703 in H2O (673.3 Pa) | Ball | 0.176 lb (80.00 g) | Tubeaxial (Dual) | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 56.00mm | 64.0dB(A) | 10.2 W | CE, cURus, TUV | 17200 Front, 15700 Rear | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads per Fan | - |
|
9GA0812L2D001FAN AXIAL 80X32MM 12VDC WIRE |
64 | - |
|
数据表 |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Sensor | 32.00mm | - | 960 mW | - | - | - | 3 Wire Leads | - |
|

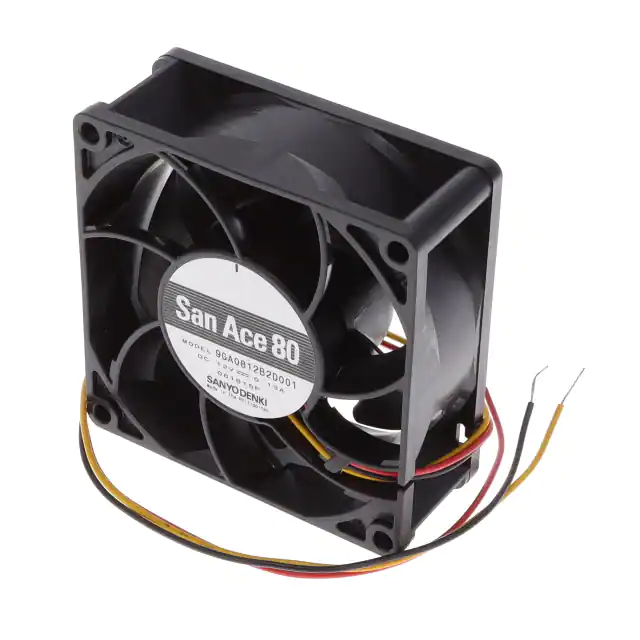

9GA0812B2D001FAN AXIAL 80X32MM 12VDC WIRE |
55 | - |
|
数据表 |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Sensor | 32.00mm | - | 1.56 W | - | - | - | 3 Wire Leads | - |
|
9RA0612S40011FAN AXIAL 60X25MM 12VDC WIRE |
77 | - |
|
数据表 |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 23.3 CFM (0.652m³/min) | 0.180 in H2O (44.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 30.0dB(A) | 1.2 W | cURus, TUV | 4600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
9S1212L4D01FAN AXIAL 119X25MM 12VDC WIRE |
93 | - |
|
数据表 |
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 48.1 CFM (1.35m³/min) | 0.060 in H2O (14.9 Pa) | Ball | 0.309 lb (140.16 g) | Tubeaxial | Locked Rotor Sensor | 25.00mm | 17.0dB(A) | 960 mW | CSA, TUV, UL | 1500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
9RA0624H4001FAN AXIAL 60X25MM 24VDC WIRE |
67 | - |
|
数据表 |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 19.1 CFM (0.535m³/min) | 0.130 in H2O (32.4 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 26.0dB(A) | 1.2 W | cURus, TUV | 3800 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
MD9238H12B1-FSRFAN AXIAL 92X38MM 12VDC WIRE |
40 | - |
|
数据表 |
MD9238 | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 100.7 CFM (2.82m³/min) | 0.600 in H2O (149.5 Pa) | Ball | 0.397 lb (180.08 g) | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 38.00mm | 53.5dB(A) | - | CE, TUV, UL | 4400 RPM | - | 3 Wire Leads | - |
|
9GA0912M4D011FAN AXIAL 92X25MM 12VDC WIRE |
51 | - |
|
数据表 |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Sensor | 25.00mm | - | 1.32 W | - | - | - | 3 Wire Leads | - |
