直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CFM-9238BF-195-628-22DC AXIAL FAN, 92 MM SQUARE, 38 M |
0 | - |
|
数据表 |
CFM-92BF | Box | Active | 12VDC | Square - 92mm L x 92mm H | 129.6 CFM (3.63m³/min) | 2.310 in H2O (575.0 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 38.00mm | 62.8dB(A) | 21.6 W | CE, cURus, TUV | 9500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|

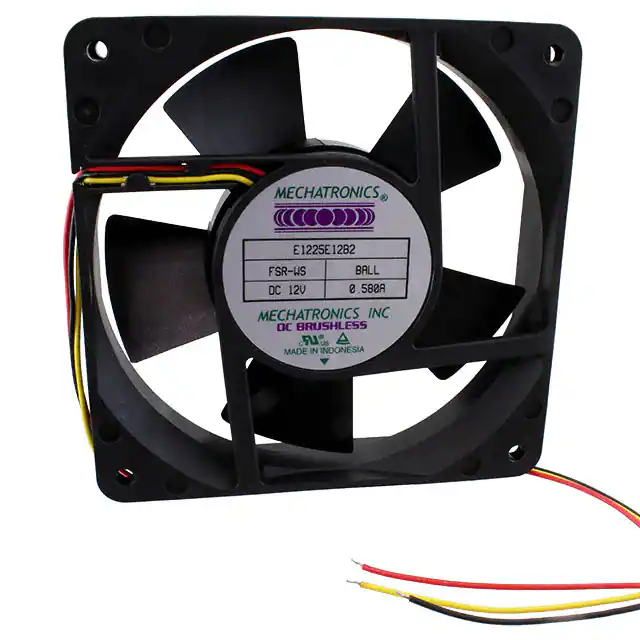

E1225E12B2-FSR-WSFAN AXIAL 120X25MM 12VDC WIRE |
67 | - |
|
数据表 |
E1225 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 93.0 CFM (2.60m³/min) | 0.280 in H2O (69.7 Pa) | Ball | 0.436 lb (197.77 g) | Tubeaxial | Locked Rotor Sensor, Thermal Overload Protector (TOP) | 25.00mm | 44.0dB(A) | - | CE, cUL, TUV, UL | 3000 RPM | - | 3 Wire Leads | - |
|
BFB1012M-AFAN BLOWER 97.2X33MM 12VDC WIRE |
0 | - |
|
数据表 |
BFB | Tray | Active | 12VDC | Rectangular/Rounded - 97.2mm L x 94.4mm H | 22.6 CFM (0.633m³/min) | 0.893 in H2O (222.4 Pa) | Ball | 0.366 lb (166.01 g) | Blower | Locked Rotor Protection | 33.00mm | 52.5dB(A) | 6.6 W | CE, CSA, UL, VDE | 3200 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|

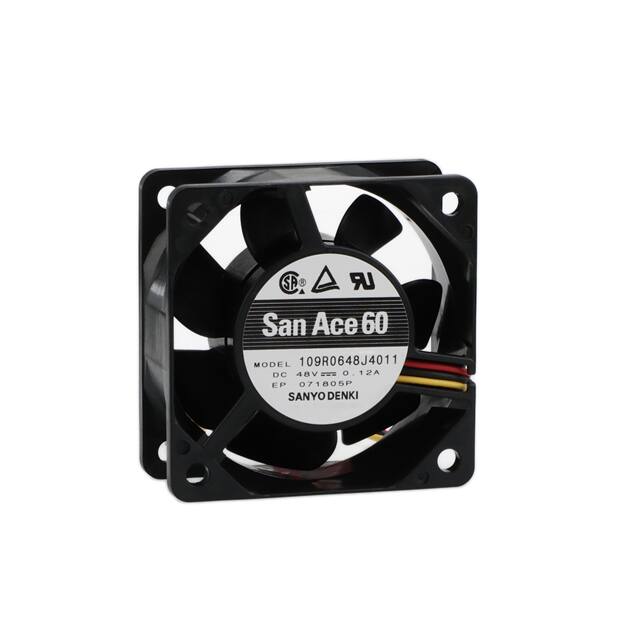

109R0648J4011FAN AXIAL 60X25MM 48VDC WIRE |
66 | - |
|
数据表 |
San Ace 60 | Box | Active | 48VDC | Square - 60mm L x 60mm H | 37.1 CFM (1.04m³/min) | 0.622 in H2O (155.0 Pa) | Ball | 0.199 lb (90.26 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 44.0dB(A) | 5.76 W | CSA, TUV, UL | 7600 RPM | -4 ~ 140°F (-20 ~ 60°C) | 3 Wire Leads | - |
|
|
DC0803812V2B-3T3FAN 80X38MM 12VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 130.0 CFM (3.64m³/min) | 2.000 in H2O (498.2 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 66.0dB(A) | 32.4 W | CE, cURus, TUV | 9000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
|
FD6025B48W3-85-3HC1DC Axial Fan 60x60x25mm 48VDC |
4 | - |
|
数据表 |
85 | Tape & Box (TB) | Active | 48VDC | Square - 60mm L x 60mm H | 30.0 CFM (0.840m³/min) | 0.520 in H2O (129.5 Pa) | Ball | - | Tubeaxial | Alarm Sensor, Auto Restart | 25.00mm | 40.9dB(A) | 4.8 W | CE, cUL, TUV, UL | 5800 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
19031164AFAN AXIAL 80X25.4MM 12VDC FE12H3 |
0 | - |
|
数据表 |
Flight II 80 | - | Obsolete | 12VDC | Square - 80mm L x 80mm H | 27.0 CFM (0.756m³/min) | 0.123 in H2O (30.6 Pa) | Ball | 0.287 lb (130.18 g) | Tubeaxial | - | 25.40mm | 28.9dB(A) | 1 W | - | 2737 RPM | - | 2 Wire Leads | - |
|
|
DC0803824L2B-BT4FAN 80X38MM 24VDC PWM/TACH MOLEX |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 58.2 CFM (1.63m³/min) | 0.410 in H2O (102.1 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 45.0dB(A) | 9.6 W | CE, cURus | 4200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
|
DC0923848H2B-3T3FAN 92X38MM 48VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 123.6 CFM (3.46m³/min) | 1.120 in H2O (279.0 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 64.0dB(A) | 57.6 W | CE, cURus | 6000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
|
DC0923848U2B-3T3FAN 92X38MM 48VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 145.6 CFM (4.08m³/min) | 1.460 in H2O (363.7 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 67.0dB(A) | 120 W | CE, cURus | 7000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
OD1238-12LBIP55FAN AXIAL 120X38.5MM 12VDC WIRE |
0 | - |
|
数据表 |
OD1238 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 73.0 CFM (2.04m³/min) | 0.130 in H2O (32.4 Pa) | Ball | - | Tubeaxial | - | 38.50mm | 33.0dB | 3 W | cURus, TUV | 1950 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | IP55 - Dust Protected, Water Resistant |
|
|
OD1238-12MBIP55FAN AXIAL 120X38.5MM 12VDC WIRE |
0 | - |
|
数据表 |
OD1238 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 95.0 CFM (2.66m³/min) | 0.230 in H2O (57.3 Pa) | Ball | - | Tubeaxial | - | 38.50mm | 41.0dB | 4 W | cURus, TUV | 2540 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | IP55 - Dust Protected, Water Resistant |
|
|
OD1238-24LBIP55FAN AXIAL 120X38.5MM 24VDC WIRE |
0 | - |
|
数据表 |
OD1238 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 73.0 CFM (2.04m³/min) | 0.130 in H2O (32.4 Pa) | Ball | - | Tubeaxial | - | 38.50mm | 33.0dB | 4 W | cURus, TUV | 1950 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | IP55 - Dust Protected, Water Resistant |
|
|
OD1238-24MBIP55FAN AXIAL 120X38.5MM 24VDC WIRE |
0 | - |
|
数据表 |
OD1238 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 95.0 CFM (2.66m³/min) | 0.230 in H2O (57.3 Pa) | Ball | - | Tubeaxial | - | 38.50mm | 41.0dB | 6 W | cURus, TUV | 2540 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | IP55 - Dust Protected, Water Resistant |
|
BFB1024HH-F00FAN BLOWER 97.2X33MM 24VDC WIRE |
0 | - |
|
数据表 |
BFB | Bulk | Active | 24VDC | Rectangular/Rounded - 97.2mm L x 94.4mm H | 28.3 CFM (0.792m³/min) | 1.299 in H2O (323.6 Pa) | Ball | 0.353 lb (160.12 g) | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 33.00mm | 55.0dB(A) | 13.2 W | CE, CSA, UL, VDE | 4000 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | - |
|
G6015M12B1-RGR-EMFAN AXIAL 60X15.3MM 12VDC WIRE |
61 | - |
|
数据表 |
G6015-G | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 16.0 CFM (0.448m³/min) | 0.150 in H2O (37.3 Pa) | Ball | 0.059 lb (26.76 g) | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 15.30mm | 28.0dB(A) | - | CE, cUL, TUV, UL | 4000 RPM | - | 3 Wire Leads | IP57 - Dust Protected, Waterproof |
|
09225VA-12Q-AL-00FAN AXIAL 92X25MM 12VDC WIRE |
85 | - |
|
数据表 |
09225VA | Box | Active | 12VDC | Square - 92mm L x 92mm H | 96.4 CFM (2.70m³/min) | 0.602 in H2O (149.9 Pa) | Ball | 0.298 lb (135.17 g) | Tubeaxial | Locked Rotor Sensor | 25.00mm | 51.0dB(A) | 8.64 W | CE, UR, VDE | 5600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
9GA0612G701FAN AXIAL 60X15MM 12VDC WIRE |
70 | - |
|
数据表 |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 24.0 CFM (0.672m³/min) | 0.320 in H2O (79.7 Pa) | Ball | 0.111 lb (50.35 g) | Tubeaxial | Speed Sensor (Tach) | 15.00mm | 38.0dB(A) | 1.92 W | CSA, TUV, UL | 5900 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
9GA0812A2D0011FAN AXIAL 80X32MM 12VDC WIRE |
63 | - |
|
数据表 |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Sensor | 32.00mm | - | 3.72 W | - | - | - | 3 Wire Leads | - |
|
|
DC1203812L2B-3T3FAN 120X38MM 12VDC TACH MOLEX 22 |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 114.7 CFM (3.21m³/min) | 0.410 in H2O (102.1 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 41.0dB(A) | 4.8 W | CE, cURus, TUV | 2600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
