直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OD1238-48LBXC10AFAN AXIAL 120X38.5MM 48VDC WIRE |
0 | - |
|
数据表 |
OD1238 XC | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 150.0 CFM (4.20m³/min) | 0.380 in H2O (94.6 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 38.50mm | 52.0dB | 11 W | cURus, TUV | 3200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
9RA0812H40011FAN AXIAL 80X25MM 12VDC WIRE |
66 | - |
|
数据表 |
San Ace 80 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 32.5 CFM (0.910m³/min) | 0.140 in H2O (34.9 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 27.0dB(A) | 960 mW | cURus, TUV | 3300 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
OD1238-48LBXC5FAN AXIAL 120X38.5MM 48VDC WIRE |
0 | - |
|
数据表 |
OD1238 XC | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 150.0 CFM (4.20m³/min) | 0.380 in H2O (94.6 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control | 38.50mm | 52.0dB | 11 W | cURus, TUV | 3200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
9RA0812M40011FAN AXIAL 80X25MM 12VDC WIRE |
55 | - |
|
数据表 |
San Ace 80 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 26.1 CFM (0.731m³/min) | 0.090 in H2O (22.4 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 22.0dB(A) | 720 mW | cURus, TUV | 2650 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
OD1238-48LBXC02AFAN AXIAL 120X38.5MM 48VDC WIRE |
0 | - |
|
数据表 |
OD1238 XC | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 150.0 CFM (4.20m³/min) | 0.380 in H2O (94.6 Pa) | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Sensor | 38.50mm | 52.0dB | 11 W | cURus, TUV | 3200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
9RA0812S40011FAN AXIAL 80X25MM 12VDC WIRE |
33 | - |
|
数据表 |
San Ace 80 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 38.6 CFM (1.08m³/min) | 0.210 in H2O (52.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 31.0dB(A) | 1.44 W | cURus, TUV | 3900 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
9G0812G1D011FAN AXIAL 80X38MM 12VDC WIRE |
6 | - |
|
数据表 |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 90.0 CFM (2.52m³/min) | 0.847 in H2O (211.0 Pa) | Ball | 0.375 lb (170.1 g) | Tubeaxial | Locked Rotor Sensor | 38.00mm | 51.0dB(A) | 13.2 W | CSA, TUV, UL | 6300 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9RA0812G40011FAN AXIAL 80X25MM 12VDC WIRE |
65 | - |
|
数据表 |
San Ace 80 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 49.4 CFM (1.38m³/min) | 0.330 in H2O (82.2 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 37.0dB(A) | 2.64 W | cURus, TUV | 5000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9RA0824M40011FAN AXIAL 80X25MM 24VDC WIRE |
55 | - |
|
数据表 |
San Ace 80 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 26.1 CFM (0.731m³/min) | 0.090 in H2O (22.4 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 22.0dB(A) | 960 mW | cURus, TUV | 2650 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9RA0824S40011FAN AXIAL 80X25MM 24VDC WIRE |
52 | - |
|
数据表 |
San Ace 80 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 38.4 CFM (1.08m³/min) | 0.210 in H2O (52.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 31.0dB(A) | 1.44 W | cURus, TUV | 3900 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
G8032E12B-RSR-GBFAN AXIAL 80X32MM 12VDC WIRE |
9 | - |
|
数据表 |
G8032 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 52.0 CFM (1.46m³/min) | 0.440 in H2O (109.6 Pa) | Ball | 0.286 lb (129.73 g) | Tubeaxial | Conformal Coating, Thermal Overload Protector (TOP) | 32.00mm | 46.0dB(A) | - | CE, cUL, TUV, UL | 4500 RPM | - | 2 Wire Leads | - |
|
FAD1-12038CBHW12FAN AXIAL 120X38.5MM 12VDC WIRE |
26 | - |
|
数据表 |
FAD1-12038 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 105.5 CFM (2.95m³/min) | 0.265 in H2O (66.0 Pa) | Ball | 0.518 lb (234.96 g) | Tubeaxial | - | 38.50mm | 46.7dB(A) | 4.68 W | CE, cURus, TUV | 2800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
09533GA-24M-AL-00FAN BLOWER 97X33MM 24VDC WIRE |
58 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Rectangular/Rounded - 97mm L x 93.5mm H | 28.6 CFM (0.801m³/min) | 1.400 in H2O (348.7 Pa) | Ball | - | Blower | Auto Restart, Locked Rotor Sensor | 33.00mm | 54.5dB(A) | 11.8 W | - | 3700 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | - |
|
|
DB0973312H2B-2T0FAN BLOWER 97.2X33MM 12VDC WIRE |
29 | - |
|
数据表 |
DB | Box | Active | 12VDC | Rectangular/Rounded - 97.2mm L x 94.3mm H | 32.1 CFM (0.899m³/min) | 1.360 in H2O (338.8 Pa) | Ball | - | Blower | Locked Rotor Protection | 33.00mm | 55.0dB(A) | 10.56 W | CE | 3600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | IP55 - Dust Protected, Water Resistant |
|
|
9RA0824P4G001FAN AXIAL 80X25MM 24VDC WIRE |
64 | - |
|
数据表 |
San Ace 80 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 49.4 CFM (1.38m³/min) | 0.330 in H2O (82.2 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.00mm | 37.0dB(A) | 2.64 W | cURus, TUV | 5000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|

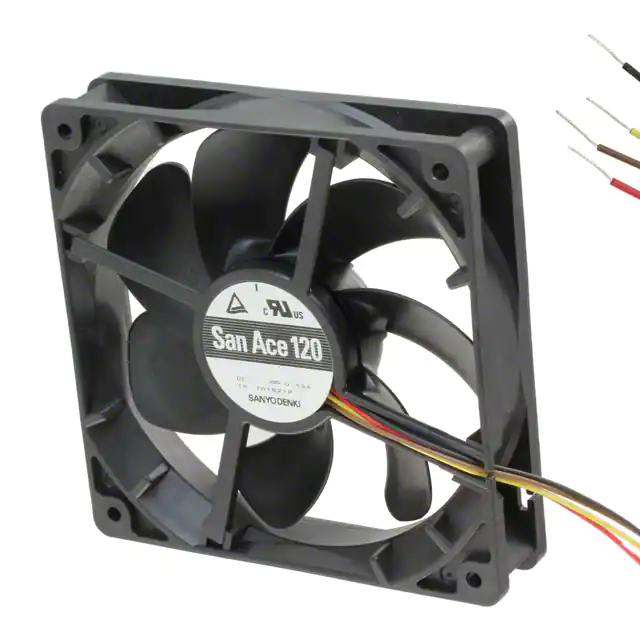

9S1212P4M01FAN AXIAL 119X25MM 12VDC WIRE |
74 | - |
|
数据表 |
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 58.6 CFM (1.64m³/min) | 0.090 in H2O (22.4 Pa) | Ball | 0.309 lb (140.16 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.00mm | 24.0dB(A) | 1.56 W | CSA, TUV, UL | 1850 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
09533GA-12Q-AT-00FAN BLOWER 97X33MM 12VDC WIRE |
30 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Rectangular/Rounded - 97mm L x 93.5mm H | 38.1 CFM (1.07m³/min) | 1.880 in H2O (468.3 Pa) | Ball | - | Blower | Auto Restart, Speed Sensor (Tach) | 33.00mm | 61.0dB(A) | 19.2 W | - | 5200 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | - |
|

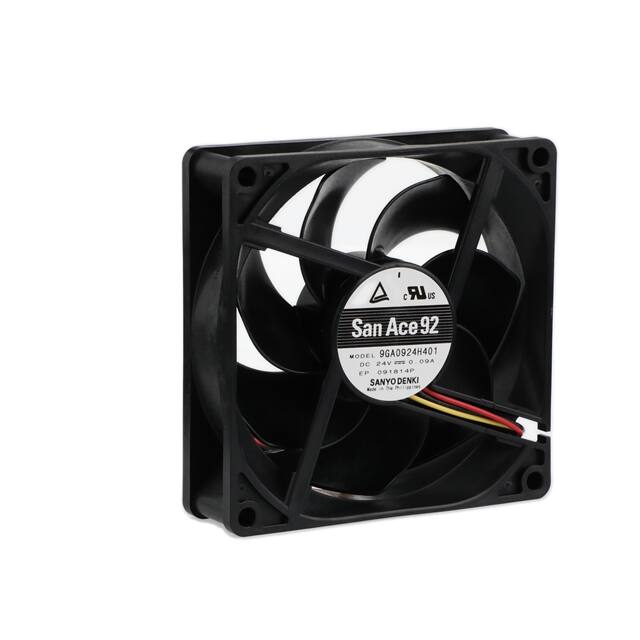

9GA0924H401FAN AXIAL 92X25MM 24VDC WIRE |
59 | - |
|
数据表 |
San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | - | 2.16 W | - | - | - | 3 Wire Leads | - |
|

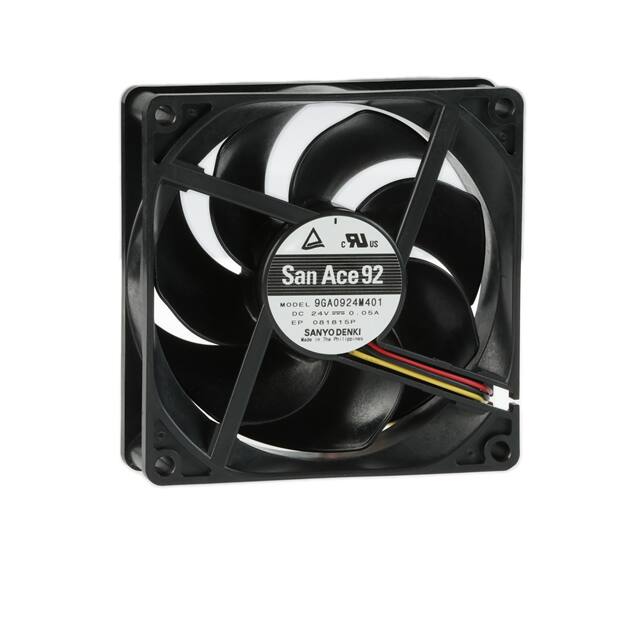

9GA0924M401FAN AXIAL 92X25MM 24VDC WIRE |
41 | - |
|
数据表 |
San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | - | 1.2 W | - | - | - | 3 Wire Leads | - |
|
8412NGMLEFAN AXIAL 80X25.4MM 12VDC WIRE |
45 | - |
|
数据表 |
8400N | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 26.5 CFM (0.742m³/min) | - | Sintec | 0.209 lb (94.8 g) | Tubeaxial | - | 25.40mm | 19.0dB(A) | 900 mW | CE, CSA, UL, VDE | 2050 RPM | -4 ~ 176°F (-20 ~ 80°C) | 2 Wire Leads | - |
