直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B1232H24B-BSR-SRFAN BLOWER 120X32MM 24VDC WIRE |
21 | - |
|
数据表 |
B1232 | Bulk | Active | 24VDC | Square/Rounded - 120mm L x 120mm H | 28.0 CFM (0.784m³/min) | 0.680 in H2O (169.4 Pa) | Ball | 0.706 lb (320.24 g) | Blower | Thermal Overload Protector (TOP) | 32.00mm | 49.0dB(A) | - | CE, cUL, TUV, UL | 2800 RPM | - | 2 Wire Leads | - |
|
F1238M24B3-FSR-AB1FAN AXIAL 119X38MM 24VDC WIRE |
7 | - |
|
数据表 |
F1238-S | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 105.0 CFM (2.94m³/min) | 0.210 in H2O (52.3 Pa) | Ball | 0.536 lb (243.13 g) | Tubeaxial | Auto Restart, Thermistor | 38.00mm | 38.0dB(A) | - | CE, cUL, TUV, UL | 2300 RPM | - | 2 Wire Leads | - |
|
B1232H24B1-BSR-E-TTL-CC-IM4FAN BLOWER 120X32MM 24VDC WIRE |
41 | - |
|
数据表 |
B1232 | Bulk | Active | 24VDC | Square/Rounded - 120mm L x 120mm H | 28.0 CFM (0.784m³/min) | 0.680 in H2O (169.4 Pa) | Ball | 0.706 lb (320.24 g) | Blower | Conformal Coating, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 32.00mm | 49.0dB(A) | - | CE, cUL, TUV, UL | 2800 RPM | - | 3 Wire Leads | - |
|

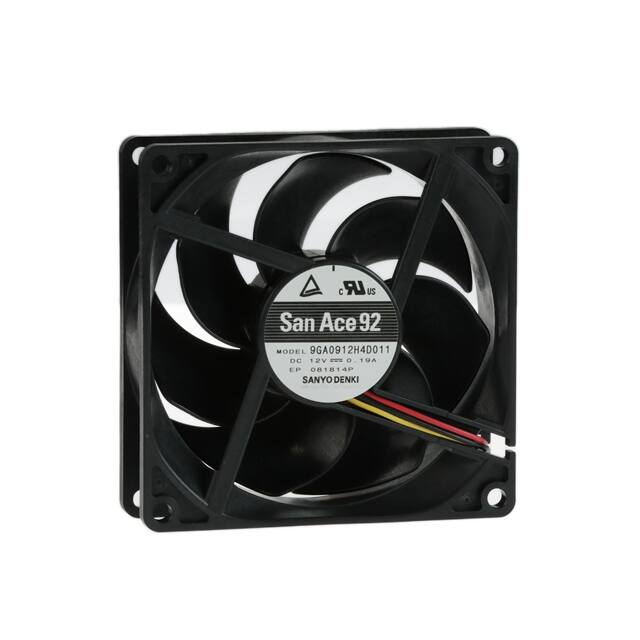

9GA0912H4D011FAN AXIAL 92X25MM 12VDC WIRE |
55 | - |
|
数据表 |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Sensor | 25.00mm | - | 2.28 W | - | - | - | 3 Wire Leads | - |
|
9RA1224A40011FAN AXIAL 120X25MM 24VDC WIRE |
52 | - |
|
数据表 |
San Ace 120 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 101.2 CFM (2.83m³/min) | 0.293 in H2O (73.0 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 42.0dB(A) | 3.84 W | cURus, TUV | 3500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
9GA0824P4J013FAN AXL 80X25.2MM 24VDC RECT |
23 | - |
|
数据表 |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | - | - | Ball | 0.243 lb (110.22 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.20mm | 48.0dB(A) | - | - | 7400 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Position Rectangular Connector | - |
|
9RA0912M40011FAN AXIAL 92X25MM 12VDC WIRE |
55 | - |
|
数据表 |
San Ace 92 | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 37.1 CFM (1.04m³/min) | 0.100 in H2O (24.9 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 23.0dB(A) | 840 mW | cURus, TUV | 2450 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
OD1238-48MBXC01AFAN AXIAL 120X38.5MM 48VDC WIRE |
0 | - |
|
数据表 |
OD1238 XC | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 175.0 CFM (4.90m³/min) | 0.510 in H2O (127.0 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 38.50mm | 57.0dB | 17 W | cURus, TUV | 3800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
OD1238-48MBXC10AFAN AXIAL 120X38.5MM 48VDC WIRE |
0 | - |
|
数据表 |
OD1238 XC | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 175.0 CFM (4.90m³/min) | 0.510 in H2O (127.0 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 38.50mm | 57.0dB | 17 W | cURus, TUV | 3800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
OD1238-48MBXC5FAN AXIAL 120X38.5MM 48VDC WIRE |
0 | - |
|
数据表 |
OD1238 XC | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 175.0 CFM (4.90m³/min) | 0.510 in H2O (127.0 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control | 38.50mm | 57.0dB | 17 W | cURus, TUV | 3800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
OD1238-48MBXC02AFAN AXIAL 120X38.5MM 48VDC WIRE |
0 | - |
|
数据表 |
OD1238 XC | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 175.0 CFM (4.90m³/min) | 0.510 in H2O (127.0 Pa) | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Sensor | 38.50mm | 57.0dB | 17 W | cURus, TUV | 3800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
4712KL-04W-B10-P00FAN AXIAL 119X32MM 12VDC WIRE |
0 | - |
|
数据表 |
4712KL | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 56.1 CFM (1.57m³/min) | 0.088 in H2O (21.9 Pa) | Ball | 0.529 lb (239.95 g) | Tubeaxial | - | 32.00mm | 29.0dB | 1.92 W | CE, CSA, UL, VDE | 1600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
4712KL-04W-B20-P00FAN AXIAL 119X32MM 12VDC WIRE |
0 | - |
|
数据表 |
4712KL | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 82.2 CFM (2.30m³/min) | 0.168 in H2O (41.8 Pa) | Ball | 0.529 lb (239.95 g) | Tubeaxial | - | 32.00mm | 39.0dB | 3.84 W | CE, CSA, UL, VDE | 2300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
4712KL-04W-B30-P00FAN AXIAL 119X32MM 12VDC WIRE |
0 | - |
|
数据表 |
4712KL | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 99.9 CFM (2.80m³/min) | 0.241 in H2O (60.0 Pa) | Ball | 0.529 lb (239.95 g) | Tubeaxial | - | 32.00mm | 44.0dB | 5.76 W | CE, CSA, UL, VDE | 2800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
4712KL-04W-B40-P00FAN AXIAL 119X32MM 12VDC WIRE |
0 | - |
|
数据表 |
4712KL | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 112.0 CFM (3.14m³/min) | 0.329 in H2O (82.0 Pa) | Ball | 0.529 lb (239.95 g) | Tubeaxial | - | 32.00mm | 47.0dB | 8.28 W | CE, CSA, UL, VDE | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
4712KL-05W-B10-P00FAN AXIAL 119X32MM 24VDC WIRE |
0 | - |
|
数据表 |
4712KL | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 56.1 CFM (1.57m³/min) | 0.088 in H2O (21.9 Pa) | Ball | 0.529 lb (239.95 g) | Tubeaxial | - | 32.00mm | 29.0dB | 2.16 W | CE, CSA, UL, VDE | 1600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
4712KL-05W-B20-P00FAN AXIAL 119X32MM 24VDC WIRE |
0 | - |
|
数据表 |
4712KL | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 82.2 CFM (2.30m³/min) | 0.168 in H2O (41.8 Pa) | Ball | 0.529 lb (239.95 g) | Tubeaxial | - | 32.00mm | 39.0dB | 4.08 W | CE, CSA, UL, VDE | 2300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
4712KL-07W-B10-P00FAN AXIAL 119X32MM 48VDC WIRE |
0 | - |
|
数据表 |
4712KL | Bulk | Active | 48VDC | Square - 119mm L x 119mm H | 56.1 CFM (1.57m³/min) | 0.088 in H2O (21.9 Pa) | Ball | 0.529 lb (239.95 g) | Tubeaxial | - | 32.00mm | 29.0dB | 3.36 W | CE, CSA, UL, VDE | 1600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
4712KL-07W-B20-P00FAN AXIAL 119X32MM 48VDC WIRE |
0 | - |
|
数据表 |
4712KL | Bulk | Active | 48VDC | Square - 119mm L x 119mm H | 82.2 CFM (2.30m³/min) | 0.168 in H2O (41.8 Pa) | Ball | 0.529 lb (239.95 g) | Tubeaxial | - | 32.00mm | 39.0dB | 5.28 W | CE, CSA, UL, VDE | 2300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
4712KL-07W-B40-P00FAN AXIAL 119X32MM 48VDC WIRE |
0 | - |
|
数据表 |
4712KL | Bulk | Active | 48VDC | Square - 119mm L x 119mm H | 112.0 CFM (3.14m³/min) | 0.329 in H2O (82.0 Pa) | Ball | 0.529 lb (239.95 g) | Tubeaxial | - | 32.00mm | 47.0dB | 10.1 W | CE, CSA, UL, VDE | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
