直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
109R0624H4011FAN AXIAL 60X25MM 24VDC WIRE |
53 | - |
|
数据表 |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 18.7 CFM (0.524m³/min) | 0.161 in H2O (40.2 Pa) | Ball | 0.199 lb (90.26 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 28.0dB(A) | 1.44 W | CSA, TUV, UL | 3800 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
E1225M24BT-FSRFAN AXIAL 120X25MM 24VDC WIRE |
46 | - |
|
数据表 |
E1225 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 67.0 CFM (1.88m³/min) | 0.180 in H2O (45.0 Pa) | Ball | 0.436 lb (197.77 g) | Tubeaxial | Thermal Overload Protector (TOP) | 25.00mm | 36.0dB(A) | - | CE, cUL, TUV, UL | 2200 RPM | - | 2 Wire Leads | - |
|
109R0805F4011FAN AXIAL 80X25MM BALL 5VDC WIRE |
86 | - |
|
数据表 |
San Ace 80 | Box | Active | 5VDC | Square - 80mm L x 80mm H | 32.5 CFM (0.910m³/min) | 0.114 in H2O (28.4 Pa) | Ball | 0.243 lb (110.22 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 26.0dB(A) | 1.25 W | CSA, TUV, UL | 2600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
109R0812F4011FAN AXIAL 80X25MM 12VDC WIRE |
39 | - |
|
数据表 |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 32.5 CFM (0.910m³/min) | 0.114 in H2O (28.4 Pa) | Ball | 0.243 lb (110.22 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 26.0dB(A) | 1.32 W | CSA, TUV, UL | 2600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
MR9232E12B-FSRFAN AXIAL 92X32MM 12VDC WIRE |
37 | - |
|
数据表 |
MR9232 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 96.0 CFM (2.69m³/min) | 0.580 in H2O (144.5 Pa) | Ball | 0.331 lb (150.14 g) | Tubeaxial | Auto Restart | 32.00mm | 52.8dB(A) | - | CE, cUL, TUV, UL | 5000 RPM | - | 2 Wire Leads | - |
|
|
MR9232M24B-FSRFAN AXIAL 92X32MM 24VDC WIRE |
22 | - |
|
数据表 |
MR9232 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 74.0 CFM (2.07m³/min) | 0.340 in H2O (84.7 Pa) | Ball | 0.331 lb (150.14 g) | Tubeaxial | Auto Restart | 32.00mm | 48.8dB(A) | - | CE, cUL, TUV, UL | 3800 RPM | - | 2 Wire Leads | - |
|
G6015E24B-RGR-CC-GBFAN AXIAL 60X15.3MM 24VDC WIRE |
83 | - |
|
数据表 |
G6015-G | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 21.0 CFM (0.588m³/min) | 0.240 in H2O (59.8 Pa) | Ball | 0.059 lb (26.76 g) | Tubeaxial | Conformal Coating, Thermal Overload Protector (TOP) | 15.30mm | 32.0dB(A) | - | CE, cUL, TUV, UL | 5200 RPM | - | 2 Wire Leads | - |
|
DC0402812U2B-2T0FAN AXIAL 40X28MM 12VDC WIRE |
41 | - |
|
数据表 |
- | Box | Active | 12VDC | Square - 40mm L x 40mm H | 24.8 CFM (0.694m³/min) | 1.640 in H2O (408.5 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 28.00mm | 58.0dB(A) | 7.68 W | CE, cURus, TUV | 15000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

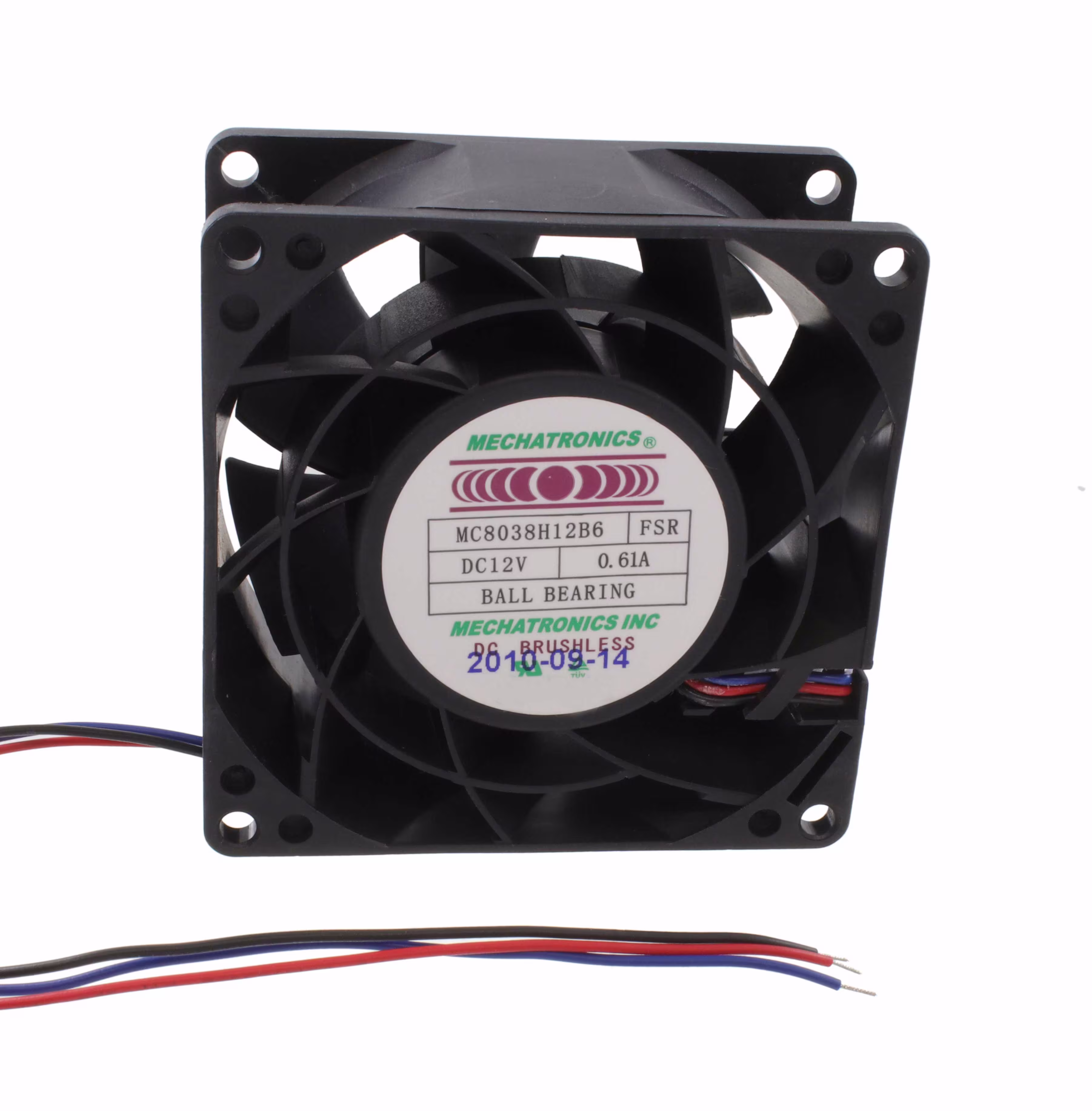

MC8038H12B6-FSR-PCFAN AXIAL 80X38MM 12VDC WIRE |
69 | - |
|
数据表 |
MC8038 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 69.9 CFM (1.96m³/min) | 0.610 in H2O (151.9 Pa) | Ball | 0.397 lb (180.08 g) | Tubeaxial | Parylene Coating, PWM Control, Thermal Overload Protector (TOP) | 38.00mm | 48.2dB(A) | - | cUL, TUV, UL | 5000 RPM | - | 3 Wire Leads | - |
|
ME6038U24B-FSRFAN AXIAL 60X38MM 24VDC WIRE |
65 | - |
|
数据表 |
ME6038 | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 61.1 CFM (1.71m³/min) | 1.412 in H2O (351.7 Pa) | Ball | 0.23 lb (104.33 g) | Tubeaxial | Thermal Overload Protector (TOP) | 38.00mm | 65.0dB(A) | - | cUL, UL | 10000 RPM | - | 2 Wire Leads | - |
|
MC8038E12B-FSRFAN AXIAL 80X38MM 12VDC WIRE |
21 | - |
|
数据表 |
MC8038 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 81.5 CFM (2.28m³/min) | 0.840 in H2O (209.2 Pa) | Ball | 0.397 lb (180.08 g) | Tubeaxial | Thermal Overload Protector (TOP) | 38.00mm | 52.1dB(A) | - | cUL, TUV, UL | 5800 RPM | - | 2 Wire Leads | - |
|
|
DC0923848M2B-BT4FAN 92X38MM 48VDC PWM/TACH MOLEX |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 109.2 CFM (3.06m³/min) | 0.860 in H2O (214.2 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 58.0dB(A) | 43.2 W | CE, cURus | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
|
DC0402812M2B-3T1FAN 40X28MM 12VDC TACH COMPUTER |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 18.7 CFM (0.524m³/min) | 0.920 in H2O (229.2 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 28.00mm | 51.0dB(A) | 4.2 W | CE, cURus, TUV | 11000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
|
DC0402812L2B-3T1FAN 40X28MM 12VDC TACH COMPUTER |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 15.9 CFM (0.445m³/min) | 0.690 in H2O (171.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 28.00mm | 44.0dB(A) | 3.12 W | CE, cURus, TUV | 9500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
|
DC1203848U2B-3T3FAN 120X38MM 48VDC TACH MOLEX 22 |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 123.3 CFM (3.45m³/min) | 0.450 in H2O (112.1 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 44.0dB(A) | 36 W | CE, cURus | 2900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
|
DC1203848V2B-3T3FAN 120X38MM 48VDC TACH MOLEX 22 |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 135.7 CFM (3.80m³/min) | 0.540 in H2O (134.5 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 48.0dB(A) | 38.4 W | CE, cURus | 3200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
|
9GA0824P4G0011FAN AXIAL 80X25MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 67.4 CFM (1.89m³/min) | 0.600 in H2O (149.5 Pa) | Ball | 0.243 lb (110.22 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.00mm | 45.0dB(A) | 5.04 W | CSA, TUV, UL | 6800 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
|
9GA0824P4H0011FAN AXIAL 80X25MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 51.5 CFM (1.44m³/min) | 0.350 in H2O (87.2 Pa) | Ball | 0.243 lb (110.22 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.00mm | 37.0dB(A) | 2.4 W | CSA, TUV, UL | 5200 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
|
9GA0612K102FAN AXIAL 60X38MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 53.0 CFM (1.48m³/min) | 2.400 in H2O (597.8 Pa) | Ball | 0.287 lb (130.18 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | 59.0dB(A) | 11.4 W | CSA, TUV, UL | 14800 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
9GA0612K1021FAN AXIAL 60X38MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 53.0 CFM (1.48m³/min) | 2.400 in H2O (597.8 Pa) | Ball | 0.287 lb (130.18 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | 59.0dB(A) | 11.4 W | CSA, TUV, UL | 14800 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
