直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

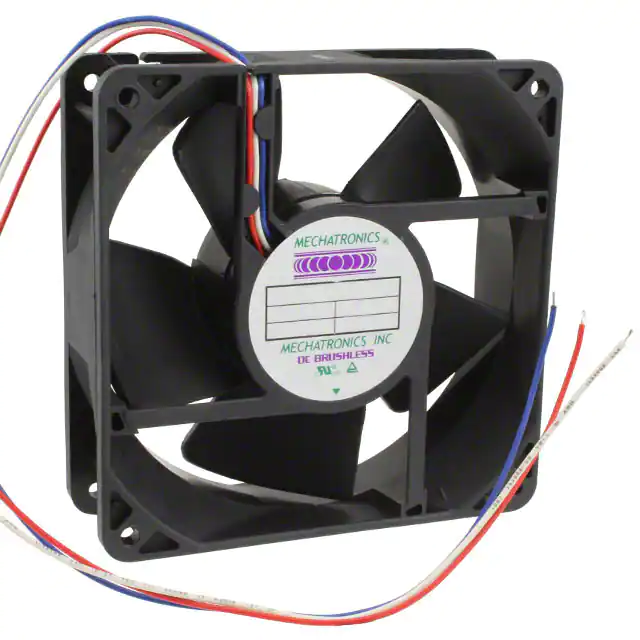

G1238H24B1-FSR-WS-EMFAN AXIAL 119X38MM 24VDC WIRE |
0 | - |
|
数据表 |
G1238 | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 141.2 CFM (3.95m³/min) | 0.410 in H2O (102.1 Pa) | Ball | 0.74 lb (335.66 g) | Tubeaxial | Alarm Sensor, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 38.00mm | 46.0dB(A) | - | CE, cUL, TUV, UL | 3200 RPM | - | 4 Wire Leads | IP57 - Dust Protected, Waterproof |
|
|
G1238L12B1-FSR-EMFAN AXIAL 119X38MM 12VDC WIRE |
0 | - |
|
数据表 |
G1238 | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 107.0 CFM (3.00m³/min) | 0.240 in H2O (59.8 Pa) | Ball | 0.74 lb (335.66 g) | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 38.00mm | 38.0dB(A) | - | CE, cUL, TUV, UL | 2400 RPM | - | 3 Wire Leads | IP57 - Dust Protected, Waterproof |
|
MS1238M24B1-FHR-2EMFAN AXIAL 120X38MM 24VDC WIRE |
0 | - |
|
数据表 |
MS1238 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 125.0 CFM (3.50m³/min) | 0.240 in H2O (59.8 Pa) | Ball | 0.667 lb (302.55 g) | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 38.00mm | 46.0dB(A) | - | - | 2500 RPM | - | 3 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
MS1238H24B1-FHR-2EMFAN AXIAL 120X38MM 24VDC WIRE |
0 | - |
|
数据表 |
MS1238 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 203.3 CFM (5.69m³/min) | 0.590 in H2O (147.0 Pa) | Ball | 0.667 lb (302.55 g) | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 38.00mm | 56.0dB(A) | - | - | 4000 RPM | - | 3 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
MS1238E24B1-FHR-2EMFAN AXIAL 120X38MM 24VDC WIRE |
0 | - |
|
数据表 |
MS1238 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 271.1 CFM (7.59m³/min) | 1.190 in H2O (296.4 Pa) | Ball | 0.667 lb (302.55 g) | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 38.00mm | 68.0dB(A) | - | - | 5000 RPM | - | 3 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
MS1238M48B1-FHR-2EMFAN AXIAL 120X38MM 48VDC WIRE |
0 | - |
|
数据表 |
MS1238 | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 125.0 CFM (3.50m³/min) | 0.240 in H2O (59.8 Pa) | Ball | 0.667 lb (302.55 g) | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 38.00mm | 46.0dB(A) | - | - | 2500 RPM | - | 3 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
MS1238H48B1-FHR-2EMFAN AXIAL 120X38MM 48VDC WIRE |
0 | - |
|
数据表 |
MS1238 | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 203.3 CFM (5.69m³/min) | 0.590 in H2O (147.0 Pa) | Ball | 0.667 lb (302.55 g) | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 38.00mm | 56.0dB(A) | - | - | 4000 RPM | - | 3 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
MS1238E48B1-FHR-2EMFAN AXIAL 120X38MM 48VDC WIRE |
0 | - |
|
数据表 |
MS1238 | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 271.1 CFM (7.59m³/min) | 1.190 in H2O (296.4 Pa) | Ball | 0.667 lb (302.55 g) | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 38.00mm | 68.0dB(A) | - | - | 5000 RPM | - | 3 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
DC0603824I2B-3T3FAN 60X38MM 24VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 43.1 CFM (1.21m³/min) | 0.900 in H2O (224.2 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 51.0dB(A) | 12.48 W | CE, cURus | 8000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
|
DC0603824J2B-3T3FAN 60X38MM 24VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 50.6 CFM (1.42m³/min) | 1.190 in H2O (296.4 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 54.0dB(A) | 16.32 W | CE, cURus | 9000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
F6025X12B-RHR-EMFAN AXIAL 60X25MM 12VDC WIRE |
90 | - |
|
数据表 |
F6025-H | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 28.0 CFM (0.784m³/min) | 0.370 in H2O (92.2 Pa) | Ball | 0.139 lb (63.05 g) | Tubeaxial | Thermal Overload Protector (TOP) | 25.00mm | 42.0dB(A) | - | CE, cUL, TUV, UL | 5800 RPM | - | 2 Wire Leads | IP57 - Dust Protected, Waterproof |
|
|
9RA0912P4H00392X25MM 12VDC TACH/PWM |
0 | - |
|
数据表 |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 52.0 CFM (1.46m³/min) | 0.193 in H2O (48.1 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.00mm | 31.0dB(A) | - | cURus, TUV | 3400 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
109R0612S4021FAN AXIAL 60X25MM 12VDC WIRE |
78 | - |
|
数据表 |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 23.0 CFM (0.644m³/min) | 0.228 in H2O (56.8 Pa) | Ball | 0.199 lb (90.26 g) | Tubeaxial | Locked Rotor Protection | 25.00mm | 33.0dB(A) | 2.04 W | CSA, TUV, UL | 4600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
109R0812H4D011FAN AXIAL 80X25MM 12VDC WIRE |
78 | - |
|
数据表 |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 36.4 CFM (1.02m³/min) | 0.142 in H2O (35.4 Pa) | Ball | 0.243 lb (110.22 g) | Tubeaxial | Locked Rotor Sensor | 25.00mm | 29.0dB(A) | 1.56 W | CSA, TUV, UL | 2900 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
109P0424H767FAN AXIAL 40X15MM 24VDC |
45 | - |
|
数据表 |
San Ace 40 | Box | Active | 24VDC | Square - 40mm L x 40mm H | - | - | Ball | 0.071 lb (32.21 g) | Tubeaxial | Locked Rotor Protection | 15.00mm | 28.0dB(A) | - | CSA, TUV, UL | 7700 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Position Rectangular Connector | - |
|
MR9232E24B-FSRFAN AXIAL 92X32MM 24VDC WIRE |
34 | - |
|
数据表 |
MR9232 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 96.0 CFM (2.69m³/min) | 0.580 in H2O (144.5 Pa) | Ball | 0.331 lb (150.14 g) | Tubeaxial | Auto Restart | 32.00mm | 52.8dB(A) | - | CE, cUL, TUV, UL | 5000 RPM | - | 2 Wire Leads | - |
|
F6025E12B-FHR-EMFAN AXIAL 60X25MM 12VDC WIRE |
14 | - |
|
数据表 |
F6025-H | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 24.0 CFM (0.672m³/min) | 0.320 in H2O (79.7 Pa) | Ball | 0.139 lb (63.05 g) | Tubeaxial | Thermal Overload Protector (TOP) | 25.00mm | 37.0dB(A) | - | CE, cUL, TUV, UL | 5000 RPM | - | 2 Wire Leads | IP57 - Dust Protected, Waterproof |
|

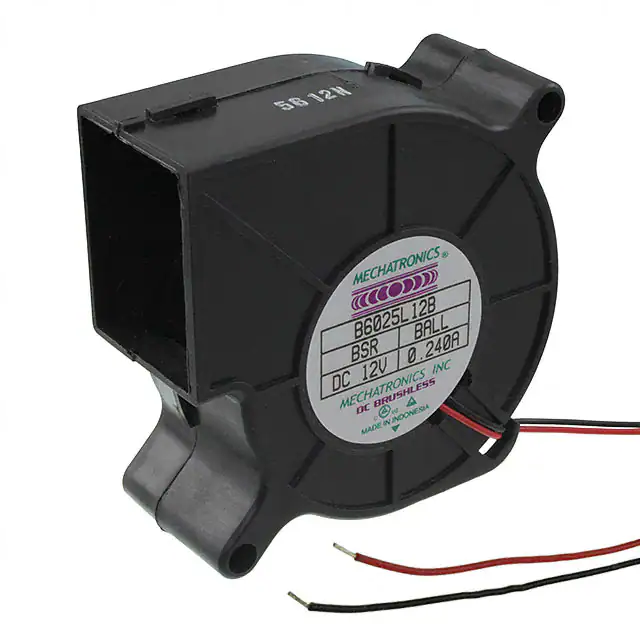

B6025L12B-BSRFAN BLOWER 60X25MM 12VDC WIRE |
66 | - |
|
数据表 |
B6025 | Bulk | Active | 12VDC | Square/Rounded - 60mm L x 60mm H | 3.0 CFM (0.084m³/min) | 0.320 in H2O (79.7 Pa) | Ball | 0.098 lb (44.45 g) | Blower | Thermal Overload Protector (TOP) | 25.00mm | 28.0dB(A) | - | - | 2800 RPM | - | 2 Wire Leads | - |
|
109R0605F401FAN AXIAL 60X25MM BALL 5VDC WIRE |
93 | - |
|
数据表 |
San Ace 60 | Box | Active | 5VDC | Square - 60mm L x 60mm H | 15.5 CFM (0.434m³/min) | 0.118 in H2O (29.4 Pa) | Ball | 0.199 lb (90.26 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 24.0dB(A) | 1 W | CSA, TUV, UL | 3200 RPM | -4 ~ 140°F (-20 ~ 60°C) | 3 Wire Leads | - |
|
109R0605M4D01FAN AXIAL 60X25MM BALL 5VDC WIRE |
73 | - |
|
数据表 |
San Ace 60 | Box | Active | 5VDC | Square - 60mm L x 60mm H | 12.7 CFM (0.356m³/min) | 0.079 in H2O (19.6 Pa) | Ball | 0.199 lb (90.26 g) | Tubeaxial | Locked Rotor Sensor | 25.00mm | 20.0dB(A) | 650 mW | CSA, TUV, UL | 2600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
