直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9G1224M4D01FAN AXIAL 120X25MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 120 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 59.0 CFM (1.65m³/min) | 0.124 in H2O (30.9 Pa) | Ball | 0.529 lb (239.95 g) | Tubeaxial | Locked Rotor Sensor | 25.00mm | 29.0dB(A) | 1.92 W | CSA, TUV, UL | 1950 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
109R0612F402FAN AXIAL 60X25MM 12VDC WIRE |
79 | - |
|
数据表 |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 15.5 CFM (0.434m³/min) | 0.118 in H2O (29.4 Pa) | Ball | 0.199 lb (90.26 g) | Tubeaxial | Locked Rotor Protection | 25.00mm | 24.0dB(A) | 1.08 W | CSA, TUV, UL | 3200 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
9G1212A4011FAN AXIAL 120X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 120 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 100.0 CFM (2.80m³/min) | 0.309 in H2O (77.0 Pa) | Ball | 0.529 lb (240.00 g) | Tubeaxial | Speed Sensor (Tach) | 25.00mm | 44.0dB(A) | 4.8 W | CSA, TUV, UL | 3150 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9G1212L4011120X25MM 12V,HIGH PERF.,RBLS DC |
0 | - |
|
数据表 |
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | - | - | Ball | - | Tubeaxial | Speed Sensor (Tach) | 25.00mm | 24.0dB(A) | - | - | 1400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
G8032X12B-RSRFAN AXIAL 80X32MM 12VDC WIRE |
31 | - |
|
数据表 |
G8032 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | - | - | Ball | 0.286 lb (129.73 g) | Tubeaxial | Thermal Overload Protector (TOP) | 32.00mm | - | - | CE, cUL, TUV, UL | - | - | 2 Wire Leads | - |
|
|
MS6038L24B1+6-FSR-2EMFAN AXIAL 60X38MM 24VDC WIRE |
0 | - |
|
数据表 |
MS6038-S | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 26.1 CFM (0.731m³/min) | 0.470 in H2O (117.1 Pa) | Ball | 0.231 lb (104.78 g) | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 38.00mm | 39.0dB(A) | - | - | 6000 RPM | - | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
MS6038M24B1+6-FSR-2EMFAN AXIAL 60X38MM 24VDC WIRE |
0 | - |
|
数据表 |
MS6038-S | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 44.0 CFM (1.23m³/min) | 0.810 in H2O (201.8 Pa) | Ball | 0.231 lb (104.78 g) | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 38.00mm | 54.0dB(A) | - | - | 8000 RPM | - | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
MS6038M48B1+6-FSR-2EMFAN AXIAL 60X38MM 48VDC WIRE |
0 | - |
|
数据表 |
MS6038-S | Bulk | Active | 48VDC | Square - 60mm L x 60mm H | 44.0 CFM (1.23m³/min) | 0.810 in H2O (201.8 Pa) | Ball | 0.231 lb (104.78 g) | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 38.00mm | 54.0dB(A) | - | - | 8000 RPM | - | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
MS6038H48B1+6-FSR-2EMFAN AXIAL 60X38MM 48VDC WIRE |
0 | - |
|
数据表 |
MS6038-S | Bulk | Active | 48VDC | Square - 60mm L x 60mm H | 58.0 CFM (1.62m³/min) | 1.600 in H2O (398.6 Pa) | Ball | 0.231 lb (104.78 g) | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 38.00mm | 59.0dB(A) | - | - | 11000 RPM | - | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
9GA0624J102FAN AXIAL 60X38MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 62.0 CFM (1.74m³/min) | 3.300 in H2O (822.0 Pa) | Ball | 0.287 lb (130.18 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | 63.0dB(A) | 18 W | CSA, TUV, UL | 17500 RPM | -4 ~ 140°F (-20 ~ 60°C) | 2 Wire Leads | - |
|
CFM-8038B-150-498FAN AXIAL 80X37.6MM 12VDC WIRE |
61 | - |
|
数据表 |
CFM-80B | Box | Active | 12VDC | Square - 80mm L x 80mm H | 61.8 CFM (1.73m³/min) | 0.580 in H2O (144.5 Pa) | Ball | - | Tubeaxial | Auto Restart | 37.60mm | 49.8dB(A) | 6.84 W | CE, cURus, TUV | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
9GA0624J1021FAN AXIAL 60X38MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 62.0 CFM (1.74m³/min) | 3.300 in H2O (822.0 Pa) | Ball | 0.287 lb (130.18 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | 63.0dB(A) | 18 W | CSA, TUV, UL | 17500 RPM | -4 ~ 140°F (-20 ~ 60°C) | 2 Wire Leads | - |
|

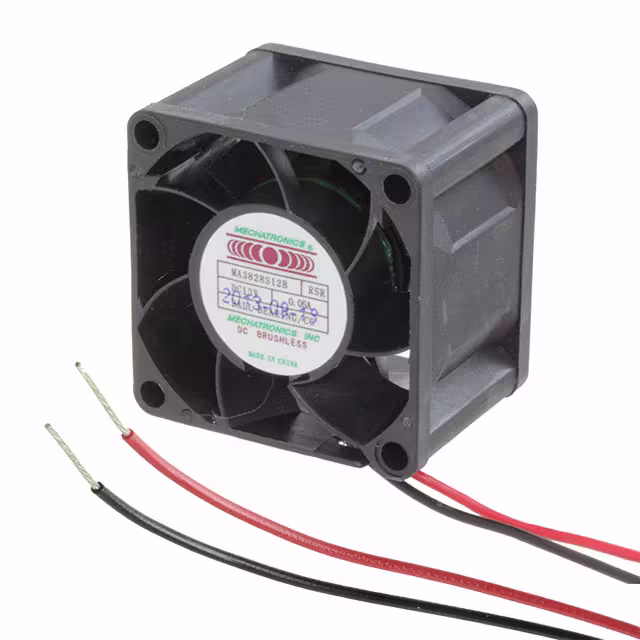

MA3828S12B-RSR-CCFAN AXIAL 38X28MM 12VDC WIRE |
47 | - |
|
数据表 |
MA3828 | Bulk | Active | 12VDC | Square - 38mm L x 38mm H | 6.2 CFM (0.174m³/min) | 0.136 in H2O (33.9 Pa) | Ball | 0.078 lb (35.38 g) | Tubeaxial | Conformal Coating, Thermal Overload Protector (TOP) | 28.00mm | 30.8dB(A) | - | cUL, UL | 5000 RPM | - | 2 Wire Leads | - |
|
CBM-A232B-125FAN BLOWER 120X32MM 12VDC WIRE |
0 | - |
|
数据表 |
CBM-120B | Tray | Active | 12VDC | Square/Rounded - 120mm L x 120mm H | 35.9 CFM (1.01m³/min) | 0.890 in H2O (221.7 Pa) | Ball | 0.553 lb (250.84 g) | Blower | Auto Restart | 32.00mm | 53.8dB(A) | 9.8 W | CE, cURus, TUV | 2500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
G4020H05B-RSR-CC-TEF-L4FAN AXIAL 40X20MM BALL 5VDC WIRE |
28 | - |
|
数据表 |
G4020 | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 11.0 CFM (0.308m³/min) | 0.200 in H2O (49.8 Pa) | Ball | 0.062 lb (28.12 g) | Tubeaxial | Conformal Coating, Thermal Overload Protector (TOP) | 20.00mm | 29.0dB(A) | - | CE, cUL, TUV, UL | 7000 RPM | - | 2 Wire Leads | - |
|
|
DC0803824L2B-3T3FAN 80X38MM 24VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 58.2 CFM (1.63m³/min) | 0.410 in H2O (102.1 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 45.0dB(A) | 9.6 W | CE, cURus | 4200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
G4015M24B-RSR-CCFAN AXIAL 40X15MM 24VDC WIRE |
94 | - |
|
数据表 |
G4015 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 6.0 CFM (0.168m³/min) | 0.160 in H2O (39.8 Pa) | Ball | 0.051 lb (23.13 g) | Tubeaxial | Conformal Coating, Thermal Overload Protector (TOP) | 15.00mm | 23.0dB(A) | - | CE, cUL, TUV, UL | 6000 RPM | - | 2 Wire Leads | - |
|
MH4028X12B1+6-RSRFAN AXIAL 40X28MM 12VDC WIRE |
83 | - |
|
数据表 |
MH4028 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 25.2 CFM (0.706m³/min) | 1.325 in H2O (330.0 Pa) | Ball | 0.089 lb (40.37 g) | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 28.00mm | 63.0dB(A) | - | - | 16500 RPM | - | 4 Wire Leads | - |
|
9A0924L4D01FAN AXIAL 92X25MM 24VDC WIRE |
80 | - |
|
数据表 |
San Cooler 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 28.2 CFM (0.790m³/min) | 0.054 in H2O (13.4 Pa) | Ball | 0.222 lb (100.7 g) | Tubeaxial | Locked Rotor Sensor | 25.00mm | 23.0dB(A) | 960 mW | CSA, TUV, UL | 1750 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
CFM-A225V-127-405-20FAN AXIAL 120X25MM 12VDC WIRE |
39 | - |
|
数据表 |
CFM-120V | Tray | Active | 12VDC | Square - 120mm L x 120mm H | 93.0 CFM (2.60m³/min) | 0.220 in H2O (54.8 Pa) | omniCOOL™ Magnetic Sleeve | 0.357 lb (161.93 g) | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.00mm | 40.5dB(A) | 3.46 W | CE, cURus, TUV | 2700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
