固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRU1048A-221YFIXED IND 220UH 800MA 455MOHM SM Bourns Inc. |
5,329 | - |
|
数据表 |
SRU1048A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 800 mA | 700mA | - | Shielded | 455mOhm Max | 220 µH | 20 @ 796kHz | 4MHz | Surface Mount | AEC-Q200 | 0.394" L x 0.394" W (10.00mm x 10.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.201" (5.10mm) |
|
|
SRU1048A-560YFIXED IND 56UH 1.6A 145 MOHM SMD Bourns Inc. |
3,000 | - |
|
数据表 |
SRU1048A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 1.6 A | 1.4A | - | Shielded | 145mOhm Max | 56 µH | 26 @ 2.52MHz | 7MHz | Surface Mount | AEC-Q200 | 0.394" L x 0.394" W (10.00mm x 10.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.201" (5.10mm) |
|

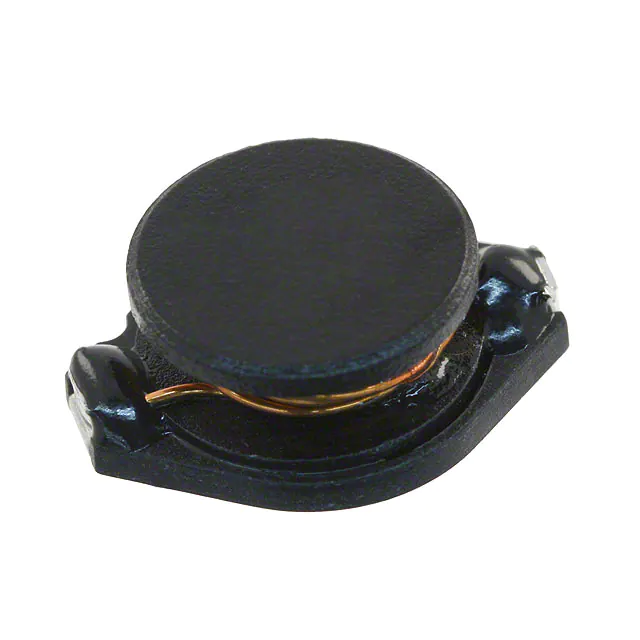

SDR1806-5R6MLFIXED IND 5.6UH 6.4A 15 MOHM SMD Bourns Inc. |
2,979 | - |
|
数据表 |
SDR1806 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 6.4 A | 12.8A | - | Unshielded | 15mOhm Max | 5.6 µH | 23 @ 7.96MHz | 30MHz | Surface Mount | - | 0.720" L x 0.551" W (18.30mm x 14.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.272" (6.90mm) |
|
|
SRU1048A-100YFIXED IND 10UH 4.5A 25 MOHM SMD Bourns Inc. |
2,696 | - |
|
数据表 |
SRU1048A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 4.5 A | 3.7A | - | Shielded | 25mOhm Max | 10 µH | 26 @ 2.52MHz | 16MHz | Surface Mount | AEC-Q200 | 0.394" L x 0.394" W (10.00mm x 10.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.201" (5.10mm) |
|
|
SRU1048A-330YFIXED IND 33UH 2.1A 84 MOHM SMD Bourns Inc. |
2,242 | - |
|
数据表 |
SRU1048A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 2.1 A | 1.7A | - | Shielded | 84mOhm Max | 33 µH | 24 @ 2.52MHz | 10MHz | Surface Mount | AEC-Q200 | 0.394" L x 0.394" W (10.00mm x 10.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.201" (5.10mm) |
|
|
SRU1048A-151YFIXED IND 150UH 1A 305 MOHM SMD Bourns Inc. |
1,790 | - |
|
数据表 |
SRU1048A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 1 A | 800mA | - | Shielded | 305mOhm Max | 150 µH | 24 @ 796kHz | 4.5MHz | Surface Mount | AEC-Q200 | 0.394" L x 0.394" W (10.00mm x 10.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.201" (5.10mm) |
|
|
SDR1806-2R2MLFIXED IND 2.2UH 9A 6.8 MOHM SMD Bourns Inc. |
685 | - |
|
数据表 |
SDR1806 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 9 A | 22A | - | Unshielded | 6.8mOhm Max | 2.2 µH | 22 @ 7.96MHz | 55MHz | Surface Mount | - | 0.720" L x 0.551" W (18.30mm x 14.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.272" (6.90mm) |
|
|
SDR1806-1R0MLFIXED IND 1UH 10A 4 MOHM SMD Bourns Inc. |
146 | - |
|
数据表 |
SDR1806 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 10 A | 30A | - | Unshielded | 4mOhm Max | 1 µH | 21 @ 7.96MHz | 100MHz | Surface Mount | - | 0.720" L x 0.551" W (18.30mm x 14.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.272" (6.90mm) |
|
|
SDR1806-3R3MLFIXED IND 3.3UH 7.6A 9.8MOHM SMD Bourns Inc. |
245 | - |
|
数据表 |
SDR1806 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 7.6 A | 17A | - | Unshielded | 9.8mOhm Max | 3.3 µH | 22 @ 7.96MHz | 40MHz | Surface Mount | - | 0.720" L x 0.551" W (18.30mm x 14.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.272" (6.90mm) |
|
SDR1307A-470KFIXED IND 47UH 2.7A 82 MOHM SMD Bourns Inc. |
6,856 | - |
|
数据表 |
SDR1307A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 2.7 A | 4.2A | - | Unshielded | 82mOhm Max | 47 µH | 24 @ 2.52MHz | 7.5MHz | Surface Mount | AEC-Q200 | 0.512" Dia (13.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.287" (7.30mm) |
