固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRR1005-6R8MFIXED IND 6.8UH 2.2A 75 MOHM SMD Bourns Inc. |
3,540 | - |
|
数据表 |
SRR1005 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 2.2 A | 2.8A | - | Shielded | 75mOhm Max | 6.8 µH | 22 @ 7.96MHz | 35MHz | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | - | -40°C ~ 125°C | 1 kHz | 0.205" (5.20mm) |
|
|
SRR1005-222KFIXED IND 2.2MH 140MA 6.5OHM SMD Bourns Inc. |
1,470 | - |
|
数据表 |
SRR1005 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 140 mA | 210mA | - | Shielded | 6.5Ohm Max | 2.2 mH | 55 @ 252kHz | 1.4MHz | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | - | -40°C ~ 125°C | 1 kHz | 0.205" (5.20mm) |
|
SRR1205-100MLFIXED IND 10UH 3A 54 MOHM SMD Bourns Inc. |
1,202 | - |
|
数据表 |
SRR1205 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 3 A | 6A | - | Shielded | 54mOhm Max | 10 µH | 21 @ 2.52MHz | 15MHz | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | - | -40°C ~ 125°C | 1 kHz | 0.217" (5.50mm) |
|

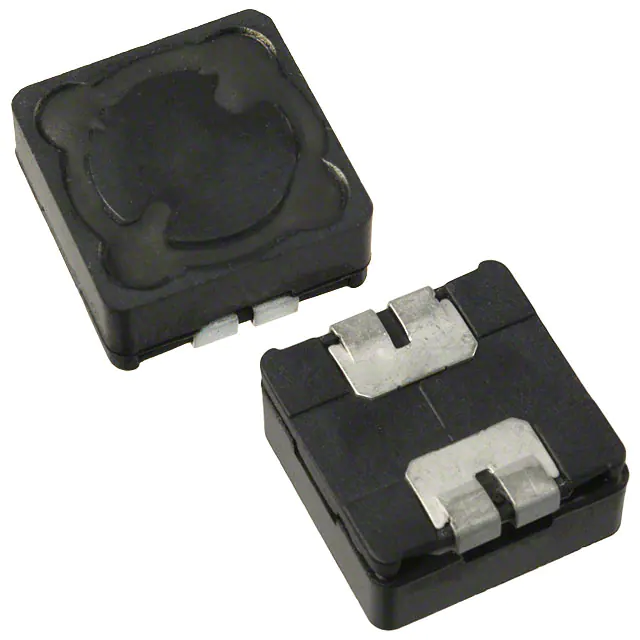

SRR1206-271KLFIXED IND 270UH 650MA 520MOHM SM Bourns Inc. |
1,180 | - |
|
数据表 |
SRR1206 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 650 mA | 1.1A | - | Shielded | 520mOhm Max | 270 µH | 11 @ 796kHz | 3.5MHz | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | - | -40°C ~ 125°C | 1 kHz | 0.256" (6.50mm) |
|
|
SRR1005-821KFIXED IND 820UH 240MA 2.6OHM SMD Bourns Inc. |
1,171 | - |
|
数据表 |
SRR1005 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 240 mA | 360mA | - | Shielded | 2.6Ohm Max | 820 µH | 37 @ 796kHz | 2.5MHz | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | - | -40°C ~ 125°C | 1 kHz | 0.205" (5.20mm) |
|
|
SRR1206-820YLFIXED IND 82UH 1.2A 185 MOHM SMD Bourns Inc. |
740 | - |
|
数据表 |
SRR1206 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±15% | 1.2 A | 2.1A | - | Shielded | 185mOhm Max | 82 µH | 16 @ 2.52MHz | 6MHz | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | - | -40°C ~ 125°C | 1 kHz | 0.256" (6.50mm) |
|
|
SRR1206-150MLFIXED IND 15UH 2.8A 42 MOHM SMD Bourns Inc. |
629 | - |
|
数据表 |
SRR1206 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 2.8 A | 5.1A | - | Shielded | 42mOhm Max | 15 µH | 19 @ 2.52MHz | 16MHz | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | - | -40°C ~ 125°C | 1 kHz | 0.256" (6.50mm) |
|
|
SRR1005-681KFIXED IND 680UH 260MA 2.3OHM SMD Bourns Inc. |
599 | - |
|
数据表 |
SRR1005 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 260 mA | 380mA | - | Shielded | 2.3Ohm Max | 680 µH | 37 @ 796kHz | 2.6MHz | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | - | -40°C ~ 125°C | 1 kHz | 0.205" (5.20mm) |
|
|
SRR1205-150MLFIXED IND 15UH 2.7A 70 MOHM SMD Bourns Inc. |
419 | - |
|
数据表 |
SRR1205 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 2.7 A | 5.3A | - | Shielded | 70mOhm Max | 15 µH | 20 @ 2.52MHz | 11MHz | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | - | -40°C ~ 125°C | 1 kHz | 0.217" (5.50mm) |
|
9230-04-RCFIXED IND 220NH 935MA 140MOHM TH Bourns Inc. |
301 | - |
|
数据表 |
9230 | Axial | Bulk | Active | Molded | Phenolic | ±10% | 935 mA | - | - | Unshielded | 140mOhm Max | 220 nH | 33 @ 25MHz | 510MHz | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - | -55°C ~ 105°C | 25 MHz | - |
