固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRR1260-1R5YFIXED IND 1.5UH 8.8A 9.5MOHM SMD Bourns Inc. |
1,590 | - |
|
数据表 |
SRR1260 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 8.8 A | 9.9A | - | Shielded | 9.5mOhm Max | 1.5 µH | 24 @ 7.96MHz | 86MHz | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.256" (6.50mm) |
|
SRU8045A-101YFIXED IND 100UH 1A 500 MOHM SMD Bourns Inc. |
1,487 | - |
|
数据表 |
SRU8045A | 4-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 1 A | 920mA | - | Shielded | 500mOhm Max | 100 µH | 20 @ 796kHz | 3MHz | Surface Mount | AEC-Q200 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.189" (4.80mm) |
|
SRP4018FA-1R2MFIXED IND SMD Bourns Inc. |
1,036 | - |
|
数据表 |
SRP4018FA | Nonstandard | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | - | - | - | - | - | - |
|

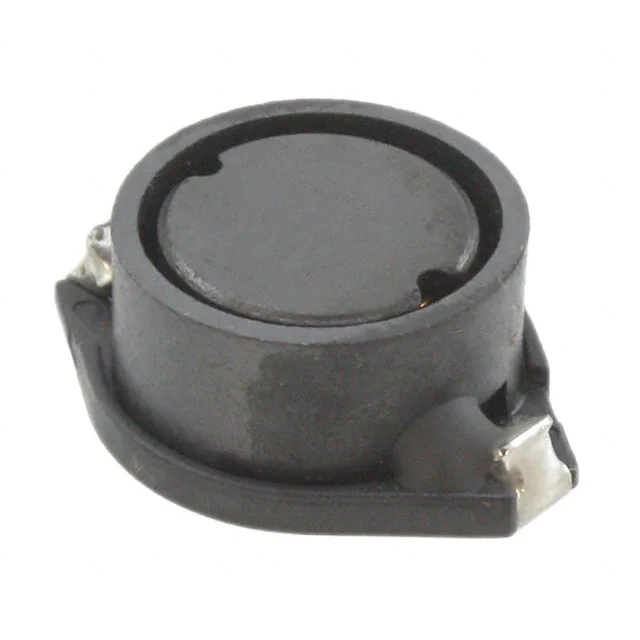

SRR1806-100MFIXED IND 10UH 4A 33 MOHM SMD Bourns Inc. |
868 | - |
|
数据表 |
SRR1806 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 4 A | 8.2A | - | Shielded | 33mOhm | 10 µH | 56 @ 2.52MHz | 19MHz | Surface Mount | - | 0.720" L x 0.551" W (18.30mm x 14.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.280" (7.10mm) |
|
PM127SH-270M-RCFIXED IND 27UH 3.9A 52 MOHM SMD Bourns Inc. |
800 | - |
|
数据表 |
PM127SH | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 3.9 A | 3.7A | - | Shielded | 52mOhm Max | 27 µH | 26 @ 2.52MHz | 10MHz | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.315" (8.00mm) |
|
SRR1240-1R5YFIXED IND 1.5UH 9.2A 9.5MOHM SMD Bourns Inc. |
778 | - |
|
数据表 |
SRR1240 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 9.2 A | 9A | - | Shielded | 9.5mOhm Max | 1.5 µH | 16 @ 7.96MHz | 80MHz | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.177" (4.50mm) |
|
|
SRR1240-560MFIXED IND 56UH 1.8A 170 MOHM SMD Bourns Inc. |
745 | - |
|
数据表 |
SRR1240 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.8 A | 1.65A | - | Shielded | 170mOhm Max | 56 µH | 16 @ 2.52MHz | 12MHz | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.177" (4.50mm) |
|
SRR1050A-3R3YFIXED IND 3.3UH 6.5A 11 MOHM SMD Bourns Inc. |
697 | - |
|
数据表 |
SRR1050A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 6.5 A | 7.8A | - | Shielded | 11mOhm Max | 3.3 µH | - | 40MHz | Surface Mount | AEC-Q200 | 0.402" L x 0.394" W (10.20mm x 10.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.201" (5.10mm) |
|
|
SRR1050A-4R2YFIXED IND 4.2UH 6.1A 14 MOHM SMD Bourns Inc. |
619 | - |
|
数据表 |
SRR1050A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 6.1 A | 6.4A | - | Shielded | 14mOhm Max | 4.2 µH | - | 29MHz | Surface Mount | AEC-Q200 | 0.402" L x 0.394" W (10.20mm x 10.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.201" (5.10mm) |
|
|
SRR1050A-390YFIXED IND 39UH 2.25A 106MOHM SMD Bourns Inc. |
619 | - |
|
数据表 |
SRR1050A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 2.25 A | 2.3A | - | Shielded | 106mOhm Max | 39 µH | - | 6.8MHz | Surface Mount | AEC-Q200 | 0.402" L x 0.394" W (10.20mm x 10.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.201" (5.10mm) |
