固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RL622-562K-RCFIXED IND 5.6MH 50MA 18 OHM TH Bourns Inc. |
1,008 | - |
|
数据表 |
RL622 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 50 mA | - | - | Unshielded | 18Ohm Max | 5.6 mH | 20 @ 252kHz | 400kHz | Through Hole | - | 0.335" Dia (8.50mm) | - | -55°C ~ 105°C | 252 kHz | 0.433" (11.00mm) |
|
|
RL622-222K-RCFIXED IND 2.2MH 80MA 6.8 OHM TH Bourns Inc. |
1,000 | - |
|
数据表 |
RL622 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 80 mA | - | - | Unshielded | 6.8Ohm Max | 2.2 mH | 20 @ 252kHz | 900kHz | Through Hole | - | 0.335" Dia (8.50mm) | - | -55°C ~ 105°C | 252 kHz | 0.433" (11.00mm) |
|

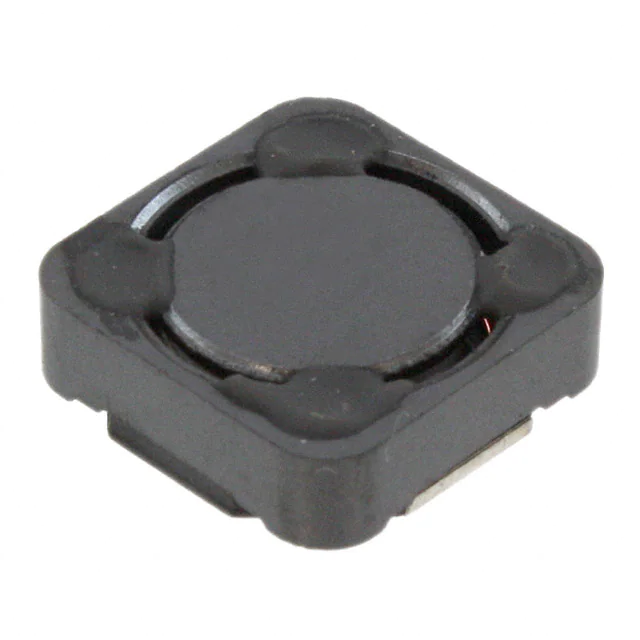

PM124SH-4R7M-RCFIXED IND 4.7UH 6A 18 MOHM SMD Bourns Inc. |
985 | - |
|
数据表 |
PM124SH | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 6 A | 5.6A | - | Shielded | 18mOhm Max | 4.7 µH | 16 @ 7.96MHz | 33MHz | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.177" (4.50mm) |
|
|
RL622-150K-RCFIXED IND 15UH 2.3A 56 MOHM TH Bourns Inc. |
968 | - |
|
数据表 |
RL622 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 2.3 A | - | - | Unshielded | 56mOhm Max | 15 µH | 40 @ 2.52MHz | 12MHz | Through Hole | - | 0.335" Dia (8.50mm) | - | -55°C ~ 105°C | 2.52 MHz | 0.433" (11.00mm) |
|
|
RL622-121K-RCFIXED IND 120UH 840MA 320MOHM TH Bourns Inc. |
912 | - |
|
数据表 |
RL622 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 840 mA | - | - | Unshielded | 320mOhm Max | 120 µH | 20 @ 796kHz | 3.4MHz | Through Hole | - | 0.335" Dia (8.50mm) | - | -55°C ~ 105°C | 796 kHz | 0.433" (11.00mm) |
|
|
RL622-120K-RCFIXED IND 12UH 2.7A 50 MOHM TH Bourns Inc. |
804 | - |
|
数据表 |
RL622 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 2.7 A | - | - | Unshielded | 50mOhm Max | 12 µH | 50 @ 2.52MHz | 13MHz | Through Hole | - | 0.335" Dia (8.50mm) | - | -55°C ~ 105°C | 2.52 MHz | 0.433" (11.00mm) |
|
|
PM124SH-220M-RCFIXED IND 22UH 3A 67.5 OHM SMD Bourns Inc. |
478 | - |
|
数据表 |
PM124SH | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 3 A | 2.6A | - | Shielded | 67.5mOhm Max | 22 µH | 18 @ 2.52MHz | 16MHz | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.177" (4.50mm) |
|
|
RL622-270K-RCFIXED IND 27UH 1.7A 80 MOHM TH Bourns Inc. |
476 | - |
|
数据表 |
RL622 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 1.7 A | - | - | Unshielded | 80mOhm Max | 27 µH | 30 @ 2.52MHz | 8.5MHz | Through Hole | - | 0.335" Dia (8.50mm) | - | -55°C ~ 105°C | 2.52 MHz | 0.433" (11.00mm) |
|
|
RL622-153K-RCFIXED IND 15MH 40MA 37 OHM TH Bourns Inc. |
299 | - |
|
数据表 |
RL622 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 40 mA | - | - | Unshielded | 37Ohm Max | 15 mH | 40 @ 79.6kHz | 200kHz | Through Hole | - | 0.335" Dia (8.50mm) | - | -55°C ~ 105°C | 79.6 kHz | 0.433" (11.00mm) |
|
|
RL622-223K-RCFIXED IND 22MH 30MA 56 OHM TH Bourns Inc. |
124 | - |
|
数据表 |
RL622 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 30 mA | - | - | Unshielded | 56Ohm Max | 22 mH | 30 @ 79.6kHz | 100kHz | Through Hole | - | 0.335" Dia (8.50mm) | - | -55°C ~ 105°C | 79.6 kHz | 0.433" (11.00mm) |
