固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8250-101K-RCFIXED IND 100UH 322MA 2.28OHM TH Bourns Inc. |
812 | - |
|
数据表 |
8250 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 322 mA | 120mA | - | Shielded | 2.28Ohm Max | 100 µH | 65 @ 2.5MHz | 12MHz | Through Hole | - | 0.164" Dia x 0.450" L (4.17mm x 11.43mm) | - | -55°C ~ 105°C | 2.5 MHz | - |
|
|
8250-562K-RCIND4.17X11.43MM,560010%0.025A,NO Bourns Inc. |
744 | - |
|
数据表 |
8250 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 66 mA | 17mA | Axial | Shielded | 54.6Ohm Max | 5.6 mH | 70 @ 250kHz | 1.6MHz | Through Hole | - | 0.164" Dia x 0.450" L (4.17mm x 11.43mm) | - | -55°C ~ 105°C | 250 kHz | - |
|
8250-R10K-RCFIXED IND 100NH 3A 26 MOHM TH Bourns Inc. |
675 | - |
|
数据表 |
8250 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 3 A | 3A | - | Shielded | 26mOhm Max | 100 nH | 50 @ 25MHz | 400MHz | Through Hole | - | 0.164" Dia x 0.450" L (4.17mm x 11.43mm) | - | -55°C ~ 105°C | 25 MHz | - |
|
|
8250-563K-RCFIXED IND 56MH 25MA 362 OHM TH Bourns Inc. |
638 | - |
|
数据表 |
8250 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 25 mA | 5mA | - | Shielded | 362Ohm Max | 56 mH | 50 @ 79kHz | 360kHz | Through Hole | - | 0.164" Dia x 0.450" L (4.17mm x 11.43mm) | - | -55°C ~ 105°C | 79 kHz | - |
|
8250-223K-RCFIXED IND 22MH 40MA 145 OHM TH Bourns Inc. |
494 | - |
|
数据表 |
8250 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 40 mA | 9mA | - | Shielded | 145Ohm Max | 22 mH | 50 @ 79kHz | 570kHz | Through Hole | - | 0.164" Dia x 0.450" L (4.17mm x 11.43mm) | - | -55°C ~ 105°C | 79 kHz | - |
|
|
8250-333K-RCFIXED IND 33MH 32MA 222 OHM TH Bourns Inc. |
477 | - |
|
数据表 |
8250 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 32 mA | 7.5mA | - | Shielded | 222Ohm Max | 33 mH | 50 @ 79kHz | 420kHz | Through Hole | - | 0.164" Dia x 0.450" L (4.17mm x 11.43mm) | - | -55°C ~ 105°C | 79 kHz | - |
|
|
8250-273K-RCFIXED IND 27MH 34MA 195 OHM TH Bourns Inc. |
458 | - |
|
数据表 |
8250 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 34 mA | 8mA | - | Shielded | 195Ohm Max | 27 mH | 50 @ 79kHz | 460kHz | Through Hole | - | 0.164" Dia x 0.450" L (4.17mm x 11.43mm) | - | -55°C ~ 105°C | 79 kHz | - |
|
|
8250-393K-RCFIXED IND 39MH 31MA 242 OHM TH Bourns Inc. |
382 | - |
|
数据表 |
8250 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 31 mA | 6mA | - | Shielded | 242Ohm Max | 39 mH | 50 @ 79kHz | 420kHz | Through Hole | - | 0.164" Dia x 0.450" L (4.17mm x 11.43mm) | - | -55°C ~ 105°C | 79 kHz | - |
|

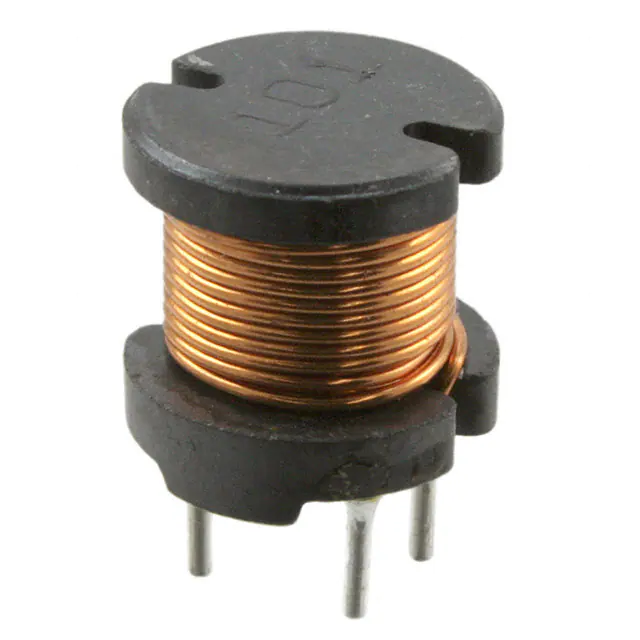

RL110-330K-RCFIXED IND 33UH 2.9A 55 MOHM TH Bourns Inc. |
1,258 | - |
|
数据表 |
RL110 | Radial, Vertical Cylinder, 4 Leads (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 2.9 A | - | - | Unshielded | 55mOhm Max | 33 µH | 20 @ 2.52MHz | 6MHz | Through Hole | - | 0.394" Dia (10.00mm) | - | -40°C ~ 105°C | 2.52 MHz | 0.413" (10.50mm) |
|
9230-06-RCFIXED IND 270NH 875MA 160MOHM TH Bourns Inc. |
731 | - |
|
数据表 |
9230 | Axial | Bulk | Active | Molded | Phenolic | ±10% | 875 mA | - | - | Unshielded | 160mOhm Max | 270 nH | 33 @ 25MHz | 430MHz | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - | -55°C ~ 105°C | 25 MHz | - |
