固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRP1265A-6R0MFIXED IND 6UH 12A 10 MOHM SMD Bourns Inc. |
1,445 | - |
|
数据表 |
SRP1265A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | ±20% | 12 A | 23A | - | Shielded | 10mOhm Max | 6 µH | 20 @ 100kHz | 14MHz | Surface Mount | AEC-Q200 | 0.531" L x 0.492" W (13.50mm x 12.50mm) | - | -55°C ~ 150°C | 100 kHz | 0.252" (6.40mm) |
|
SRP1270-1R0MFIXED IND 1UH 32A 2.1 MOHM SMD Bourns Inc. |
1,190 | - |
|
数据表 |
SRP1270 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | ±20% | 32 A | 50A | - | Shielded | 2.1mOhm Max | 1 µH | - | 45MHz | Surface Mount | - | 0.539" L x 0.539" W (13.70mm x 13.70mm) | - | -55°C ~ 125°C | 100 kHz | 0.276" (7.00mm) |
|
|
SRP1265A-R56MFIXED IND 560NH 37A 1.2 MOHM SMD Bourns Inc. |
918 | - |
|
数据表 |
SRP1265A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | ±20% | 37 A | 58A | - | Shielded | 1.2mOhm Max | 560 nH | 10 @ 100kHz | 65MHz | Surface Mount | AEC-Q200 | 0.531" L x 0.492" W (13.50mm x 12.50mm) | - | -55°C ~ 150°C | 100 kHz | 0.252" (6.40mm) |
|
|
SRP1270-1R5MFIXED IND 1.5UH 27A 2.6 MOHM SMD Bourns Inc. |
721 | - |
|
数据表 |
SRP1270 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | ±20% | 27 A | 48A | - | Shielded | 2.6mOhm Max | 1.5 µH | - | 31MHz | Surface Mount | - | 0.539" L x 0.539" W (13.70mm x 13.70mm) | - | -55°C ~ 125°C | 100 kHz | 0.276" (7.00mm) |
|
|
SRP1265A-R47MFIXED IND 470NH 41A 1.2 MOHM SMD Bourns Inc. |
639 | - |
|
数据表 |
SRP1265A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | ±20% | 41 A | 63A | - | Shielded | 1.2mOhm Max | 470 nH | 10 @ 100kHz | 75MHz | Surface Mount | AEC-Q200 | 0.531" L x 0.492" W (13.50mm x 12.50mm) | - | -55°C ~ 150°C | 100 kHz | 0.252" (6.40mm) |
|
|
SRP1265A-R33MFIXED IND 330NH 46A 0.8 MOHM SMD Bourns Inc. |
633 | - |
|
数据表 |
SRP1265A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | ±20% | 46 A | 68A | - | Shielded | 0.8mOhm Max | 330 nH | 10 @ 100kHz | 90MHz | Surface Mount | AEC-Q200 | 0.531" L x 0.492" W (13.50mm x 12.50mm) | - | -55°C ~ 150°C | 100 kHz | 0.252" (6.40mm) |
|
|
SRP1270-5R6MFIXED IND 5.6UH 14A 10 MOHM SMD Bourns Inc. |
316 | - |
|
数据表 |
SRP1270 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | ±20% | 14 A | 26.5A | - | Shielded | 10mOhm Max | 5.6 µH | - | 13MHz | Surface Mount | - | 0.539" L x 0.539" W (13.70mm x 13.70mm) | - | -55°C ~ 125°C | 100 kHz | 0.276" (7.00mm) |
|
|
SRP1265A-R15MFIXED IND 150NH 55A 0.6 MOHM SMD Bourns Inc. |
382 | - |
|
数据表 |
SRP1265A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | ±20% | 55 A | 118A | - | Shielded | 0.6mOhm Max | 150 nH | 10 @ 100kHz | 210MHz | Surface Mount | AEC-Q200 | 0.531" L x 0.492" W (13.50mm x 12.50mm) | - | -55°C ~ 150°C | 100 kHz | 0.252" (6.40mm) |
|

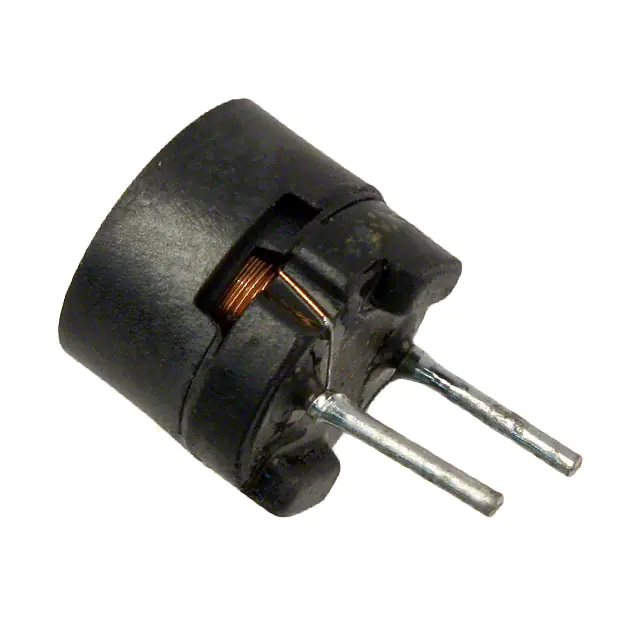

RL875S-100L-RCFIXED IND 10UH 2.4A 60 MOHM TH Bourns Inc. |
2,573 | - |
|
数据表 |
RL875S | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±15% | 2.4 A | - | - | Shielded | 60mOhm Max | 10 µH | 60 @ 2.52MHz | 25MHz | Through Hole | - | 0.307" Dia (7.80mm) | - | -40°C ~ 105°C | 2.52 MHz | 0.295" (7.50mm) |
|
|
RL875S-102K-RCFIXED IND 1MH 230MA 2.72 OHM TH Bourns Inc. |
1,314 | - |
|
数据表 |
RL875S | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | ±10% | 230 mA | - | - | Shielded | 2.72Ohm Max | 1 mH | 95 @ 252kHz | 2MHz | Through Hole | - | 0.307" Dia (7.80mm) | - | -40°C ~ 105°C | 1 kHz | 0.295" (7.50mm) |
