固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SC10F-102FIXED IND 1MH 440MA 2.8 OHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC10F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±10% | 440 mA | 310mA | - | Unshielded | 2.8Ohm Max | 1 mH | - | - | Surface Mount | - | 0.453" L x 0.382" W (11.50mm x 9.70mm) | - | -40°C ~ 125°C | 100 kHz | 0.197" (5.00mm) |
|
|
SC10F-180FIXED IND 18UH 3.4A 67 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC10F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 3.4 A | 2.15A | - | Unshielded | 67mOhm Max | 18 µH | - | - | Surface Mount | - | 0.453" L x 0.382" W (11.50mm x 9.70mm) | - | -40°C ~ 125°C | 100 kHz | 0.197" (5.00mm) |
|
|
SC10F-331FIXED IND 330UH 780MA 1 OHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC10F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±10% | 780 mA | 530mA | - | Unshielded | 1Ohm Max | 330 µH | - | - | Surface Mount | - | 0.453" L x 0.382" W (11.50mm x 9.70mm) | - | -40°C ~ 125°C | 100 kHz | 0.197" (5.00mm) |
|
|
SC10F-391FIXED IND 390UH 720MA 1.09OHM SM Signal Transformer |
0 | - |
|
数据表 |
SC10F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±10% | 720 mA | 490mA | - | Unshielded | 1.09Ohm Max | 390 µH | - | - | Surface Mount | - | 0.453" L x 0.382" W (11.50mm x 9.70mm) | - | -40°C ~ 125°C | 100 kHz | 0.197" (5.00mm) |
|
|
SC10F-471FIXED IND 470UH 640MA 1.25OHM SM Signal Transformer |
0 | - |
|
数据表 |
SC10F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±10% | 640 mA | 460mA | - | Unshielded | 1.25Ohm Max | 470 µH | - | - | Surface Mount | - | 0.453" L x 0.382" W (11.50mm x 9.70mm) | - | -40°C ~ 125°C | 100 kHz | 0.197" (5.00mm) |
|
|
SC10F-821FIXED IND 820UH 500MA 2.44OHM SM Signal Transformer |
0 | - |
|
数据表 |
SC10F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±10% | 500 mA | 340mA | - | Unshielded | 2.44Ohm Max | 820 µH | - | - | Surface Mount | - | 0.453" L x 0.382" W (11.50mm x 9.70mm) | - | -40°C ~ 125°C | 100 kHz | 0.197" (5.00mm) |
|

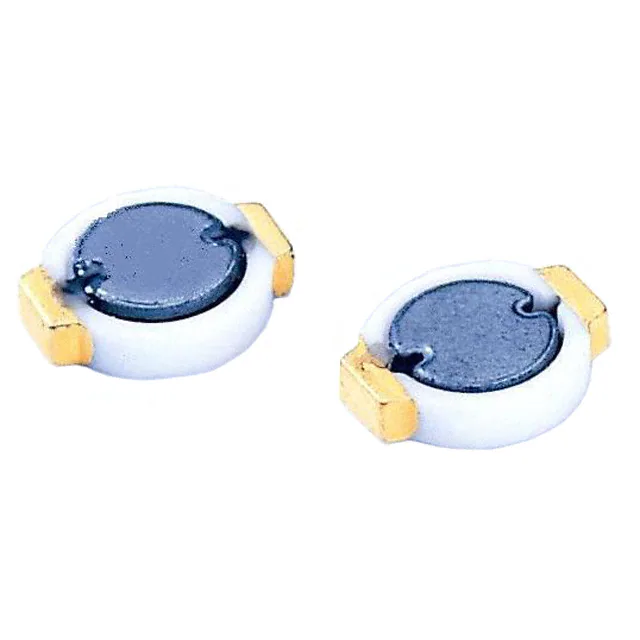

SC1606-150FIXED IND 15UH 880MA 400MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC1606 | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 880 mA | 800mA | - | Unshielded | 400mOhm Max | 15 µH | - | - | Surface Mount | - | 0.256" L x 0.220" W (6.50mm x 5.60mm) | - | -40°C ~ 125°C | 100 kHz | 0.071" (1.80mm) |
|
|
SC1606-1R0FIXED IND 1UH 2.45A 90 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC1606 | Nonstandard | Tape & Reel (TR) | Active | - | - | ±30% | 2.45 A | 2.5A | - | Unshielded | 90mOhm Max | 1 µH | - | - | Surface Mount | - | 0.256" L x 0.220" W (6.50mm x 5.60mm) | - | -40°C ~ 125°C | 100 kHz | 0.071" (1.80mm) |
|
|
SC1606-2R2FIXED IND 2.2UH 1.78A 110MOHM SM Signal Transformer |
0 | - |
|
数据表 |
SC1606 | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 1.78 A | 1.8A | - | Unshielded | 110mOhm Max | 2.2 µH | - | - | Surface Mount | - | 0.256" L x 0.220" W (6.50mm x 5.60mm) | - | -40°C ~ 125°C | 100 kHz | 0.071" (1.80mm) |
|
SC1608F-100FIXED IND 10UH 1.1A 160 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC1608F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 1.1 A | 1.1A | - | Unshielded | 160mOhm Max | 10 µH | - | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | - | -40°C ~ 125°C | 100 kHz | 0.115" (2.92mm) |
