固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SCEP147H-2R6FIXED IND 2.6UH 14A 5.5 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCEP147H | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 14 A | 24.4A | - | Shielded | 5.5mOhm Max | 2.6 µH | - | - | Surface Mount | - | 0.591" L x 0.587" W (15.00mm x 14.90mm) | - | -40°C ~ 125°C | 100 kHz | 0.319" (8.10mm) |
|
|
SCEP147H-3R5FIXED IND 3.5UH 13.5A 7.5MOHM SM Signal Transformer |
0 | - |
|
数据表 |
SCEP147H | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 13.5 A | 20.8A | - | Shielded | 7.5mOhm Max | 3.5 µH | - | - | Surface Mount | - | 0.591" L x 0.587" W (15.00mm x 14.90mm) | - | -40°C ~ 125°C | 100 kHz | 0.319" (8.10mm) |
|
|
SCEP147H-4R7FIXED IND 4.7UH 11.5A 7.8MOHM SM Signal Transformer |
0 | - |
|
数据表 |
SCEP147H | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 11.5 A | 17.6A | - | Shielded | 7.8mOhm Max | 4.7 µH | - | - | Surface Mount | - | 0.591" L x 0.587" W (15.00mm x 14.90mm) | - | -40°C ~ 125°C | 100 kHz | 0.319" (8.10mm) |
|
|
SCEP147H-7R3FIXED IND 7.3UH 9A 13.3 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCEP147H | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 9 A | 14.6A | - | Shielded | 13.3mOhm Max | 7.3 µH | - | - | Surface Mount | - | 0.591" L x 0.587" W (15.00mm x 14.90mm) | - | -40°C ~ 125°C | 100 kHz | 0.319" (8.10mm) |
|
|
SCEP147H-R30FIXED IND 300NH 23A 2.1 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCEP147H | Nonstandard | Tape & Reel (TR) | Active | - | - | ±30% | 23 A | 70A | - | Shielded | 2.1mOhm Max | 300 nH | - | - | Surface Mount | - | 0.591" L x 0.587" W (15.00mm x 14.90mm) | - | -40°C ~ 125°C | 100 kHz | 0.319" (8.10mm) |
|
HTTI-1000-1.6TOROIDAL IND HI TEMP 1000UH 1.6A Signal Transformer |
0 | - |
|
数据表 |
HTTI | Vertical, No Base, 2 PC Pin | Tray | Active | Toroidal | - | ±15% | 1.6 A | - | Vertical, No Base, 2 PC Pin | Shielded | 430mOhm Max | 1 mH | - | - | Through Hole | - | 0.860" Dia x 0.450" W (21.84mm x 11.43mm) | - | -55°C ~ 200°C | 1 kHz | - |
|
|
HTTI-820-1.7TOROIDAL IND HI TEMP 820UH 1.7AD Signal Transformer |
0 | - |
|
数据表 |
HTTI | Vertical, No Base, 2 PC Pin | Tray | Active | Toroidal | - | ±15% | 1.7 A | - | Vertical, No Base, 2 PC Pin | Shielded | 390mOhm Max | 820 µH | - | - | Through Hole | - | 0.860" Dia x 0.450" W (21.84mm x 11.43mm) | - | -55°C ~ 200°C | 1 kHz | - |
|

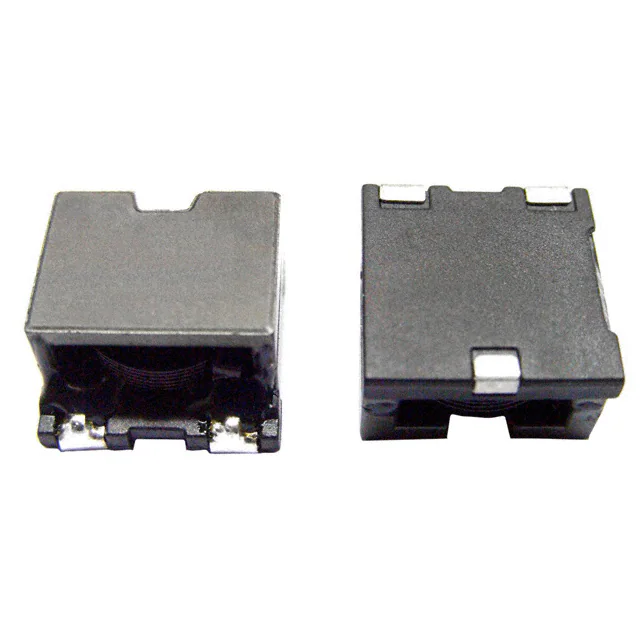

SCEP147L-100FIXED IND 10UH 10.2A 9.85MOHM SM Signal Transformer |
0 | - |
|
数据表 |
SCEP147L | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 10.2 A | 9.2A | - | Shielded | 9.85mOhm Max | 10 µH | - | - | Surface Mount | - | 0.591" L x 0.587" W (15.00mm x 14.90mm) | - | -40°C ~ 125°C | 100 kHz | 0.319" (8.10mm) |
|
|
SCEP147L-120FIXED IND 12UH 9A 13.3 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCEP147L | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 9 A | 8A | - | Shielded | 13.3mOhm Max | 12 µH | - | - | Surface Mount | - | 0.591" L x 0.587" W (15.00mm x 14.90mm) | - | -40°C ~ 125°C | 100 kHz | 0.319" (8.10mm) |
|
|
SCEP147L-1R1FIXED IND 1.1UH 22A 2.65MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCEP147L | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 22 A | 26.4A | - | Shielded | 2.65mOhm Max | 1.1 µH | - | - | Surface Mount | - | 0.591" L x 0.587" W (15.00mm x 14.90mm) | - | -40°C ~ 125°C | 100 kHz | 0.319" (8.10mm) |
