固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SCB75C-1R0FIXED IND 1UH 7A 23 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCB75C | Nonstandard | Tape & Reel (TR) | Active | - | - | ±30% | 7 A | 2.88A | - | Shielded | 23mOhm Max | 1 µH | - | - | Surface Mount | - | 0.291" L x 0.291" W (7.40mm x 7.40mm) | - | -40°C ~ 125°C | 1 kHz | 0.217" (5.50mm) |
|
|
SCB75C-470FIXED IND 47UH 1.27A 230MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCB75C | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 1.27 A | 760mA | - | Shielded | 230mOhm Max | 47 µH | - | - | Surface Mount | - | 0.291" L x 0.291" W (7.40mm x 7.40mm) | - | -40°C ~ 125°C | 1 kHz | 0.217" (5.50mm) |
|
|
SCB75C-471FIXED IND 470UH 420MA 1.9OHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCB75C | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 420 mA | 250mA | - | Shielded | 1.9Ohm Max | 470 µH | - | - | Surface Mount | - | 0.291" L x 0.291" W (7.40mm x 7.40mm) | - | -40°C ~ 125°C | 1 kHz | 0.217" (5.50mm) |
|

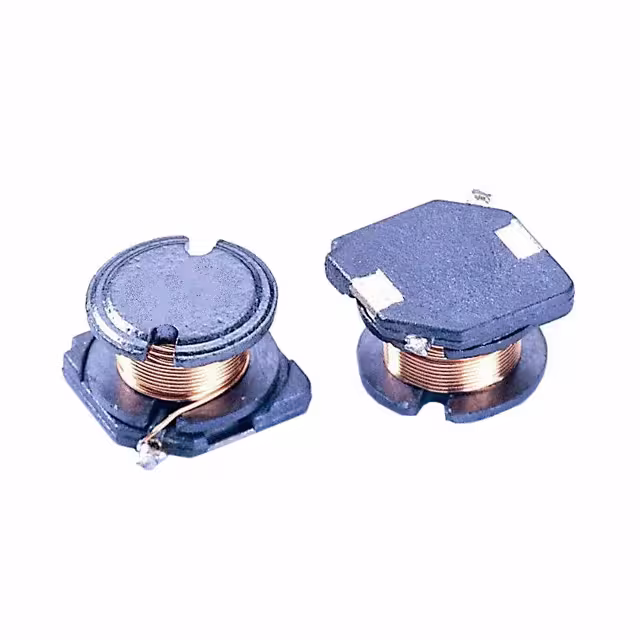

SCB75F-4R7FIXED IND 4.7UH 3.5A 49 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCB75F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 3.5 A | 1.88A | - | Unshielded | 49mOhm Max | 4.7 µH | - | - | Surface Mount | - | 0.291" L x 0.291" W (7.40mm x 7.40mm) | - | -40°C ~ 125°C | 1 kHz | 0.217" (5.50mm) |
|
SCEP125-100FIXED IND 10UH 9A 13.5 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCEP125 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 9 A | 5A | - | Shielded | 13.5mOhm Max | 10 µH | - | - | Surface Mount | - | 0.508" L x 0.508" W (12.90mm x 12.90mm) | - | -40°C ~ 125°C | 100 kHz | 0.228" (5.80mm) |
|
SCMD4D10-6R8FIXED IND 6.8UH 800MA 380MOHM SM Signal Transformer |
0 | - |
|
数据表 |
SCMD4D10 | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 800 mA | 1.1A | - | Unshielded | 380mOhm Max | 6.8 µH | - | - | Surface Mount | - | 0.252" L x 0.197" W (6.40mm x 5.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.047" (1.20mm) |
|

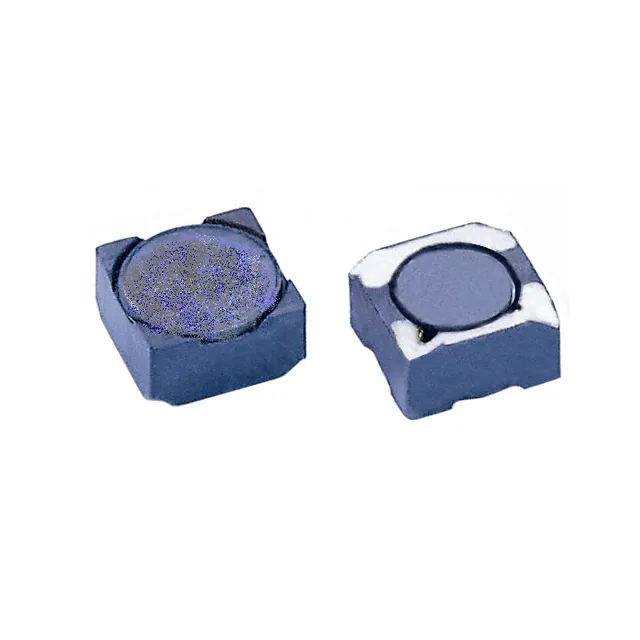

SCMS5D25-100FIXED IND 10UH 1.6A 120 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCMS5D25 | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 1.6 A | 1.05A | - | Shielded | 120mOhm Max | 10 µH | - | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | - | -40°C ~ 125°C | 100 kHz | 0.110" (2.80mm) |
|
|
SCMS5D25-1R8FIXED IND 1.8UH 3.6A 30 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCMS5D25 | Nonstandard | Tape & Reel (TR) | Active | - | - | ±30% | 3.6 A | 2.5A | - | Shielded | 30mOhm Max | 1.8 µH | - | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | - | -40°C ~ 125°C | 100 kHz | 0.110" (2.80mm) |
|
|
SCMS5D25-4R7FIXED IND 4.7UH 2.21A 56MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCMS5D25 | Nonstandard | Tape & Reel (TR) | Active | - | - | ±30% | 2.21 A | 1.5A | - | Shielded | 56mOhm Max | 4.7 µH | - | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | - | -40°C ~ 125°C | 100 kHz | 0.110" (2.80mm) |
|
SCPH73B-150FIXED IND 15UH 1.62A 130MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCPH73B | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 1.62 A | 1.2A | - | Shielded | 130mOhm Max | 15 µH | - | - | Surface Mount | - | 0.295" L x 0.295" W (7.50mm x 7.50mm) | - | -40°C ~ 125°C | 1 kHz | 0.150" (3.80mm) |
