固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SLPPI06-15-3R3MHI POWER IND 3.30UH 54.0 MOHM Signal Transformer |
0 | - |
|
数据表 |
SLPPI06 | Nonstandard | Bulk | Obsolete | Molded | - | ±20% | 4.2 A | 6.4A | - | Shielded | 63mOhm Max | 3.3 µH | - | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | - | -55°C ~ 125°C | 1 MHz | 0.059" (1.50mm) |
|
|
SLPPI06-18-100MHI POWER IND 10.0UH 125.0 MOHM Signal Transformer |
0 | - |
|
数据表 |
SLPPI06 | Nonstandard | Bulk | Obsolete | Molded | - | ±20% | 2.4 A | 4A | - | Shielded | 145mOhm Max | 10 µH | - | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | - | -55°C ~ 125°C | 1 MHz | 0.071" (1.80mm) |
|
|
SLPPI06-18-3R3MHI POWER IND 3.30UH 46.6 MOHM 8 Signal Transformer |
0 | - |
|
数据表 |
SLPPI06 | Nonstandard | Bulk | Obsolete | Molded | - | ±20% | 4 A | 7A | - | Shielded | 56mOhm Max | 3.3 µH | - | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | - | -55°C ~ 125°C | 1 MHz | 0.071" (1.80mm) |
|
|
HTTI-270-2.8TOROIDAL IND HI TEMP 270UH 2.8AD Signal Transformer |
0 | - |
|
数据表 |
HTTI | Vertical, No Base, 2 PC Pin | Tray | Active | Toroidal | - | ±15% | 2.8 A | - | Vertical, No Base, 2 PC Pin | Shielded | 140mOhm Max | 270 µH | - | - | Through Hole | - | 0.860" Dia x 0.450" W (21.84mm x 11.43mm) | - | -55°C ~ 200°C | 1 kHz | - |
|
|
SPFC-RM14-250PWR FACTOR COR RM14 PCB 250W Signal Transformer |
0 | - |
|
数据表 |
SPFC | Radial, Vertical, 16 Leads | Tray | Active | Wirewound | - | ±10% | 3 A | 13.2A | Radial, Vertical, 16 Leads | Shielded | 78mOhm Max | 180 µH | - | - | Through Hole | - | 1.693" L x 1.890" W (43.00mm x 48.00mm) | - | -40°C ~ 125°C | 100 kHz | 1.260" (32.00mm) |
|
HCTI-180-4.8FIXED IND 180UH 4.8A 78 MOHM TH Signal Transformer |
0 | - |
|
数据表 |
HCTI | Radial, Vertical (Open) | Tray | Active | Toroidal | - | ±15% | 4.8 A | - | - | Shielded | 78mOhm Max | 180 µH | - | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - | -55°C ~ 105°C | 1 kHz | - |
|
|
SPFC-EFD30-75PWR FACTOR COR EFD30 PCB 75W Signal Transformer |
0 | - |
|
数据表 |
SPFC | Radial, Horizontal, 12 Leads | Tray | Active | Wirewound | - | ±10% | 900 mA | 3.3A | Radial, Horizontal, 12 Leads | Shielded | 950mOhm Max | 750 µH | - | - | Through Hole | - | 1.181" L x 1.220" W (30.00mm x 31.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.551" (14.00mm) |
|
|
HTTI-560-1.9TOROIDAL IND HI TEMP 560UH 1.9AD Signal Transformer |
0 | - |
|
数据表 |
HTTI | Vertical, No Base, 2 PC Pin | Tray | Active | Toroidal | - | ±15% | 1.9 A | - | Vertical, No Base, 2 PC Pin | Shielded | 320mOhm Max | 560 µH | - | - | Through Hole | - | 0.860" Dia x 0.450" W (21.84mm x 11.43mm) | - | -55°C ~ 200°C | 1 kHz | - |
|
SCIHP1367-22MFIXED IND 22UH 5A 45 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCIHP1367 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 5 A | 8A | - | Shielded | 45mOhm Max | 22 µH | - | - | Surface Mount | - | 0.543" L x 0.508" W (13.80mm x 12.90mm) | - | -55°C ~ 125°C | 200 kHz | 0.264" (6.70mm) |
|

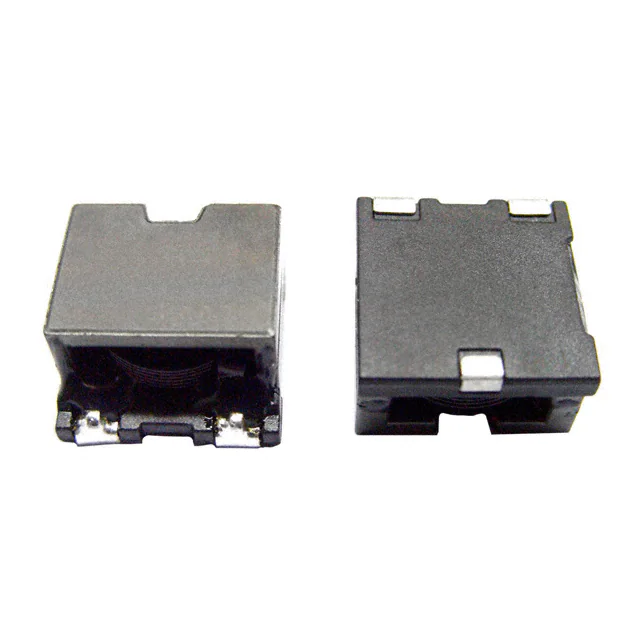

SCEP147H-1R2FIXED IND 1.2UH 19.5A 3.5MOHM SM Signal Transformer |
0 | - |
|
数据表 |
SCEP147H | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 19.5 A | 35.7A | - | Shielded | 3.5mOhm Max | 1.2 µH | - | - | Surface Mount | - | 0.591" L x 0.587" W (15.00mm x 14.90mm) | - | -40°C ~ 125°C | 100 kHz | 0.319" (8.10mm) |
