固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SC1608F-1R5FIXED IND 1.5UH 2.8A 50 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC1608F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±30% | 2.8 A | 2.6A | - | Unshielded | 50mOhm Max | 1.5 µH | - | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | - | -40°C ~ 125°C | 100 kHz | 0.115" (2.92mm) |
|
|
SC1608F-4R7FIXED IND 4.7UH 1.8A 90 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC1608F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±30% | 1.8 A | 1.5A | - | Unshielded | 90mOhm Max | 4.7 µH | - | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | - | -40°C ~ 125°C | 100 kHz | 0.115" (2.92mm) |
|
|
SC1608F-6R8FIXED IND 6.8UH 1.5A 130MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC1608F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±30% | 1.5 A | 1.2A | - | Unshielded | 130mOhm Max | 6.8 µH | - | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | - | -40°C ~ 125°C | 100 kHz | 0.115" (2.92mm) |
|
SC43B-1R0FIXED IND 1UH 3.1A 48 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC43B | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±30% | 3.1 A | 2.56A | - | Unshielded | 48mOhm Max | 1 µH | - | - | Surface Mount | - | 0.189" L x 0.169" W (4.80mm x 4.30mm) | - | -40°C ~ 125°C | 7.96 MHz | 0.138" (3.50mm) |
|
|
SC43B-6R8FIXED IND 6.8UH 1.55A 131MOHM SM Signal Transformer |
0 | - |
|
数据表 |
SC43B | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 1.55 A | 1A | - | Unshielded | 131mOhm Max | 6.8 µH | - | - | Surface Mount | - | 0.189" L x 0.169" W (4.80mm x 4.30mm) | - | -40°C ~ 125°C | 7.96 MHz | 0.138" (3.50mm) |
|

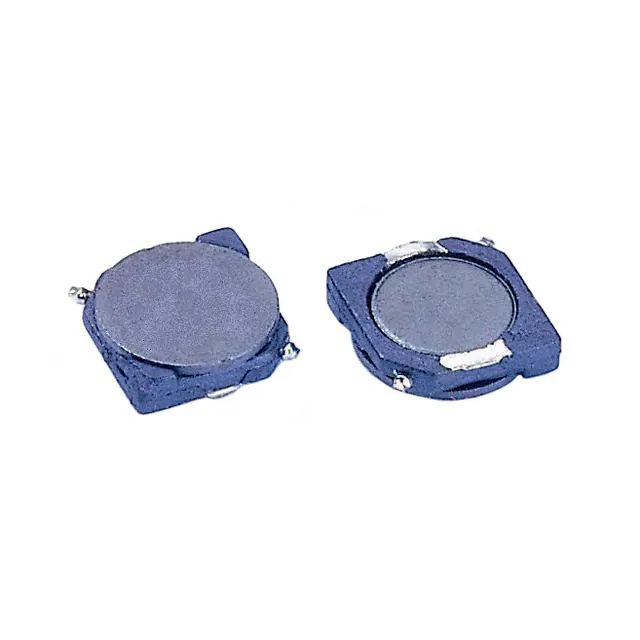

SC511MF-180FIXED IND 18UH 800MA 420MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC511MF | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 800 mA | 420mA | - | Shielded | 420mOhm Max | 18 µH | - | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | - | -40°C ~ 125°C | 100 kHz | 0.051" (1.30mm) |
|
SC53FU-221FIXED IND 220UH 310MA 2.78OHM SM Signal Transformer |
0 | - |
|
数据表 |
SC53FU | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 310 mA | 300mA | - | Unshielded | 2.78Ohm Max | 220 µH | - | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | - | -40°C ~ 125°C | 100 kHz | 0.126" (3.20mm) |
|

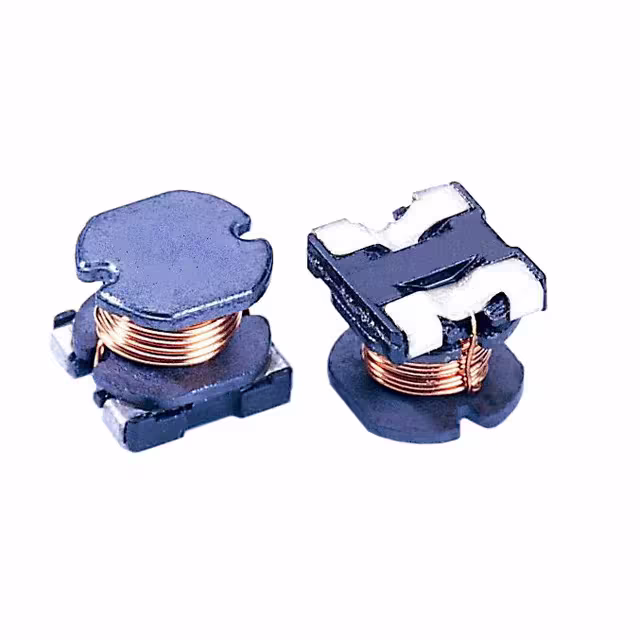

SC54B-390FIXED IND 39UH 1.2A 320 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC54B | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 1.2 A | 800mA | - | Unshielded | 320mOhm Max | 39 µH | - | - | Surface Mount | - | 0.240" L x 0.220" W (6.10mm x 5.60mm) | - | -40°C ~ 125°C | 2.52 MHz | 0.191" (4.85mm) |
|
SC62LCB-100FIXED IND 10UH 1.41A 134MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC62LCB | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 1.41 A | 1.22A | - | Shielded | 134mOhm Max | 10 µH | - | - | Surface Mount | - | 0.248" L x 0.244" W (6.30mm x 6.20mm) | - | -40°C ~ 125°C | 100 kHz | 0.079" (2.00mm) |
|
|
SC62LCB-270FIXED IND 27UH 890MA 344MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC62LCB | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 890 mA | 650mA | - | Shielded | 344mOhm Max | 27 µH | - | - | Surface Mount | - | 0.248" L x 0.244" W (6.30mm x 6.20mm) | - | -40°C ~ 125°C | 100 kHz | 0.079" (2.00mm) |
