固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SCIHP1367-3R3MFIXED IND 3.3UH 15A 6.8 MOHM SMD Signal Transformer |
5,949 | - |
|
数据表 |
SCIHP1367 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 15 A | 29A | - | Shielded | 6.8mOhm Max | 3.3 µH | - | - | Surface Mount | - | 0.543" L x 0.508" W (13.80mm x 12.90mm) | - | -55°C ~ 125°C | 200 kHz | 0.264" (6.70mm) |
|
HCTI-150-5.0FIXED IND 150UH 5A 71 MOHM TH Signal Transformer |
6,721 | - |
|
数据表 |
HCTI | Radial, Vertical (Open) | Tray | Active | Toroidal | - | ±15% | 5 A | - | - | Shielded | 71mOhm Max | 150 µH | - | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - | -55°C ~ 105°C | 1 kHz | - |
|
|
HCTI-68-7.7FIXED IND 68UH 7.7A 30 MOHM TH Signal Transformer |
310 | - |
|
数据表 |
HCTI | Radial, Vertical (Open) | Tray | Active | Toroidal | - | ±15% | 7.7 A | - | - | Shielded | 30mOhm Max | 68 µH | - | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - | -55°C ~ 105°C | 1 kHz | - |
|
|
HCTI-470-3.8FIXED IND 470UH 3.8A 130 MOHM TH Signal Transformer |
3,706 | - |
|
数据表 |
HCTI | Radial, Vertical (Open) | Tray | Active | Toroidal | - | ±15% | 3.8 A | - | - | Shielded | 130mOhm Max | 470 µH | - | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - | -55°C ~ 105°C | 1 kHz | - |
|
|
HCTI-33-11.7FIXED IND 33UH 11.7A 13 MOHM TH Signal Transformer |
111 | - |
|
数据表 |
HCTI | Radial, Vertical (Open) | Tray | Active | Toroidal | - | ±15% | 11.7 A | - | - | Shielded | 13mOhm Max | 33 µH | - | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - | -55°C ~ 105°C | 1 kHz | - |
|
|
HCTI-270-5.5FIXED IND 270UH 5.5A 60 MOHM TH Signal Transformer |
838 | - |
|
数据表 |
HCTI | Radial, Vertical (Open) | Tray | Active | Toroidal | - | ±15% | 5.5 A | - | - | Shielded | 60mOhm Max | 270 µH | - | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - | -55°C ~ 105°C | 1 kHz | - |
|
|
HCTI-22-16.4FIXED IND 22UH 16.4A 7 MOHM TH Signal Transformer |
6,686 | - |
|
数据表 |
HCTI | Radial, Vertical (Open) | Tray | Active | Toroidal | - | ±15% | 16.4 A | - | - | Shielded | 7mOhm Max | 22 µH | - | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - | -55°C ~ 105°C | 1 kHz | - |
|
|
HCTI-56-10.2FIXED IND 56UH 10.2A 17 MOHM TH Signal Transformer |
1,089 | - |
|
数据表 |
HCTI | Radial, Vertical (Open) | Tray | Active | Toroidal | - | ±15% | 10.2 A | - | - | Shielded | 17mOhm Max | 56 µH | - | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - | -55°C ~ 105°C | 1 kHz | - |
|
|
HCTI-390-5.0FIXED IND 390UH 5A 72 MOHM TH Signal Transformer |
1,538 | - |
|
数据表 |
HCTI | Radial, Vertical (Open) | Tray | Active | Toroidal | - | ±15% | 5 A | - | - | Shielded | 72mOhm Max | 390 µH | - | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - | -55°C ~ 105°C | 1 kHz | - |
|

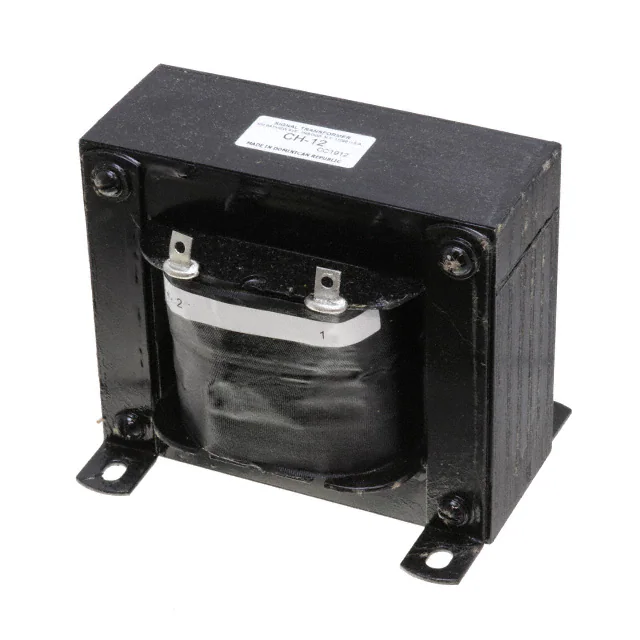

CH-12FIXED IND 15MH 12A 100 MOHM CHAS Signal Transformer |
32 | - |
|
数据表 |
- | Nonstandard | Box | Active | - | - | - | 12 A | - | - | Unshielded | 100mOhm | 15 mH | - | - | Chassis Mount | - | 5.252" L x 4.000" W (133.40mm x 101.60mm) | - | - | - | 4.437" (112.70mm) |
