固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SCEP147L-2R0FIXED IND 2UH 19.5A 3.5 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCEP147L | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 19.5 A | 19.6A | - | Shielded | 3.5mOhm Max | 2 µH | - | - | Surface Mount | - | 0.591" L x 0.587" W (15.00mm x 14.90mm) | - | -40°C ~ 125°C | 100 kHz | 0.319" (8.10mm) |
|
|
SCEP147L-3R1FIXED IND 3.1UH 16.2A 3.9MOHM SM Signal Transformer |
0 | - |
|
数据表 |
SCEP147L | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 16.2 A | 16A | - | Shielded | 3.9mOhm Max | 3.1 µH | - | - | Surface Mount | - | 0.591" L x 0.587" W (15.00mm x 14.90mm) | - | -40°C ~ 125°C | 100 kHz | 0.319" (8.10mm) |
|
|
SCEP147L-4R5FIXED IND 4.5UH 14A 5.5 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCEP147L | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 14 A | 13.6A | - | Shielded | 5.5mOhm Max | 4.5 µH | - | - | Surface Mount | - | 0.591" L x 0.587" W (15.00mm x 14.90mm) | - | -40°C ~ 125°C | 100 kHz | 0.319" (8.10mm) |
|
|
SCEP147L-6R1FIXED IND 6.4UH 13.5A 7.5MOHM SM Signal Transformer |
0 | - |
|
数据表 |
SCEP147L | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 13.5 A | 11.6A | - | Shielded | 7.5mOhm Max | 6.4 µH | - | - | Surface Mount | - | 0.591" L x 0.587" W (15.00mm x 14.90mm) | - | -40°C ~ 125°C | 100 kHz | 0.319" (8.10mm) |
|
|
SCEP147L-8R0FIXED IND 8UH 11.5A 7.8 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCEP147L | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 11.5 A | 10A | - | Shielded | 7.8mOhm Max | 8 µH | - | - | Surface Mount | - | 0.591" L x 0.587" W (15.00mm x 14.90mm) | - | -40°C ~ 125°C | 100 kHz | 0.319" (8.10mm) |
|
|
SCEP147L-R50FIXED IND 500NH 24A 2.1 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCEP147L | Nonstandard | Tape & Reel (TR) | Active | - | - | ±30% | 24 A | 39.6A | - | Shielded | 2.1mOhm Max | 500 nH | - | - | Surface Mount | - | 0.591" L x 0.587" W (15.00mm x 14.90mm) | - | -40°C ~ 125°C | 100 kHz | 0.319" (8.10mm) |
|

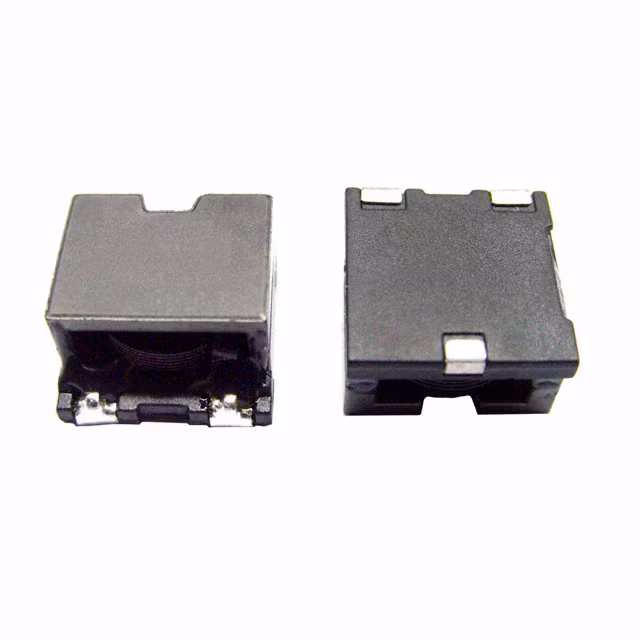

SCEP147S-1R5FIXED IND 1.5UH 16A 3.5 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCEP147S | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 16 A | 27.2A | - | Shielded | 3.5mOhm Max | 1.5 µH | - | - | Surface Mount | - | 0.591" L x 0.587" W (15.00mm x 14.90mm) | - | -40°C ~ 125°C | 100 kHz | 0.319" (8.10mm) |
|
|
SCEP147S-3R4FIXED IND 3.4UH 12.3A 5.5MOHM SM Signal Transformer |
0 | - |
|
数据表 |
SCEP147S | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 12.3 A | 18.4A | - | Shielded | 5.5mOhm Max | 3.4 µH | - | - | Surface Mount | - | 0.591" L x 0.587" W (15.00mm x 14.90mm) | - | -40°C ~ 125°C | 100 kHz | 0.319" (8.10mm) |
|
|
SCEP147S-7R7FIXED IND 7.7UH 10A 9.85MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCEP147S | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 10 A | 12.4A | - | Shielded | 9.85mOhm Max | 7.7 µH | - | - | Surface Mount | - | 0.591" L x 0.587" W (15.00mm x 14.90mm) | - | -40°C ~ 125°C | 100 kHz | 0.319" (8.10mm) |
|
|
SCEP147S-R40FIXED IND 400NH 23A 2.1 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCEP147S | Nonstandard | Tape & Reel (TR) | Active | - | - | ±30% | 23 A | 52.8A | - | Shielded | 2.1mOhm Max | 400 nH | - | - | Surface Mount | - | 0.591" L x 0.587" W (15.00mm x 14.90mm) | - | -40°C ~ 125°C | 100 kHz | 0.319" (8.10mm) |
