固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SCRH105RY-680FIXED IND 68UH 1.7A 201 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCRH105RY | Nonstandard | Tape & Reel (TR) | Active | - | - | ±30% | 1.7 A | 1.65A | - | Shielded | 201mOhm Max | 68 µH | - | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.201" (5.10mm) |
|
|
SCRH105RY-681FIXED IND 680UH 540MA 1.6OHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCRH105RY | Nonstandard | Tape & Reel (TR) | Active | - | - | ±30% | 540 mA | 520mA | - | Shielded | 1.6Ohm Max | 680 µH | - | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.201" (5.10mm) |
|
|
SCRH105RY-6R8FIXED IND 6.8UH 6.2A 18 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCRH105RY | Nonstandard | Tape & Reel (TR) | Active | - | - | ±30% | 6.2 A | 5.5A | - | Shielded | 18mOhm Max | 6.8 µH | - | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.201" (5.10mm) |
|
|
SCRH105RY-820FIXED IND 82UH 1.53A 227MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCRH105RY | Nonstandard | Tape & Reel (TR) | Active | - | - | ±30% | 1.53 A | 1.5A | - | Shielded | 227mOhm Max | 82 µH | - | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.201" (5.10mm) |
|
|
SCRH105RY-821FIXED IND 820UH 500MA 1.77OHM SM Signal Transformer |
0 | - |
|
数据表 |
SCRH105RY | Nonstandard | Tape & Reel (TR) | Active | - | - | ±30% | 500 mA | 500mA | - | Shielded | 1.77Ohm Max | 820 µH | - | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.201" (5.10mm) |
|
|
SCRH105RY-8R2FIXED IND 8.2UH 5.5A 20 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCRH105RY | Nonstandard | Tape & Reel (TR) | Active | - | - | ±30% | 5.5 A | 5A | - | Shielded | 20mOhm Max | 8.2 µH | - | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.201" (5.10mm) |
|

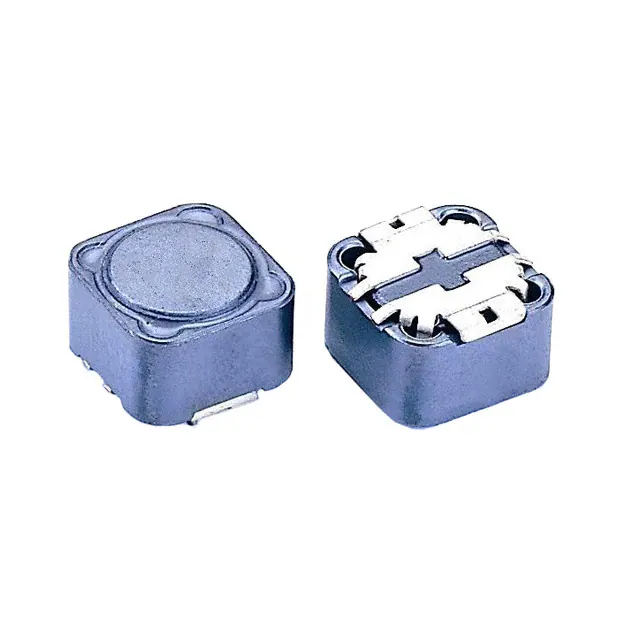

SCRH127/LD-100FIXED IND 10UH 6.21A 19.5MOHM SM Signal Transformer |
0 | - |
|
数据表 |
SCRH127/LD | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 6.21 A | 6.7A | - | Shielded | 19.5mOhm Max | 10 µH | - | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 125°C | 1 kHz | 0.315" (8.00mm) |
|
|
SCRH127/LD-101FIXED IND 100UH 2.16A 151MOHM SM Signal Transformer |
0 | - |
|
数据表 |
SCRH127/LD | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 2.16 A | 2.1A | - | Shielded | 151mOhm Max | 100 µH | - | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 125°C | 1 kHz | 0.315" (8.00mm) |
|
|
SCRH127/LD-102FIXED IND 1MH 660MA 1.5 OHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCRH127/LD | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 660 mA | 700mA | - | Shielded | 1.5Ohm Max | 1 mH | - | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 125°C | 1 kHz | 0.315" (8.00mm) |
|
SLPPI06-10-1R0MHI POWER IND 1.00UH 34.5 MOHM 1 Signal Transformer |
0 | - |
|
数据表 |
SLPPI06 | Nonstandard | Bulk | Obsolete | Molded | - | ±20% | 4.2 A | 9A | - | Shielded | 41.5mOhm Max | 1 µH | - | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | - | -55°C ~ 125°C | 1 MHz | 0.039" (1.00mm) |
