固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MPI4015V2-2R2-RFIXED IND 2.2UH 2.9A 78 MOHM SMD |
3,273 | - |
|
数据表 |
MPI40-V2 | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | ±20% | 2.9 A | 4.5A | - | Shielded | 78mOhm Max | 2.2 µH | - | 42MHz | Surface Mount | - | 0.160" L x 0.171" W (4.06mm x 4.35mm) | - | -55°C ~ 125°C | 100 kHz | 0.059" (1.50mm) |
|
SBC6-102-561FIXED IND 1MH 560MA 1.21 OHM TH |
308 | - |
|
数据表 |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 560 mA | 1.1A | - | Unshielded | 1.21Ohm Max | 1 mH | - | - | Through Hole | - | 0.472" Dia (12.00mm) | - | -20°C ~ 105°C | 10 kHz | 0.728" (18.50mm) |
|

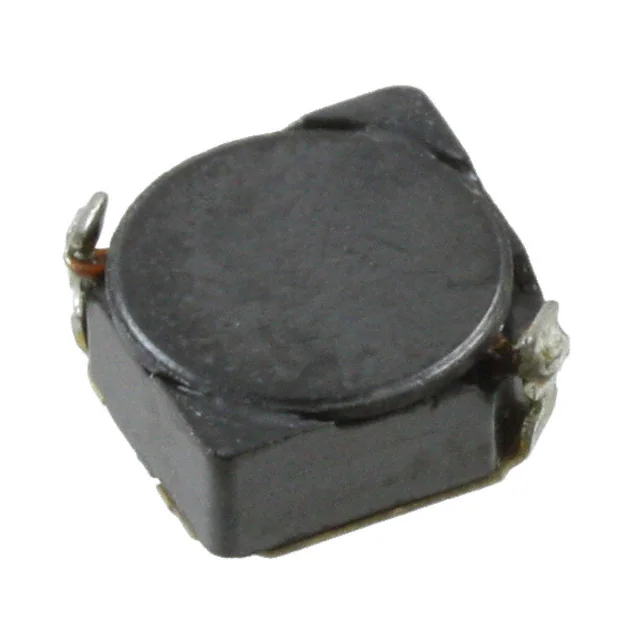

SD7030-100-RFIXED IND 10UH 2.1A 65 MOHM SMD |
3,012 | - |
|
数据表 |
SD7030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 2.1 A | 1.7A | - | Shielded | 65mOhm Max | 10 µH | - | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
MPL-AY1050-1R0FIXED IND 1UH 19A 2.6 MOHM SMD |
1,490 | - |
|
数据表 |
MPL-AY | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | - | - | 19 A | 33A | - | Unshielded | 2.6mOhm | 1 µH | - | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | - | -40°C ~ 155°C | 100 kHz | 0.197" (5.00mm) |
|
B82464P4333M000FIXED IND 33UH 1.85A 75 MOHM SMD |
538 | - |
|
数据表 |
B82464P4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.85 A | 2.1A | - | Shielded | 75mOhm Max | 33 µH | - | - | Surface Mount | AEC-Q200 | 0.409" L x 0.409" W (10.40mm x 10.40mm) | - | -55°C ~ 150°C | 100 kHz | 0.189" (4.80mm) |
|
|
MPL-AY1050-5R6FIXED IND 5.6UH 9.8A 13 MOHM SMD |
396 | - |
|
数据表 |
MPL-AY | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | - | - | 9.8 A | 14A | - | Unshielded | 13mOhm | 5.6 µH | - | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | - | -40°C ~ 155°C | 100 kHz | 0.197" (5.00mm) |
|

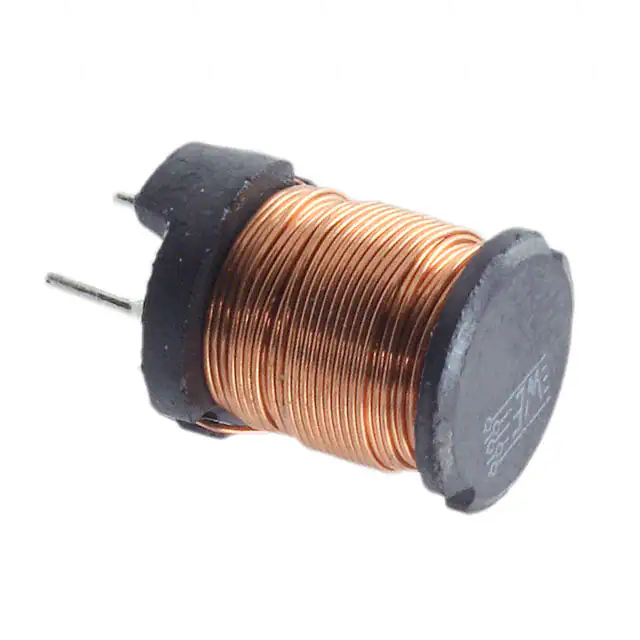

7447480152FIXED IND 1.5MH 680MA 1.8 OHM TH |
222 | - |
|
数据表 |
WE-TI | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | ±5% | 680 mA | 600mA | - | Unshielded | 1.8Ohm Max | 1.5 mH | - | 950kHz | Through Hole | - | 0.413" Dia (10.50mm) | - | -40°C ~ 125°C | 1 kHz | 0.571" (14.50mm) |
|

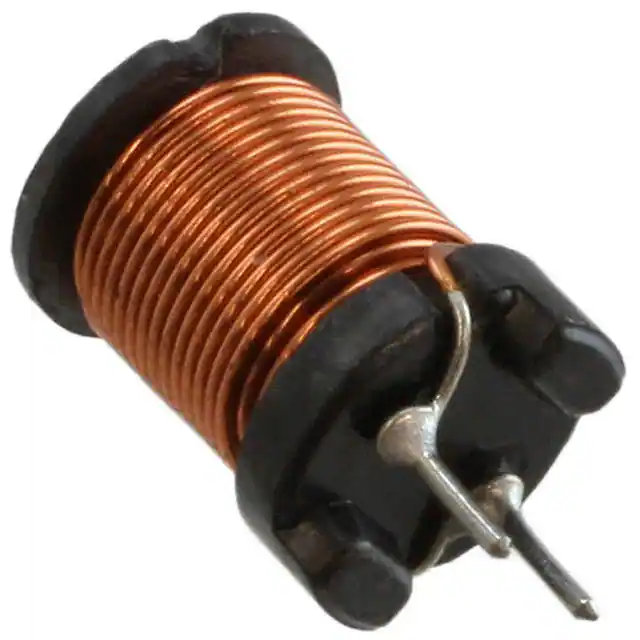

7447480151FIXED IND 150UH 2A 180 MOHM TH |
119 | - |
|
数据表 |
WE-TI | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | ±10% | 2 A | 2.1A | - | Unshielded | 180mOhm Max | 150 µH | - | 3.1MHz | Through Hole | - | 0.413" Dia (10.50mm) | - | -40°C ~ 125°C | 1 kHz | 0.571" (14.50mm) |
|
744134FIXED IND 92UH 5.4A 50 MOHM TH |
106 | - |
|
数据表 |
WE-SI | Radial | Bulk | Active | Toroidal | Iron Powder | ±20% | 5.4 A | 2.3A | - | Unshielded | 50mOhm Max | 92 µH | - | 9MHz | Through Hole | - | 1.220" Dia x 0.531" W (31.00mm x 13.50mm) | - | -40°C ~ 105°C | 10 kHz | - |
|
SPM6550T-100M-HZFIXED IND 10UH 4.9A 60.5MOHM SMD |
2,112 | - |
|
数据表 |
SPM-HZ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | ±20% | 4.9 A | 3.2A | - | Shielded | 60.5mOhm Max | 10 µH | - | - | Surface Mount | AEC-Q200 | 0.280" L x 0.256" W (7.10mm x 6.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.197" (5.00mm) |
|
P1168.684NLTFIXED IND 680UH 500MA 1.824 OHM |
1,434 | - |
|
数据表 |
P1168NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 500 mA | 500mA | - | Shielded | 1.824Ohm Max | 680 µH | - | 2.1MHz | Surface Mount | - | 0.482" L x 0.482" W (12.24mm x 12.24mm) | - | -40°C ~ 130°C | 100 kHz | 0.177" (4.50mm) |
|
1025R-94KFIXED IND 100NH 1.38A 80 MOHM TH |
372,763 | - |
|
数据表 |
1025R | Axial | Bulk | Active | Molded | Phenolic | ±10% | 1.38 A | - | - | Unshielded | 80mOhm Max | 100 nH | 40 @ 25MHz | 680MHz | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - | -55°C ~ 125°C | 25 MHz | - |
|
ETQ-P5M2R0YLCFIXED IND 2UH 19.4A 5.06MOHM SMD |
3,711 | - |
|
数据表 |
PCC-M1050ML | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | ±20% | 19.4 A | 31.3A | - | Shielded | 5.06mOhm Max | 2 µH | - | - | Surface Mount | AEC-Q200 | 0.429" L x 0.394" W (10.90mm x 10.00mm) | - | -40°C ~ 150°C | 100 kHz | 0.197" (5.00mm) |
1mm.jpg)
|
78438324010FIXED IND 1UH 2.8A 60 MOHM SMD |
2,629 | - |
|
数据表 |
WE-MAIA | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Iron Alloy | ±20% | 2.8 A | 4.9A | 1008 | Shielded | 60mOhm Max | 1 µH | - | 85MHz | Surface Mount | AEC-Q200 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.047" (1.20mm) |
|
|
78438323047FIXED IND 4.7UH 940MA 388MOHM SM |
2,490 | - |
|
数据表 |
WE-MAIA | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Iron Alloy | ±30% | 940 mA | 1.75A | 2510 | Shielded | 388mOhm Max | 4.7 µH | - | 35MHz | Surface Mount | AEC-Q200 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.039" (1.00mm) |
|
DRA73-101-RFIXED IND 100UH 682MA 609MOHM SM |
2,196 | - |
|
数据表 |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 682 mA | 763mA | - | Shielded | 609mOhm | 100 µH | - | - | Surface Mount | AEC-Q200 | 0.299" L x 0.299" W (7.60mm x 7.60mm) | - | -40°C ~ 165°C | 100 kHz | 0.140" (3.55mm) |
1.5mm.jpg)
|
78438335047FIXED IND 4.7UH 1.5A 162MOHM SMD |
1,383 | - |
|
数据表 |
WE-MAIA | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Molded | Iron Alloy | ±30% | 1.5 A | 2.8A | 3015 | Shielded | 162mOhm Max | 4.7 µH | - | 30MHz | Surface Mount | AEC-Q200 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.059" (1.50mm) |
|
744302010FIXED IND 105NH 30A 0.000235OHM |
994 | - |
|
数据表 |
WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | ±20% | 30 A | 51A | 7050 | Shielded | 0.235mOhm | 105 nH | - | 70MHz | Surface Mount | - | 0.281" L x 0.276" W (7.15mm x 7.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.197" (5.00mm) |
|
|
78438335022FIXED IND 2.2UH 1.8A 108MOHM SMD |
945 | - |
|
数据表 |
WE-MAIA | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Molded | Iron Alloy | ±30% | 1.8 A | 3.5A | 3015 | Shielded | 108mOhm Max | 2.2 µH | - | 45MHz | Surface Mount | AEC-Q200 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.059" (1.50mm) |
1mm.jpg)
|
78438333033FIXED IND 3.3UH 1.1A 266MOHM SMD |
855 | - |
|
数据表 |
WE-MAIA | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Molded | Iron Alloy | ±30% | 1.1 A | 2.95A | 3010 | Shielded | 266mOhm Max | 3.3 µH | - | 38MHz | Surface Mount | AEC-Q200 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.039" (1.00mm) |
