固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRP6030CA-R56MFIXED IND 560NH 22A 3.31MOHM SMD |
301 | - |
|
数据表 |
SRP6030CA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | ±20% | 22 A | 29A | - | Shielded | 3.31mOhm Max | 560 nH | - | 70MHz | Surface Mount | AEC-Q200 | 0.260" L x 0.252" W (6.60mm x 6.40mm) | - | -55°C ~ 155°C | 100 kHz | 0.118" (3.00mm) |
|
IHLP4040DZER100M8AIHLP-4040DZ-8A 10 20% ER E3 |
240 | - |
|
数据表 |
IHLP-4040DZ-8A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | ±20% | 6.5 A | 8.5A | - | Shielded | 33.06mOhm Max | 10 µH | - | 11.5MHz | Surface Mount | AEC-Q200 | 0.425" L x 0.400" W (10.80mm x 10.16mm) | - | -55°C ~ 180°C | 100 kHz | 0.157" (4.00mm) |
|
MPI4020V2-3R3-RFIXED IND 3.3UH 3.3A 85 MOHM SMD |
8,678 | - |
|
数据表 |
MPI40-V2 | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | ±20% | 3.3 A | 4A | - | Shielded | 85mOhm Max | 3.3 µH | - | 25MHz | Surface Mount | - | 0.160" L x 0.171" W (4.06mm x 4.35mm) | - | -55°C ~ 125°C | 100 kHz | 0.079" (2.00mm) |
|
SRP6050CA-1R2MFIXED IND 1.2UH 18A 5.83MOHM SMD |
1,477 | - |
|
数据表 |
SRP6050CA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | ±20% | 18 A | 22A | - | Shielded | 5.83mOhm Max | 1.2 µH | - | 43MHz | Surface Mount | AEC-Q200 | 0.260" L x 0.252" W (6.60mm x 6.40mm) | - | -55°C ~ 155°C | 100 kHz | 0.197" (5.00mm) |
|
IHLE4040DDER4R7M5AFIXED IND 4.7UH 9.8A 15.32 MOHM |
1,055 | - |
|
数据表 |
IHLE-4040DD-5A | 4-SMD | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 9.8 A | 9.2A | - | Shielded | 15.32mOhm Max | 4.7 µH | - | - | Surface Mount | AEC-Q200 | 0.426" L x 0.426" W (10.82mm x 10.82mm) | - | -55°C ~ 155°C | 100 kHz | 0.169" (4.30mm) |
|
B82477P2223M000FIXED IND 22UH 3.4A 36 MOHM SMD |
865 | - |
|
数据表 |
B82477P2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 3.4 A | 2.8A | - | Shielded | 36mOhm Max | 22 µH | - | - | Surface Mount | AEC-Q200 | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -55°C ~ 150°C | 100 kHz | 0.256" (6.50mm) |
|
UP1B-3R3-RFIXED IND 3.3UH 2.9A 42.8MOHM SM |
800 | - |
|
数据表 |
UNI-PAC™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 2.9 A | 3A | - | Unshielded | 42.8mOhm Max | 3.3 µH | - | - | Surface Mount | - | 0.350" L x 0.240" W (8.89mm x 6.10mm) | - | -40°C ~ 85°C | 100 kHz | 0.197" (5.00mm) |
|
HCM1A1104V2-1R0-RFIXED IND 1UH 19A 3.1 MOHM SMD |
751 | - |
|
数据表 |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | ±20% | 19 A | 25A | - | Shielded | 3.1mOhm Max | 1 µH | - | 38MHz | Surface Mount | AEC-Q200 | 0.425" L x 0.394" W (10.80mm x 10.00mm) | - | -55°C ~ 155°C | 100 kHz | 0.157" (4.00mm) |
|
|
IHLE4040DDER6R8M5AFIXED IND 6.8UH 9.1A 22.36 MOHM |
421 | - |
|
数据表 |
IHLE-4040DD-5A | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 9.1 A | 9A | 4040 | Shielded | 22.36mOhm Max | 6.8 µH | - | - | Surface Mount | AEC-Q200 | 0.426" L x 0.426" W (10.82mm x 10.82mm) | - | -55°C ~ 155°C | 100 kHz | 0.169" (4.30mm) |
|
VCHA075D-150MS6PFIXED IND 15UH 3.8A 66 MOHM SMD |
195 | - |
|
数据表 |
VCHA075D | Nonstandard | Tape & Reel (TR) | Active | - | Metal | ±20% | 3.8 A | 5.9A | - | Unshielded | 66mOhm Max | 15 µH | - | - | Surface Mount | AEC-Q200 | 0.303" L x 0.283" W (7.70mm x 7.20mm) | - | -55°C ~ 165°C | 100 kHz | 0.213" (5.40mm) |
|
8230-14-RCFIXED IND 560NH 495MA 500MOHM TH |
183 | - |
|
数据表 |
8230 | Axial | Bulk | Active | Wirewound | Phenolic | ±10% | 495 mA | - | - | Unshielded | 500mOhm Max | 560 nH | 30 @ 25MHz | 300MHz | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - | -55°C ~ 105°C | 25 MHz | - |
|
SPM6530T-4R7M-HZFIXED IND 4.7UH 5.6A 39.38 MOHM |
1,640 | - |
|
数据表 |
SPM-HZ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | ±20% | 5.6 A | 4.6A | - | Shielded | 39.38mOhm Max | 4.7 µH | - | - | Surface Mount | AEC-Q200 | 0.280" L x 0.256" W (7.10mm x 6.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|

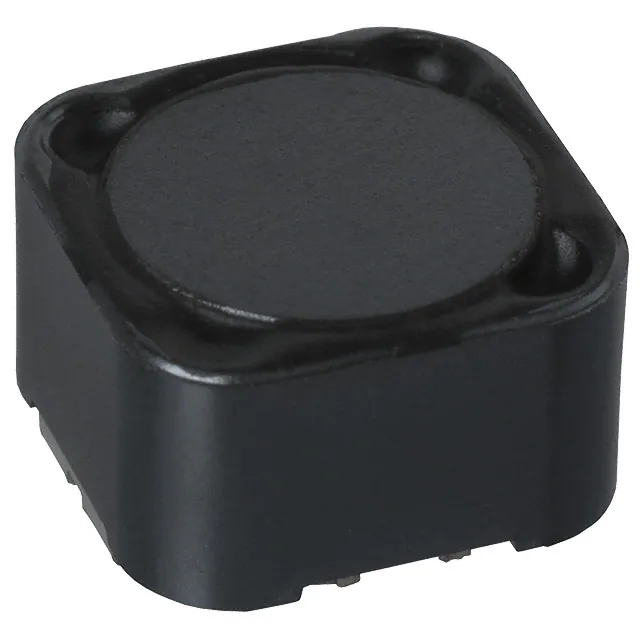

CDRH127NP-390MCFIXED IND 39UH 2.75A 72.9MOHM SM |
1,500 | - |
|
数据表 |
CDRH127 | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 2.75 A | - | - | Shielded | 72.9mOhm Max | 39 µH | - | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | - | -40°C ~ 100°C | 1 kHz | 0.315" (8.00mm) |
|
74438366015FIXED IND 1.5UH 6.7A 21.3MOHM SM |
999 | - |
|
数据表 |
WE-MAPI | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 6.7 A | 9.5A | 5030 | Shielded | 21.3mOhm Max | 1.5 µH | - | 35MHz | Surface Mount | AEC-Q200 | 0.213" L x 0.213" W (5.40mm x 5.40mm) | - | -40°C ~ 125°C | 100 kHz | 0.122" (3.10mm) |
|
|
744383660082FIXED IND 820NH 8.8A 9.6MOHM SMD |
810 | - |
|
数据表 |
WE-MAPI | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 8.8 A | 11A | 5020 | Shielded | 9.6mOhm Max | 820 nH | - | 53.5MHz | Surface Mount | AEC-Q200 | 0.213" L x 0.213" W (5.40mm x 5.40mm) | - | -40°C ~ 125°C | 100 kHz | 0.083" (2.10mm) |
|
SBC6-152-451FIXED IND 1.5MH 450MA 1.8 OHM TH |
418 | - |
|
数据表 |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 450 mA | 900mA | - | Unshielded | 1.8Ohm Max | 1.5 mH | - | - | Through Hole | - | 0.472" Dia (12.00mm) | - | -20°C ~ 105°C | 10 kHz | 0.728" (18.50mm) |
|
7847110020WE-RCIT ROD CORE INDUCTOR THT 2. |
1,140 | - |
|
数据表 |
WE-RCIT | Radial, Horizontal Cylinder (Open) | Bulk | Active | Wirewound | - | ±25% | 4 A | 5A | Radial | Unshielded | 11mOhm | 2 µH | - | 290MHz | Through Hole | AEC-Q200 | 0.126" Dia x 0.484" L (3.20mm x 12.30mm) | - | -40°C ~ 150°C | 10 kHz | - |
|
|
7847121020WE-RCIT ROD CORE INDUCTOR THT 2. |
202 | - |
|
数据表 |
WE-RCIT | Radial, Horizontal Cylinder (Open) | Bulk | Active | Wirewound | - | ±25% | 10 A | 32A | Radial | Unshielded | 3.8mOhm | 2 µH | - | 150MHz | Through Hole | AEC-Q200 | 0.299" Dia x 0.606" L (7.60mm x 15.40mm) | - | -40°C ~ 150°C | 10 kHz | - |
|
PA5001.221NLTFIXED IND 220NH 16.8A 4.6MOHM SM |
5,933 | - |
|
数据表 |
PA5001.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | ±20% | 16.8 A | 19.5A | - | Shielded | 4.6mOhm Max | 220 nH | - | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | - | -40°C ~ 125°C | 100 kHz | 0.083" (2.10mm) |
|
|
CDRH127NP-560MCFIXED IND 56UH 2.35A 110MOHM SMD |
653 | - |
|
数据表 |
CDRH127 | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 2.35 A | - | - | Shielded | 110mOhm Max | 56 µH | - | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | - | -40°C ~ 100°C | 1 kHz | 0.315" (8.00mm) |
