固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744301033FIXED IND 330NH 38A 0.00032OHM |
544 | - |
|
数据表 |
WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | ±20% | 38 A | 48.9A | 1190 | Shielded | 0.32mOhm | 330 nH | - | 115MHz | Surface Mount | - | 0.445" L x 0.433" W (11.30mm x 11.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.370" (9.40mm) |
|
B82477P4224M000FIXED IND 220UH 1.24A 305MOHM SM |
328 | - |
|
数据表 |
B82477P4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.24 A | 1.35A | - | Shielded | 305mOhm Max | 220 µH | - | - | Surface Mount | AEC-Q200 | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -55°C ~ 150°C | 100 kHz | 0.335" (8.50mm) |
|
MPCH0740LR24FIXED IND 240NH 27A 1 MOHM SMD |
3,166 | - |
|
数据表 |
MPCH | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | ±20% | 27 A | 20A | - | Shielded | 1mOhm | 240 nH | - | - | Surface Mount | - | 0.315" L x 0.264" W (8.00mm x 6.70mm) | - | -40°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
IHSR2525CZER56NM5AIHSR-2525CZ-5A .056 20% ER |
1,097 | - |
|
数据表 |
IHSR-2525CZ-5A | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | - | - | - | - | - | 56 nH | - | - | Surface Mount | - | - | - | - | - | - |
|
B82477R4682M100FIXED IND 6.8UH 6.6A 15 MOHM SMD |
381 | - |
|
数据表 |
B82477R4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 6.6 A | 10.5A | - | Shielded | 15mOhm Max | 6.8 µH | - | - | Surface Mount | AEC-Q200 | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -55°C ~ 150°C | 100 kHz | 0.335" (8.50mm) |
|
7687480332WE-TI HV RADIAL LEADED WIRE WOUN |
110 | - |
|
数据表 |
WE-TI HV | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | ±5% | 350 mA | 500mA | Radial, Vertical Cylinder | Unshielded | 4Ohm Max | 3.3 mH | - | 750kHz | Through Hole | - | 0.413" Dia (10.50mm) | - | -40°C ~ 125°C | 10 kHz | 0.571" (14.50mm) |
|
ASPIAIG-F4020-R10M-TFIXED IND 100NH 18A 2.42MOHM SMD |
10,023 | - |
|
数据表 |
ASPIAIG-F | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 18 A | 33A | 4020 | Shielded | 2.42mOhm Max | 100 nH | - | - | Surface Mount | AEC-Q200 | 0.161" L x 0.161" W (4.10mm x 4.10mm) | - | -40°C ~ 125°C | 100 kHz | 0.083" (2.10mm) |
|
MPL-AL5050-8R2FIXED IND 8.2UH 5.8A 28 MOHM SMD |
7,374 | - |
|
数据表 |
MPL-AL | 2-SMD | Tape & Reel (TR) | Active | Molded | - | - | 5.8 A | 7.2A | - | Unshielded | 28mOhm | 8.2 µH | - | - | Surface Mount | - | 0.217" L x 0.209" W (5.50mm x 5.30mm) | - | -40°C ~ 155°C | 100 kHz | 0.197" (5.00mm) |
|
7440650068FIXED IND 6.8UH 4.2A 33 MOHM SMD |
6,739 | - |
|
数据表 |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 4.2 A | 3.6A | - | Shielded | 33mOhm Max | 6.8 µH | - | 30MHz | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.122" (3.10mm) |
|
|
744065221FIXED IND 220UH 500MA 1 OHM SMD |
2,396 | - |
|
数据表 |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 500 mA | 550mA | - | Shielded | 1Ohm Max | 220 µH | - | 4MHz | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.122" (3.10mm) |
|
|
MPL-AL5050-5R6FIXED IND 5.6UH 6.8A 20 MOHM SMD |
1,637 | - |
|
数据表 |
MPL-AL | 2-SMD | Tape & Reel (TR) | Active | Molded | - | - | 6.8 A | 8A | - | Unshielded | 20mOhm | 5.6 µH | - | - | Surface Mount | - | 0.217" L x 0.209" W (5.50mm x 5.30mm) | - | -40°C ~ 155°C | 100 kHz | 0.197" (5.00mm) |
|
|
7440650015FIXED IND 1.5UH 7.2A 10 MOHM SMD |
1,599 | - |
|
数据表 |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 7.2 A | 7.5A | - | Shielded | 10mOhm Max | 1.5 µH | - | 80MHz | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.122" (3.10mm) |
|
74407000047FIXED IND 470NH 7A 7.8 MOHM SMD |
1,571 | - |
|
数据表 |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 7 A | 6.5A | - | Shielded | 7.8mOhm Max | 470 nH | - | 300MHz | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.059" (1.50mm) |
|
|
7440700220FIXED IND 22UH 1.3A 200 MOHM SMD |
1,139 | - |
|
数据表 |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 1.3 A | 1A | - | Shielded | 200mOhm Max | 22 µH | - | 16MHz | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.079" (2.00mm) |
|

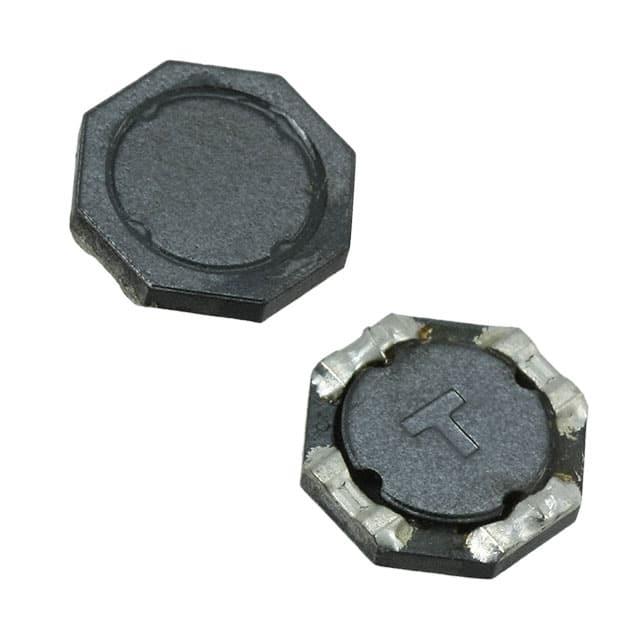

7440690100FIXED IND 10UH 1.55A 135MOHM SMD |
970 | - |
|
数据表 |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.55 A | 1.25A | - | Shielded | 135mOhm Max | 10 µH | - | 10MHz | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.059" (1.50mm) |
|
9230-06-RCFIXED IND 270NH 875MA 160MOHM TH |
731 | - |
|
数据表 |
9230 | Axial | Bulk | Active | Molded | Phenolic | ±10% | 875 mA | - | - | Unshielded | 160mOhm Max | 270 nH | 33 @ 25MHz | 430MHz | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - | -55°C ~ 105°C | 25 MHz | - |
|
|
7440650033FIXED IND 3.3UH 5.3A 20 MOHM SMD |
516 | - |
|
数据表 |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 5.3 A | 4.7A | - | Shielded | 20mOhm Max | 3.3 µH | - | 55MHz | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.122" (3.10mm) |
|
|
7440700022FIXED IND 2.2UH 4.4A 21 MOHM SMD |
324 | - |
|
数据表 |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 4.4 A | 3.2A | - | Shielded | 21mOhm Max | 2.2 µH | - | 115MHz | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.079" (2.00mm) |
|
ASPI-1367-100M-TFIXED IND 10UH 10A 18.5 MOHM SMD |
310 | - |
|
数据表 |
ASPI-1367 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 10 A | 15.5A | - | Shielded | 18.5mOhm Max | 10 µH | - | - | Surface Mount | - | 0.551" L x 0.508" W (14.00mm x 12.90mm) | - | -40°C ~ 125°C | 200 kHz | 0.264" (6.70mm) |
|
|
74407000018FIXED IND 180NH 8.5A 4.5MOHM SMD |
291 | - |
|
数据表 |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 8.5 A | 9A | - | Shielded | 4.5mOhm Max | 180 nH | - | 600MHz | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.059" (1.50mm) |
