固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MPI4020V2-4R7-RFIXED IND 4.7UH 2.7A 118MOHM SMD |
6,862 | - |
|
数据表 |
MPI40-V2 | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | ±20% | 2.7 A | 3.2A | - | Shielded | 118mOhm Max | 4.7 µH | - | 24MHz | Surface Mount | - | 0.160" L x 0.171" W (4.06mm x 4.35mm) | - | -55°C ~ 125°C | 100 kHz | 0.079" (2.00mm) |
|

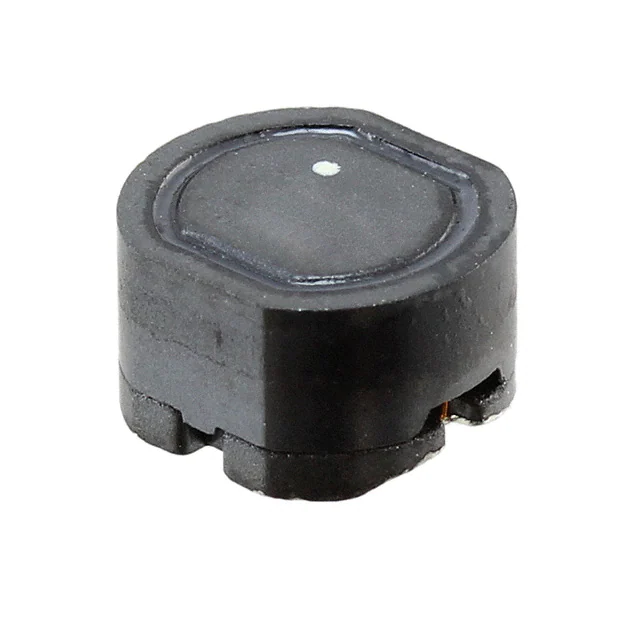

744787680FIXED IND 68UH 1.12A 290MOHM SMD |
6,576 | - |
|
数据表 |
WE-PD2SR | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.12 A | 1A | - | Shielded | 290mOhm Max | 68 µH | - | 7.5MHz | Surface Mount | AEC-Q200 | 0.307" L x 0.276" W (7.80mm x 7.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.177" (4.50mm) |
|
ADM32FSC-100MINDUCTORS FOR POWER OVER COAXIAL |
5,386 | - |
|
数据表 |
ADM32FSC | Horizontal, 4 PC Pad | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | ±20% | 880 mA | 1.06A | Horizontal, 4 PC Pad | Shielded | 420mOhm Max | 10 µH | - | 52MHz | Surface Mount | AEC-Q200 | 0.154" L x 0.098" W (3.90mm x 2.50mm) | - | -55°C ~ 150°C | 100 kHz | 0.098" (2.50mm) |
|
|
744787151FIXED IND 150UH 710MA 719MOHM SM |
4,215 | - |
|
数据表 |
WE-PD2SR | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 710 mA | 700mA | - | Shielded | 719mOhm Max | 150 µH | - | 4MHz | Surface Mount | AEC-Q200 | 0.307" L x 0.276" W (7.80mm x 7.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.177" (4.50mm) |
|
PA5003.471NLTFIXED IND 470NH 18.4A 4.13 MOHM |
3,978 | - |
|
数据表 |
PA5003.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | ±20% | 18.4 A | 26A | - | Shielded | 4.13mOhm Max | 470 nH | - | - | Surface Mount | - | 0.217" L x 0.209" W (5.50mm x 5.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.122" (3.10mm) |
|
PA4343.102NLTFIXED IND 1UH 30A 2.3 MOHM SMD |
1,927 | - |
|
数据表 |
PA4343.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 30 A | 48A | - | Shielded | 2.3mOhm Max | 1 µH | - | - | Surface Mount | AEC-Q200 | 0.551" L x 0.504" W (14.00mm x 12.80mm) | - | -40°C ~ 125°C | 100 kHz | 0.256" (6.50mm) |
|
744711003FIXED IND 10UH 2.5A 33 MOHM TH |
1,149 | - |
|
数据表 |
WE-SD | Radial, Horizontal Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | ±25% | 2.5 A | - | - | Unshielded | 33mOhm | 10 µH | - | 45MHz | Through Hole | - | 0.205" Dia x 0.728" L (5.20mm x 18.50mm) | - | -40°C ~ 150°C | 10 kHz | - |
|
|
744787820FIXED IND 82UH 1.04A 328MOHM SMD |
1,046 | - |
|
数据表 |
WE-PD2SR | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.04 A | 900mA | - | Shielded | 328mOhm Max | 82 µH | - | 6MHz | Surface Mount | AEC-Q200 | 0.307" L x 0.276" W (7.80mm x 7.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.177" (4.50mm) |
|
|
744787181FIXED IND 180UH 680MA 794MOHM SM |
1,012 | - |
|
数据表 |
WE-PD2SR | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 680 mA | 620mA | - | Shielded | 794mOhm Max | 180 µH | - | 3.8MHz | Surface Mount | AEC-Q200 | 0.307" L x 0.276" W (7.80mm x 7.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.177" (4.50mm) |
|
HCMA1305-8R2-RFIXED IND 8.2UH 9.5A 20.1MOHM SM |
610 | - |
|
数据表 |
HCMA1305 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | ±20% | 9.5 A | 18A | - | Shielded | 20.1mOhm Max | 8.2 µH | - | - | Surface Mount | AEC-Q200 | 0.524" L x 0.480" W (13.30mm x 12.20mm) | - | -55°C ~ 125°C | 100 kHz | 0.197" (5.00mm) |
|
|
744787221FIXED IND 220UH 670MA 876MOHM SM |
568 | - |
|
数据表 |
WE-PD2SR | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 670 mA | 580mA | - | Shielded | 876mOhm Max | 220 µH | - | 3.5MHz | Surface Mount | AEC-Q200 | 0.307" L x 0.276" W (7.80mm x 7.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.177" (4.50mm) |
|
|
744787027FIXED IND 2.7UH 4.35A 17MOHM SMD |
449 | - |
|
数据表 |
WE-PD2SR | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 4.35 A | 4.5A | - | Shielded | 17mOhm Max | 2.7 µH | - | 60MHz | Surface Mount | AEC-Q200 | 0.307" L x 0.276" W (7.80mm x 7.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.177" (4.50mm) |
|
IHLE4040DDER1R0M5AFIXED IND 1UH 23.5A 3.07MOHM SMD |
380 | - |
|
数据表 |
IHLE-4040DD-5A | 4-SMD | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 23.5 A | 24A | - | Shielded | 3.07mOhm Max | 1 µH | - | - | Surface Mount | AEC-Q200 | 0.426" L x 0.426" W (10.82mm x 10.82mm) | - | -55°C ~ 155°C | 100 kHz | 0.169" (4.30mm) |
|
|
HCMA1305-6R8-RFIXED IND 6.8UH 11A 15 MOHM SMD |
276 | - |
|
数据表 |
HCMA1305 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | ±20% | 11 A | 21A | - | Shielded | 15mOhm Max | 6.8 µH | - | - | Surface Mount | AEC-Q200 | 0.524" L x 0.480" W (13.30mm x 12.20mm) | - | -55°C ~ 125°C | 100 kHz | 0.197" (5.00mm) |
|
|
HCMA1305-R33-RFIXED IND 330NH 42A 0.92MOHM SMD |
256 | - |
|
数据表 |
HCMA1305 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | ±20% | 42 A | 80A | - | Shielded | 0.92mOhm Max | 330 nH | - | - | Surface Mount | AEC-Q200 | 0.524" L x 0.480" W (13.30mm x 12.20mm) | - | -55°C ~ 125°C | 100 kHz | 0.197" (5.00mm) |
|
|
MPI4020V2-6R8-RFIXED IND 6.8UH 2.4A 175MOHM SMD |
8,398 | - |
|
数据表 |
MPI40-V2 | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | ±20% | 2.4 A | 2.5A | - | Shielded | 175mOhm Max | 6.8 µH | - | - | Surface Mount | - | 0.160" L x 0.171" W (4.06mm x 4.35mm) | - | -55°C ~ 125°C | 100 kHz | 0.079" (2.00mm) |
|
SRP6030CA-R18MFIXED IND 180NH 32A 1.75MOHM SMD |
2,398 | - |
|
数据表 |
SRP6030CA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | ±20% | 32 A | 40A | - | Shielded | 1.75mOhm Max | 180 nH | - | 143MHz | Surface Mount | AEC-Q200 | 0.260" L x 0.252" W (6.60mm x 6.40mm) | - | -55°C ~ 155°C | 100 kHz | 0.118" (3.00mm) |
|

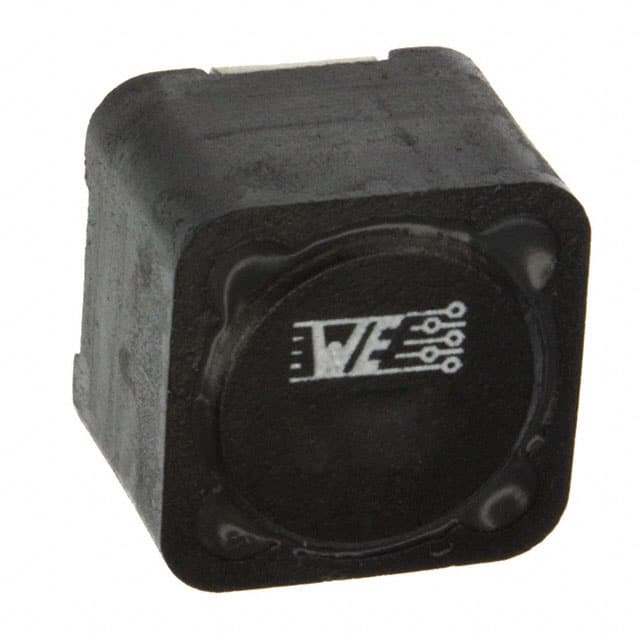

744777001FIXED IND 1UH 6.84A 10 MOHM SMD |
1,634 | - |
|
数据表 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | -20%, +40% | 6.84 A | 10.2A | 7345 | Shielded | 10mOhm Max | 1 µH | - | 100MHz | Surface Mount | AEC-Q200 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | - | -40°C ~ 125°C | 1 kHz | 0.177" (4.50mm) |
|
74402500047FIXED IND 470NH 3.3A 23 MOHM SMD |
1,509 | - |
|
数据表 |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±25% | 3.3 A | 4.7A | 2828 | Shielded | 23mOhm Max | 470 nH | - | 290MHz | Surface Mount | - | 0.110" L x 0.110" W (2.80mm x 2.80mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
|
HCMA1305-1R0-RFIXED IND 1UH 29A 2.42 MOHM SMD |
989 | - |
|
数据表 |
HCMA1305 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | ±20% | 29 A | 50A | - | Shielded | 2.42mOhm Max | 1 µH | - | - | Surface Mount | AEC-Q200 | 0.524" L x 0.480" W (13.30mm x 12.20mm) | - | -55°C ~ 125°C | 100 kHz | 0.197" (5.00mm) |
