固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74456247FIXED IND 470UH 600MA 1.7OHM SMD |
1,144 | - |
|
数据表 |
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 600 mA | 650mA | - | Unshielded | 1.7Ohm Max | 470 µH | - | 3.1MHz | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.209" (5.30mm) |
|

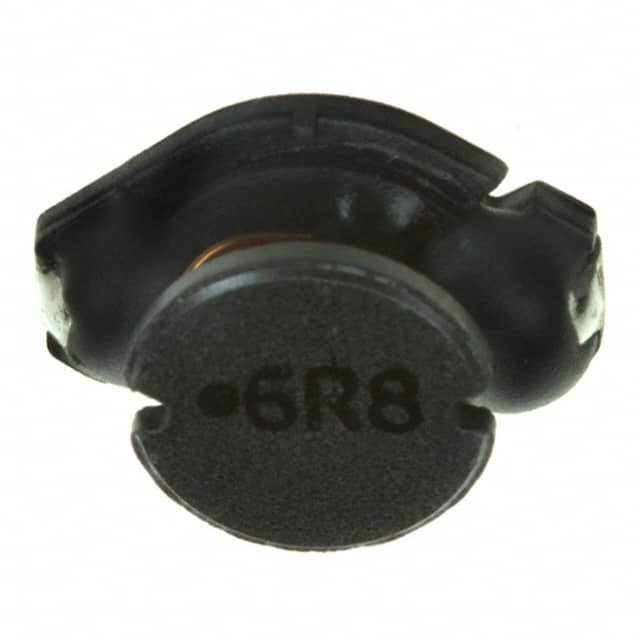

74456068FIXED IND 6.8UH 3.8A 34 MOHM SMD |
1,043 | - |
|
数据表 |
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 3.8 A | 5.1A | - | Unshielded | 34mOhm Max | 6.8 µH | - | 30MHz | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.209" (5.30mm) |
|
74456115FIXED IND 15UH 2.9A 60 MOHM SMD |
769 | - |
|
数据表 |
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 2.9 A | 3.6A | - | Unshielded | 60mOhm Max | 15 µH | - | 17MHz | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.209" (5.30mm) |
|
7443082018AFIXED IND 180NH 65A 0.00015OHM |
733 | - |
|
数据表 |
WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | ±10% | 65 A | 72.7A | 1088 | Shielded | 0.15mOhm | 180 nH | - | - | Surface Mount | - | 0.402" L x 0.319" W (10.20mm x 8.10mm) | - | -40°C ~ 125°C | 100 kHz | 0.315" (8.00mm) |
|
74458133FIXED IND 33UH 3A 66 MOHM SMD |
628 | - |
|
数据表 |
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 3 A | 5.5A | - | Unshielded | 66mOhm Max | 33 µH | - | 10MHz | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | - | -40°C ~ 125°C | 100 kHz | 0.280" (7.11mm) |
|
|
7443082015FIXED IND 150NH 60A 0.00018OHM |
613 | - |
|
数据表 |
WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | ±10% | 60 A | 87.1A | 1088 | Shielded | 0.18mOhm | 150 nH | - | - | Surface Mount | - | 0.402" L x 0.315" W (10.20mm x 8.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.319" (8.10mm) |
|
74456022FIXED IND 2.2UH 6.5A 11 MOHM SMD |
534 | - |
|
数据表 |
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 6.5 A | 10.2A | - | Unshielded | 11mOhm Max | 2.2 µH | - | 63MHz | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.209" (5.30mm) |
|

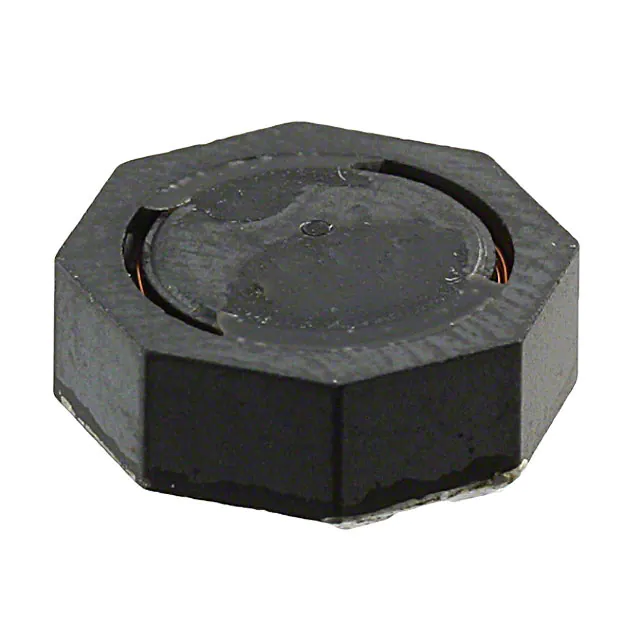

744066221FIXED IND 220UH 750MA 740MOHM SM |
468 | - |
|
数据表 |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 750 mA | 850mA | - | Shielded | 740mOhm Max | 220 µH | - | 6MHz | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.161" (4.10mm) |
|
|
74456056FIXED IND 5.6UH 4A 32 MOHM SMD |
407 | - |
|
数据表 |
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 4 A | 6A | - | Unshielded | 32mOhm Max | 5.6 µH | - | 31MHz | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.209" (5.30mm) |
|
MPLCG0530L2R2FIXED IND 2.2UH 4.5A 0.0364OHM |
14,216 | - |
|
数据表 |
MPLCG | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | ±20% | 4.5 A | 5A | - | Shielded | 36.4mOhm Max | 2.2 µH | - | - | Surface Mount | - | 0.217" L x 0.197" W (5.50mm x 5.00mm) | Low DCR, Low Loss | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|

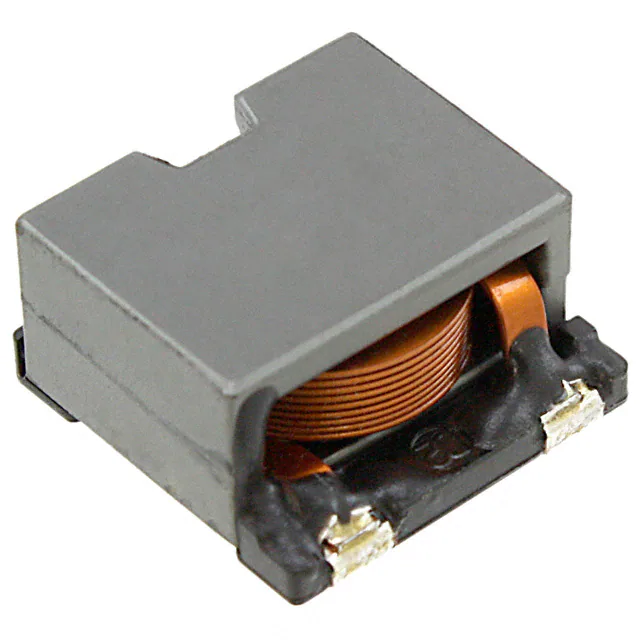

CDEP147NP-7R7MC-95FIXED IND 7.7UH 10A 9.85MOHM SMD |
4,738 | - |
|
数据表 |
CDEP147 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 10 A | 12.4A | - | Shielded | 9.85mOhm Max | 7.7 µH | - | - | Surface Mount | - | 0.571" L x 0.571" W (14.50mm x 14.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.315" (8.00mm) |
|
MPI4020V2-1R5-RFIXED IND 1.5UH 5A 30 MOHM SMD |
2,120 | - |
|
数据表 |
MPI40-V2 | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | ±20% | 5 A | 6A | - | Shielded | 30mOhm Max | 1.5 µH | - | 45MHz | Surface Mount | - | 0.160" L x 0.171" W (4.06mm x 4.35mm) | - | -55°C ~ 125°C | 100 kHz | 0.079" (2.00mm) |
|

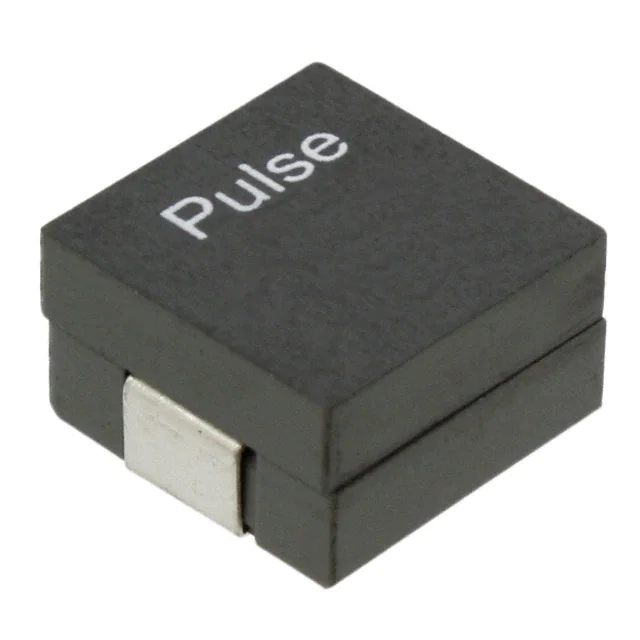

PA0513.441NLTFIXED IND 440NH 30A 0.32MOHM SMD |
1,743 | - |
|
数据表 |
PA0513NL | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 30 A | 35A | - | Shielded | 0.32mOhm | 440 nH | - | - | Surface Mount | - | 0.530" L x 0.510" W (13.46mm x 12.95mm) | - | -40°C ~ 130°C | - | 0.315" (8.00mm) |
|
B82464P4682M000FIXED IND 6.8UH 4.3A 20 MOHM SMD |
1,333 | - |
|
数据表 |
B82464P4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 4.3 A | 4.6A | - | Shielded | 20mOhm Max | 6.8 µH | - | - | Surface Mount | AEC-Q200 | 0.409" L x 0.409" W (10.40mm x 10.40mm) | - | -55°C ~ 150°C | 100 kHz | 0.189" (4.80mm) |
|
|
CDEP147NP-8R0MC-125FIXED IND 8UH 11A 7.8 MOHM SMD |
1,162 | - |
|
数据表 |
CDEP147 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 11 A | 10A | - | Shielded | 7.8mOhm Max | 8 µH | - | - | Surface Mount | - | 0.571" L x 0.571" W (14.50mm x 14.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.315" (8.00mm) |
|
|
B82464P4472M000FIXED IND 4.7UH 4.9A 15 MOHM SMD |
464 | - |
|
数据表 |
B82464P4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 4.9 A | 5.2A | - | Shielded | 15mOhm Max | 4.7 µH | - | - | Surface Mount | AEC-Q200 | 0.409" L x 0.409" W (10.40mm x 10.40mm) | - | -55°C ~ 150°C | 100 kHz | 0.189" (4.80mm) |
|
5900-100-RCFIXED IND 10UH 4.7A 19 MOHM TH |
18,184 | - |
|
数据表 |
5900 | Axial | Tray | Active | Drum Core, Wirewound | Ferrite | ±10% | 4.7 A | 8.7A | - | Unshielded | 19mOhm Max | 10 µH | - | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - | -55°C ~ 105°C | 1 kHz | - |
|
74438356018HTFIXED IND 1.8UH 4.6A 29.9MOHM SM |
5,180 | - |
|
数据表 |
WE-MAPI | 1616 (4040 Metric) | Tape & Reel (TR) | Active | - | - | ±20% | 4.6 A | 6.2A | 4020 | Shielded | 29.9mOhm Max | 1.8 µH | - | 37.5MHz | Surface Mount | AEC-Q200 | 0.161" L x 0.161" W (4.10mm x 4.10mm) | - | -55°C ~ 150°C | 100 kHz | 0.083" (2.10mm) |
|
P1174.103NLTFIXED IND 10UH 800MA 73 MOHM SMD |
5,056 | - |
|
数据表 |
P1174NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 800 mA | 800mA | - | Shielded | 73mOhm Max | 10 µH | - | 31MHz | Surface Mount | - | 0.265" L x 0.175" W (6.73mm x 4.45mm) | - | -40°C ~ 130°C | 100 kHz | 0.110" (2.79mm) |
|
|
74438356033HTFIXED IND 3.3UH 3.6A 51.8MOHM SM |
3,887 | - |
|
数据表 |
WE-MAPI | 1616 (4040 Metric) | Tape & Reel (TR) | Active | - | - | ±20% | 3.6 A | 4.8A | 4020 | Shielded | 51.8mOhm Max | 3.3 µH | - | 25.5MHz | Surface Mount | AEC-Q200 | 0.161" L x 0.161" W (4.10mm x 4.10mm) | - | -55°C ~ 150°C | 100 kHz | 0.083" (2.10mm) |
