固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
60A413CFIXED IND 41UH 5.6A 26 MOHM SMD |
273 | - |
|
数据表 |
6000A | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±10% | 5.6 A | 8.4A | - | Unshielded | 26mOhm Max | 41 µH | - | 10MHz | Surface Mount | - | 0.866" L x 0.748" W (22.00mm x 19.00mm) | - | -40°C ~ 85°C | 100 kHz | 0.472" (12.00mm) |
|
74402500030FIXED IND 300NH 3.9A 18 MOHM SMD |
236 | - |
|
数据表 |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±25% | 3.9 A | 5.7A | 2828 | Shielded | 18mOhm Max | 300 nH | - | 440MHz | Surface Mount | - | 0.110" L x 0.110" W (2.80mm x 2.80mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
MPI4015V2-4R7-RFIXED IND 4.7UH 2.2A 130MOHM SMD |
7,414 | - |
|
数据表 |
MPI40-V2 | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | ±20% | 2.2 A | 3A | - | Shielded | 130mOhm Max | 4.7 µH | - | 22MHz | Surface Mount | - | 0.160" L x 0.171" W (4.06mm x 4.35mm) | - | -55°C ~ 125°C | 100 kHz | 0.059" (1.50mm) |
|

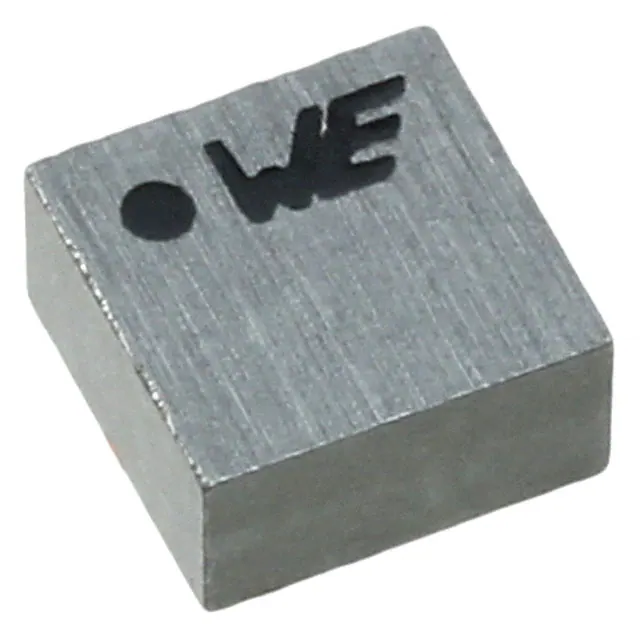

78438356033FIXED IND 3.3UH 3.6A 48 MOHM SMD |
2,305 | - |
|
数据表 |
WE-MAIA | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Alloy | ±20% | 3.6 A | 5.5A | SMD | Shielded | 48mOhm Max | 3.3 µH | - | 26MHz | Surface Mount | AEC-Q200 | 0.161" L x 0.161" W (4.10mm x 4.10mm) | - | -40°C ~ 125°C | 100 kHz | 0.083" (2.10mm) |
|
|
78438357015FIXED IND 1.5UH 6.2A 20MOHM SMD |
1,400 | - |
|
数据表 |
WE-MAIA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Alloy | ±20% | 6.2 A | 8.5A | 4030 | Shielded | 20mOhm Max | 1.5 µH | - | 48MHz | Surface Mount | AEC-Q200 | 0.161" L x 0.161" W (4.10mm x 4.10mm) | - | -40°C ~ 125°C | 100 kHz | 0.122" (3.10mm) |
|
|
784383560056FIXED IND 560NH 8.5A 8.4MOHM SMD |
1,090 | - |
|
数据表 |
WE-MAIA | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Alloy | ±30% | 8.5 A | 10.8A | SMD | Shielded | 8.4mOhm Max | 560 nH | - | 85MHz | Surface Mount | AEC-Q200 | 0.161" L x 0.161" W (4.10mm x 4.10mm) | - | -40°C ~ 125°C | 100 kHz | 0.083" (2.10mm) |
|
|
784383560068FIXED IND 680NH 8.2A 9 MOHM SMD |
1,004 | - |
|
数据表 |
WE-MAIA | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Alloy | ±20% | 8.2 A | 9.4A | SMD | Shielded | 9mOhm Max | 680 nH | - | 75MHz | Surface Mount | AEC-Q200 | 0.161" L x 0.161" W (4.10mm x 4.10mm) | - | -40°C ~ 125°C | 100 kHz | 0.083" (2.10mm) |
|
|
78438356012FIXED IND 1.2UH 5.8A 18 MOHM SMD |
985 | - |
|
数据表 |
WE-MAIA | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Alloy | ±20% | 5.8 A | 9A | SMD | Shielded | 18mOhm Max | 1.2 µH | - | 52MHz | Surface Mount | AEC-Q200 | 0.161" L x 0.161" W (4.10mm x 4.10mm) | - | -40°C ~ 125°C | 100 kHz | 0.083" (2.10mm) |
|
SRP1038WA-150MIND,11X10X3.8MM,15UH20%,6.4A,SHD |
835 | - |
|
数据表 |
SRP1038WA | Nonstandard | Tape & Reel (TR) | Active | - | Metal | ±20% | 6.4 A | 7A | - | Shielded | 45mOhm Max | 15 µH | 20 @ 100kHz | 8MHz | Surface Mount | AEC-Q200 | 0.433" L x 0.394" W (11.00mm x 10.00mm) | - | -55°C ~ 165°C | 100 kHz | 0.157" (4.00mm) |
|
|
SRP1038WA-6R8MIND,11X10X3.8MM,6.8UH20%,10A,SHD |
661 | - |
|
数据表 |
SRP1038WA | Nonstandard | Tape & Reel (TR) | Active | - | Metal | ±20% | 10 A | 11A | - | Shielded | 19mOhm Max | 6.8 µH | 20 @ 100kHz | 12MHz | Surface Mount | AEC-Q200 | 0.433" L x 0.394" W (11.00mm x 10.00mm) | - | -55°C ~ 165°C | 100 kHz | 0.157" (4.00mm) |
|
CLF12555T-680M-HFIXED IND 68UH 1.6A 125 MOHM SMD |
500 | - |
|
数据表 |
CLF-H | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | ±20% | 1.6 A | 2.6A | - | Shielded | 125mOhm | 68 µH | - | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.217" (5.50mm) |
|
|
SRP1038WA-330MIND,11X10X3.8MM,33UH20%,4.7A,SHD |
279 | - |
|
数据表 |
SRP1038WA | Nonstandard | Tape & Reel (TR) | Active | - | Metal | ±20% | 4.7 A | 4.8A | - | Shielded | 102mOhm Max | 33 µH | 20 @ 100kHz | 6MHz | Surface Mount | AEC-Q200 | 0.433" L x 0.394" W (11.00mm x 10.00mm) | - | -55°C ~ 165°C | 100 kHz | 0.157" (4.00mm) |
|
7447028FIXED IND 150UH 1A 130 MOHM TH |
230 | - |
|
数据表 |
WE-FI | Radial, Vertical (Open) | Bulk | Active | Toroidal | Ferrite | ±20% | 1 A | - | - | Unshielded | 130mOhm Max | 150 µH | - | - | Through Hole | - | 0.630" Dia x 0.295" W (16.00mm x 7.50mm) | - | -40°C ~ 105°C | 10 kHz | - |
|
|
SRP1038WA-470MIND,11X10X3.8MM,47UH20%,3.6A,SHD |
214 | - |
|
数据表 |
SRP1038WA | Nonstandard | Tape & Reel (TR) | Active | - | Metal | ±20% | 3.6 A | 4A | - | Shielded | 165mOhm Max | 47 µH | 20 @ 100kHz | 5MHz | Surface Mount | AEC-Q200 | 0.433" L x 0.394" W (11.00mm x 10.00mm) | - | -55°C ~ 165°C | 100 kHz | 0.157" (4.00mm) |
|

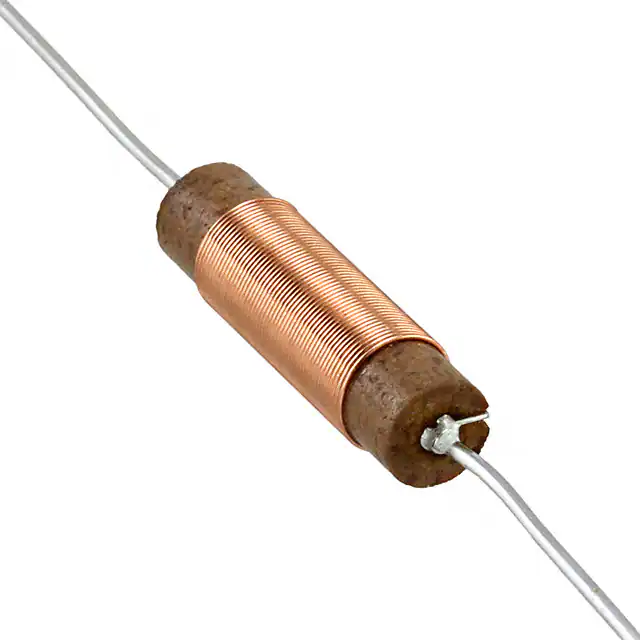

4611-RCFIXED IND 8.2UH 600MA 1.2 OHM TH |
4,967 | - |
|
数据表 |
4600 | Axial | Bulk | Active | Wirewound | Phenolic | ±10% | 600 mA | - | - | Unshielded | 1.2Ohm Max | 8.2 µH | 57 @ 7.96MHz | 65MHz | Through Hole | - | 0.270" Dia x 0.750" L (6.86mm x 19.05mm) | - | -55°C ~ 125°C | 7.96 MHz | - |
|
|
4608-RCFIXED IND 3.9UH 1A 450 MOHM TH |
3,089 | - |
|
数据表 |
4600 | Axial | Bulk | Active | Wirewound | Phenolic | ±10% | 1 A | - | - | Unshielded | 450mOhm Max | 3.9 µH | 60 @ 7.96MHz | 93MHz | Through Hole | - | 0.270" Dia x 0.750" L (6.86mm x 19.05mm) | - | -55°C ~ 125°C | 7.96 MHz | - |
|
HCMA1305-R22-RFIXED IND 220NH 51A 0.72MOHM SMD |
1,780 | - |
|
数据表 |
HCMA1305 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | ±20% | 51 A | 110A | - | Shielded | 0.72mOhm Max | 220 nH | - | - | Surface Mount | AEC-Q200 | 0.524" L x 0.480" W (13.30mm x 12.20mm) | - | -55°C ~ 125°C | 100 kHz | 0.197" (5.00mm) |
|

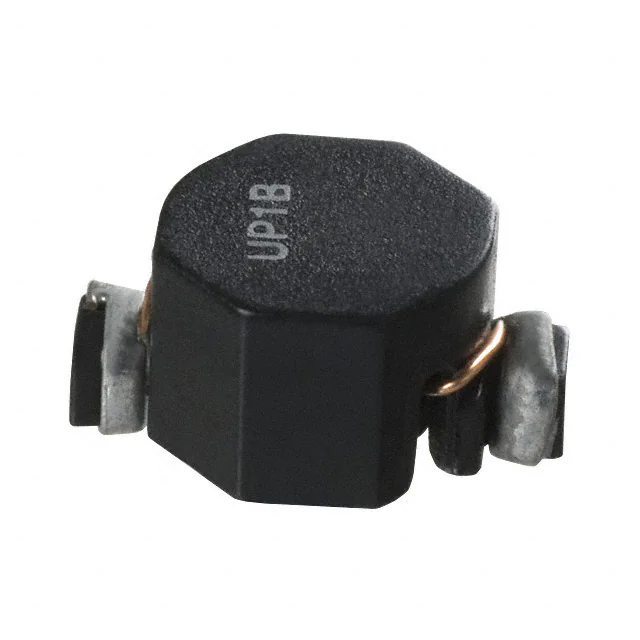

UP1B-470-RFIXED IND 47UH 720MA 474MOHM SMD |
650 | - |
|
数据表 |
UNI-PAC™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 720 mA | 870mA | - | Unshielded | 474mOhm Max | 47 µH | - | - | Surface Mount | - | 0.350" L x 0.240" W (8.89mm x 6.10mm) | - | -40°C ~ 85°C | 100 kHz | 0.197" (5.00mm) |
|
|
HCMA1305-150-RFIXED IND 15UH 7.7A 33.4MOHM SMD |
602 | - |
|
数据表 |
HCMA1305 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | ±20% | 7.7 A | 13A | - | Shielded | 33.4mOhm Max | 15 µH | - | - | Surface Mount | AEC-Q200 | 0.524" L x 0.480" W (13.30mm x 12.20mm) | - | -55°C ~ 125°C | 100 kHz | 0.197" (5.00mm) |
|
PA5003.331NLTFIXED IND 330NH 19.2A 3.52 MOHM |
13,232 | - |
|
数据表 |
PA5003.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | ±20% | 19.2 A | 28A | - | Shielded | 3.52mOhm Max | 330 nH | - | - | Surface Mount | - | 0.217" L x 0.209" W (5.50mm x 5.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.122" (3.10mm) |
