场效应晶体管（FETs）、MOSFETs
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 安装类型 | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 漏极到源极电压 (Vdss) | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | 认证 | FET 特性 | 供应商设备封装 | 等级 | 功耗（最大值） | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IXTA76N075TMOSFET N-CH 75V 76A TO263 IXYS |
9,341 | - |
|
数据表 |
TrenchMV™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 76A (Tc) | 10V | 12mOhm @ 25A, 10V | Surface Mount | 4V @ 50µA | 57 nC @ 10 V | 75 V | ±20V | 2580 pF @ 25 V | - | - | TO-263AA | - | 176W (Tc) | -55°C ~ 175°C (TJ) |
|
|
IXTA88N085TMOSFET N-CH 85V 88A TO263 IXYS |
2,748 | - |
|
数据表 |
TrenchMV™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 88A (Tc) | 10V | 11mOhm @ 25A, 10V | Surface Mount | 4V @ 100µA | 69 nC @ 10 V | 85 V | ±20V | 3140 pF @ 25 V | - | - | TO-263AA | - | 230W (Tc) | -55°C ~ 175°C (TJ) |
|
|
IXTA90N055TMOSFET N-CH 55V 90A TO263 IXYS |
7,717 | - |
|
数据表 |
TrenchT2™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 90A (Tc) | 10V | 8.8mOhm @ 25A, 10V | Surface Mount | 4V @ 50µA | 61 nC @ 10 V | 55 V | ±20V | 2500 pF @ 25 V | - | - | TO-263AA | - | 176W (Tc) | -55°C ~ 175°C (TJ) |
|
IXTC160N085TMOSFET N-CH 85V 110A ISOPLUS220 IXYS |
4,564 | - |
|
数据表 |
- | ISOPLUS220™ | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 110A (Tc) | - | - | Through Hole | - | - | 85 V | - | - | - | - | ISOPLUS220™ | - | - | - |
|
IXTC180N085TMOSFET N-CH 85V 110A ISOPLUS220 IXYS |
7,789 | - |
|
数据表 |
- | ISOPLUS220™ | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 110A (Tc) | 10V | 6.1mOhm @ 25A, 10V | Through Hole | 4V @ 250µA | 170 nC @ 10 V | 85 V | ±20V | 8800 pF @ 25 V | - | - | ISOPLUS220™ | - | 150W (Tc) | -55°C ~ 175°C (TJ) |
|

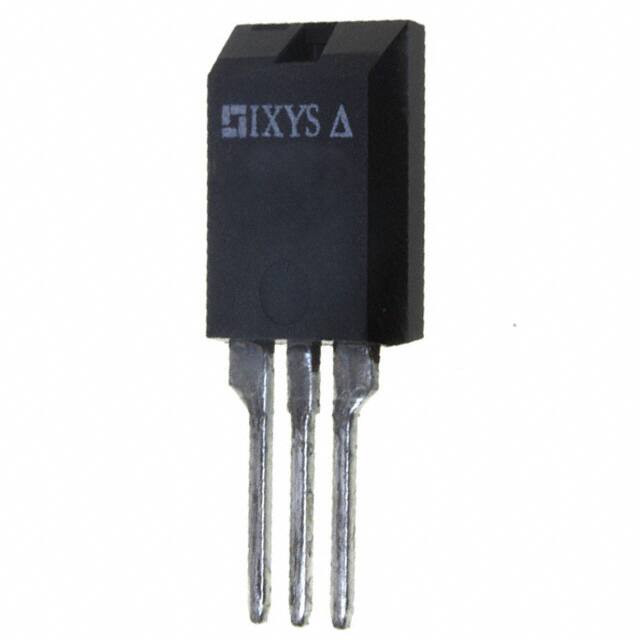

IXTC220N055TMOSFET N-CH 55V 130A ISOPLUS220 IXYS |
7,256 | - |
|
数据表 |
TrenchMV™ | ISOPLUS220™ | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 130A (Tc) | 10V | 4.4mOhm @ 25A, 10V | Through Hole | 4V @ 250µA | 158 nC @ 10 V | 55 V | ±20V | 7200 pF @ 25 V | - | - | ISOPLUS220™ | - | 150W (Tc) | -55°C ~ 175°C (TJ) |
|
IXTC220N075TMOSFET N-CH 75V 115A ISOPLUS220 IXYS |
2,913 | - |
|
数据表 |
TrenchMV™ | ISOPLUS220™ | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 115A (Tc) | 10V | 5mOhm @ 25A, 10V | Through Hole | 4V @ 250µA | 165 nC @ 10 V | 75 V | ±20V | 7700 pF @ 25 V | - | - | ISOPLUS220™ | - | 150W (Tc) | -55°C ~ 175°C (TJ) |
|
IXTC240N055TMOSFET N-CH 55V 132A ISOPLUS220 IXYS |
6,798 | - |
|
数据表 |
TrenchMV™ | ISOPLUS220™ | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 132A (Tc) | 10V | 4mOhm @ 50A, 10V | Through Hole | 4V @ 1mA | 170 nC @ 10 V | 55 V | ±20V | 7600 pF @ 25 V | - | - | ISOPLUS220™ | - | 150W (Tc) | -55°C ~ 175°C (TJ) |
|

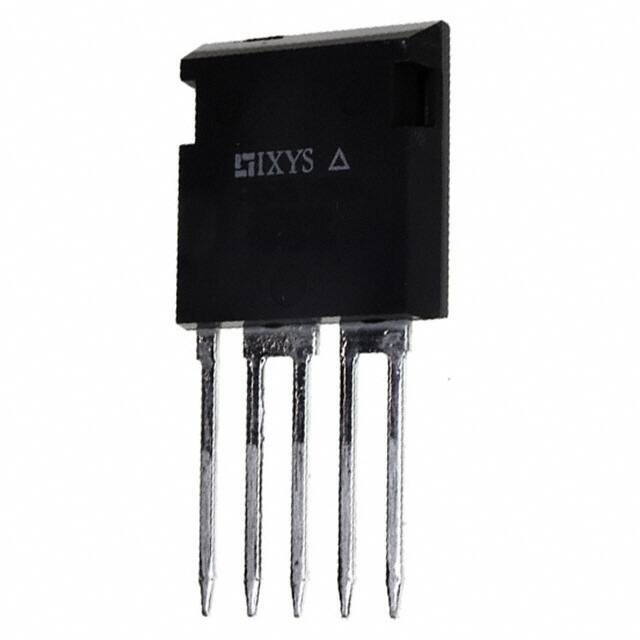

IXTF230N085TMOSFET N-CH 85V 130A I4PAC IXYS |
7,250 | - |
|
数据表 |
TrenchMV™ | i4-Pac™-5 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 130A (Tc) | 10V | 5.3mOhm @ 50A, 10V | Through Hole | 4V @ 250mA | 187 nC @ 10 V | 85 V | ±20V | 9900 pF @ 25 V | - | - | ISOPLUS i4-PAC™ | - | 200W (Tc) | -55°C ~ 175°C (TJ) |
|
IXTF250N075TMOSFET N-CH 75V 140A I4PAC IXYS |
5,858 | - |
|
数据表 |
TrenchMV™ | i4-Pac™-5 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 140A (Tc) | 10V | 4.4mOhm @ 50A, 10V | Through Hole | 4V @ 250µA | 200 nC @ 10 V | 75 V | ±20V | 9900 pF @ 25 V | - | - | ISOPLUS i4-PAC™ | - | 200W (Tc) | -55°C ~ 175°C (TJ) |
