场效应晶体管（FETs）、MOSFETs
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 安装类型 | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 漏极到源极电压 (Vdss) | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | 认证 | FET 特性 | 供应商设备封装 | 等级 | 功耗（最大值） | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IXTV22N60PMOSFET N-CH 600V 22A PLUS220 IXYS |
5,812 | - |
|
数据表 |
PolarHV™ | TO-220-3, Short Tab | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 22A (Tc) | 10V | 350mOhm @ 11A, 10V | Through Hole | 5.5V @ 250µA | 62 nC @ 10 V | 600 V | ±30V | 3600 pF @ 25 V | - | - | PLUS220 | - | 400W (Tc) | -55°C ~ 150°C (TJ) |
|
IXTV26N60PMOSFET N-CH 600V 26A PLUS220 IXYS |
2,581 | - |
|
数据表 |
PolarHV™ | TO-220-3, Short Tab | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 26A (Tc) | 10V | 270mOhm @ 500mA, 10V | Through Hole | 5V @ 250µA | 72 nC @ 10 V | 600 V | ±30V | 4150 pF @ 25 V | - | - | PLUS220 | - | 460W (Tc) | -55°C ~ 150°C (TJ) |
|
IXTV30N60PMOSFET N-CH 600V 30A PLUS220 IXYS |
9,472 | - |
|
数据表 |
PolarHV™ | TO-220-3, Short Tab | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30A (Tc) | 10V | 240mOhm @ 15A, 10V | Through Hole | 5V @ 250µA | 82 nC @ 10 V | 600 V | ±30V | 5050 pF @ 25 V | - | - | PLUS220 | - | 540W (Tc) | -55°C ~ 150°C (TJ) |
|
IXTV30N60PSMOSFET N-CH 600V 30A PLUS-220SMD IXYS |
5,618 | - |
|
数据表 |
PolarHV™ | PLUS-220SMD | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30A (Tc) | 10V | 240mOhm @ 15A, 10V | Surface Mount | 5V @ 250µA | 82 nC @ 10 V | 600 V | ±30V | 5050 pF @ 25 V | - | - | PLUS-220SMD | - | 540W (Tc) | -55°C ~ 150°C (TJ) |
|

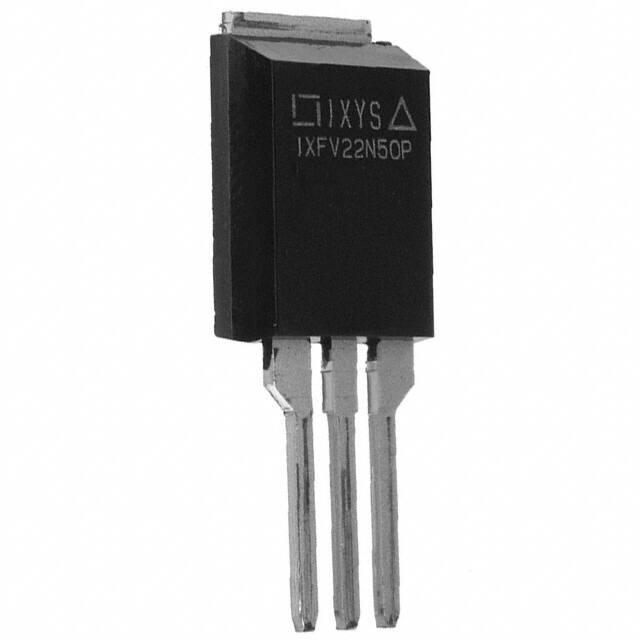

IXFV22N50PMOSFET N-CH 500V 22A PLUS220 IXYS |
5,672 | - |
|
数据表 |
HiPerFET™, PolarHT™ | TO-220-3, Short Tab | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 22A (Tc) | 10V | 270mOhm @ 11A, 10V | Through Hole | 5.5V @ 2.5mA | 50 nC @ 10 V | 500 V | ±30V | 2630 pF @ 25 V | - | - | PLUS220 | - | 350W (Tc) | -55°C ~ 150°C (TJ) |
|
|
IXFV22N50PSMOSFET N-CH 500V 22A PLUS-220SMD IXYS |
9,508 | - |
|
数据表 |
HiPerFET™, PolarHT™ | PLUS-220SMD | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 22A (Tc) | 10V | 270mOhm @ 11A, 10V | Surface Mount | 5.5V @ 2.5mA | 50 nC @ 10 V | 500 V | ±30V | 2630 pF @ 25 V | - | - | PLUS-220SMD | - | 350W (Tc) | -55°C ~ 150°C (TJ) |
|
|
IXFV26N50PMOSFET N-CH 500V 26A PLUS220 IXYS |
4,523 | - |
|
数据表 |
HiPerFET™, PolarHT™ | TO-220-3, Short Tab | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 26A (Tc) | 10V | 230mOhm @ 13A, 10V | Through Hole | 5.5V @ 4mA | 60 nC @ 10 V | 500 V | ±30V | 3600 pF @ 25 V | - | - | PLUS220 | - | 400W (Tc) | -55°C ~ 150°C (TJ) |
|
|
IXFV26N50PSMOSFET N-CH 500V 26A PLUS-220SMD IXYS |
8,092 | - |
|
数据表 |
HiPerFET™, PolarHT™ | PLUS-220SMD | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 26A (Tc) | 10V | 230mOhm @ 13A, 10V | Surface Mount | 5.5V @ 4mA | 60 nC @ 10 V | 500 V | ±30V | 3600 pF @ 25 V | - | - | PLUS-220SMD | - | 400W (Tc) | -55°C ~ 150°C (TJ) |
|
IXFV30N50PMOSFET N-CH 500V 30A PLUS220 IXYS |
8,892 | - |
|
数据表 |
HiPerFET™, PolarHT™ | TO-220-3, Short Tab | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30A (Tc) | 10V | 200mOhm @ 15A, 10V | Through Hole | 5V @ 4mA | 70 nC @ 10 V | 500 V | ±30V | 4150 pF @ 25 V | - | - | PLUS220 | - | 460W (Tc) | -55°C ~ 150°C (TJ) |
|
|
IXFV30N50PSMOSFET N-CH 500V 30A PLUS-220SMD IXYS |
2,184 | - |
|
数据表 |
HiPerFET™, PolarHT™ | PLUS-220SMD | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30A (Tc) | 10V | 200mOhm @ 15A, 10V | Surface Mount | 5V @ 4mA | 70 nC @ 10 V | 500 V | ±30V | 4150 pF @ 25 V | - | - | PLUS-220SMD | - | 460W (Tc) | -55°C ~ 150°C (TJ) |
