场效应晶体管（FETs）、MOSFETs
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 安装类型 | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 漏极到源极电压 (Vdss) | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | 认证 | FET 特性 | 供应商设备封装 | 等级 | 功耗（最大值） | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IXFC26N50PMOSFET N-CH 500V 15A ISOPLUS220 IXYS |
6,220 | - |
|
数据表 |
HiPerFET™, PolarHT™ | ISOPLUS220™ | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 15A (Tc) | 10V | 260mOhm @ 13A, 10V | Through Hole | 5.5V @ 4mA | 65 nC @ 10 V | 500 V | ±30V | 3600 pF @ 25 V | - | - | ISOPLUS220™ | - | 130W (Tc) | -55°C ~ 150°C (TJ) |
|
IXFC22N60PMOSFET N-CH 600V 12A ISOPLUS220 IXYS |
6,764 | - |
|
数据表 |
HiPerFET™, PolarHT™ | ISOPLUS220™ | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 12A (Tc) | 10V | 360mOhm @ 11A, 10V | Through Hole | 5V @ 4mA | 58 nC @ 10 V | 600 V | ±30V | 4000 pF @ 25 V | - | - | ISOPLUS220™ | - | 130W (Tc) | -55°C ~ 150°C (TJ) |
.jpg)
|
IXTH48N20MOSFET N-CH 200V 48A TO247 IXYS |
3,507 | - |
|
数据表 |
- | TO-247-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 48A (Tc) | 10V | 50mOhm @ 15A, 10V | Through Hole | 4V @ 250µA | 110 nC @ 10 V | 200 V | ±20V | 3000 pF @ 25 V | - | - | TO-247 (IXTH) | - | 275W (Tc) | -55°C ~ 150°C (TJ) |
|
IXTT50P085MOSFET P-CH 85V 50A TO268 IXYS |
9,065 | - |
|
数据表 |
- | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA | Tube | Obsolete | P-Channel | MOSFET (Metal Oxide) | 50A (Tc) | 10V | 55mOhm @ 25A, 10V | Surface Mount | 5V @ 250µA | 150 nC @ 10 V | 85 V | ±20V | 4200 pF @ 25 V | - | - | TO-268AA | - | 300W (Tc) | -55°C ~ 150°C (TJ) |
|

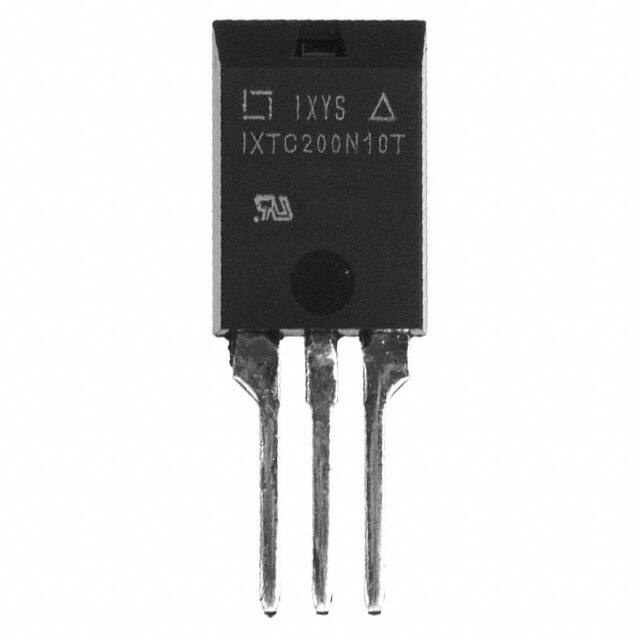

IXTC200N10TMOSFET N-CH 100V 101A ISOPLUS220 IXYS |
5,710 | - |
|
数据表 |
TrenchMV™ | ISOPLUS220™ | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 101A (Tc) | 10V | 6.3mOhm @ 50A, 10V | Through Hole | 4.5V @ 250µA | 152 nC @ 10 V | 100 V | ±30V | 9400 pF @ 25 V | - | - | ISOPLUS220™ | - | 160W (Tc) | -55°C ~ 175°C (TJ) |
|
|
IXTC230N085TMOSFET N-CH 85V 120A ISOPLUS220 IXYS |
3,128 | - |
|
数据表 |
- | ISOPLUS220™ | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 120A (Tc) | - | - | Through Hole | - | - | 85 V | - | - | - | - | ISOPLUS220™ | - | - | - |
|
IXTP3N110MOSFET N-CH 1100V 3A TO220AB IXYS |
5,076 | - |
|
数据表 |
- | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 3A (Tc) | 10V | 4Ohm @ 1.5A, 10V | Through Hole | 5V @ 250µA | 42 nC @ 10 V | 1100 V | ±20V | 1350 pF @ 25 V | - | - | TO-220-3 | - | 150W (Tc) | -55°C ~ 150°C (TJ) |
|
|
IXTC102N20TMOSFET N-CH 200V ISOPLUS220 IXYS |
7,311 | - |
|
数据表 |
- | ISOPLUS220™ | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | - | - | - | Through Hole | - | - | 200 V | - | - | - | - | ISOPLUS220™ | - | - | - |
|
|
IXTC102N25TMOSFET N-CH 250V ISOPLUS220 IXYS |
6,979 | - |
|
数据表 |
- | ISOPLUS220™ | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | - | - | - | Through Hole | - | - | 250 V | - | - | - | - | ISOPLUS220™ | - | - | - |
|
|
IXTC130N15TMOSFET N-CH 150V ISOPLUS220 IXYS |
2,960 | - |
|
数据表 |
- | ISOPLUS220™ | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | - | - | - | Through Hole | - | - | 150 V | - | - | - | - | ISOPLUS220™ | - | - | - |
