IXYS|场效应晶体管（FETs）、MOSFETs - 页 23

厂商料号	库存情况	价格	数量	数据表	系列	封装/外壳	包装	产品状态	FET 类型	技术	电流 - 连续漏极 (Id) @ 25°C	驱动电压（最大导通电阻，最小导通电阻）	导通电阻 (Rds On)（最大值）@ Id, Vgs	安装类型	栅极阈值电压 (Vgs(th)）（最大值）@ Id	栅极电荷 (Qg)（最大值）@ Vgs	漏极到源极电压 (Vdss)	栅极电压 (Vgs)（最大值）	输入电容 (Ciss)（最大值）@ Vds	认证	FET 特性	供应商设备封装	等级	功耗（最大值）	工作温度
IXFP24N60X MOSFET N-CH 600V 24A TO220AB IXYS	5,787	-	询价单	数据表	HiPerFET™, Ultra X	TO-220-3	Tube	Obsolete	N-Channel	MOSFET (Metal Oxide)	24A (Tc)	10V	175mOhm @ 12A, 10V	Through Hole	4.5V @ 2.5mA	47 nC @ 10 V	600 V	±30V	1910 pF @ 25 V	-	-	TO-220-3	-	400W (Tc)	-55°C ~ 150°C (TJ)

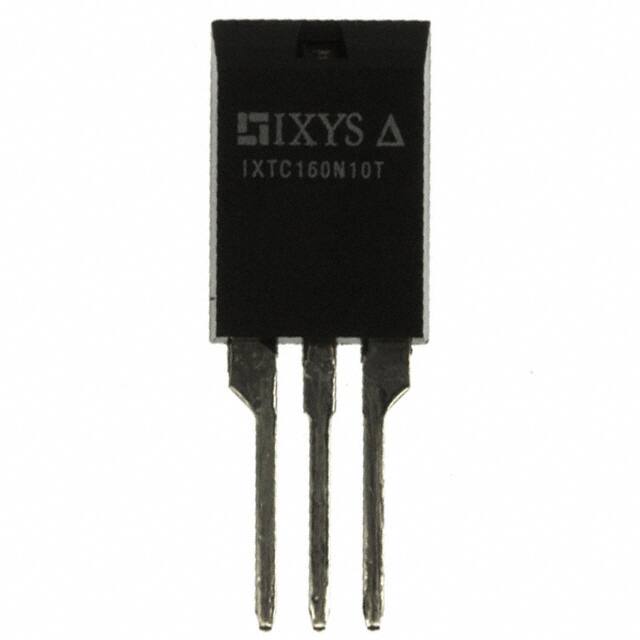

IXTC160N10T MOSFET N-CH 100V 83A ISOPLUS220 IXYS	4,273	-	询价单	数据表	TrenchMV™	ISOPLUS220™	Tube	Obsolete	N-Channel	MOSFET (Metal Oxide)	83A (Tc)	10V	7.5mOhm @ 25A, 10V	Through Hole	4.5V @ 250µA	132 nC @ 10 V	100 V	±20V	6600 pF @ 25 V	-	-	ISOPLUS220™	-	140W (Tc)	-55°C ~ 175°C (TJ)
IXTA3N110-TRL MOSFET N-CH 1100V 3A TO263 IXYS	6,257	-	询价单	数据表	-	TO-263-3, D2PAK (2 Leads + Tab), TO-263AB	Tape & Reel (TR)	Obsolete	N-Channel	MOSFET (Metal Oxide)	3A (Tc)	10V	4Ohm @ 1.5A, 10V	Surface Mount	4.5V @ 250µA	39 nC @ 10 V	1100 V	±20V	1300 pF @ 25 V	-	-	TO-263 (D2PAK)	-	150W (Tc)	-55°C ~ 150°C (TJ)
IXFQ14N80P MOSFET N-CH 800V 14A TO3P IXYS	5,319	-	询价单	数据表	HiPerFET™, Polar	TO-3P-3, SC-65-3	Tube	Obsolete	N-Channel	MOSFET (Metal Oxide)	14A (Tc)	10V	720mOhm @ 500mA, 10V	Through Hole	5.5V @ 4mA	61 nC @ 10 V	800 V	±30V	3900 pF @ 25 V	-	-	TO-3P	-	400W (Tc)	-55°C ~ 150°C (TJ)
IXTA230N04T4 MOSFET N-CH 40V 230A TO263AA IXYS	8,307	-	询价单	数据表	Trench	TO-263-3, D2PAK (2 Leads + Tab), TO-263AB	Tube	Obsolete	N-Channel	MOSFET (Metal Oxide)	230A (Tc)	10V	2.9mOhm @ 115A, 10V	Surface Mount	4V @ 250µA	140 nC @ 10 V	40 V	±15V	7400 pF @ 25 V	-	-	TO-263AA	-	340W (Tc)	-55°C ~ 175°C (TJ)
IXTT1N100 MOSFET N-CH 1000V 1.5A TO268 IXYS	5,761	-	询价单	数据表	-	TO-268-3, D3PAK (2 Leads + Tab), TO-268AA	Tube	Obsolete	N-Channel	MOSFET (Metal Oxide)	1.5A (Tc)	10V	11Ohm @ 1A, 10V	Surface Mount	4.5V @ 25µA	23 nC @ 10 V	1000 V	±20V	480 pF @ 25 V	-	-	TO-268AA	-	60W (Tc)	-55°C ~ 150°C (TJ)
IXTQ150N06P MOSFET N-CH 60V 150A TO3P IXYS	3,159	-	询价单	数据表	Polar	TO-3P-3, SC-65-3	Tube	Obsolete	N-Channel	MOSFET (Metal Oxide)	150A (Tc)	10V	10mOhm @ 75A, 10V	Through Hole	5V @ 250µA	118 nC @ 10 V	60 V	±20V	3000 pF @ 25 V	-	-	TO-3P	-	480W (Tc)	-55°C ~ 175°C (TJ)
IXFA24N60X MOSFET N-CH 600V 24A TO263AA IXYS	6,211	-	询价单	数据表	HiPerFET™, Ultra X	TO-263-3, D2PAK (2 Leads + Tab), TO-263AB	Tube	Obsolete	N-Channel	MOSFET (Metal Oxide)	24A (Tc)	10V	175mOhm @ 12A, 10V	Surface Mount	4.5V @ 2.5mA	47 nC @ 10 V	600 V	±30V	1910 pF @ 25 V	-	-	TO-263AA (IXFA)	-	400W (Tc)	-55°C ~ 150°C (TJ)
IXKC15N60C5 MOSFET N-CH 600V 15A ISOPLUS220 IXYS	6,796	-	询价单	数据表	CoolMOS™	ISOPLUS220™	Tube	Obsolete	N-Channel	MOSFET (Metal Oxide)	15A (Tc)	10V	165mOhm @ 12A, 10V	Through Hole	3.5V @ 900µA	52 nC @ 10 V	600 V	±20V	2000 pF @ 100 V	-	-	ISOPLUS220™	-	-	-55°C ~ 150°C (TJ)
IXFH220N06T3 MOSFET N-CH 60V 220A TO247 IXYS	2,822	-	询价单	数据表	HiperFET™, TrenchT3™	TO-247-3	Tube	Obsolete	N-Channel	MOSFET (Metal Oxide)	220A (Tc)	10V	4mOhm @ 100A, 10V	Through Hole	4V @ 250µA	136 nC @ 10 V	60 V	±20V	8500 pF @ 25 V	-	-	TO-247	-	440W (Tc)	-55°C ~ 175°C (TJ)

共 1116 条记录«上一页 1... 19 20 21 222324 25 26...112 下一页»
