场效应晶体管（FETs）、MOSFETs
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 安装类型 | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 漏极到源极电压 (Vdss) | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | 认证 | FET 特性 | 供应商设备封装 | 等级 | 功耗（最大值） | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IXTC110N25TMOSFET N-CH 250V 50A ISOPLUS220 IXYS |
9,583 | - |
|
数据表 |
- | ISOPLUS220™ | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 50A (Tc) | 10V | 27mOhm @ 55A, 10V | Through Hole | 4.5V @ 1mA | 157 nC @ 10 V | 250 V | ±20V | 9400 pF @ 25 V | - | - | ISOPLUS220™ | - | 180W (Tc) | -55°C ~ 150°C (TJ) |
|
IXFT30N60PMOSFET N-CH 600V 30A TO268 IXYS |
3,599 | - |
|
数据表 |
HiPerFET™, Polar | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30A (Tc) | 10V | 240mOhm @ 15A, 10V | Surface Mount | 5V @ 4mA | 82 nC @ 10 V | 600 V | ±30V | 4000 pF @ 25 V | - | - | TO-268AA | - | 500W (Tc) | -55°C ~ 150°C (TJ) |
|
IXFP18N60XMOSFET N-CH 600V 18A TO220AB IXYS |
5,459 | - |
|
数据表 |
HiPerFET™, Ultra X | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 18A (Tc) | 10V | 230mOhm @ 9A, 10V | Through Hole | 4.5V @ 1.5mA | 35 nC @ 10 V | 600 V | ±30V | 1440 pF @ 25 V | - | - | TO-220-3 | - | 320W (Tc) | -55°C ~ 150°C (TJ) |
|
IXFQ30N60XMOSFET N-CH 600V 30A TO3P IXYS |
3,071 | - |
|
数据表 |
HiPerFET™, Ultra X | TO-3P-3, SC-65-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30A (Tc) | 10V | 155mOhm @ 15A, 10V | Through Hole | 4.5V @ 4mA | 56 nC @ 10 V | 600 V | ±30V | 2270 pF @ 25 V | - | - | TO-3P | - | 500W (Tc) | -55°C ~ 150°C (TJ) |
|
IXFA18N60XMOSFET N-CH 600V 18A TO263AA IXYS |
2,177 | - |
|
数据表 |
HiPerFET™, Ultra X | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 18A (Tc) | 10V | 230mOhm @ 9A, 10V | Surface Mount | 4.5V @ 1.5mA | 35 nC @ 10 V | 600 V | ±30V | 1440 pF @ 25 V | - | - | TO-263AA (IXFA) | - | 320W (Tc) | -55°C ~ 150°C (TJ) |
|
|
IXFP270N06T3MOSFET N-CH 60V 270A TO220AB IXYS |
9,500 | - |
|
数据表 |
HiperFET™, TrenchT3™ | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 270A (Tc) | 10V | 3.1mOhm @ 100A, 10V | Through Hole | 4V @ 250µA | 200 nC @ 10 V | 60 V | ±20V | 12600 pF @ 25 V | - | - | TO-220-3 | - | 480W (Tc) | -55°C ~ 175°C (TJ) |
|
|
IXFC20N80PMOSFET N-CH 800V 11A ISOPLUS220 IXYS |
2,539 | - |
|
数据表 |
HiPerFET™, PolarHT™ | ISOPLUS220™ | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 11A (Tc) | 10V | 500mOhm @ 10A, 10V | Through Hole | 5V @ 4mA | 85 nC @ 10 V | 800 V | ±30V | 4680 pF @ 25 V | - | - | ISOPLUS220™ | - | 166W (Tc) | -55°C ~ 150°C (TJ) |
.jpg)
|
IXTH460P2MOSFET N-CH 500V 24A TO247 IXYS |
2,926 | - |
|
数据表 |
PolarP2™ | TO-247-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 24A (Tc) | 10V | 270mOhm @ 12A, 10V | Through Hole | 4.5V @ 250µA | 48 nC @ 10 V | 500 V | ±30V | 2890 pF @ 25 V | - | - | TO-247 (IXTH) | - | 480W (Tc) | -55°C ~ 150°C (TJ) |
|
|
IXTA2N100MOSFET N-CH 1000V 2A TO263 IXYS |
4,843 | - |
|
数据表 |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 2A (Tc) | 10V | 7Ohm @ 1A, 10V | Surface Mount | 4.5V @ 250µA | 18 nC @ 10 V | 1000 V | ±20V | 825 pF @ 25 V | - | - | TO-263AA | - | 100W (Tc) | -55°C ~ 150°C (TJ) |
|

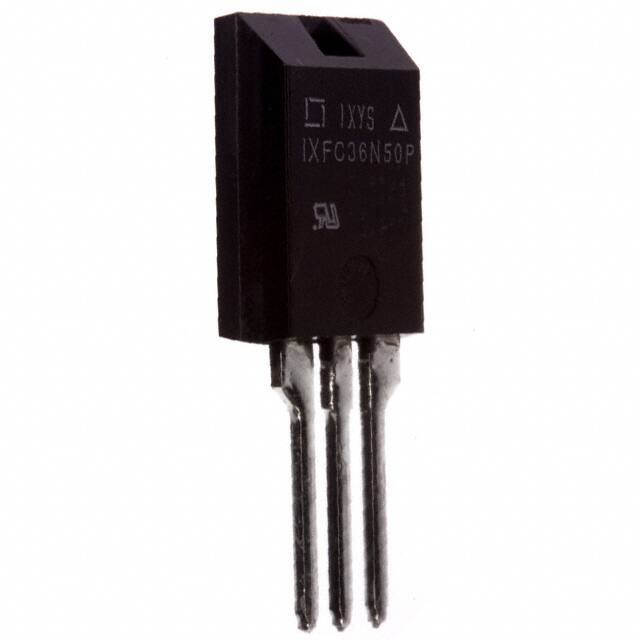

IXFC36N50PMOSFET N-CH 500V 19A ISOPLUS220 IXYS |
2,940 | - |
|
数据表 |
HiPerFET™, PolarHT™ | ISOPLUS220™ | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 19A (Tc) | 10V | 190mOhm @ 18A, 10V | Through Hole | 5V @ 4mA | 93 nC @ 10 V | 500 V | ±30V | 5500 pF @ 25 V | - | - | ISOPLUS220™ | - | 156W (Tc) | -55°C ~ 150°C (TJ) |
