直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC1203812W2B-3T3FAN 120X38MM 12VDC TACH MOLEX 22 |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 212.6 CFM (5.95m³/min) | 0.840 in H2O (209.2 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 59.0dB(A) | 21 W | CE, cURus, TUV | 4600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
|
DC1203812V2B-3T3FAN 120X38MM 12VDC TACH MOLEX 22 |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 190.5 CFM (5.33m³/min) | 0.690 in H2O (171.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 56.0dB(A) | 18 W | CE, cURus, TUV | 4100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
19031156AFAN AXIAL 60X25MM 12VDC FS12B3 |
0 | - |
|
数据表 |
Flight II 60 | - | Obsolete | 12VDC | Square - 60mm L x 60mm H | 18.0 CFM (0.504m³/min) | 0.300 in H2O (74.7 Pa) | Ball | 0.243 lb (110.22 g) | Tubeaxial | - | 25.00mm | 33.9dB(A) | 2.5 W | - | 5000 RPM | - | 2 Wire Leads | - |
|
G1238E12B-FSR-EMFAN AXIAL 119X38MM 12VDC WIRE |
0 | - |
|
数据表 |
G1238 | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 158.0 CFM (4.42m³/min) | 0.490 in H2O (122.1 Pa) | Ball | 0.74 lb (335.66 g) | Tubeaxial | Thermal Overload Protector (TOP) | 38.00mm | 49.0dB(A) | - | CE, cUL, TUV, UL | 3600 RPM | - | 2 Wire Leads | IP57 - Dust Protected, Waterproof |
|
|
G1238E24B2-FSR-WS-CCFAN AXIAL 119X38MM 24VDC WIRE |
0 | - |
|
数据表 |
G1238 | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 158.0 CFM (4.42m³/min) | 0.490 in H2O (122.1 Pa) | Ball | 0.74 lb (335.66 g) | Tubeaxial | Alarm Sensor, Conformal Coating, Locked Rotor Sensor, Thermal Overload Protector (TOP) | 38.00mm | 49.0dB(A) | - | CE, cUL, TUV, UL | 3600 RPM | - | 4 Wire Leads | - |
|
G1238E24B-FSR-CC-GBFAN AXIAL 119X38MM 24VDC WIRE |
0 | - |
|
数据表 |
G1238 | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 158.0 CFM (4.42m³/min) | 0.490 in H2O (122.1 Pa) | Ball | 0.74 lb (335.66 g) | Tubeaxial | Conformal Coating, Thermal Overload Protector (TOP) | 38.00mm | 49.0dB(A) | - | CE, cUL, TUV, UL | 3600 RPM | - | 2 Wire Leads | - |
|
|
G1238E48B-FSR-EMFAN AXIAL 119X38MM 48VDC WIRE |
0 | - |
|
数据表 |
G1238 | Bulk | Active | 48VDC | Square - 119mm L x 119mm H | 158.0 CFM (4.42m³/min) | 0.490 in H2O (122.1 Pa) | Ball | 0.74 lb (335.66 g) | Tubeaxial | Thermal Overload Protector (TOP) | 38.00mm | 49.0dB(A) | - | CE, cUL, TUV, UL | 3600 RPM | - | 2 Wire Leads | IP57 - Dust Protected, Waterproof |
|
|
G1238H12B1+6-FSR-WSFAN AXIAL 119X38MM 12VDC WIRE |
0 | - |
|
数据表 |
G1238 | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 141.2 CFM (3.95m³/min) | 0.410 in H2O (102.1 Pa) | Ball | 0.74 lb (335.66 g) | Tubeaxial | Alarm Sensor, PWM Control, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 38.00mm | 46.0dB(A) | - | CE, cUL, TUV, UL | 3200 RPM | - | 5 Wire Leads | - |
|
|
G1238H12B-FSR-EMFAN AXIAL 119X38MM 12VDC WIRE |
0 | - |
|
数据表 |
G1238 | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 141.2 CFM (3.95m³/min) | 0.410 in H2O (102.1 Pa) | Ball | 0.74 lb (335.66 g) | Tubeaxial | Thermal Overload Protector (TOP) | 38.00mm | 46.0dB(A) | - | CE, cUL, TUV, UL | 3200 RPM | - | 2 Wire Leads | IP57 - Dust Protected, Waterproof |
|
|
G1238L12B-FSR-EMFAN AXIAL 119X38MM 12VDC WIRE |
0 | - |
|
数据表 |
G1238 | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 107.0 CFM (3.00m³/min) | 0.240 in H2O (59.8 Pa) | Ball | 0.74 lb (335.66 g) | Tubeaxial | Thermal Overload Protector (TOP) | 38.00mm | 38.0dB(A) | - | CE, cUL, TUV, UL | 2400 RPM | - | 2 Wire Leads | IP57 - Dust Protected, Waterproof |
|
|
G1238L24B-FSR-EMFAN AXIAL 119X38MM 24VDC WIRE |
0 | - |
|
数据表 |
G1238 | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 107.0 CFM (3.00m³/min) | 0.240 in H2O (59.8 Pa) | Ball | 0.74 lb (335.66 g) | Tubeaxial | Thermal Overload Protector (TOP) | 38.00mm | 38.0dB(A) | - | CE, cUL, TUV, UL | 2400 RPM | - | 2 Wire Leads | IP57 - Dust Protected, Waterproof |
|
|
G1238L48B-FSR-EMFAN AXIAL 119X38MM 48VDC WIRE |
0 | - |
|
数据表 |
G1238 | Bulk | Active | 48VDC | Square - 119mm L x 119mm H | 107.0 CFM (3.00m³/min) | 0.240 in H2O (59.8 Pa) | Ball | 0.74 lb (335.66 g) | Tubeaxial | Thermal Overload Protector (TOP) | 38.00mm | 38.0dB(A) | - | CE, cUL, TUV, UL | 2400 RPM | - | 2 Wire Leads | IP57 - Dust Protected, Waterproof |
|
|
G1238M12B-FSR-EMFAN AXIAL 119X38MM 12VDC WIRE |
0 | - |
|
数据表 |
G1238 | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 125.0 CFM (3.50m³/min) | 0.320 in H2O (79.7 Pa) | Ball | 0.74 lb (335.66 g) | Tubeaxial | Thermal Overload Protector (TOP) | 38.00mm | 43.0dB(A) | - | CE, cUL, TUV, UL | 2800 RPM | - | 2 Wire Leads | IP57 - Dust Protected, Waterproof |
|

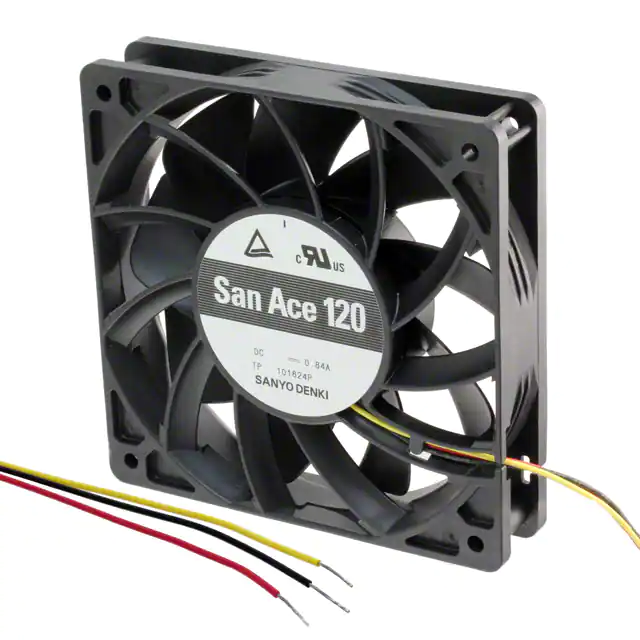

9GV1224G401FAN AXIAL 119X25.4MM 24VDC WIRE |
91 | - |
|
数据表 |
San Ace 120 | Box | Active | 24VDC | Square - 119mm L x 119mm H | 171.0 CFM (4.79m³/min) | 0.900 in H2O (224.2 Pa) | Ball | 0.573 lb (260.00 g) | Tubeaxial | Speed Sensor (Tach) | 25.40mm | 58.0dB(A) | 20.16 W | CSA, TUV, UL | 5100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9WF0424F602FAN AXIAL 40X20MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 40WF | Box | Active | 24VDC | Square - 40mm L x 40mm H | 7.8 CFM (0.218m³/min) | 0.252 in H2O (62.8 Pa) | Ball | 0.111 lb (50.35 g) | Tubeaxial | Locked Rotor Protection | 20.00mm | 37.0dB(A) | 1.82 W | CSA, TUV, UL | 11000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | Oil Resistant |
|
8414NGMLFAN AXIAL 80X25.4MM 24VDC WIRE |
95 | - |
|
数据表 |
8400N | Box | Active | 24VDC | Square - 80mm L x 80mm H | 26.5 CFM (0.742m³/min) | - | Sintec | 0.209 lb (94.8 g) | Tubeaxial | - | 25.40mm | 19.0dB(A) | 1.1 W | CE, CSA, UL, VDE | 2050 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
OD8032-48HBIP68FAN AXIAL 80X32MM 48VDC WIRE |
20 | - |
|
数据表 |
OD8032 | Box | Active | 48VDC | Square - 80mm L x 80mm H | - | 0.730 in H2O (181.8 Pa) | Ball | 0.261 lb (118.39 g) | Tubeaxial | Auto Restart | 32.00mm | 50.0dB | 7.8 W | cURus, TUV | 6000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|
512F-532FAN AXIAL 50X15MM 12VDC WIRE |
34 | - |
|
数据表 |
500F | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 11.8 CFM (0.330m³/min) | - | Sintec | - | Tubeaxial | - | 15.00mm | 30.0dB(A) | 900 mW | - | 5000 RPM | -4 ~ 185°F (-20 ~ 85°C) | 2 Wire Leads | - |
|

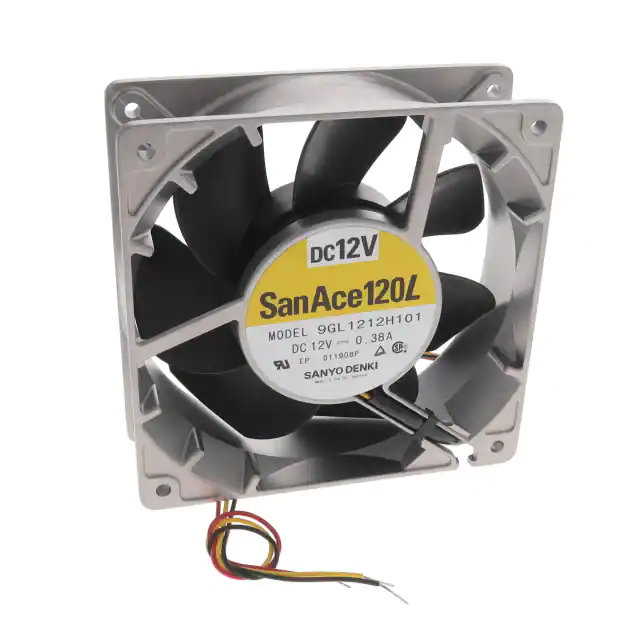

9GL1212H101FAN AXIAL 119X38MM 12VDC WIRE |
13 | - |
|
数据表 |
San Ace 120L | Box | Active | 12VDC | Square - 119mm L x 119mm H | 99.0 CFM (2.77m³/min) | 0.283 in H2O (70.5 Pa) | Ball | 0.816 lb (370.13 g) | Tubeaxial | Speed Sensor (Tach) | 38.00mm | 39.0dB(A) | 4.56 W | CSA, TUV, UL | 2600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
8412NGHFAN AXIAL 80X25.4MM 12VDC WIRE |
46 | - |
|
数据表 |
8400N | Box | Active | 12VDC | Square - 80mm L x 80mm H | 47.0 CFM (1.32m³/min) | - | Sintec | 0.21 lb (95.25 g) | Tubeaxial | - | 25.40mm | 37.0dB(A) | 2.2 W | - | - | 158°F (70°C) | 2 Wire Leads | - |
