直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9LG1448P1H001FAN AXIAL 140X38MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 140L | Bulk | Active | 48VDC | Square - 140mm L x 140mm H | 212.0 CFM (5.94m³/min) | 1.200 in H2O (298.9 Pa) | Ball | 1.4 lbs (650.0 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 62.0dB(A) | 20.16 W | cURus, TUV | 5200 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
9WL1448P5S001FAN AXIAL 140X51MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 140W | Bulk | Active | 48VDC | Square - 140mm L x 140mm H | 212.0 CFM (5.94m³/min) | 1.180 in H2O (294.0 Pa) | Ball | 1.653 lb (750.0 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 51.00mm | 57.0dB(A) | 22 W | cURus, TUV | 5000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
9LG1412A5002FAN AXIAL 140X51MM 12VDC WIRE |
1 | - |
|
数据表 |
San Ace 140L | Box | Active | 12VDC | Square - 140mm L x 140mm H | 243.7 CFM (6.82m³/min) | 2.000 in H2O (498.2 Pa) | Ball | 1.8 lb (800.0 g) | Tubeaxial | Locked Rotor Protection | 51.00mm | - | 31.4 W | CSA, TUV, UL | 5700 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
THD0848VE-00FAN AXIAL 80X80MM 48VDC WIRE |
0 | - |
|
数据表 |
- | Box | Active | 48VDC | Square - 80mm L x 80mm H | 195.0 CFM (5.52m³/min) | 7.280 in H2O (1813.4 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 80.00mm | 78.0dB(A) | 172.8 W | CE, cURus, TUV | 15000 Front, 15000 Rear | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads per Fan | IP51 - Dust Protected |
|
MSI1967H24B1+7-BBRFAN IMP MTRZD 190X67MM 24VDC |
0 | - |
|
数据表 |
MSI1967 | Box | Active | 24VDC | Round - 190mm Dia | 358.0 CFM (10.02m³/min) | 1.830 in H2O (455.8 Pa) | Ball | 2.9 lbs (1.3 kg) | Motorized Impellers | Auto Restart, Speed Sensor (Tach), Voltage Control | 67.00mm | 71.0dB(A) | - | CE, cUL, TUV, UL | 3000 RPM | - | 3 Wire Leads | - |
|
OD180APL-48HBIP69KFAN AXIAL 180X65MM 48VDC WIRE |
0 | - |
|
数据表 |
OD180APL-IP69K | Box | Active | 48VDC | Square - 180mm L x 180mm H | 460.0 CFM (12.88m³/min) | 1.100 in H2O (274.0 Pa) | Ball | - | Tubeaxial | Auto Restart | 65.00mm | 63.2dB(A) | 50.2 W | CE, cURus, TUV, UR | 3375 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | IP69K - Dust Tight, Water Resistant, Waterproof |
|
R1G133-AA65-02FAN IMP MTRZD 133X91MM 48VDC |
0 | - |
|
数据表 |
R1G133AA | Bulk | Active | 48VDC | Round - 133mm Dia | 212.0 CFM (5.94m³/min) | - | Ball | 1.5 lbs (680.4 g) | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 91.00mm | 63.0dB(A) | 28 W | CCC, CSA, UL | 3900 RPM | -13 ~ 140°F (-25 ~ 60°C) | 4 Wire Leads | - |
|
MSI2577H48B1+7-BBRFAN IMP MTRZD 250X77.3MM 48VDC |
0 | - |
|
数据表 |
MSI2577 | Box | Active | 48VDC | Round - 250mm Dia | 716.0 CFM (20.05m³/min) | 3.365 in H2O (838.2 Pa) | Ball | 4.5 lbs (2 kg) | Motorized Impellers | Auto Restart, Speed Sensor (Tach), Voltage Control | 77.30mm | 76.0dB(A) | - | CE, cUL, TUV, UL | 2800 RPM | - | 3 Wire Leads | - |
|
KFB2348HHU-EPFAN IMP MTRZD 225X99MM 48VDC |
0 | - |
|
数据表 |
KFB | Box | Active | 48VDC | Round - 225mm Dia | 735.1 CFM (20.58m³/min) | 1.990 in H2O (495.7 Pa) | Ball | 2.6 lbs (1.2 kg) | Motorized Impellers | GR-487 (Salt Fog Protection), Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 99.00mm | 71.0dB(A) | 105.6 W | CE, CSA, UL, VDE | 2600 RPM | -13 ~ 158°F (-25 ~ 70°C) | 4 Wire Leads | IP56 - Dust Protected, Water Resistant |
|
|
R1G133-AA65-36FAN IMP MTRZD 133X91MM 48VDC |
0 | - |
|
数据表 |
R1G133AA | Bulk | Active | 48VDC | Round - 133mm Dia | - | - | Ball | - | Motorized Impellers | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 91.00mm | 63.0dB(A) | 28 W | CCC, CSA, UL | 3900 RPM | -13 ~ 140°F (-25 ~ 60°C) | 4 Wire Leads with Splice Terminals | IP44 |
|
F250A3-072-D0730FAN IMP MTRZD 250X99.8MM 48VDC |
0 | - |
|
数据表 |
F250 | Bulk | Active | 48VDC | Round - 250mm Dia | 862.0 CFM (24.14m³/min) | 2.980 in H2O (742.3 Pa) | Ball | 5.3 lbs (2.4 kg) | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 99.80mm | 81.0dB | 163.2 W | - | 3100 RPM | -22 ~ 158°F (-30 ~ 70°C) | 4 Wire Leads | - |
|

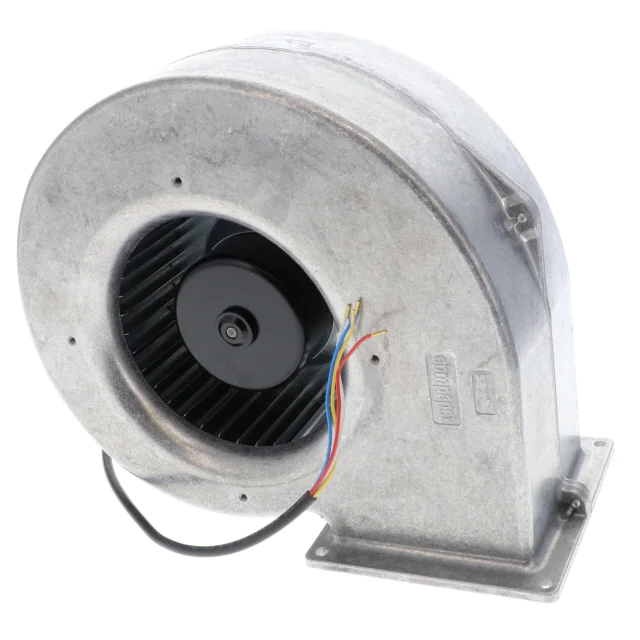

G1G140-AV17-02FAN BLOWER 226.3X130.0MM 24VDC |
0 | - |
|
数据表 |
G1G140 | Bulk | Active | 24VDC | Rectangular/Rounded - 226.3mm L x 261.5mm H | - | - | Ball | - | Blower | PWM Control, Speed Sensor (Tach) | 130.0mm | - | 54 W | EAC | 1750 RPM | -13 ~ 140°F (-25 ~ 60°C) | 4 Wire Leads with Splice Terminals | IP22 |
|
R1G280-AE45-52FAN IMP MTRZD 281X125.0MM 24VDC |
1 | - |
|
数据表 |
R1G280 | Bulk | Active | 24VDC | Round - 281mm Dia | - | - | Ball | - | Motorized Impellers | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 125.0mm | 71.0dB(A) | 95 W | CSA, EAC, UL | 1710 RPM | -13 ~ 140°F (-25 ~ 60°C) | 4 Wire Leads with Splice Terminals | IP42 |
|
|
CHA4012BH-W20D12V 0.18A 40*20 BALL 2; 10.98CFM |
23 | - |
|
数据表 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CHA8012BX-25B12V 0.37A 80*25 BALL 2; 46.46CFM |
24 | - |
|
数据表 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
EFB0424MDFAN AXIAL 40X20MM 24VDC WIRE |
0 | - |
|
数据表 |
EFB | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 7.2 CFM (0.202m³/min) | 0.218 in H2O (54.3 Pa) | Ball | 0.073 lb (33.11 g) | Tubeaxial | Locked Rotor Protection | 20.00mm | 24.0dB(A) | 1.2 W | CE, CSA, UL, VDE | 6300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
EFB0412HHD-R00FAN AXIAL 40X20MM 12VDC WIRE |
0 | - |
|
数据表 |
EFB | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 9.4 CFM (0.263m³/min) | 0.354 in H2O (88.2 Pa) | Ball | 0.073 lb (33.11 g) | Tubeaxial | Locked Rotor Sensor | 20.00mm | 30.5dB(A) | 1.2 W | CE, CSA, UL, VDE | 8200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
BSB03505HP-00BLOWER SQUARE 35X5.5MM 5VDC PWM |
0 | - |
|
数据表 |
BSB | Box | Active | 5VDC | Square/Rounded - 35mm L x 35mm H | 2.1 CFM (0.059m³/min) | 1.181 in H2O (294.2 Pa) | Sleeve | - | Blower | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 5.50mm | 54.0dB(A) | 1 W | - | 11000 RPM | 32 ~ 140°F (0 ~ 60°C) | 4 Position Rectangular Connector | - |
|
|
09225SA-24P-EA-D0FAN AXIAL 92X25MM 24VDC WIRE |
0 | - |
|
数据表 |
09225SA | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 59.0 CFM (1.65m³/min) | 0.216 in H2O (53.9 Pa) | Ball | - | Tubeaxial | Auto Restart | 25.00mm | 37.0dB | 2.64 W | - | 3550 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
08025SA-12N-AT-D0FAN AXIAL 80X25MM 12VDC WIRE |
4 | - |
|
数据表 |
08025SA | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 41.3 CFM (1.16m³/min) | 0.150 in H2O (37.3 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.00mm | 30.0dB | 1.68 W | - | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
