直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8452/2H4PFAN AXIAL 80X25.4MM 12VDC WIRE |
0 | - |
|
数据表 |
8450 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 68.8 CFM (1.93m³/min) | - | Ball | 0.231 lb (104.78 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 25.40mm | 50.0dB(A) | 6.8 W | - | 6200 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
9GA1224P4S0011FAN AXIAL 120X25.4MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 120 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 113.1 CFM (3.17m³/min) | 1.044 in H2O (260.0 Pa) | Ball | 0.617 lb (280.00 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 25.40mm | 54.0dB(A) | 7.44 W | cURus, TUV | 5400 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|

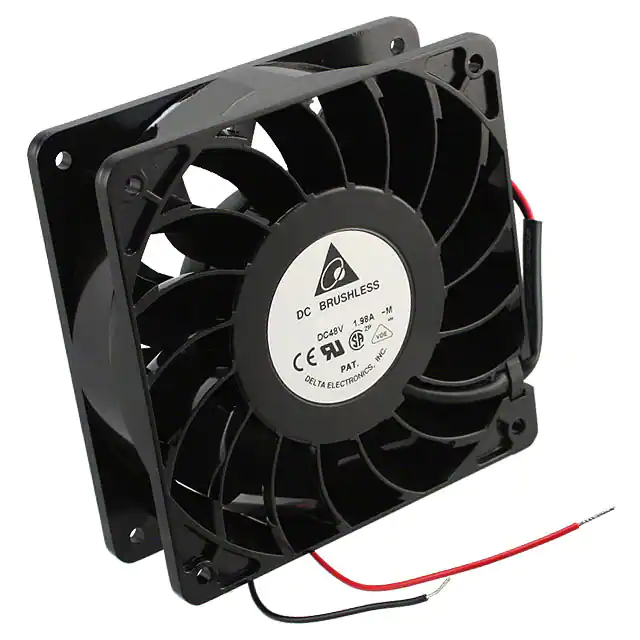

FFB1248XHE-MFAN AXIAL 120X38MM 48VDC WIRE |
0 | - |
|
数据表 |
FFB | Bulk | Not For New Designs | 48VDC | Square - 120mm L x 120mm H | 264.6 CFM (7.41m³/min) | 1.705 in H2O (424.7 Pa) | Ball | 1.1 lbs (499.0 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | 73.5dB(A) | 79.2 W | CE, CSA, UL, VDE | 6300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
4314TFAN AXIAL 119X32MM 24VDC WIRE |
0 | - |
|
数据表 |
4300 | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 100.1 CFM (2.80m³/min) | - | Ball | 0.485 lb (220.00 g) | Tubeaxial | - | 32.00mm | 30.0dB(A) | 4.8 W | - | 2800 RPM | -4 ~ 149°F (-20 ~ 65°C) | 3 Wire Leads | - |
|
9WPA0924P4G001FAN AXIAL 92X25.2MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 92W | Box | Active | 24VDC | Square - 92mm L x 92mm H | 86.5 CFM (2.42m³/min) | 0.510 in H2O (127.0 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.20mm | 47.0dB(A) | 6 W | - | 5700 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|
OD172SAP-12MBXCIP68FAN AXIAL 172X51.6MM 12VDC WIRE |
0 | - |
|
数据表 |
OD172SAP XC | Bulk | Active | 12VDC | Rectangular/Rounded - 172mm L x 152mm H | 263.0 CFM (7.36m³/min) | 0.820 in H2O (204.3 Pa) | Ball | 1.3 lbs (600.0 g) | Tubeaxial | Auto Restart | 51.60mm | 57.0dB | 13.2 W | CE, cURus, TUV, UR | 3500 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|
EFB1524SHGFAN AXIAL 172X50.8MM 24VDC WIRE |
0 | - |
|
数据表 |
EFB | Bulk | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 325.0 CFM (9.10m³/min) | 1.083 in H2O (269.8 Pa) | Ball | 1.9 lbs (861.8 g) | Tubeaxial | Locked Rotor Protection | 50.80mm | 63.0dB(A) | 28.08 W | CE, CSA, UL, VDE | 4300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
9RA1412P1G001140X38MM 12VDC LOW NOISE TACH PW |
0 | - |
|
数据表 |
San Ace 140 | Box | Active | 12VDC | Square - 140mm L x 140mm H | 212.0 CFM (5.94m³/min) | 0.640 in H2O (159.4 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 52.0dB(A) | 13.2 W | cURus, TUV | 4250 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
|
9CRH0648P6G001FAN 48VDC 60X56MM TACH/PWM |
1 | - |
|
数据表 |
San Ace 60 | Box | Active | 48VDC | Square - 60mm L x 60mm H | 91.8 CFM (2.57m³/min) | 13.449 in H2O (3350.0 Pa) | Ball | - | Tubeaxial (Dual) | Counter-Rotating, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 56.00mm | 78.0dB(A) | 67.2 W | cURus, TUV | 26100 Front, 26800 Rear | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads per Fan | - |
|
9LG0812P4G001FAN AXIAL 80X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 80L | Box | Active | 12VDC | Square - 80mm L x 80mm H | 54.3 CFM (1.52m³/min) | 0.390 in H2O (97.1 Pa) | Ball | 0.287 lb (130.18 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.00mm | 43.0dB(A) | 3.6 W | CSA, TUV, UL | 5500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
|
17001175AFAN AXIAL 48VDC GLD48K3E2X-E3 |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 127mm L x 127mm H | 175.0 CFM (4.90m³/min) | - | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.10mm | 57.9dB(A) | 22.6 W | CE, cUL, UL | 3900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|
9LG1224P1H001FAN AXIAL 119X38MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 120L | Box | Active | 24VDC | Square - 119mm L x 119mm H | 176.6 CFM (4.94m³/min) | 0.760 in H2O (189.3 Pa) | Ball | 0.926 lb (420.03 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 54.0dB(A) | 16.8 W | CSA, TUV, UL | 4700 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|

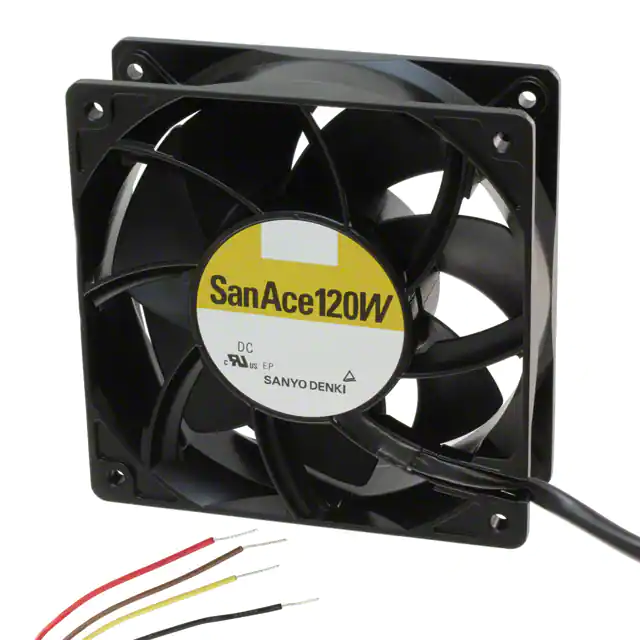

9WV1224P1J601FAN AXIAL 120X38MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 120W | Box | Active | 24VDC | Square - 120mm L x 120mm H | 224.0 CFM (6.27m³/min) | 1.450 in H2O (361.2 Pa) | Ball | 0.97 lb (439.98 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 38.00mm | 64.0dB(A) | 36 W | CSA, TUV, UL | 6400 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
THD0812VE-00FAN AXIAL 80X80MM 12VDC WIRE |
0 | - |
|
数据表 |
- | Box | Active | 12VDC | Square - 80mm L x 80mm H | 195.0 CFM (5.52m³/min) | 7.480 in H2O (1863.1 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 80.00mm | 78.5dB(A) | 180 W | CE, cURus, TUV | 15000 Front, 15000 Rear | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads per Fan | IP51 - Dust Protected |
|
9LG1424H5D001FAN AXIAL 140X51MM 24VDC WIRE |
1 | - |
|
数据表 |
San Ace 140L | Box | Active | 24VDC | Square - 140mm L x 140mm H | 173.0 CFM (4.84m³/min) | 1.040 in H2O (258.0 Pa) | Ball | 1.8 lb (800.0 g) | Tubeaxial | Locked Rotor Sensor | 51.00mm | - | 13.2 W | cURus, TUV | 4100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
9WL1424P1H001FAN AXIAL 140X38MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 140W | Bulk | Active | 24VDC | Square - 140mm L x 140mm H | 212.0 CFM (5.94m³/min) | 1.200 in H2O (298.9 Pa) | Ball | 1.653 lb (750.0 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 62.0dB(A) | 20.4 W | cURus, TUV | 5200 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|

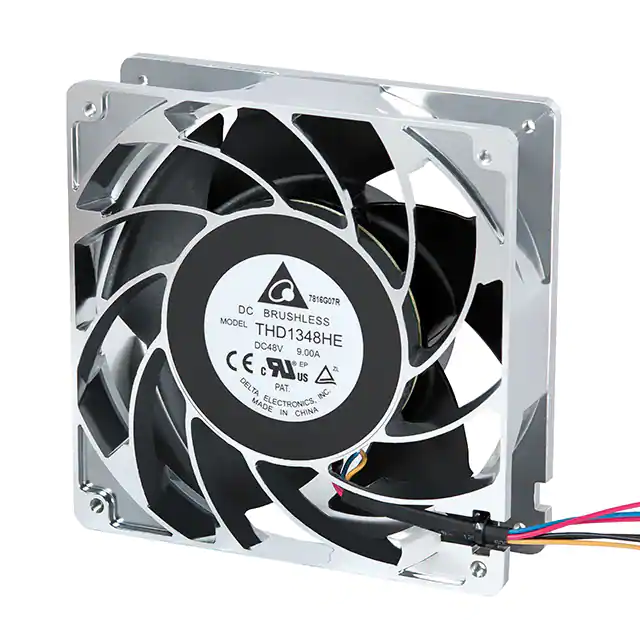

THD1348HEFAN AXIAL 134X38MM 48VDC WIRE |
0 | - |
|
数据表 |
THD - Bionic Blade | Bulk | Active | 48VDC | Square - 134mm L x 134mm H | 490.0 CFM (13.72m³/min) | 7.100 in H2O (1768.5 Pa) | Ball | 1.6 lbs (725.7 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 82.0dB(A) | 240 W | CE, cURus, TUV | 12500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
FFB1424VHG-EPFAN AXIAL 139.7X50.8MM 24VDC |
0 | - |
|
数据表 |
FFB | Box | Active | 24VDC | Square - 139.7mm L x 139.7mm H | 252.1 CFM (7.06m³/min) | 0.644 in H2O (160.4 Pa) | Ball | 1.5 lbs (670.0 g) | Tubeaxial | GR-487 (Salt Fog Protection), PWM Control, Speed Sensor (Tach) | 50.80mm | 58.5dB(A) | 24 W | CE, CSA, UL, VDE | 3200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | IP56 - Dust Protected, Water Resistant |
|
|
9WL1424P5S001FAN AXIAL 140X51MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 140W | Bulk | Active | 24VDC | Square - 140mm L x 140mm H | 212.0 CFM (5.94m³/min) | 1.180 in H2O (294.0 Pa) | Ball | 1.653 lb (750.0 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 51.00mm | 57.0dB(A) | 22 W | cURus, TUV | 5000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
8315100157FAN AXIAL 171.5X50.8MM 24VDC |
0 | - |
|
数据表 |
AxiForce | Bulk | Active | 24VDC | Rectangular/Rounded - 171.5mm L x 150mm H | 311.0 CFM (8.71m³/min) | - | Ball | - | Tubeaxial | PWM Control, Speed Sensor (Tach) | 50.80mm | 71.0dB(A) | 58 W | - | 6800 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
