直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CBM-A232B-220-457-22FAN BLOWER 119.3X32MM 24VDC WIRE |
0 | - |
|
数据表 |
CBM-120B-2 | Box | Active | 24VDC | Square/Rounded - 119.3mm L x 119mm H | 18.5 CFM (0.518m³/min) | 0.600 in H2O (149.5 Pa) | Ball | - | Blower | Auto Restart, PWM Control, Speed Sensor (Tach) | 32.00mm | 45.8dB(A) | 4.32 W | CE, cURus, TUV | 2000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
AFB0612VHDFAN AXIAL 60X20MM 12VDC WIRE |
0 | - |
|
数据表 |
AFB | Box | Active | 12VDC | Square - 60mm L x 60mm H | 19.8 CFM (0.554m³/min) | 0.275 in H2O (68.6 Pa) | Ball | 0.137 lb (62.14 g) | Tubeaxial | Locked Rotor Protection | 20.00mm | 33.0dB(A) | 2.16 W | CE, CSA, UL, VDE | 4800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

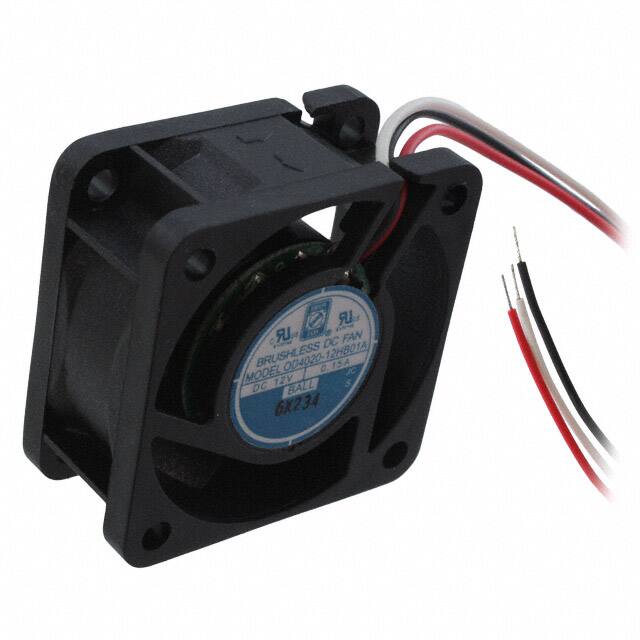

OD4020-12HB01AFAN AXIAL 40X20MM 12VDC WIRE |
0 | - |
|
数据表 |
OD4020 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 8.7 CFM (0.244m³/min) | 0.320 in H2O (79.7 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 20.00mm | 32.1dB(A) | 1.3 W | CE, cURus, TUV | 8190 RPM | -4 ~ 149°F (-20 ~ 65°C) | 3 Wire Leads | - |
|
109P0605M7D01FAN AXIAL 60X15MM BALL 5VDC WIRE |
0 | - |
|
数据表 |
San Ace 60 | Box | Active | 5VDC | Square - 60mm L x 60mm H | 10.6 CFM (0.297m³/min) | 0.091 in H2O (22.7 Pa) | Ball | 0.133 lb (60.33 g) | Tubeaxial | Locked Rotor Sensor | 15.00mm | 25.0dB(A) | 750 mW | CSA, TUV, UL | 3100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
109P0612M7D01FAN AXIAL 60X15MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 10.6 CFM (0.297m³/min) | 0.091 in H2O (22.7 Pa) | Ball | 0.133 lb (60.33 g) | Tubeaxial | Locked Rotor Sensor | 15.00mm | 25.0dB(A) | 840 mW | CSA, TUV, UL | 3100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
DC0251012H2B-3T3FAN 25X10MM 12VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 25mm L x 25mm H | 2.4 CFM (0.067m³/min) | 0.290 in H2O (72.2 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 10.00mm | 28.0dB(A) | 960 mW | CE, cURus, TUV | 13000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
|
DC0351012W2B-BT4FAN 35X10MM 12VDC PWM/TACH MOLEX |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 35mm L x 35mm H | 6.3 CFM (0.176m³/min) | 0.220 in H2O (54.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 10.00mm | 28.0dB(A) | 840 mW | CE, cURus, TUV | 9000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
|
MF50201V3-1B00U-F9912VDC FAN 50X20MM TACH |
0 | - |
|
数据表 |
MF | Box | Active | 12VDC | Square/Rounded - 50mm L x 50mm H | 4.8 CFM (0.134m³/min) | 0.350 in H2O (87.2 Pa) | Vapo-Bearing™ | - | Blower | Auto Restart, Locked Rotor Sensor | 20.00mm | 27.5dB(A) | 0.9 W | CCC, CE, cURus, TUV, UKCA | 4350 RPM | - | 3 Wire Leads | - |
|
|
MF50201V1-1B00U-F9912VDC FAN 50X20MM TACH |
0 | - |
|
数据表 |
MF | Box | Active | 12VDC | Square/Rounded - 50mm L x 50mm H | 5.8 CFM (0.163m³/min) | 0.660 in H2O (164.4 Pa) | Vapo-Bearing™ | - | Blower | Auto Restart, Locked Rotor Sensor | 20.00mm | 34.8dB(A) | 1.49 W | CCC, CE, cURus, TUV, UKCA | 5300 RPM | - | 3 Wire Leads | - |
|
|
MF50201V2-1B00U-F9912VDC FAN 50X20MM TACH |
0 | - |
|
数据表 |
MF | Box | Active | 12VDC | Square/Rounded - 50mm L x 50mm H | 5.1 CFM (0.143m³/min) | 0.460 in H2O (114.6 Pa) | Vapo-Bearing™ | - | Blower | Auto Restart, Locked Rotor Sensor | 20.00mm | 30.0dB(A) | 1.2 W | CCC, CE, cURus, TUV, UKCA | 4650 RPM | - | 3 Wire Leads | - |
|
|
9S0812F402FAN AXIAL 80X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 32.8 CFM (0.918m³/min) | 0.143 in H2O (35.6 Pa) | Ball | 0.167 lb (75.75 g) | Tubeaxial | Locked Rotor Protection | 25.00mm | 24.0dB(A) | 1.32 W | CSA, TUV, UL | 2800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
9S0812F4021FAN AXIAL 80X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 32.8 CFM (0.918m³/min) | 0.143 in H2O (35.6 Pa) | Ball | 0.167 lb (75.75 g) | Tubeaxial | Locked Rotor Protection | 25.00mm | 24.0dB(A) | 1.32 W | CSA, TUV, UL | 2800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
9S0812M402FAN AXIAL 80X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 29.3 CFM (0.820m³/min) | 0.110 in H2O (27.4 Pa) | Ball | 0.167 lb (75.75 g) | Tubeaxial | Locked Rotor Protection | 25.00mm | 22.0dB(A) | 960 mW | CSA, TUV, UL | 2500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
9S0812M4021FAN AXIAL 80X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 29.3 CFM (0.820m³/min) | 0.110 in H2O (27.4 Pa) | Ball | 0.167 lb (75.75 g) | Tubeaxial | Locked Rotor Protection | 25.00mm | 22.0dB(A) | 960 mW | CSA, TUV, UL | 2500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
9S0824L402FAN AXIAL 80X25MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 23.3 CFM (0.652m³/min) | 0.073 in H2O (18.2 Pa) | Ball | 0.167 lb (75.75 g) | Tubeaxial | Locked Rotor Protection | 25.00mm | 16.0dB(A) | 960 mW | CSA, TUV, UL | 2000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
9S0824L4021FAN AXIAL 80X25MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 23.3 CFM (0.652m³/min) | 0.073 in H2O (18.2 Pa) | Ball | 0.167 lb (75.75 g) | Tubeaxial | Locked Rotor Protection | 25.00mm | 16.0dB(A) | 960 mW | CSA, TUV, UL | 2000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
9S0824M402FAN AXIAL 80X25MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 29.3 CFM (0.820m³/min) | 0.110 in H2O (27.4 Pa) | Ball | 0.167 lb (75.75 g) | Tubeaxial | Locked Rotor Protection | 25.00mm | 22.0dB(A) | 1.44 W | CSA, TUV, UL | 2500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
9S0824M4021FAN AXIAL 80X25MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 29.3 CFM (0.820m³/min) | 0.110 in H2O (27.4 Pa) | Ball | 0.167 lb (75.75 g) | Tubeaxial | Locked Rotor Protection | 25.00mm | 22.0dB(A) | 1.44 W | CSA, TUV, UL | 2500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
4715KL-05W-B29-P50FAN AXIAL 119X38.4MM 24VDC WIRE |
0 | - |
|
数据表 |
11938KA | Box | Obsolete | 24VDC | Square - 119mm L x 119mm H | 97.0 CFM (2.72m³/min) | 0.220 in H2O (54.8 Pa) | Ball | 0.573 lb (259.91 g) | Tubeaxial | Speed Sensor (Tach) | 38.40mm | 41.0dB | 5.04 W | CE, CSA, UL, VDE | 2650 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
CFM-3828BF-190-406-22FAN AXIAL 38X28MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-38BF | Box | Active | 12VDC | Square - 38mm L x 38mm H | 8.4 CFM (0.235m³/min) | 0.470 in H2O (117.1 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 28.00mm | 40.6dB(A) | 1.68 W | CE, cURus, TUV | 9000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
