直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC0922512U2B-BT4FAN 92X25MM 12VDC PWM/TACH MOLEX |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 69.2 CFM (1.94m³/min) | 0.280 in H2O (69.7 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.00mm | 45.0dB(A) | 3.6 W | CE, cURus, TUV | 3800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
|
109P0405M9D01FAN AXIAL 40X10MM BALL 5VDC WIRE |
0 | - |
|
数据表 |
San Ace 40 | Box | Active | 5VDC | Square - 40mm L x 40mm H | 4.2 CFM (0.118m³/min) | 0.108 in H2O (27.0 Pa) | Ball | 0.042 lb (19.05 g) | Tubeaxial | Locked Rotor Sensor | 10.00mm | 21.0dB(A) | 550 mW | CSA, TUV, UL | 5000 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | - |
|
|
109P0412M9D01FAN AXIAL 40X10MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 4.2 CFM (0.118m³/min) | 0.108 in H2O (27.0 Pa) | Ball | 0.042 lb (19.05 g) | Tubeaxial | Locked Rotor Sensor | 10.00mm | 21.0dB(A) | 720 mW | CSA, TUV, UL | 5000 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | - |
|
|
109P0405F302FAN AXIAL 40X28MM BALL 5VDC WIRE |
0 | - |
|
数据表 |
San Ace 40 | Box | Active | 5VDC | Square - 40mm L x 40mm H | - | - | Ball | 0.115 lb (52.16 g) | Tubeaxial | Locked Rotor Protection | 28.00mm | 30.0dB(A) | 1.4 W | CSA, TUV, UL | 6700 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
9WL1424P1A001FAN AXIAL 140X38MM 24VDC WIRE |
28 | - |
|
数据表 |
San Ace 140W | Bulk | Active | 24VDC | Square - 140mm L x 140mm H | 282.0 CFM (7.90m³/min) | 2.070 in H2O (515.6 Pa) | Ball | 1.653 lb (750.0 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 68.0dB(A) | 44.64 W | cURus, TUV | 6900 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|
9W1BM24P2H001FAN BLOWER 97.1X33MM 24VDC WIRE |
121 | - |
|
数据表 |
San Ace 97W | Box | Active | 24VDC | Rectangular/Rounded - 97.1mm L x 95mm H | 38.6 CFM (1.08m³/min) | 2.160 in H2O (540.0 Pa) | Ball | 0.529 lb (240.00 g) | Blower | PWM Control, Speed Sensor (Tach) | 33.00mm | 58.0dB(A) | 15.6 W | cURus, TUV | 4800 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
9W1BM24P2M001FAN BLOWER 97.1X33MM 24VDC WIRE |
78 | - |
|
数据表 |
San Ace 97W | Box | Active | 24VDC | Rectangular/Rounded - 97.1mm L x 95mm H | 32.8 CFM (0.918m³/min) | 1.530 in H2O (381.1 Pa) | Ball | 0.529 lb (240.00 g) | Blower | PWM Control, Speed Sensor (Tach) | 33.00mm | 55.0dB(A) | 10.8 W | cURus, TUV | 4100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|
QG030-198/12FAN BLOWER CF 258X47.5MM 12VDC |
390 | - |
|
数据表 |
QG030 | Box | Active | 12VDC | Rectangular - 258mm L x 50mm H | 59.0 CFM (1.65m³/min) | - | Ball | 0.639 lb (289.85 g) | Blower, Cross Flow | - | 47.50mm | 51.0dB(A) | 8 W | CE, CSA, UL, VDE | - | -4 ~ 140°F (-20 ~ 60°C) | 2 Wire Leads | - |
|

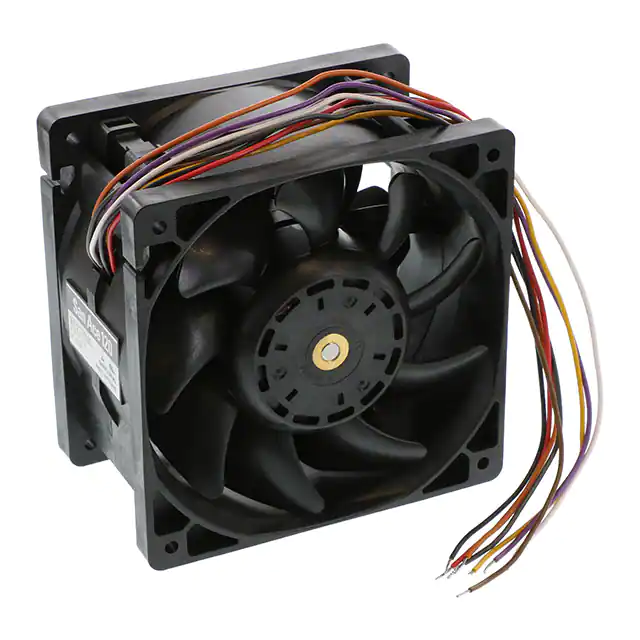

9CR1212P0G03FAN AXIAL DUAL 120X76MM 12VDC |
47 | - |
|
数据表 |
San Ace 120 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 300.0 CFM (8.40m³/min) | 1.930 in H2O (480.8 Pa) | Ball | 1.5 lbs (670.0 g) | Tubeaxial (Dual) | Counter-Rotating, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 76.00mm | 70.0dB(A) | 86.4 W | cURus, TUV | 6200 Front, 3800 Rear | -4 ~ 140°F (-20 ~ 60°C) | 4 Wire Leads per Fan | - |
|
9WL0812P4J001FAN AXIAL 80X25MM 12VDC WIRE |
80 | - |
|
数据表 |
San Ace 80W | Box | Active | 12VDC | Square - 80mm L x 80mm H | 73.0 CFM (2.04m³/min) | 0.710 in H2O (176.9 Pa) | Ball | 0.331 lb (150.14 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 25.00mm | 49.0dB(A) | 7.2 W | CSA, TUV, UL | 7400 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|
9WL0824P4J001FAN AXIAL 80X25MM 24VDC WIRE |
34 | - |
|
数据表 |
San Ace 80W | Box | Active | 24VDC | Square - 80mm L x 80mm H | 73.0 CFM (2.04m³/min) | 0.710 in H2O (176.9 Pa) | Ball | 0.331 lb (150.14 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 25.00mm | 49.0dB(A) | 6.72 W | CSA, TUV, UL | 7400 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
QG030-303/12FAN BLOWER CF 363X47.5MM 12VDC |
141 | - |
|
数据表 |
QG030 | Bulk | Active | 12VDC | Rectangular - 363mm L x 50mm H | 82.2 CFM (2.30m³/min) | - | Ball | 0.838 lb (380.11 g) | Blower, Cross Flow | - | 47.50mm | 51.0dB(A) | 8.7 W | CE, CSA, UL, VDE | - | -4 ~ 140°F (-20 ~ 60°C) | 2 Wire Leads | - |
|
4118N/2H4PUFAN AXIAL 119X38MM 48VDC WIRE |
419 | - |
|
数据表 |
4100NU | Bulk | Active | 48VDC | Square - 119mm L x 119mm H | 206.0 CFM (5.77m³/min) | - | Ball | 0.882 lb (400.07 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 38.00mm | 67.0dB(A) | 34 W | UL | 6800 RPM | -4 ~ 149°F (-20 ~ 65°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|
9LG1224P1G001FAN AXIAL 119X38MM 24VDC WIRE |
59 | - |
|
数据表 |
San Ace 120L | Box | Active | 24VDC | Square - 119mm L x 119mm H | 247.0 CFM (6.92m³/min) | 1.480 in H2O (368.7 Pa) | Ball | 0.926 lb (420.03 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 62.0dB(A) | 38.4 W | CSA, TUV, UL | 6550 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|

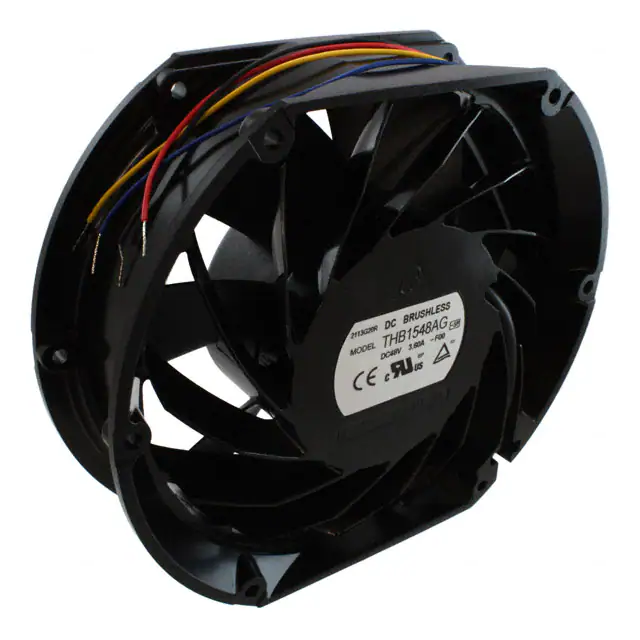

THB1548AGFAN AXIAL 172X50.8MM 48VDC WIRE |
119 | - |
|
数据表 |
THB | Box | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 527.5 CFM (14.77m³/min) | 3.780 in H2O (941.6 Pa) | Ball | 1.9 lbs (900.0 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 50.80mm | 77.0dB(A) | 144 W | CE, cURus, TUV | 7200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|

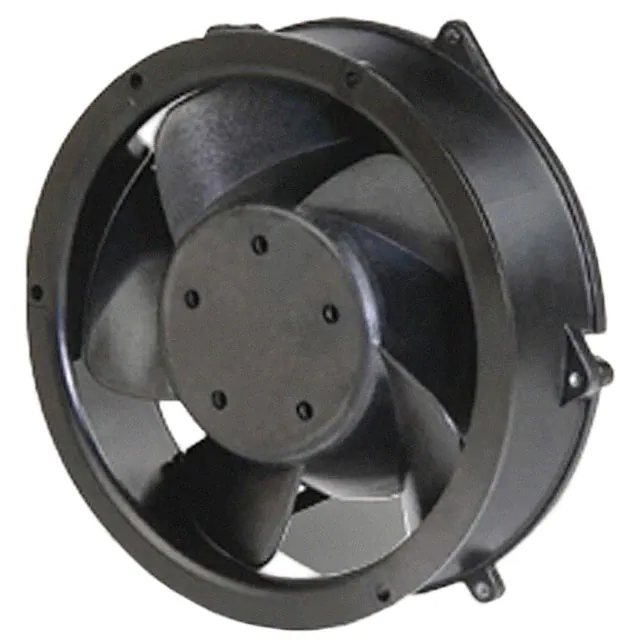

19044019AFAN AXIAL 172X51MM MFXE24Z1D3-E2 |
206 | - |
|
数据表 |
Mixtus | Box | Active | 24VDC | Round - 171.5mm Dia | 400.0 CFM (11.20m³/min) | - | Ball | - | Tubeaxial | Auto Restart, Fan Performance Sensor (FPS), Locked Rotor Protection | 50.80mm | 69.0dB(A) | 74.4 W | CE, UL | 5400 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9W2TM24P4G001FAN IMP MTRZD 100X25MM 24VDC |
38 | - |
|
数据表 |
San Ace 100W | Box | Active | 24VDC | Round - 100mm Dia | 71.7 CFM (2.01m³/min) | 2.840 in H2O (708.0 Pa) | Ball | - | Motorized Impellers | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.00mm | 65.0dB(A) | 16.8 W | - | 7400 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|

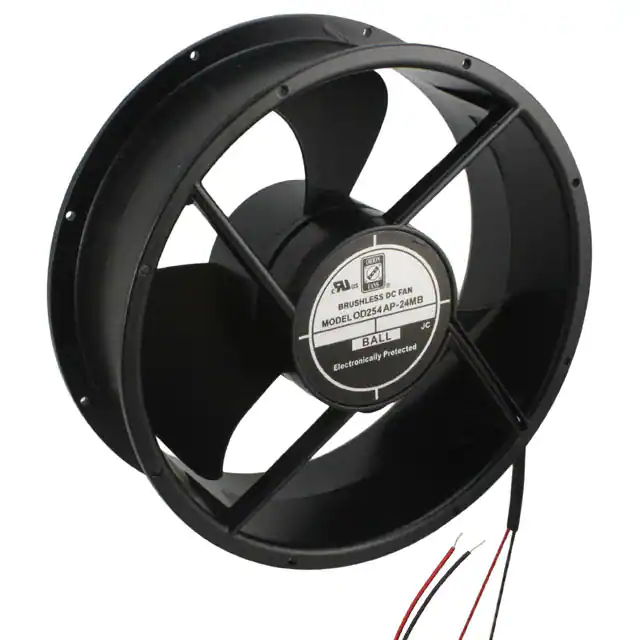

OD254AP-24MBFAN AXIAL 254X89MM 24VDC WIRE |
37 | - |
|
数据表 |
OD254 | Box | Active | 24VDC | Round - 254mm Dia | 690.0 CFM (19.32m³/min) | 0.580 in H2O (144.5 Pa) | Ball | - | Tubeaxial | Auto Restart | 89.00mm | 47.0dB | 24 W | cURus, TUV | 2000 RPM | -4 ~ 167°F (-20 ~ 75°C) | 2 Wire Leads | - |
|
RG160-28/14NFAN BLOWER CF 220X56MM 24VDC |
317 | - |
|
数据表 |
RG160N | Box | Active | 24VDC | Square - 220mm L x 220mm H | 123.0 CFM (3.44m³/min) | - | Ball | 3.1 lbs (1.4 kg) | Blower, Centrifugal | - | 56.00mm | 66.0dB(A) | 20 W | - | 2850 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|

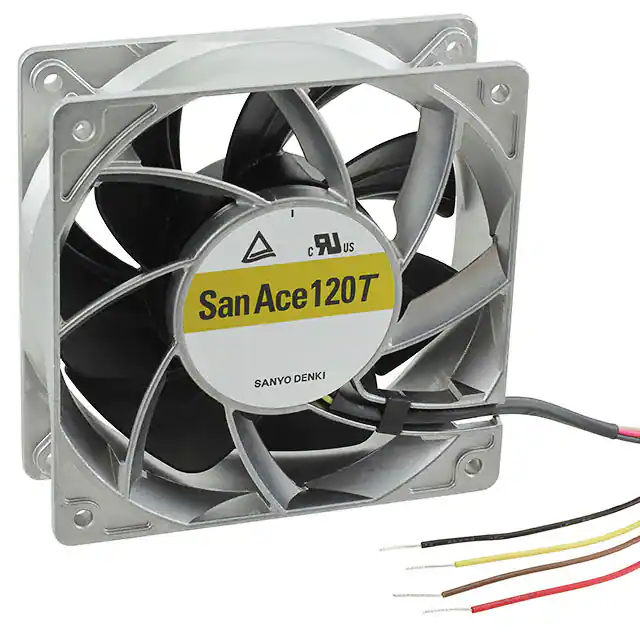

9GT1224P1S001FAN AXIAL 119X38MM 24VDC WIRE |
369 | - |
|
数据表 |
San Ace 120T | Box | Active | 24VDC | Square - 119mm L x 119mm H | 211.8 CFM (5.93m³/min) | 1.080 in H2O (269.0 Pa) | Ball | 0.926 lb (420.03 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 38.00mm | 58.0dB(A) | 26.4 W | cURus, TUV | 5600 RPM | -40 ~ 185°F (-40 ~ 85°C) | 4 Wire Leads | - |
