直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC0602512J2B-BT4FAN 60X25MM 12VDC PWM/TACH MOLEX |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 17.1 CFM (0.479m³/min) | 0.120 in H2O (29.9 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.00mm | 26.0dB(A) | 960 mW | CE, cURus, TUV | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
9HV5748P5G001FAN AXIAL 172X51MM 48VDC WIRE |
49 | - |
|
数据表 |
San Ace 172 | Box | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 568.0 CFM (15.90m³/min) | 6.430 in H2O (1601.6 Pa) | Ball | 1.8 lb (800.0 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 51.00mm | 83.0dB(A) | 240 W | cURus, TUV | 10500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
W1G200-HH01-52FAN AXIAL 225X80MM BALL 48VDC |
100 | - |
|
数据表 |
W1G200 | Box | Active | 48VDC | Square - 225mm L x 225mm H | 591.5 CFM (16.56m³/min) | - | Ball | 4.7 lbs (2.1 kg) | Tubeaxial | - | 80.00mm | 60.0dB(A) | 45 W | CCC, CSA, EAC, UL | 2750 RPM | -13 ~ 140°F (-25 ~ 60°C) | Terminal Block | - |
|
|
W3G300-ME48-11FAN AXIAL 337X76.7MM 26VDC RECT |
111 | - |
|
数据表 |
W2G300 | Bulk | Active | 26VDC | Round - 337mm Dia | 1815.0 CFM (50.82m³/min) | - | Ball | - | Tubeaxial | PWM Control, Thermal Overload Protector (TOP) | 76.70mm | 80.0dB(A) | 320 W | EAC | 3650 RPM | -40 ~ 158°F (-40 ~ 70°C) | 4 Position Rectangular Connector | IP69K - Dust Tight, High Temp Water Jets, Waterproof |
|
|
8315100198DIAFORCE120 |
44 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 119mm L x 119mm H | 400.5 CFM (11.21m³/min) | 12.526 in H2O (3119.9 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 86.00mm | 83.5dB(A) | 450 W | CCC, CSA, CE, EAC, VDE, UL | 17200 RPM | -13 ~ 158°F (-25 ~ 70°C) | 4 Wire Leads | IP20 |
|

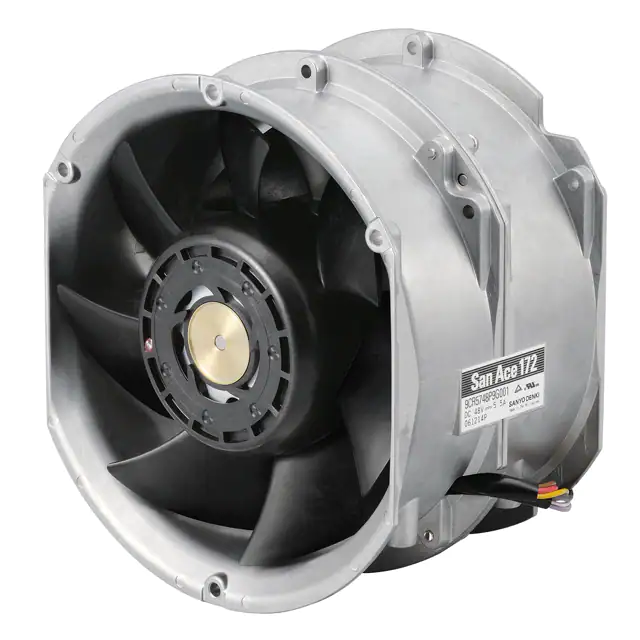

9CR5748P9G001FAN AXIAL DUAL 172X102MM 48VDC |
114 | - |
|
数据表 |
San Ace 172 | Box | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 636.0 CFM (17.81m³/min) | 5.620 in H2O (1400.0 Pa) | Ball | 3.5 lbs (1.6 kg) | Tubeaxial (Dual) | Counter-Rotating, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 102.0mm | 83.0dB(A) | 264 W | cURus, TUV | 7300 Front, 6400 Rear | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads per Fan | - |
|
4468FAN AXIAL 30X8MM 5VDC |
578 | - |
|
数据表 |
- | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | - | - | - | - | Tubeaxial | - | 8.00mm | - | - | - | - | - | 2 Position Rectangular Connector | - |
|
EF80252S2-1000U-A99FAN AXIAL 80X25MM 24VDC WIRE |
2,853 | - |
|
数据表 |
EF | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 37.0 CFM (1.04m³/min) | 0.150 in H2O (37.4 Pa) | Sleeve | 0.167 lb (75.75 g) | Tubeaxial | Auto Restart | 25.00mm | 30.0dB(A) | 1.01 W | CE, CUR, TUV, UL | 2900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
CFM-8025V-120-204-20FAN AXIAL 80X25MM 12VDC WIRE |
823 | - |
|
数据表 |
CFM-80V | Tray | Active | 12VDC | Square - 80mm L x 80mm H | 24.0 CFM (0.672m³/min) | 0.070 in H2O (17.4 Pa) | omniCOOL™ Magnetic Sleeve | 0.165 lb (74.84 g) | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.00mm | 20.4dB(A) | 580 mW | CE, cURus, TUV | 2000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
FAD1-04010BHLW11FAN AXIAL 40X10MM 5VDC WIRE |
514 | - |
|
数据表 |
FAD1-04010 | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 4.2 CFM (0.118m³/min) | 0.060 in H2O (14.9 Pa) | Hydrodynamic | 0.037 lb (16.78 g) | Tubeaxial | - | 10.00mm | 21.0dB(A) | 350 mW | CE, cURus, TUV | 4200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
EE40101S1-1000U-999FAN AXIAL 40X10MM 12VDC WIRE |
1,343 | - |
|
数据表 |
EE | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 8.2 CFM (0.230m³/min) | 0.190 in H2O (47.3 Pa) | Sleeve | 0.036 lb (16.33 g) | Tubeaxial | - | 10.00mm | 28.2dB(A) | 990 mW | CE, CUR, TUV, UL | 7300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
MF60201V3-1000U-A99FAN AXIAL 60X20MM 12VDC WIRE |
3,391 | - |
|
数据表 |
MagLev® MF | Box | Active | 12VDC | Square - 60mm L x 60mm H | 16.5 CFM (0.462m³/min) | 0.100 in H2O (24.9 Pa) | Vapo-Bearing™ | 0.111 lb (50.35 g) | Tubeaxial | Auto Restart | 20.00mm | 21.0dB(A) | 480 mW | cURus, TUV | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

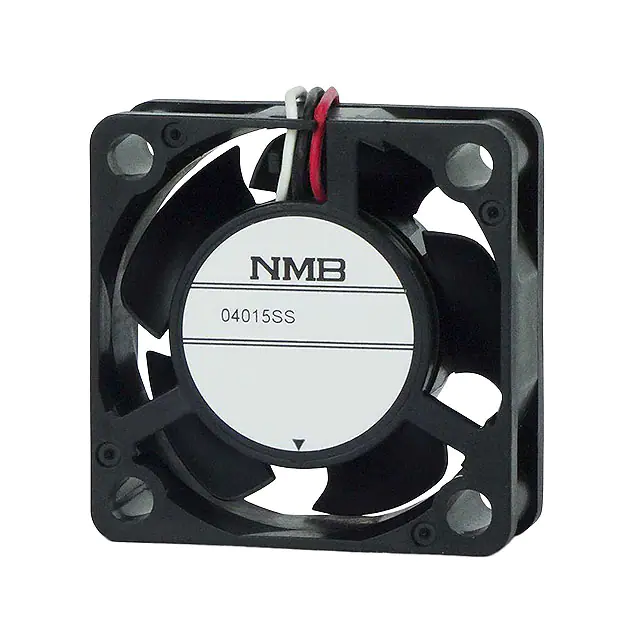

04015SS-24N-AT-00FAN AXIAL 40X15MM 24VDC WIRE |
872 | - |
|
数据表 |
04015SS | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 7.4 CFM (0.207m³/min) | 0.270 in H2O (67.3 Pa) | Sleeve | 0.051 lb (23.13 g) | Tubeaxial | Speed Sensor (Tach) | 15.00mm | 32.0dB | 1.2 W | - | 8300 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | - |
|
03010SS-05N-AT-00FAN AXIAL 30X10MM 5VDC WIRE |
1,546 | - |
|
数据表 |
03010SS | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | 4.2 CFM (0.118m³/min) | 0.240 in H2O (59.8 Pa) | Sleeve | 0.019 lb (8.62 g) | Tubeaxial | Speed Sensor (Tach) | 10.00mm | 28.0dB | 1.05 W | - | 10500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
FAD1-09225CBLW11FAN AXIAL 92.5X25MM 12VDC WIRE |
1,020 | - |
|
数据表 |
FAD1-09225 | Bulk | Active | 12VDC | Square - 92.5mm L x 92.5mm H | 40.7 CFM (1.14m³/min) | 0.081 in H2O (20.1 Pa) | Ball | 0.203 lb (92.08 g) | Tubeaxial | - | 25.00mm | 29.2dB(A) | 1.2 W | CE, cURus, TUV | 2100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
MF40100V1-1000U-G99FAN AXIAL 40X10MM VAPO 5VDC WIRE |
2,209 | - |
|
数据表 |
MagLev® MF | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 8.0 CFM (0.224m³/min) | 0.190 in H2O (47.3 Pa) | Vapo-Bearing™ | 0.035 lb (15.88 g) | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 10.00mm | 27.3dB(A) | 680 mW | cURus, TUV | 7000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
CFM-5015V-138-201-20FAN AXIAL 50X15MM 12VDC WIRE |
931 | - |
|
数据表 |
CFM-50V | Tray | Active | 12VDC | Square - 50mm L x 50mm H | 10.2 CFM (0.286m³/min) | 0.120 in H2O (29.9 Pa) | omniCOOL™ Magnetic Sleeve | 0.073 lb (33.11 g) | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 15.00mm | 20.1dB(A) | 0.48 W | CE, cURus, TUV | 3800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
CFM-8025V-132-330-20FAN AXIAL 80X25MM 12VDC WIRE |
1,660 | - |
|
数据表 |
CFM-80V | Tray | Active | 12VDC | Square - 80mm L x 80mm H | 41.1 CFM (1.15m³/min) | 0.180 in H2O (44.8 Pa) | omniCOOL™ Magnetic Sleeve | 0.165 lb (74.84 g) | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.00mm | 33.0dB(A) | 1.66 W | CE, cURus, TUV | 3200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
CFM-5010V-155-310-20FAN AXIAL 50X10MM 12VDC WIRE |
1,036 | - |
|
数据表 |
CFM-50V | Tray | Active | 12VDC | Square - 50mm L x 50mm H | 13.8 CFM (0.386m³/min) | 0.150 in H2O (37.4 Pa) | omniCOOL™ Magnetic Sleeve | 0.046 lb (20.87 g) | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 10.00mm | 30.7dB(A) | 0.98 W | CE, cURus, TUV | 5800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
FAD1-06020CHKW11FAN AXIAL 60X20MM 12VDC WIRE |
547 | - |
|
数据表 |
FAD1-06020 | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 23.5 CFM (0.658m³/min) | 0.283 in H2O (70.5 Pa) | Hydrodynamic | 0.108 lb (48.99 g) | Tubeaxial | - | 20.00mm | 39.0dB(A) | 2.4 W | CE, cURus, TUV | 6100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
