直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G4028H12B-RSRFAN AXIAL 40X28MM 12VDC WIRE |
0 | - |
|
数据表 |
G4028 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 16.0 CFM (0.448m³/min) | 0.570 in H2O (142.0 Pa) | Ball | 0.111 lb (50.35 g) | Tubeaxial | Thermal Overload Protector (TOP) | 28.00mm | 41.0dB(A) | - | CE, cUL, TUV, UL | 10000 RPM | - | 2 Wire Leads | - |
|
|
G4028M12B-RSRFAN AXIAL 40X28MM 12VDC WIRE |
0 | - |
|
数据表 |
G4028 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 13.0 CFM (0.364m³/min) | 0.370 in H2O (92.2 Pa) | Ball | 0.111 lb (50.35 g) | Tubeaxial | Thermal Overload Protector (TOP) | 28.00mm | 37.0dB(A) | - | CE, cUL, TUV, UL | 8000 RPM | - | 2 Wire Leads | - |
|
|
G4028M24B-RSRFAN AXIAL 40X28MM 24VDC WIRE |
0 | - |
|
数据表 |
G4028 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 13.0 CFM (0.364m³/min) | 0.370 in H2O (92.2 Pa) | Ball | 0.111 lb (50.35 g) | Tubeaxial | Thermal Overload Protector (TOP) | 28.00mm | 37.0dB(A) | - | CE, cUL, TUV, UL | 8000 RPM | - | 2 Wire Leads | - |
|
|
DC0602548H2B-BT0FAN 60X25MM 48VDC PWM/TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 60mm L x 60mm H | 33.6 CFM (0.941m³/min) | 0.250 in H2O (62.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.00mm | 40.0dB(A) | 13.44 W | CE, cURus | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
DC0602548L2B-BT0FAN 60X25MM 48VDC PWM/TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 60mm L x 60mm H | 21.5 CFM (0.602m³/min) | 0.160 in H2O (39.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.00mm | 31.0dB(A) | 5.76 W | CE, cURus | 3600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
DC0602548J2B-BT0FAN 60X25MM 48VDC PWM/TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 60mm L x 60mm H | 17.1 CFM (0.479m³/min) | 0.120 in H2O (29.9 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.00mm | 26.0dB(A) | 9.6 W | CE, cURus | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
DC0602548M2B-BT0FAN 60X25MM 48VDC PWM/TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 60mm L x 60mm H | 24.0 CFM (0.672m³/min) | 0.220 in H2O (54.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.00mm | 34.0dB(A) | 7.2 W | CE, cURus | 4250 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
CFM-9238S-250-532-20FAN AXIAL 92X37.5MM 24VDC WIRE |
0 | - |
|
数据表 |
CFM-92S | Box | Active | 24VDC | Square - 92mm L x 92mm H | 92.0 CFM (2.58m³/min) | 0.630 in H2O (156.9 Pa) | Sleeve | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 37.50mm | 52.3dB(A) | 12.48 W | CE, cURus, TUV | 4800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
OD1238-48HSSFAN AXIAL 120X38.5MM 48VDC WIRE |
0 | - |
|
数据表 |
OD1238 | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 100.0 CFM (2.80m³/min) | 0.280 in H2O (69.7 Pa) | Sealed Sleeve | - | Tubeaxial | - | 38.50mm | 42.0dB | 4.8 W | cURus, TUV | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
OD1238-48LSSFAN AXIAL 120X38.5MM 48VDC WIRE |
0 | - |
|
数据表 |
OD1238 | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 65.0 CFM (1.82m³/min) | 0.130 in H2O (32.4 Pa) | Sealed Sleeve | - | Tubeaxial | - | 38.50mm | 26.0dB | 3.36 W | cURus, TUV | 2000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
OD1238-48MSSFAN AXIAL 120X38.5MM 48VDC WIRE |
0 | - |
|
数据表 |
OD1238 | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 79.0 CFM (2.21m³/min) | 0.210 in H2O (52.3 Pa) | Sealed Sleeve | - | Tubeaxial | - | 38.50mm | 33.0dB | 3.8 W | cURus, TUV | 2550 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
AFB0812HB-F00FAN AXIAL 80X15MM 12VDC WIRE |
0 | - |
|
数据表 |
AFB | Box | Active | 12VDC | Square - 80mm L x 80mm H | 33.5 CFM (0.938m³/min) | 0.138 in H2O (34.3 Pa) | Ball | 0.128 lb (58.06 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 15.00mm | 34.0dB(A) | 1.68 W | CE, CSA, UL, VDE | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
6312/2TDHPFAN AXIAL 172X50.8MM 12VDC WIRE |
122 | - |
|
数据表 |
6300TD | Bulk | Active | 12VDC | Round - 172mm Dia | 353.0 CFM (9.88m³/min) | - | Ball | 2 lbs (907.2 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 50.80mm | 64.0dB(A) | 41 W | - | 6000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
R1G133-AA17-02FAN IMP MTRZD 133X91MM 24VDC |
336 | - |
|
数据表 |
R1G133AA | Bulk | Active | 24VDC | Round - 133mm Dia | 212.0 CFM (5.94m³/min) | - | Ball | 1.4 lbs (635.0 g) | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 91.00mm | 63.0dB(A) | 28 W | CSA, UL | 3900 RPM | -13 ~ 140°F (-25 ~ 60°C) | 4 Wire Leads | - |
|
|
4114N/2H8P00377FAN AXIAL 119X38MM 24VDC WIRE |
3,596 | - |
|
数据表 |
4100N | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 335.7 CFM (9.40m³/min) | - | Ball | - | Tubeaxial | - | 38.00mm | 78.0dB(A) | 120 W | - | 11000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
TF037E-2000-FFAN BLOWER 80.2X52MM AERO 24VDC |
109 | - |
|
数据表 |
TF037E | Tray | Active | 24VDC | Rectangular/Rounded - 80.2mm L x 60mm H | 3.5 CFM (0.098m³/min) | 12.040 in H2O (3000.0 Pa) | Aerodynamic | 0.364 lb (165.11 g) | Blower, Centrifugal | - | 52.00mm | 65.0dB(A) | 22.7 W | - | 35500 RPM | 14 ~ 140°F (-10 ~ 60°C) | 12 Position Rectangular Connector | - |
|

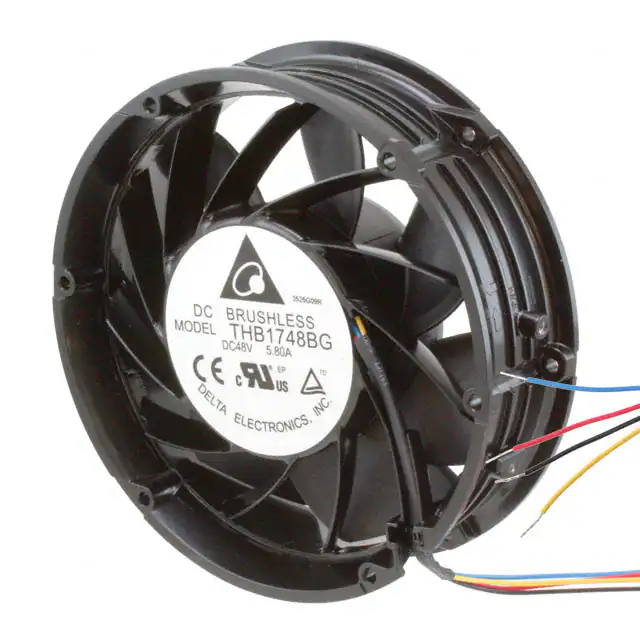

THB1748BGFAN AXIAL 172X50.8MM 48VDC WIRE |
425 | - |
|
数据表 |
THB | Box | Active | 48VDC | Round - 172mm Dia | 607.0 CFM (17.00m³/min) | 4.136 in H2O (1030.3 Pa) | Ball | 2.1 lbs (952.5 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 50.80mm | 75.0dB(A) | 168 W | CE, cURus, TUV | 8000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
6314/2TDHHPFAN AXIAL 172X50.8MM 24VDC WIRE |
326 | - |
|
数据表 |
6300TD | Bulk | Active | 24VDC | Round - 172mm Dia | 418.0 CFM (11.70m³/min) | - | Ball | 2 lbs (907.2 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 50.80mm | 69.0dB(A) | 67 W | - | 7000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
|
6318/2TDHHPFAN AXIAL 172X50.8MM 48VDC WIRE |
108 | - |
|
数据表 |
6300TD | Bulk | Active | 48VDC | Round - 172mm Dia | 417.9 CFM (11.70m³/min) | - | Ball | 2 lbs (907.2 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 50.80mm | 69.0dB(A) | 67 W | - | 7000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
|
6318/2TDH4PFAN AXIAL 172X50.8MM 48VDC WIRE |
62 | - |
|
数据表 |
6300TD | Bulk | Active | 48VDC | Round - 172mm Dia | 559.1 CFM (15.65m³/min) | - | Ball | 2 lbs (907.2 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 50.80mm | 75.0dB(A) | 150 W | CSA, UL, VDE | 9200 RPM | -4 ~ 149°F (-20 ~ 65°C) | 4 Wire Leads | - |
