直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9GT1212P1S001FAN AXIAL 119X38MM 12VDC WIRE |
29 | - |
|
数据表 |
San Ace 120T | Box | Active | 12VDC | Square - 119mm L x 119mm H | 211.8 CFM (5.93m³/min) | 1.080 in H2O (269.0 Pa) | Ball | 0.926 lb (420.03 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 38.00mm | 58.0dB(A) | 26.4 W | cURus, TUV | 5600 RPM | -40 ~ 185°F (-40 ~ 85°C) | 4 Wire Leads | - |
|
9SG5748P5G01FAN AXIAL 172X51MM 48VDC WIRE |
36 | - |
|
数据表 |
San Ace 172 | Box | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 546.0 CFM (15.29m³/min) | 4.020 in H2O (1001.3 Pa) | Ball | 1.7 lbs (760.0 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 51.00mm | 78.0dB(A) | 140 W | cURus, TUV | 8600 RPM | -4 ~ 140°F (-20 ~ 60°C) | 4 Wire Leads | - |
|
4114N/2H7PFAN AXIAL 119X38MM 24VDC WIRE |
82 | - |
|
数据表 |
4100N | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 294.0 CFM (8.23m³/min) | - | Ball | 0.937 lb (425.02 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 38.00mm | 76.0dB(A) | 90 W | - | 9500 RPM | -4 ~ 167°F (-20 ~ 75°C) | 4 Wire Leads | - |
|

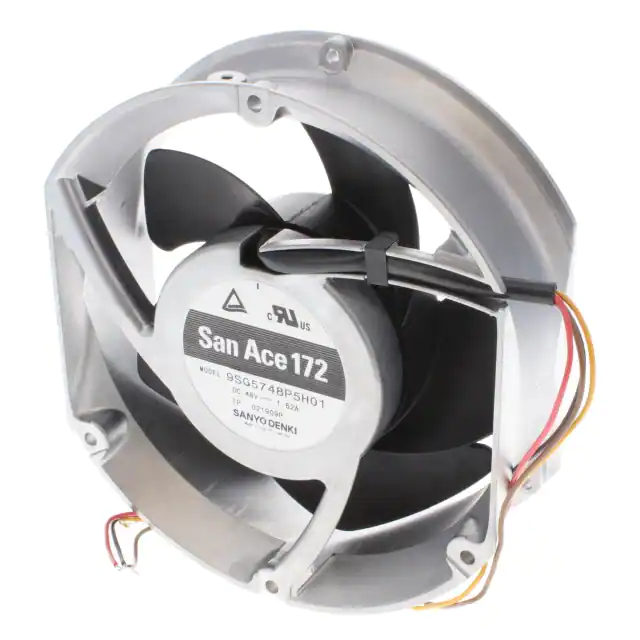

9SG5748P5H01FAN AXIAL 172X51MM 48VDC WIRE |
2,531 | - |
|
数据表 |
San Ace 172 | Box | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 410.0 CFM (11.48m³/min) | 3.090 in H2O (769.7 Pa) | Ball | 1.7 lbs (760.0 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 51.00mm | 71.0dB(A) | 1.62 W | cURus, TUV | 6500 RPM | -4 ~ 140°F (-20 ~ 60°C) | 4 Wire Leads | - |
|
|
4118N/2H8PFAN AXIAL 119X38MM 48VDC WIRE |
173 | - |
|
数据表 |
4100N | Bulk | Active | 48VDC | Square - 119mm L x 119mm H | 336.0 CFM (9.41m³/min) | - | Ball | 0.937 lb (425.02 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 38.00mm | 78.0dB(A) | 120 W | - | 11000 RPM | -4 ~ 167°F (-20 ~ 75°C) | 4 Wire Leads | - |
|

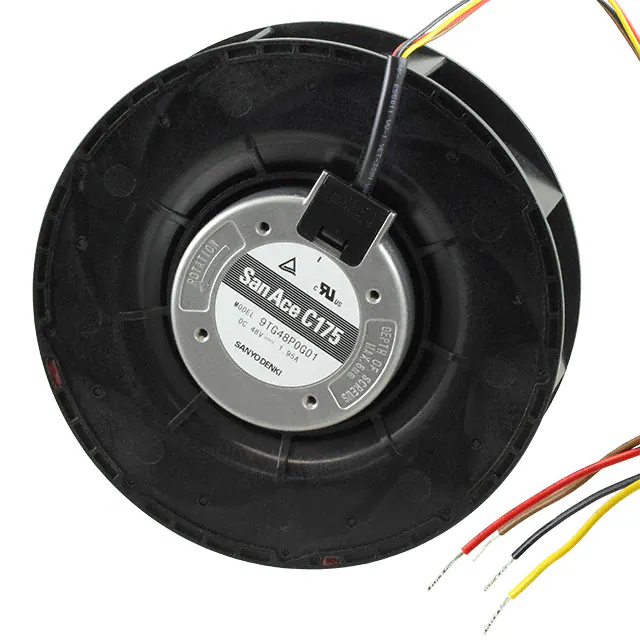

9TG48P0G01FAN IMP MTRZD 175X69MM 48VDC |
112 | - |
|
数据表 |
San Ace C175 | Box | Active | 48VDC | Round - 175mm Dia | 494.7 CFM (13.85m³/min) | 3.550 in H2O (885.0 Pa) | Ball | 1.7 lbs (771.1 g) | Motorized Impellers | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 69.00mm | 73.0dB(A) | 93.6 W | CSA, TUV, UL | 4700 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
5314/2TDHPFAN AXIAL 140X50.8MM 24VDC WIRE |
435 | - |
|
数据表 |
5300TD | Bulk | Active | 24VDC | Square - 140mm L x 140mm H | 241.3 CFM (6.76m³/min) | - | Ball | 2 lbs (907.2 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 50.80mm | 70.0dB(A) | 41 W | - | 6000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
109P0405H3023FAN AXIAL 40X28MM BALL 5VDC WIRE |
0 | - |
|
数据表 |
San Ace 40 | Box | Active | 5VDC | Square - 40mm L x 40mm H | 11.3 CFM (0.316m³/min) | 0.236 in H2O (58.8 Pa) | Ball | 0.115 lb (52.16 g) | Tubeaxial | Locked Rotor Protection | 28.00mm | 37.0dB(A) | 3.4 W | CSA, TUV, UL | 8700 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
109P0412B3023FAN AXIAL 40X28MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 13.4 CFM (0.375m³/min) | - | Ball | 0.115 lb (52.16 g) | Tubeaxial | Locked Rotor Protection | 28.00mm | 40.0dB(A) | 3.36 W | CSA, TUV, UL | 10300 RPM | -4 ~ 140°F (-20 ~ 60°C) | 2 Wire Leads | - |
|
|
109P0412F3023FAN AXIAL 40X28MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 8.6 CFM (0.241m³/min) | - | Ball | 0.115 lb (52.16 g) | Tubeaxial | Locked Rotor Protection | 28.00mm | 30.0dB(A) | 1.26 W | CSA, TUV, UL | 6700 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
109P0405F3023FAN AXIAL 40X28MM BALL 5VDC WIRE |
0 | - |
|
数据表 |
San Ace 40 | Box | Active | 5VDC | Square - 40mm L x 40mm H | 8.6 CFM (0.241m³/min) | - | Ball | 0.115 lb (52.16 g) | Tubeaxial | Locked Rotor Protection | 28.00mm | 30.0dB(A) | 1.4 W | CSA, TUV, UL | 6700 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
109P0412M3023FAN AXIAL 40X28MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 5.3 CFM (0.148m³/min) | 0.087 in H2O (21.7 Pa) | Ball | 0.115 lb (52.16 g) | Tubeaxial | Locked Rotor Protection | 28.00mm | 20.0dB(A) | 540 mW | CSA, TUV, UL | 4100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
109P0424B3023FAN AXIAL 40X28MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 40 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 13.4 CFM (0.375m³/min) | 0.574 in H2O (143.0 Pa) | Ball | 0.115 lb (52.16 g) | Tubeaxial | Locked Rotor Protection | 28.00mm | 40.0dB(A) | 3.12 W | CSA, TUV, UL | 10300 RPM | -4 ~ 140°F (-20 ~ 60°C) | 2 Wire Leads | - |
|
|
109P0412A30240X28MM 12V DC 0 |
0 | - |
|
数据表 |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection | 28.00mm | 24.0dB(A) | - | CSA, TUV, UR | 5100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
DC0301005H2B-3T3FAN 30X10MM 5VDC TACH MOLEX 22-0 |
0 | - |
|
数据表 |
- | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | 4.5 CFM (0.126m³/min) | 0.210 in H2O (52.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 10.50mm | 29.0dB(A) | 350 mW | CE, cURus | 9000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
|
DC0301005L2B-3T3FAN 30X10MM 5VDC TACH MOLEX 22-0 |
0 | - |
|
数据表 |
- | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | 3.0 CFM (0.084m³/min) | 0.090 in H2O (22.4 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 10.50mm | 17.0dB(A) | 150 mW | CE, cURus | 6000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
|
DC0301005M2B-3T3FAN 30X10MM 5VDC TACH MOLEX 22-0 |
0 | - |
|
数据表 |
- | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | 3.7 CFM (0.104m³/min) | 0.140 in H2O (34.9 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 10.50mm | 24.0dB(A) | 250 mW | CE, cURus | 7500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
|
DC0251012L2B-BT4FAN 25X10MM 12VDC PWM/TACH MOLEX |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 25mm L x 25mm H | 1.3 CFM (0.036m³/min) | 0.070 in H2O (17.4 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 10.00mm | 20.0dB(A) | 600 mW | CE, cURus, TUV | 7000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
|
DC0251012M2B-BT4FAN 25X10MM 12VDC PWM/TACH MOLEX |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 25mm L x 25mm H | 1.9 CFM (0.053m³/min) | 0.170 in H2O (42.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 10.00mm | 24.0dB(A) | 720 mW | CE, cURus, TUV | 10000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
BFB1012HHFAN BLOWER 97.2X33MM 12VDC WIRE |
0 | - |
|
数据表 |
BFB | Bulk | Obsolete | 12VDC | Rectangular/Rounded - 97.2mm L x 94.4mm H | 28.3 CFM (0.792m³/min) | 1.300 in H2O (323.6 Pa) | Ball | 0.353 lb (160.12 g) | Blower | Locked Rotor Protection | 33.00mm | 55.0dB(A) | 13.2 W | CE, CSA, UL, VDE | 4000 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
