直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
03010SS-05N-AA-00FAN AXIAL 30X10MM 5VDC WIRE |
790 | - |
|
数据表 |
03010SS | Box | Active | 5VDC | Square - 30mm L x 30mm H | 4.2 CFM (0.118m³/min) | 0.240 in H2O (59.8 Pa) | Sleeve | - | Tubeaxial | Auto Restart | 10.00mm | 28.0dB | 1.05 W | - | 10500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
03010SS-05N-AL-00FAN AXIAL 30X10MM 5VDC WIRE |
776 | - |
|
数据表 |
03010SS | Box | Active | 5VDC | Square - 30mm L x 30mm H | 4.2 CFM (0.118m³/min) | 0.240 in H2O (59.8 Pa) | Sleeve | - | Tubeaxial | Auto Restart, Locked Rotor Sensor | 10.00mm | 28.0dB | 1.05 W | - | 10500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
CFM-4010V-150-157-20FAN AXIAL 40X10MM 12VDC WIRE |
1,590 | - |
|
数据表 |
CFM-40V | Tray | Active | 12VDC | Square - 40mm L x 40mm H | 5.3 CFM (0.148m³/min) | 0.090 in H2O (22.4 Pa) | omniCOOL™ Magnetic Sleeve | 0.034 lb (15.42 g) | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 10.00mm | 15.7dB(A) | 460 mW | CE, cURus, TUV | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
CFM-5015V-172-381FAN AXIAL 50X15MM 12VDC WIRE |
144 | - |
|
数据表 |
CFM-50V | Tray | Active | 12VDC | Square - 50mm L x 50mm H | 18.7 CFM (0.524m³/min) | 0.310 in H2O (77.2 Pa) | omniCOOL™ Magnetic Sleeve | 0.073 lb (33.11 g) | Tubeaxial | Auto Restart | 15.00mm | 38.1dB(A) | 1.53 W | CE, cURus, TUV | 7200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

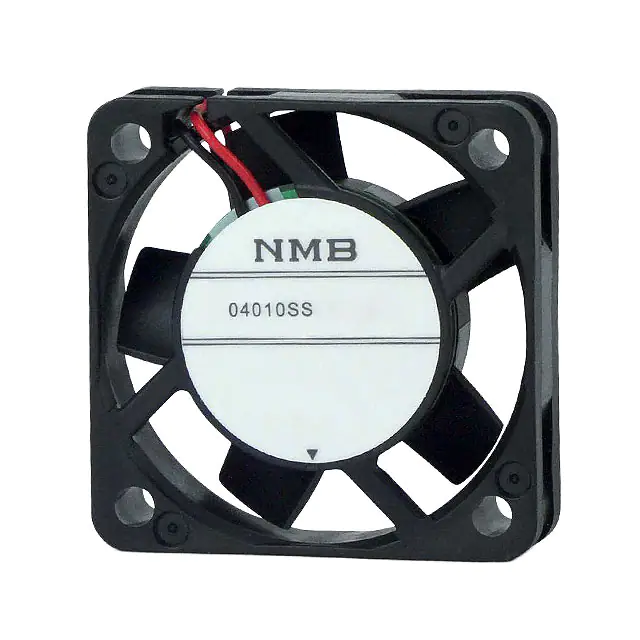

04010SS-12N-AT-00FAN AXIAL 40X10MM 12VDC WIRE |
823 | - |
|
数据表 |
04010SS | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 6.7 CFM (0.188m³/min) | 0.190 in H2O (47.3 Pa) | Sleeve | 0.035 lb (15.88 g) | Tubeaxial | Speed Sensor (Tach) | 10.00mm | 29.0dB | 700 mW | - | 7500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
DC0602548J2B-2T2FAN 60X25MM 48VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 60mm L x 60mm H | 17.1 CFM (0.479m³/min) | 0.120 in H2O (29.9 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 25.00mm | 26.0dB(A) | 9.6 W | CE, cURus | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
DC0602512L2B-BT4FAN 60X25MM 12VDC PWM/TACH MOLEX |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 21.5 CFM (0.602m³/min) | 0.160 in H2O (39.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.00mm | 31.0dB(A) | 1.44 W | CE, cURus, TUV | 3600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
|
DC0602548H2B-2T2FAN 60X25MM 48VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 60mm L x 60mm H | 33.6 CFM (0.941m³/min) | 0.250 in H2O (62.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 25.00mm | 40.0dB(A) | 13.44 W | CE, cURus | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
DC0602512M2B-BT4FAN 60X25MM 12VDC PWM/TACH MOLEX |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 24.0 CFM (0.672m³/min) | 0.220 in H2O (54.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.00mm | 34.0dB(A) | 1.8 W | CE, cURus, TUV | 4250 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
|
DC0602548M2B-2T2FAN 60X25MM 48VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 60mm L x 60mm H | 24.0 CFM (0.672m³/min) | 0.220 in H2O (54.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 25.00mm | 34.0dB(A) | 7.2 W | CE, cURus | 4250 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
DC0602548L2B-2T2FAN 60X25MM 48VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 60mm L x 60mm H | 21.5 CFM (0.602m³/min) | 0.160 in H2O (39.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 25.00mm | 31.0dB(A) | 5.76 W | CE, cURus | 3600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
DC0602512H2B-BT4FAN 60X25MM 12VDC PWM/TACH MOLEX |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 33.6 CFM (0.941m³/min) | 0.250 in H2O (62.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.00mm | 40.0dB(A) | 3.36 W | CE, cURus, TUV | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
|
CFM-9225BG-140-438-20DC AXIAL FAN, 92 MM SQUARE, 25 M |
0 | - |
|
数据表 |
CFM-92BG | Box | Active | 12VDC | Square - 92mm L x 92mm H | 70.5 CFM (1.97m³/min) | 0.370 in H2O (92.2 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.00mm | 43.8dB(A) | 4.32 W | CE, cURus, TUV | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
CFM-A238V-221-370FAN AXIAL 120X38MM 24VDC WIRE |
0 | - |
|
数据表 |
CFM-120V | Tray | Active | 24VDC | Square - 120mm L x 120mm H | 93.0 CFM (2.60m³/min) | 0.180 in H2O (44.8 Pa) | omniCOOL™ Magnetic Sleeve | 0.481 lb (218.18 g) | Tubeaxial | Auto Restart | 38.00mm | 37.0dB(A) | 3.59 W | CE, cURus, TUV | 2100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
2410ML-05W-B30-B00FAN AXIAL 60X25MM 24VDC WIRE |
0 | - |
|
数据表 |
2410ML | Bulk | Obsolete | 24VDC | Square - 60mm L x 60mm H | 19.0 CFM (0.532m³/min) | 0.161 in H2O (40.2 Pa) | Ball | 0.144 lb (65.32 g) | Tubeaxial | Auto Restart | 25.00mm | 31.0dB | 1.44 W | CE, CSA, UL, VDE | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
CFM-6025BF-275-439FAN AXIAL 60X25.4MM 24VDC WIRE |
0 | - |
|
数据表 |
CFM-60BF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 35.9 CFM (1.01m³/min) | 0.500 in H2O (124.5 Pa) | Ball | - | Tubeaxial | Auto Restart | 25.40mm | 44.0dB(A) | 7.2 W | CE, cURus, TUV | 7500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
G8032E24B-RSRFAN AXIAL 80X32MM 24VDC WIRE |
0 | - |
|
数据表 |
G8032 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 52.0 CFM (1.46m³/min) | 0.440 in H2O (109.6 Pa) | Ball | 0.286 lb (129.73 g) | Tubeaxial | Thermal Overload Protector (TOP) | 32.00mm | 46.0dB(A) | - | CE, cUL, TUV, UL | 4500 RPM | - | 2 Wire Leads | - |
|
|
G8032H12B-RSRFAN AXIAL 80X32MM 12VDC WIRE |
0 | - |
|
数据表 |
G8032 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 48.0 CFM (1.34m³/min) | 0.370 in H2O (92.2 Pa) | Ball | 0.286 lb (129.73 g) | Tubeaxial | Thermal Overload Protector (TOP) | 32.00mm | 42.0dB(A) | - | CE, cUL, TUV, UL | 4000 RPM | - | 2 Wire Leads | - |
|
|
G8032H24B-RSRFAN AXIAL 80X32MM 24VDC WIRE |
0 | - |
|
数据表 |
G8032 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 48.0 CFM (1.34m³/min) | 0.370 in H2O (92.2 Pa) | Ball | 0.286 lb (129.73 g) | Tubeaxial | Thermal Overload Protector (TOP) | 32.00mm | 42.0dB(A) | - | CE, cUL, TUV, UL | 4000 RPM | - | 2 Wire Leads | - |
|
|
G8032L12B-RSRFAN AXIAL 80X32MM 12VDC WIRE |
0 | - |
|
数据表 |
G8032 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 34.0 CFM (0.952m³/min) | 0.200 in H2O (49.8 Pa) | Ball | 0.286 lb (129.73 g) | Tubeaxial | Thermal Overload Protector (TOP) | 32.00mm | 34.0dB(A) | - | CE, cUL, TUV, UL | 3000 RPM | - | 2 Wire Leads | - |
