直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4114N/2H6PFAN AXIAL 119X38MM 24VDC WIRE |
360 | - |
|
数据表 |
4100N, S-Force | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 259.0 CFM (7.25m³/min) | - | Ball | - | Tubeaxial | PWM Control, Speed Sensor (Tach) | 38.00mm | 59.0dB(A) | - | - | - | - | 4 Wire Leads | - |
|
9GT0924P1M001FAN AXIAL 92X38MM 24VDC WIRE |
337 | - |
|
数据表 |
San Ace 92T | Box | Active | 24VDC | Square - 92mm L x 92mm H | 116.5 CFM (3.26m³/min) | 1.260 in H2O (313.9 Pa) | Ball | 0.595 lb (269.89 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 38.00mm | 58.0dB(A) | 18 W | CSA, TUV, UL | 8100 RPM | -40 ~ 185°F (-40 ~ 85°C) | 4 Wire Leads | - |
|
109E5724C501FAN AXIAL 172X51MM 24VDC WIRE |
79 | - |
|
数据表 |
San Ace 172 | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 350.0 CFM (9.80m³/min) | 1.237 in H2O (308.0 Pa) | Ball | 1.7 lbs (760.0 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 51.00mm | 66.0dB(A) | 55.2 W | CSA, TUV, UL | 4800 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
5114NFAN AXIAL 135X38MM 24VDC WIRE |
260 | - |
|
数据表 |
5100N | Box | Active | 24VDC | Square - 135mm L x 135mm H | 147.0 CFM (4.12m³/min) | - | Ball | 1.4 lbs (635.0 g) | Tubeaxial | - | 38.00mm | 48.0dB(A) | 9 W | CE | 2900 RPM | -13 ~ 162°F (-25 ~ 72°C) | 2 Wire Leads | - |
|
9WV1248P1J001FAN AXIAL 120X38MM 48VDC WIRE |
109 | - |
|
数据表 |
San Ace 120W | Box | Active | 48VDC | Square - 120mm L x 120mm H | 224.0 CFM (6.27m³/min) | 1.450 in H2O (361.2 Pa) | Ball | 0.97 lb (439.98 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 38.00mm | 64.0dB(A) | 31.2 W | CSA, TUV, UL | 6400 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|
QG030-148/12FAN BLOWER CF 201X47.5MM 12VDC |
1,435 | - |
|
数据表 |
QG030 | Box | Active | 12VDC | Rectangular - 201mm L x 50mm H | 44.0 CFM (1.23m³/min) | - | Ball | 0.56 lb (254.01 g) | Blower, Cross Flow | - | 47.50mm | 49.0dB(A) | 6.2 W | CE, CSA, UL, VDE | - | - | 2 Wire Leads | - |
|

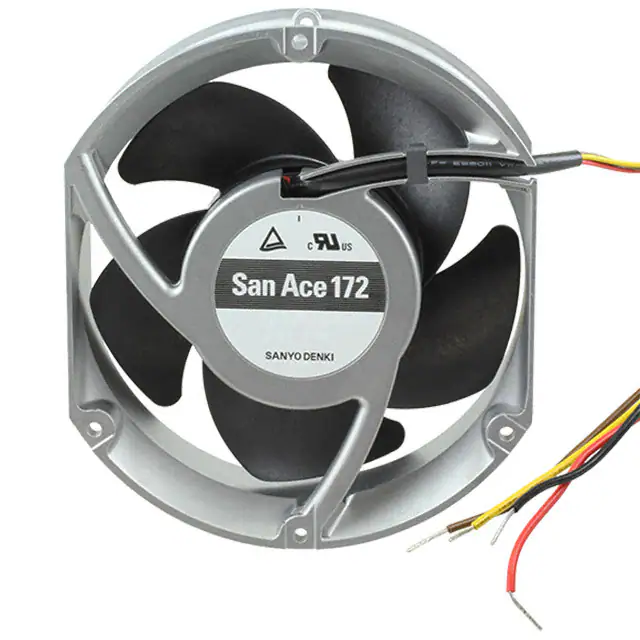

9SG5724P5H61FAN AXIAL 172X51MM 24VDC WIRE |
1,334 | - |
|
数据表 |
San Ace 172 | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 410.0 CFM (11.48m³/min) | 2.160 in H2O (540.0 Pa) | Ball | 0.882 lb (400.07 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 51.00mm | 71.0dB(A) | 67.2 W | cURus, TUV | 6500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
9LG1424A5001FAN AXIAL 140X51MM 24VDC WIRE |
75 | - |
|
数据表 |
San Ace 140L | Box | Active | 24VDC | Square - 140mm L x 140mm H | 243.7 CFM (6.82m³/min) | 2.170 in H2O (540.5 Pa) | Ball | 1.8 lb (800.0 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 51.00mm | - | 29.1 W | cURus, TUV | 5700 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|

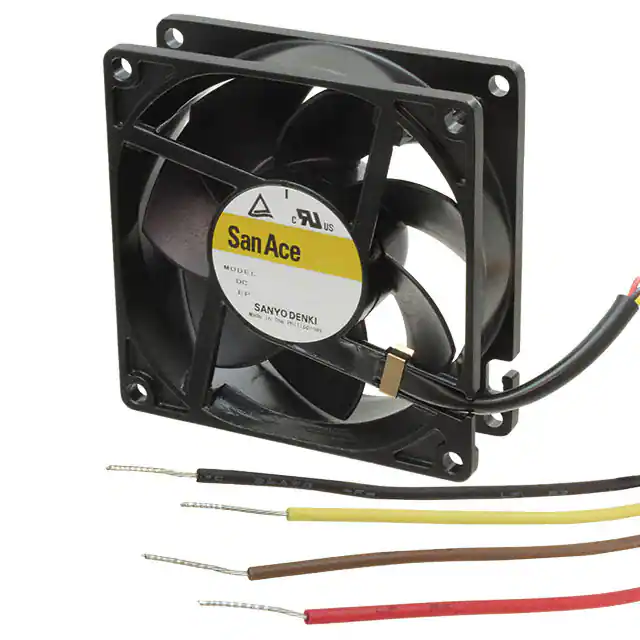

9WL0812P4G001FAN AXIAL 80X25MM 12VDC WIRE |
149 | - |
|
数据表 |
San Ace 80W | Box | Active | 12VDC | Square - 80mm L x 80mm H | 54.4 CFM (1.52m³/min) | 0.393 in H2O (98.0 Pa) | Ball | 0.331 lb (150.14 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 25.00mm | 43.0dB(A) | 3.6 W | CSA, TUV, UL | 5500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|
EFB1524VHG-EPFAN AXIAL 172X50.8MM 24VDC WIRE |
1,445 | - |
|
数据表 |
EFB | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 302.3 CFM (8.46m³/min) | 0.937 in H2O (233.4 Pa) | Ball | 1.9 lbs (861.8 g) | Tubeaxial | GR-487 (Salt Fog Protection), Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 50.80mm | 60.0dB(A) | 24.48 W | CE, CSA, UL, VDE | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | IP56 - Dust Protected, Water Resistant |
|
19031769AFAN AXIAL 175.5X111.8MM TD24B1 |
550 | - |
|
数据表 |
Tarzan | Bulk | Active | 24VDC | Square - 175.5mm L x 175.5mm H | 325.0 CFM (9.10m³/min) | 0.630 in H2O (156.9 Pa) | Ball | 5 lbs (2.3 kg) | Tubeaxial | Auto Restart, Locked Rotor Protection | 111.8mm | 65.2dB(A) | 36 W | cUL, UL | 3250 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
MF50201V3-1B00U-G9912VDC FAN 50X20MM ALARM |
0 | - |
|
数据表 |
MF | Box | Active | 12VDC | Square/Rounded - 50mm L x 50mm H | 4.8 CFM (0.134m³/min) | 0.350 in H2O (87.2 Pa) | Vapo-Bearing™ | - | Blower | Auto Restart, Speed Sensor (Tach) | 20.00mm | 27.5dB(A) | 0.9 W | CCC, CE, cURus, TUV, UKCA | 4350 RPM | - | 3 Wire Leads | - |
|
|
MF50201V2-1B00U-G9912VDC FAN 50X20MM ALARM |
0 | - |
|
数据表 |
MF | Box | Active | 12VDC | Square/Rounded - 50mm L x 50mm H | 5.1 CFM (0.143m³/min) | 0.460 in H2O (114.6 Pa) | Vapo-Bearing™ | - | Blower | Auto Restart, Speed Sensor (Tach) | 20.00mm | 30.0dB(A) | 1.2 W | CCC, CE, cURus, TUV, UKCA | 4650 RPM | - | 3 Wire Leads | - |
|
|
FFB0412SN-00Y2FFAN AXIAL 40X28MM 12VDC WIRE |
0 | - |
|
数据表 |
FFB | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 29.2 CFM (0.818m³/min) | 3.460 in H2O (861.8 Pa) | Ball | 0.115 lb (52.16 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 28.00mm | 61.5dB(A) | 11.16 W | CE, cURus, TUV | 22000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
FFB03812HNFAN AXIAL 38X28MM 12VDC WIRE |
0 | - |
|
数据表 |
FFB | Bulk | Active | 12VDC | Square - 38mm L x 38mm H | 15.2 CFM (0.426m³/min) | 0.839 in H2O (209.0 Pa) | Ball | 0.102 lb (46.27 g) | Tubeaxial | Locked Rotor Protection | 28.00mm | 51.5dB(A) | 4.08 W | CE, CSA, UL, VDE | 12000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
CFM-6025BG-2130-606DC AXIAL FAN, 60 MM SQUARE, 25 M |
0 | - |
|
数据表 |
CFM-60BG | Box | Active | 24VDC | Square - 60mm L x 60mm H | 56.7 CFM (1.59m³/min) | 1.980 in H2O (493.2 Pa) | Ball | - | Tubeaxial | Auto Restart | 25.00mm | 60.6dB(A) | 19.2 W | CE, cURus, TUV | 13000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
CFM-6025BG-1130-606DC AXIAL FAN, 60 MM SQUARE, 25 M |
0 | - |
|
数据表 |
CFM-60BG | Box | Active | 12VDC | Square - 60mm L x 60mm H | 56.7 CFM (1.59m³/min) | 1.980 in H2O (493.2 Pa) | Ball | - | Tubeaxial | Auto Restart | 25.00mm | 60.6dB(A) | 21 W | CE, cURus, TUV | 13000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
DC0402812H2B-2T0FAN AXIAL 40X28MM 12VDC WIRE |
0 | - |
|
数据表 |
- | Box | Active | 12VDC | Square - 40mm L x 40mm H | 23.8 CFM (0.666m³/min) | 1.320 in H2O (328.8 Pa) | Ball | 0.045 lb (20.41 g) | Tubeaxial | Locked Rotor Protection | 28.00mm | 54.0dB(A) | 6.6 W | CE, cURus, TUV | 13000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
DC0301012U2B-BT4FAN 30X10MM 12VDC PWM/TACH MOLEX |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 30mm L x 30mm H | 5.7 CFM (0.157m³/min) | 0.240 in H2O (59.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 10.00mm | 31.0dB(A) | 1.08 W | CE, cURus, TUV | 11000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
|
DC0922548U2B-2T2FAN 92X25MM 48VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 69.2 CFM (1.94m³/min) | 0.280 in H2O (69.7 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 25.00mm | 45.0dB(A) | 14.4 W | CE, cURus | 3800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
