直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AFB0624EH-AR00FAN AXIAL 60X25.4MM 24VDC WIRE |
0 | - |
|
数据表 |
AFB | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 38.4 CFM (1.08m³/min) | 0.544 in H2O (135.5 Pa) | Ball | 0.176 lb (80.00 g) | Tubeaxial | Locked Rotor Sensor | 25.40mm | 46.5dB(A) | 5.76 W | CE, CSA, UL, VDE | 6800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
AFB0624H-AR00FAN AXIAL 60X25.4MM 24VDC WIRE |
0 | - |
|
数据表 |
AFB | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 23.4 CFM (0.655m³/min) | 0.211 in H2O (52.6 Pa) | Ball | 0.176 lb (80.00 g) | Tubeaxial | Locked Rotor Sensor | 25.40mm | 34.0dB(A) | 2.16 W | CE, CSA, UL, VDE | 4250 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
AFB0612EH-AF00FAN AXIAL 60X25.4MM 12VDC WIRE |
0 | - |
|
数据表 |
AFB | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 38.4 CFM (1.08m³/min) | 0.544 in H2O (135.5 Pa) | Ball | 0.176 lb (80.00 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.40mm | 46.5dB(A) | 4.56 W | CE, CSA, UL, VDE | 6800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
MS2006E12D1-RSRFAN AXIAL 20X6.5MM 12VDC WIRE |
0 | - |
|
数据表 |
MS2006 | Box | Active | 12VDC | Square - 20mm L x 20mm H | 1.1 CFM (0.031m³/min) | 0.110 in H2O (27.4 Pa) | Sleeve | 0.007 lb (3.18 g) | Tubeaxial | Speed Sensor (Tach) | 6.50mm | 31.0dB(A) | - | CE, cUL, TUV, UL | 12000 RPM | - | 3 Wire Leads | - |
|
|
MS2006M05D1-RSRFAN AXIAL 20X6.5MM 12VDC WIRE |
0 | - |
|
数据表 |
MS2006 | Box | Active | 12VDC | Square - 20mm L x 20mm H | 0.780 CFM (0.022m³/min) | 0.080 in H2O (20.0 Pa) | Sleeve | 0.007 lb (3.18 g) | Tubeaxial | Speed Sensor (Tach) | 6.50mm | 21.0dB(A) | - | CE, cUL, TUV, UL | 8000 RPM | - | 3 Wire Leads | - |
|
4148/MF60252V1-1000U-A99FAN AXIAL 60X25MM VAPO 24VDC |
0 | - |
|
数据表 |
MagLev® MF | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 23.5 CFM (0.658m³/min) | 0.210 in H2O (52.3 Pa) | Vapo-Bearing™ | 0.101 lb (45.81 g) | Tubeaxial | Auto Restart | 25.00mm | 27.0dB(A) | 1.2 W | cURus, TUV | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
MD4028H12B1-RSRFAN AXIAL 40X28MM 12VDC WIRE |
0 | - |
|
数据表 |
MD4028 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 13.6 CFM (0.381m³/min) | 0.533 in H2O (132.8 Pa) | Ball | 0.111 lb (50.35 g) | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 28.00mm | 41.0dB(A) | - | cUL, TUV, UL | 9200 RPM | - | 3 Wire Leads | - |
|
9WL0612P4S001FAN AXIAL 60X25MM 12VDC WIRE |
123 | - |
|
数据表 |
San Ace 60W | Box | Active | 12VDC | Square - 60mm L x 60mm H | 49.4 CFM (1.38m³/min) | 1.204 in H2O (299.9 Pa) | Ball | 0.243 lb (110.22 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 25.00mm | 53.0dB(A) | 8.04 W | CSA, TUV, UL | 11000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|
19031091AFAN AXIAL 171.5X50.8MM JQ48B4 |
118 | - |
|
数据表 |
Major | Bulk | Active | 48VDC | Rectangular/Rounded - 171.5mm L x 150.4mm H | 235.0 CFM (6.58m³/min) | 0.812 in H2O (202.3 Pa) | Ball | 1.9 lbs (861.8 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 50.80mm | 54.3dB(A) | 22 W | CE, cUL, UL | 3475 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
9WF1224H101FAN AXIAL 119X38MM 24VDC WIRE |
31 | - |
|
数据表 |
San Ace 120WF | Box | Active | 24VDC | Square - 119mm L x 119mm H | 118.0 CFM (3.30m³/min) | 0.400 in H2O (99.6 Pa) | Ball | 0.784 lb (355.62 g) | Tubeaxial | Speed Sensor (Tach) | 38.00mm | 46.0dB(A) | 7.68 W | CSA, TUV, UL | 3100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
9WL0924P4J001FAN AXIAL 92X25MM 24VDC WIRE |
52 | - |
|
数据表 |
San Ace 92W | Box | Active | 24VDC | Square - 92mm L x 92mm H | 77.7 CFM (2.18m³/min) | 0.420 in H2O (104.6 Pa) | Ball | 0.375 lb (170.1 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 25.00mm | 44.0dB(A) | 5.04 W | CSA, TUV, UL | 5000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|
9WL0912P4J001FAN AXIAL 92X25MM 12VDC WIRE |
47 | - |
|
数据表 |
San Ace 92W | Box | Active | 12VDC | Square - 92mm L x 92mm H | 77.7 CFM (2.18m³/min) | 0.420 in H2O (104.6 Pa) | Ball | 0.375 lb (170.1 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 25.00mm | 44.0dB(A) | 5.04 W | CSA, TUV, UL | 5000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|
9GT0912P1M001FAN AXIAL 92X38MM 12VDC WIRE |
284 | - |
|
数据表 |
San Ace 92T | Box | Active | 12VDC | Square - 92mm L x 92mm H | 116.5 CFM (3.26m³/min) | 1.260 in H2O (313.9 Pa) | Ball | 0.595 lb (269.89 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 38.00mm | 58.0dB(A) | 18 W | CSA, TUV, UL | 8100 RPM | -40 ~ 185°F (-40 ~ 85°C) | 4 Wire Leads | - |
|
9LG0824P4J001FAN AXIAL 80X25MM 24VDC WIRE |
463 | - |
|
数据表 |
San Ace 80L | Box | Active | 24VDC | Square - 80mm L x 80mm H | 73.0 CFM (2.04m³/min) | 0.710 in H2O (176.9 Pa) | Ball | 0.287 lb (130.18 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.00mm | 49.0dB(A) | 6.72 W | CSA, TUV, UL | 7400 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
|
9LG0812P4J001FAN AXIAL 80X25MM 12VDC WIRE |
92 | - |
|
数据表 |
San Ace 80L | Box | Active | 12VDC | Square - 80mm L x 80mm H | 73.0 CFM (2.04m³/min) | 0.710 in H2O (176.9 Pa) | Ball | 0.287 lb (130.18 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.00mm | 49.0dB(A) | 7.2 W | CSA, TUV, UL | 7400 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|

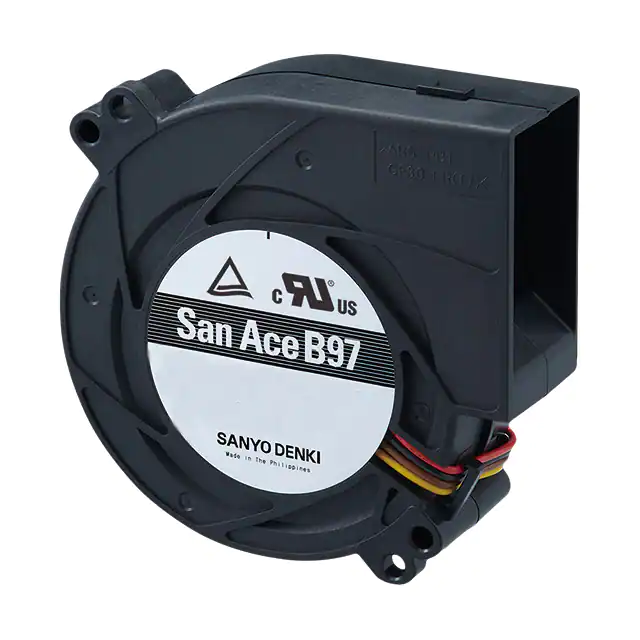

9BMC24P2G001FAN BLOWER 97.1X33MM 24VDC WIRE |
29 | - |
|
数据表 |
San Ace B97 | Box | Active | 24VDC | Rectangular/Rounded - 97.1mm L x 95mm H | 65.3 CFM (1.83m³/min) | 7.830 in H2O (1950.3 Pa) | Ball | 0.441 lb (200.00 g) | Blower | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 33.00mm | 69.0dB(A) | 74.4 W | cURus, TUV | 8200 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
19039693AFAN AXIAL 171.4X50.8MM JQD48Z3A2 |
317 | - |
|
数据表 |
Major | Bulk | Active | 48VDC | Rectangular/Rounded - 171.4mm L x 150.4mm H | 300.0 CFM (8.40m³/min) | 1.300 in H2O (323.6 Pa) | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 50.80mm | 60.2dB(A) | 35 W | CE, UL | 4450 RPM | -40 ~ 185°F (-40 ~ 85°C) | 5 Position Rectangular Connector | - |
|
RL90-18/14NFAN BLOWER 121X37MM 24VDC WIRE |
197 | - |
|
数据表 |
RL90N | Bulk | Active | 24VDC | Square/Rounded - 121mm L x 121mm H | 23.5 CFM (0.658m³/min) | - | Ball | 0.926 lb (420.03 g) | Blower | - | 37.00mm | 58.0dB(A) | 5 W | - | 2500 RPM | -22 ~ 167°F (-30 ~ 75°C) | 2 Wire Leads | - |
|
OD172SAP-24HHBFAN AXIAL 172X51MM 24VDC WIRE |
329 | - |
|
数据表 |
OD172S | Bulk | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 300.0 CFM (8.40m³/min) | 0.980 in H2O (244.0 Pa) | Ball | - | Tubeaxial | Auto Restart | 51.00mm | 57.0dB | - | cURus, TUV | 3900 RPM | -4 ~ 167°F (-20 ~ 75°C) | 2 Wire Leads | - |
|

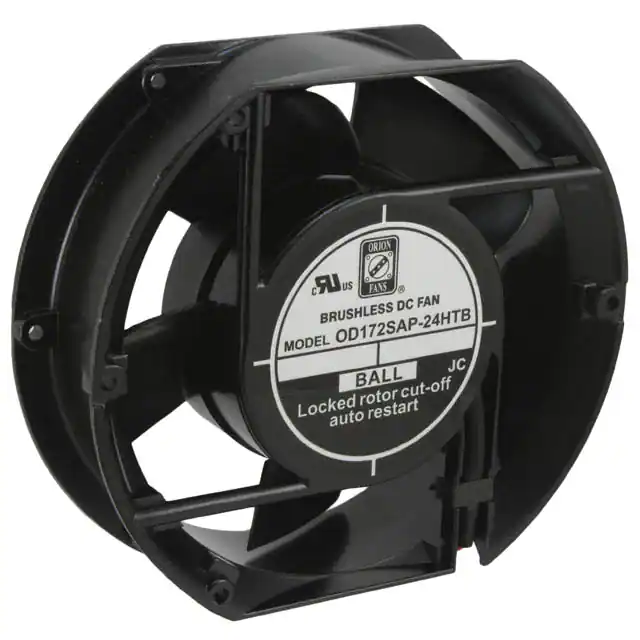

OD172SAP-24HTBFAN AXIAL 172X50.8MM 24VDC TERM |
68 | - |
|
数据表 |
OD172S | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 235.0 CFM (6.58m³/min) | 0.790 in H2O (196.8 Pa) | Ball | - | Tubeaxial | Auto Restart | 50.80mm | 52.0dB | - | cURus, TUV | 3300 RPM | -4 ~ 167°F (-20 ~ 75°C) | 2 Terminals | - |
